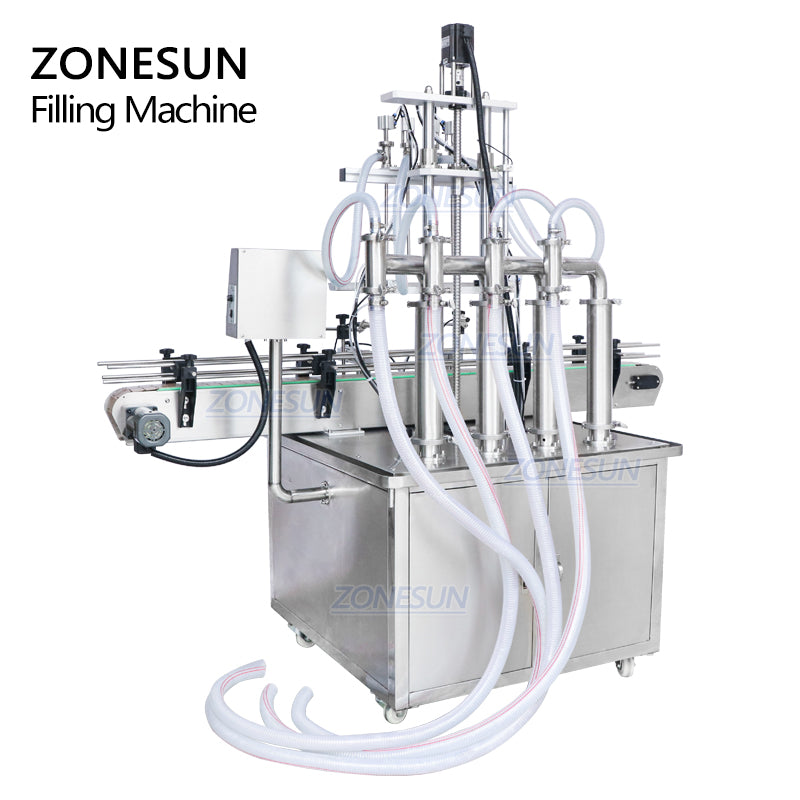

ZONESUN ZS-YT4T-4D 2/4/6 Diving Nozzles Liquid Filling Machine Water Filler

$5,647.63 USD

Sale Sold out

Shipping calculated at checkout.

Filling Head 2 heads 4 heads 6 heads

Filling Range 5-100ml 10-300ml 50-500ml 100-1000ml 500-3000ml 1000-5000ml

Pre-sale Support

Chinese Company： Guangdong Shanghang Technology Co., Ltd.

Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223

ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.

Feature

1.With diving heads, the machine can be used for foamy liquid.

2.The four nozzles can be controlled separately. Easy to operate.

3.With PLC control panel, it is easy to set working parameters like filling speed.

4.With chain conveyor belt, it can transport containers smoothly and stably. Improve work efficiency.

5.With high-quality electric eye, it can detect bottles precisely and control the machine to fill liquid. Save labor cost.

6.Made of stainless steel, it is in good design and durable.

Parameter

Model	ZS-YT2T-2D	ZS-YT4T-4D	ZS-YT6T-6D	ZS-YT8T-8D
Voltage	110/220V 50-60HZ 600W
Filling Range	5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed(based on water)	10-30botles/min	20-35bottles/min	30-40bottles/min	35-45bottles/min
Filling Nozzle Type	Lifting Filling Nozzle(Suitable for foamy liquid)
Filling Accuracy	≤士1%
Air Pressure	0.5-0.7MPa
Conveyor length	2050mm(standard)
Conveyor material	Plastic (standard)/stainless steel (custom version)
Size of air compressor connector	OD 10mm
Machine weight	220kgs	262kgs	300kgs	500kgs
Dimension	210x86x146cm	202102205cm	320x86x146cm	250x110x160cm

Application

This machine can be used for foamy liquid or normal liquid like juice, shampoo, mineral water, etc. It can work with automatic capping machine and labeling machine, realizing automated production. The machine can be widely used in pharmaceutical, beverage, daily chemical industries.

Attention

This machine will be shipped by sea. If you want a faster shipping, please contact us. Thank you!
