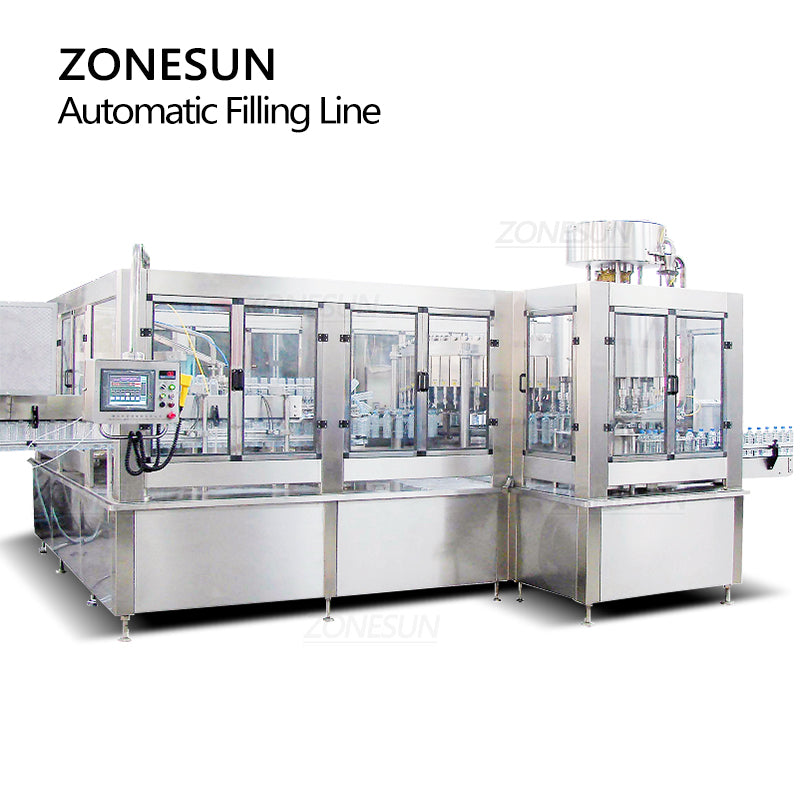

ZONESUN ZS-AFM Autoamtic PET Bottled Drinking Water Filling Machine

$82,400.00 USD

Sale Sold out

Shipping calculated at checkout.

Capacity(BPH) 12000PCS/H 24000PCS/H

Pre-sale Support

Chinese Company： Guangdong Shanghang Technology Co., Ltd.

Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223

ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.

DESCRIPTION

The all-in-one filling machine is used to fill water or drinks into plastic or glass bottles. Washing, filling, and sealing can be carried out on the same machine. The design of the machine is scientific and reasonable.

PARAMETERS

Model	ZS-AFM 14-12-5
Output Capacity	5000BPH on 500ml PET Bottle
Rinsing/Filling / Capping heads Quantity	14 pcs/12 pcs/5 pcs
PET bottle size	Bottle Diameter Φ50~495mm Bottle Highness:160~310mm, Bottle neck: 28mm, for Bottle Volume 250-2000ml
Suitable to fill	Water & Non-carbonated drink
Washing Water Required	1500 liter per hour
Washing Pressure	0.25Mpa
Required	380V AC60HZ 3-phase, (other power supply is available)
Working Power	24V DC
Control Panel Power	0.7MPa
Compressed Air Pressure (for caps arranger)	0.6m3/min
Compressed Air Consumption (for caps arranger)	236017702700
Machine Dimension	3500kg approximately

Model	Capacity/500ml	Bottle size	Weight (KG)	Dimensions (mm)
ZS-AFM 8-8-3	1000-3000bph	200-1500ml	2500	230015502500
ZS-AFM 14-12-5	3500-4500bph	200-2000ml	3500	251620162700
ZS-AFM 16-16-5	7000-8000bph	200-2000ml	5500	300022002800
ZS-AFM 24-24-8	10000-14000bph	200-2000ml	8000	415026002900
ZS-AFM 32-32-8	15000-18000bph	200-2000ml	10000	455027502900
ZS-AFM 40-40-10	18000-24000bph	200-2000ml	12000	545033002900
