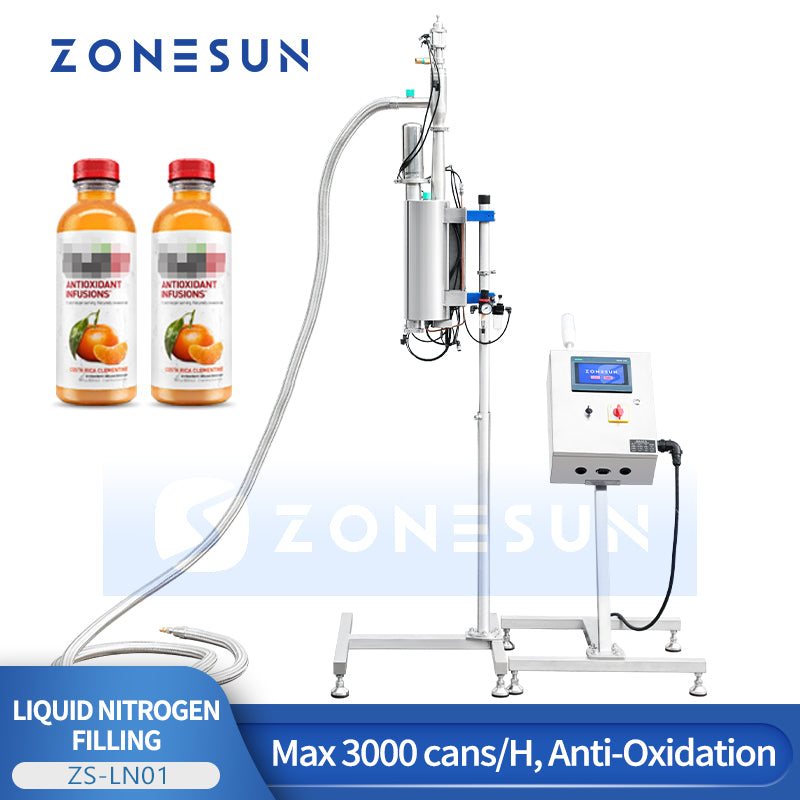

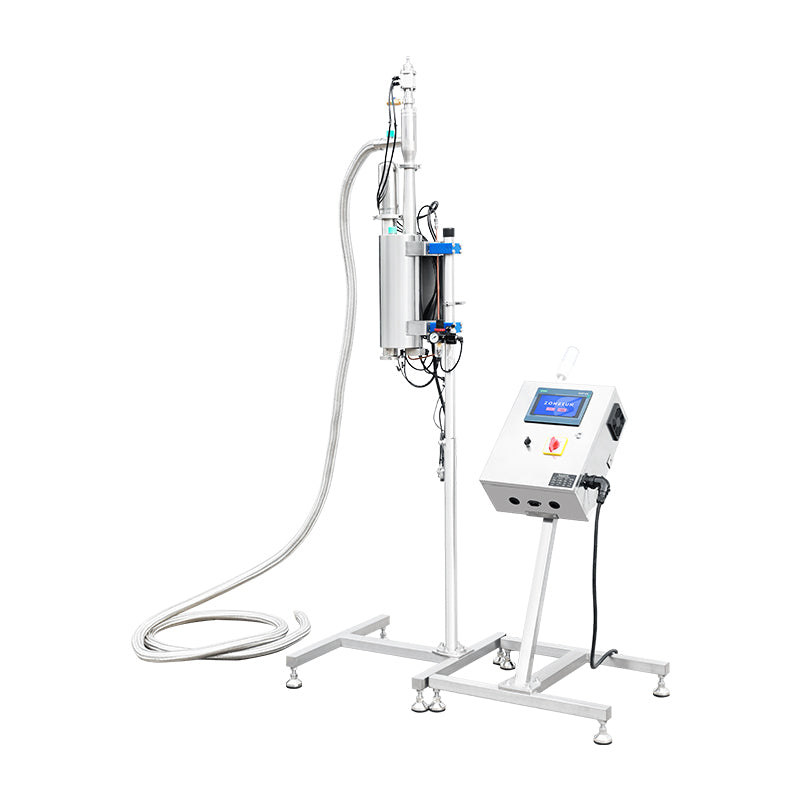

ZONESUN ZS-LN01 Liquid Nitrogen Filling Machine

DESCRIPTION

The liquid nitrogen filling machine is mainly used for bottle packaging. After nitrogen filling, it can not only avoid deformation of the bottles during transportation, but also bring a longer shelf life and better taste of the products. This machine is adaptable to any production line with a conveyor. It is widely used in the drinks and food industry.

PARAMETER

• Machine Model：ZS-LN01

• Voltage：110V AC, 60Hz / 220V AC, 50Hz

• Current：≤5A
• Applicable Bottle Height: 100-200mm
• Applicablt Bottle Diameter: 40-70mm
• Working Speed：Max 3000 cans/hour

• Humidity Range Relative humidity: 0%–100%

• Noise Level Continuous noise：≤78 dB(A)

• Machine Weight Approx.：50 kg

• Package Size Approx.：1220 × 770 × 470 mm

• Package Weight Approx. ：94 kg

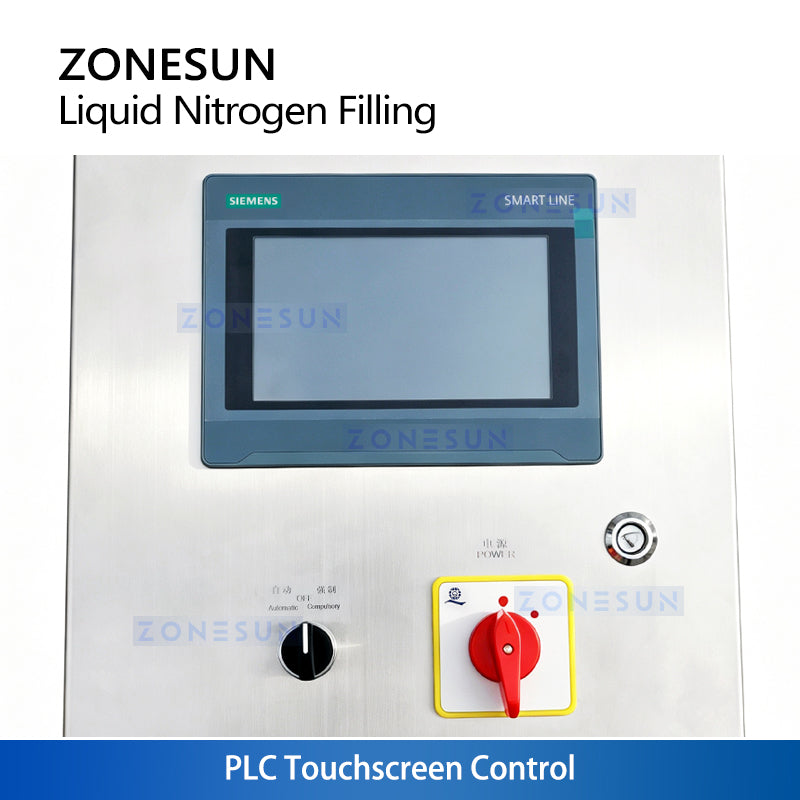

PLC Touchscreen Control

Siemens PLC and touchscreen provide centralized control for easy parameter setting, operation and monitoring.

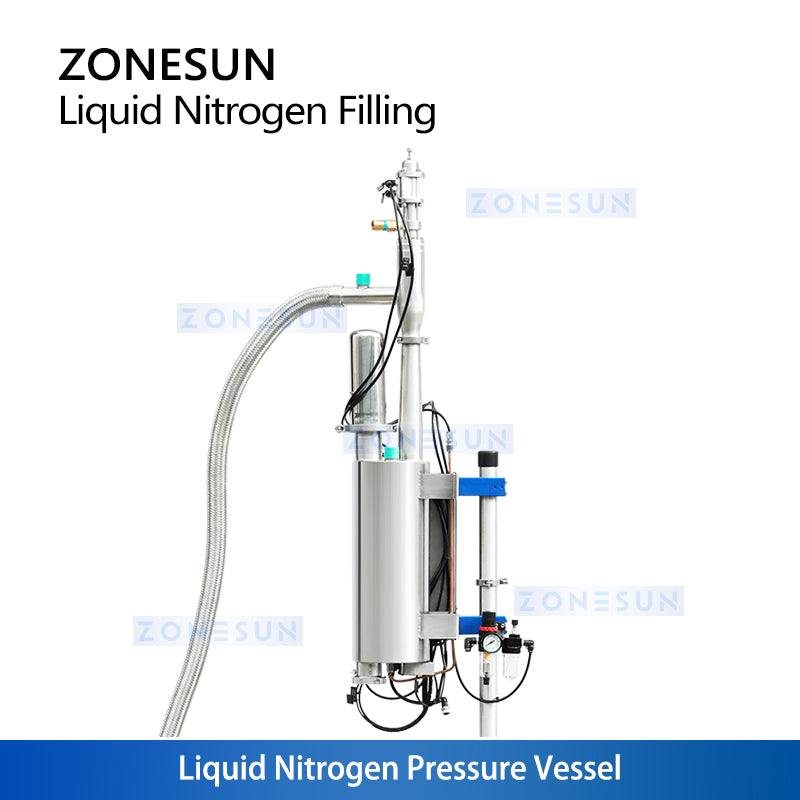

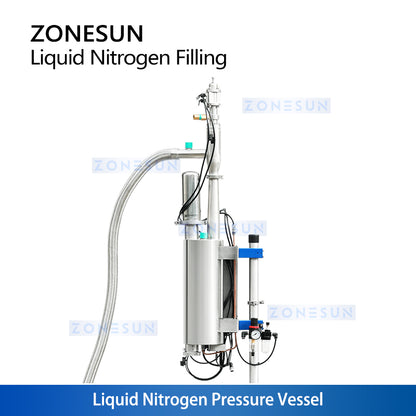

Liquid Nitrogen Pressure Vessel

Maintains a stable liquid nitrogen supply and operating pressure for consistent and continuous dosing.

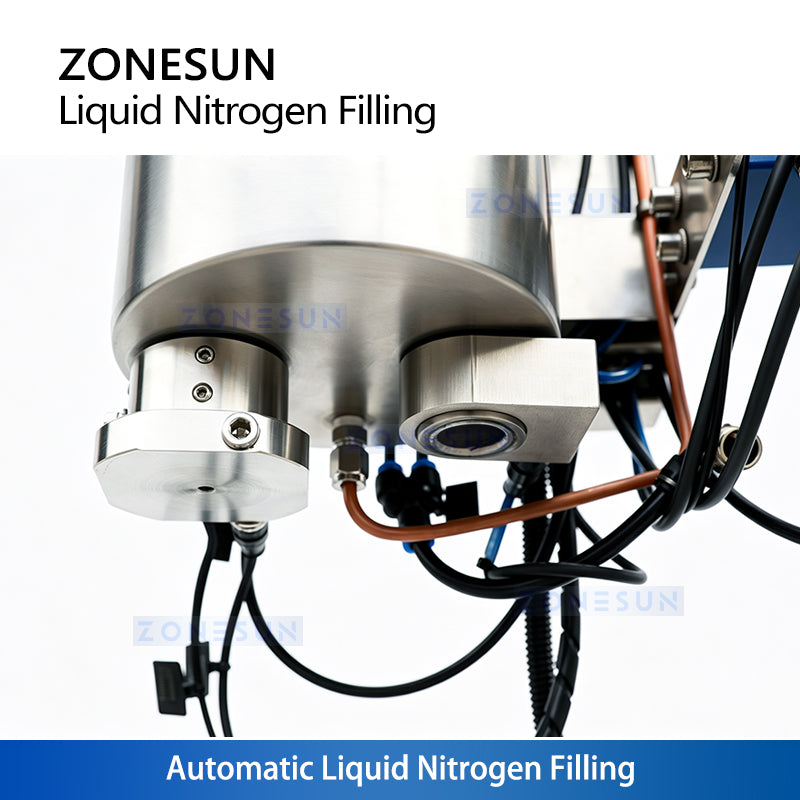

Automatic Liquid Nitrogen Filling

The system automatically supplies and dispenses liquid nitrogen, with temperature monitoring for stable filling operation.

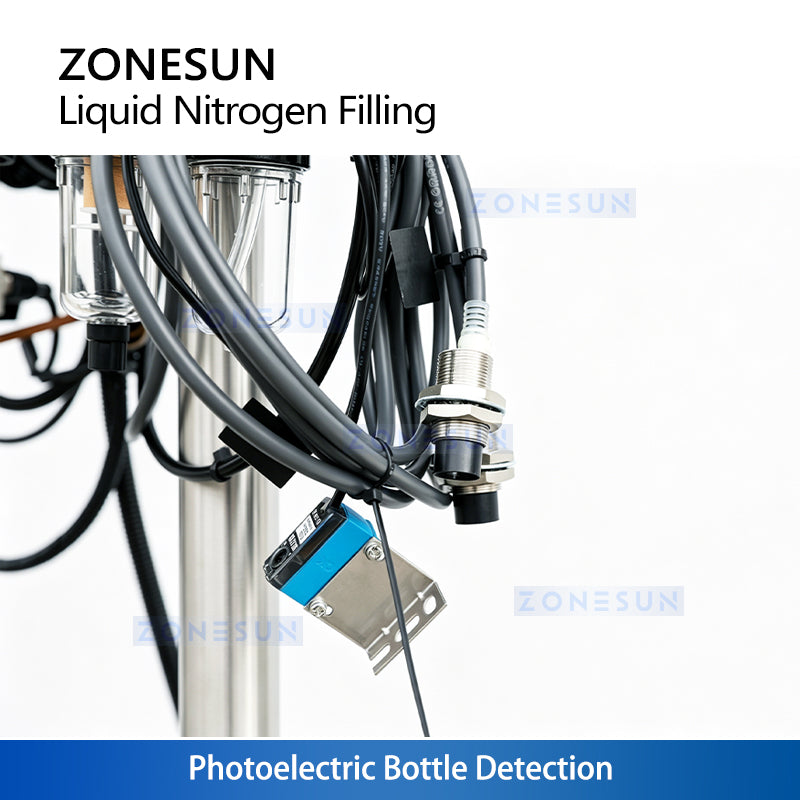

Photoelectric Bottle Detection

The photoelectric sensor detects incoming containers and coordinates automatic liquid nitrogen dispensing.

HOSE

The vacuum-insulated hose reduces heat transfer and liquid nitrogen evaporation during delivery.
