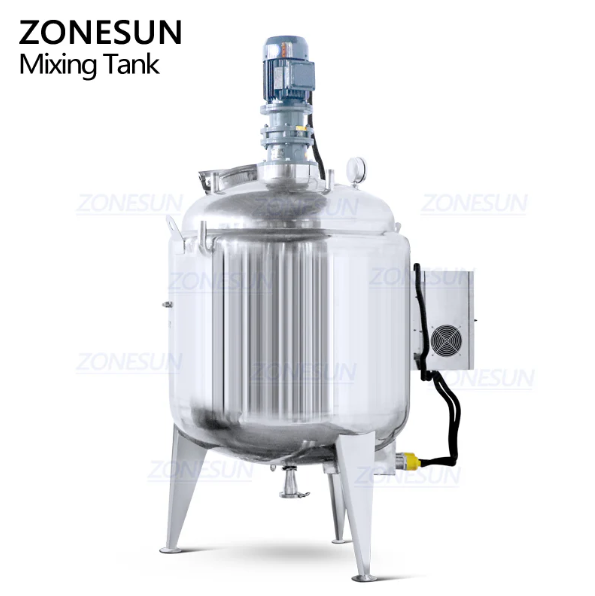

ZONESUN ZS-MB1000L Stainless Steel Paste Mixing Tank

Overview

The ZONESUN ZS-MB1000L is a stainless steel liquid and paste mixing tank constructed from SUS304 stainless steel with a 2 mm wall thickness. Designed for thorough mixing and emulsifying of liquids, pastes, and semi-viscous materials, it features a customizable paddle shape to suit different material viscosities, an optional integrated heating function (18 kW with thermometer), and a pure copper motor for low-noise, stable, long-life operation. Available in capacities from 100L to 1000L and four configuration types — Hinged Lid or Top Manway, with or without heater — the ZS-MB1000L is widely used in food, cosmetic, pharmaceutical, and chemical industries for batch mixing and emulsification.

Technical Parameters

• Model: ZS-MB1000L
• Voltage: 110V / 220V / 380V (select by variant)
• Motor Speed: 40 rpm
• Mixing Motor: 1.5 kW
• Heating Power: 18 kW (with thermometer, heater variants only)
• Outlet Diameter: 50 mm
• Ground Clearance: 400 mm
• Tank Material: SUS304 Stainless Steel, Brushed
• Wall Thickness: 2 mm
• Available Capacities: 100L / 200L / 300L / 500L / 800L / 1000L
• Gross Weight: 323 kg (200L reference)
• Packing Size: 136 × 145 × 230 cm

Key Features

• SUS304 Stainless Steel Construction: 2 mm wall thickness tank body, lid, and paddle contact surfaces are fabricated from food-grade SUS304 stainless steel, providing corrosion resistance against acidic, alkaline, and solvent-based materials while meeting hygiene requirements for food, cosmetic, and pharmaceutical processing.
• Customizable Paddle Shape: The mixing paddle configuration is customizable to match material viscosity and mixing requirements — from anchor paddles for thick pastes to propeller or turbine styles for thin liquids — enabling the same tank platform to handle diverse formulation types.
• Optional 18 kW Integrated Heating (With Thermometer): Heater variants include dual heating pipes and a built-in thermometer for fast, controlled temperature rise, enabling hot-process mixing of waxes, emulsions, and temperature-sensitive formulations without a separate heating vessel.
• Pure Copper Motor — Low Noise, Stable Power, Long Life: Pure copper winding motor delivers consistent 40 rpm agitation with lower heat generation, reduced electrical noise, and extended service life compared to aluminum-wound alternatives — supporting continuous production shifts.
• Four Configuration Types — Hinged Lid & Top Manway, With & Without Heater: Hinged Lid variants provide wide top access for fast material loading; Top Manway variants offer a sealed, pressure-capable closure for contained mixing or CIP compatibility. Both are available with or without the integrated heater.
• Six Capacity Options (100L – 1000L): Scalable from 100L pilot-scale batches to 1000L full production volumes, allowing manufacturers to select the appropriate tank size for their current output requirements without over-investing in oversized equipment.
• Dual-Side Cover for Fast Feeding: Two-sided lid opening enables rapid material loading from either side of the tank, reducing batch preparation time and improving operator ergonomics during charging of solid or liquid ingredients.
• Simple Digital Controls: Intuitive control panel with digital display provides straightforward speed and temperature monitoring, reducing operator training requirements and enabling consistent batch-to-batch process control.

Applications

• Cosmetics & Personal Care: Emulsifying and blending of creams, lotions, serums, shampoos, conditioners, and body wash formulations requiring controlled temperature mixing and consistent emulsion quality.
• Food & Condiment Processing: Mixing of sauces, dressings, jams, dairy products, and food pastes requiring hygienic SUS304 contact surfaces and thorough batch homogenization at ambient or elevated temperatures.
• Pharmaceutical & Nutraceutical: Preparation of oral liquid medicines, syrup bases, topical ointments, and nutritional supplement formulations under controlled mixing and temperature conditions.
• Chemical & Industrial: Blending of adhesives, coatings, cleaning agents, and industrial liquid formulations requiring corrosion-resistant vessel materials and adjustable agitation intensity.
• Wax & Hot-Process Formulations: Heated mixing of wax-based products, lip balm bases, candle blends, and hot-process cosmetic formulations requiring temperature-controlled agitation above ambient conditions.
• Agrochemical Formulation: Mixing of liquid pesticide concentrates, herbicide solutions, and agricultural chemical formulations requiring thorough agent reaction and consistent batch quality in corrosion-resistant vessels.
