ZONESUN ZS-CT5 Automatic Mesh Belt Cooling Conveyor for Industrial Food Production

Overview

The ZONESUN ZS-CT5 is an industrial air-cooling mesh belt conveyor designed for rapid cooling of hot products such as roasted nuts, fried foods, cleaned vegetables, and packaged items. It uses high-airflow fans and a perforated mesh belt to quickly remove residual heat and surface moisture while collecting condensed water.

Built with full SUS304 stainless steel construction and adjustable belt speed, the ZS-CT5 is ideal for integration into nut roasting, frying, and food processing lines. Available in two configurations — 3m with 6 fans (800–1,000 kg/h) and 4m with 8 fans (1,000–1,500 kg/h).

Technical Specifications

3m — 6 Wind Turbines

• Model: ZS-CT5
• Voltage: 380V, 50Hz
• Production Capacity: 800–1,000 kg/h
• Mesh Belt Width: 800 mm
• Fan Power: 0.75 kW × 6 units
• Equipment Material: Full 304 Stainless Steel
• Machine Dimensions (L×W×H): 3000 × 1100 × 1400 mm
• Weight: 250–300 kg

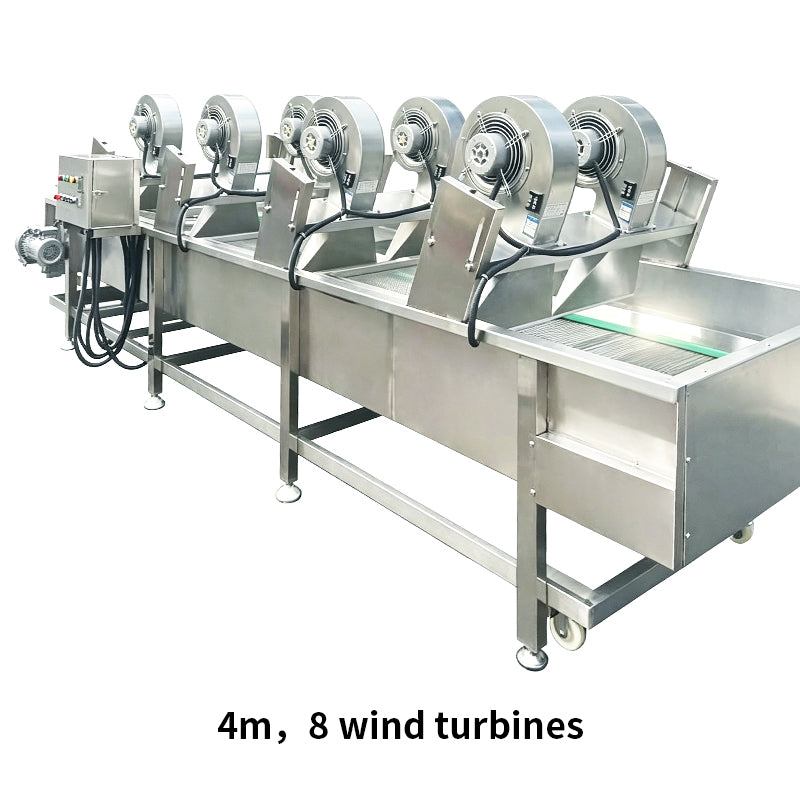

4m — 8 Wind Turbines

• Model: ZS-CT5
• Voltage: 380V, 50Hz
• Production Capacity: 1,000–1,500 kg/h
• Mesh Belt Width: 800 mm
• Fan Power: 0.75 kW × 8 units
• Equipment Material: Full 304 Stainless Steel
• Machine Dimensions (L×W×H): 4000 × 1100 × 1400 mm
• Weight: 300–350 kg

Key Features

• ✅ High-Airflow Fan Cooling — Up to 1,500 kg/h
  Multiple fans (6 or 8 units) deliver powerful, uniform airflow across the full belt width for rapid heat removal at high throughput.
• ✅ Perforated Mesh Belt — 360° Air Circulation
  Open mesh design allows air to flow through the product from below and above, ensuring even cooling on all surfaces.
• ✅ Condensate Collection System
  Built-in drainage collects moisture removed from hot products, keeping the production area clean and dry.
• ✅ Full SUS304 Stainless Steel Construction
  All structural and contact parts meet food-grade hygiene standards with excellent corrosion resistance and easy cleaning.
• ✅ Adjustable Belt Speed — Flexible Cooling Time
  Variable speed control allows operators to fine-tune cooling duration for different products and production line requirements.

Ideal Applications

• 🥜 Roasted Nuts & Seeds — Post-roasting cooling for peanuts, almonds, cashews, sunflower seeds, and mixed nuts.
• 🍟 Fried Foods — Rapid heat and oil vapor removal after frying for chips, snacks, and coated products.
• 🥦 Cleaned Vegetables & Produce — Surface drying and cooling for washed vegetables before packaging.
• 📦 Packaged & Sealed Products — Cooling of heat-sealed pouches and bags before labeling and boxing.
