ZONESUN ZS-DBC300 Roll to Sheet Cutting Machine

$1,599.00 USD

Sleva Vyprodáno

Poštovné se vypočítá na pokladně.

Model ZS-DBC300 ZS-DBC400

Type Standard Without Strip Cutting with 5 Set Cutting Blades Strip Cutting

Voltage 110V 220V

DESCRIPTION

This Roll to Sheet Cutter is a solution for cutting all kinds of roll materials into sheets or pieces, like EVA foam, PET film, PVC battery film, reflective film, leather, non-woven fabric, barley paper, knitted fabric, paper etc. in precise level.

ZS-DBC300 Machine

Machine model: ZS-DBC300
Voltage: 220V/100V 50/60HZ
Cutting speed: 34 m/min
Cutting width: 0.1-300mm
Cutting length: 0.1mm-9999.9mm
Film thickness: ≤0.4mm
Suitable packaging film: Bubble film, PE film, PP film, PVC film
Machine size: About 590*580*390mm
Machine weight: About 50kg
Package size: About 660*660*690mm
Package weight: About 87kg

ZS-DBC400 Machine

Machine model: ZS-DBC400
Voltage: 220V 50/60Hz
Cutting speed: 34 m/min
Cutting width: 0.1-400mm
Cutting length: 0.1mm-9999.9mm
Film thickness: ≤0.4mm
Suitable packaging film: Bubble film, PE film, PP film, PVC film
Machine size: About 590*680*390mm
Machine weight: About 75kg
Package size: About 900*810*670mm（With Strip Cutting Type）
Package weight: About 140kg

Note
The ZS-DBC400 machine requires an external transformer when using a 110V power supply. To prevent electrical faults or machine damage, please ensure the transformer is properly connected and the power supply voltage matches the machine requirements before starting the machine.

ZONESUN ZS-DBC300 Bubble Wrap Sheet Cutting Machine

CONTROL PANEL

The simple control panel for easy setting of work data, makes it easier to control the sealing and cutting of the film. You can also adjust the sealing temperature for high-quality sealing according to packaging film.

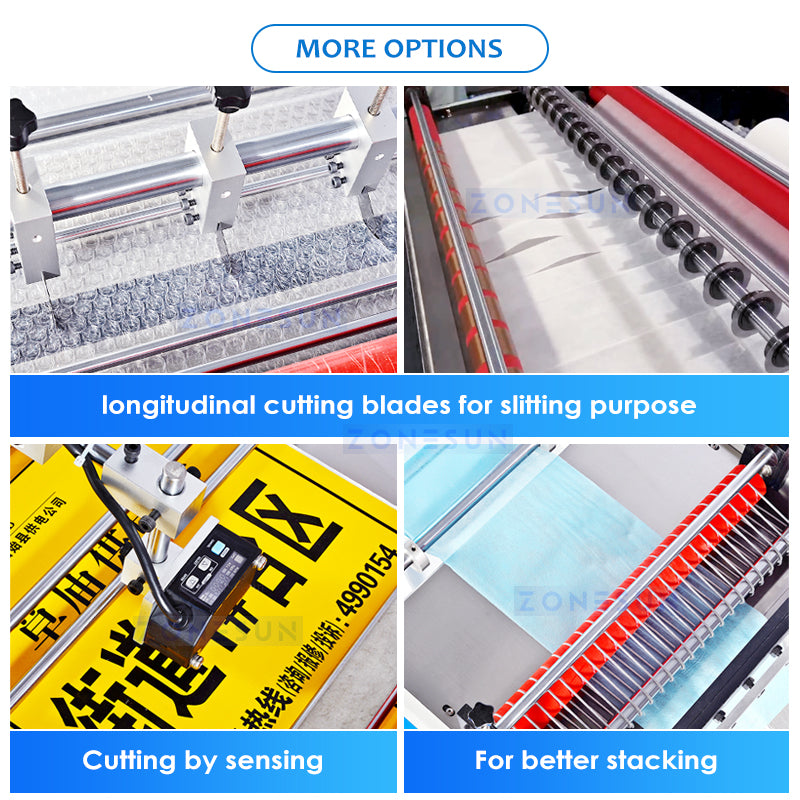

CUTTING BLADE

The high-quality cutting blade ensures clean and neat cuts, preventing jagged edges or damage to the bubble film, make the precise cutting work of bubbled film according to desired dimensions, this improves production quality.

FILM HOLDER

The film holder adopts a roller structure, which is easy to assemble and can quickly release materials during packaging. It can also effectively prevent damage to the packaging film.

SENSOR

Equipped with a sensor, it can detect the passing of bubble wrap and ensure the sealing precisely. The barometer can be used to watch the air pressure in real time.
