ZONESUN ZS-TB700D Automatic Top Bottom & Side Bottle Labeling Machine

Description

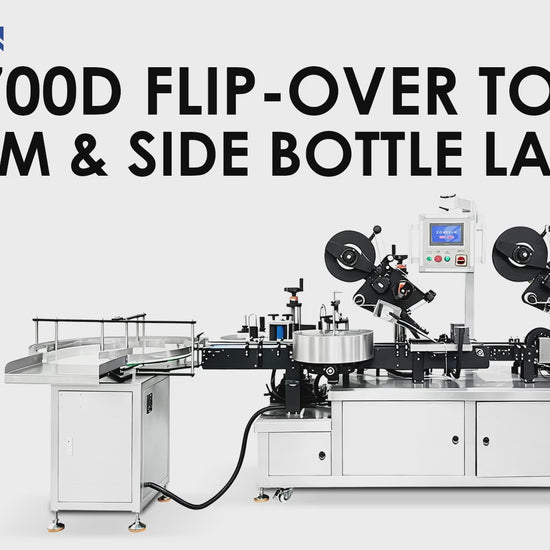

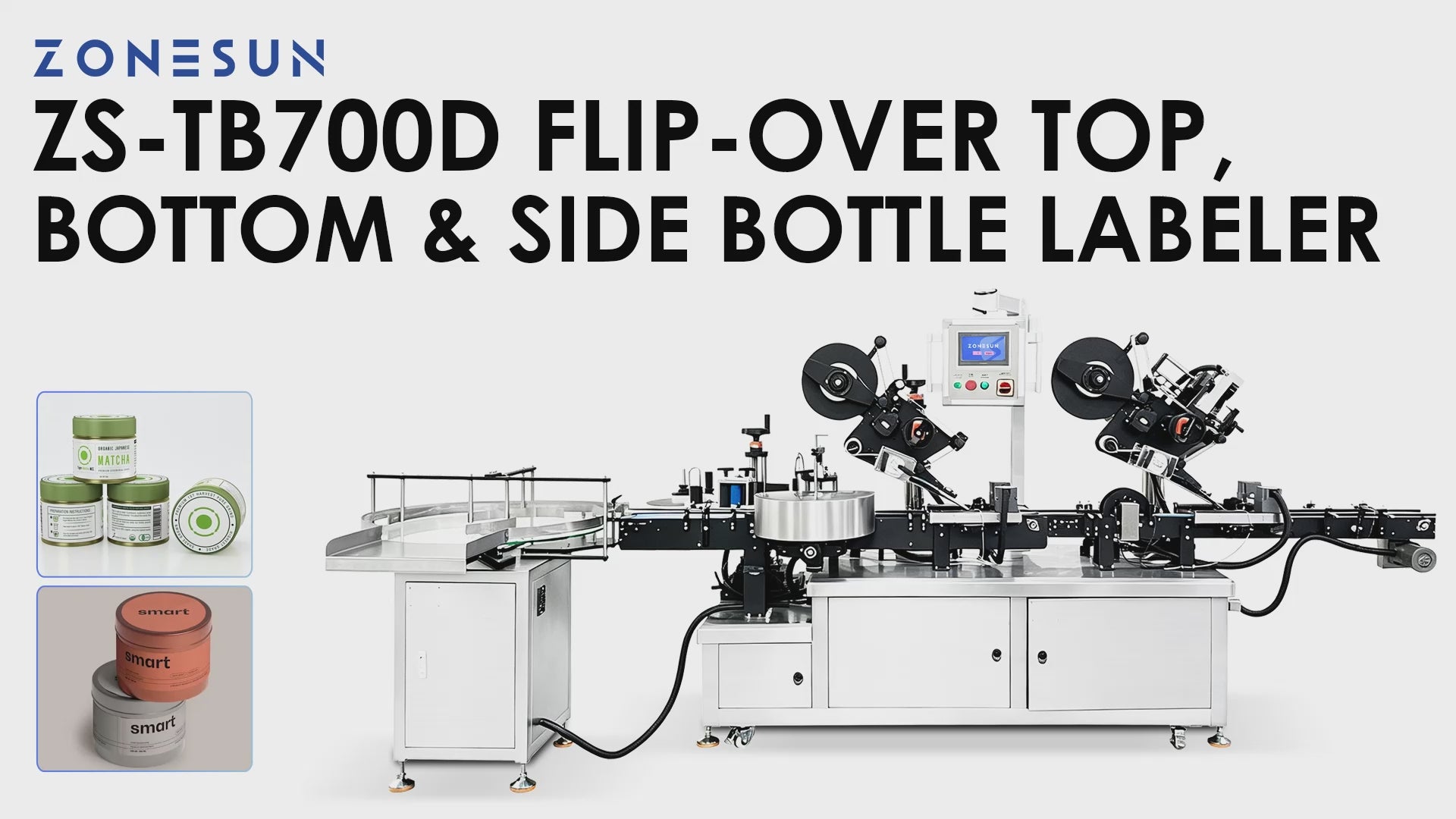

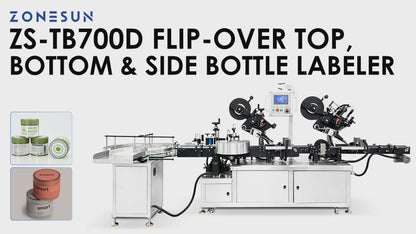

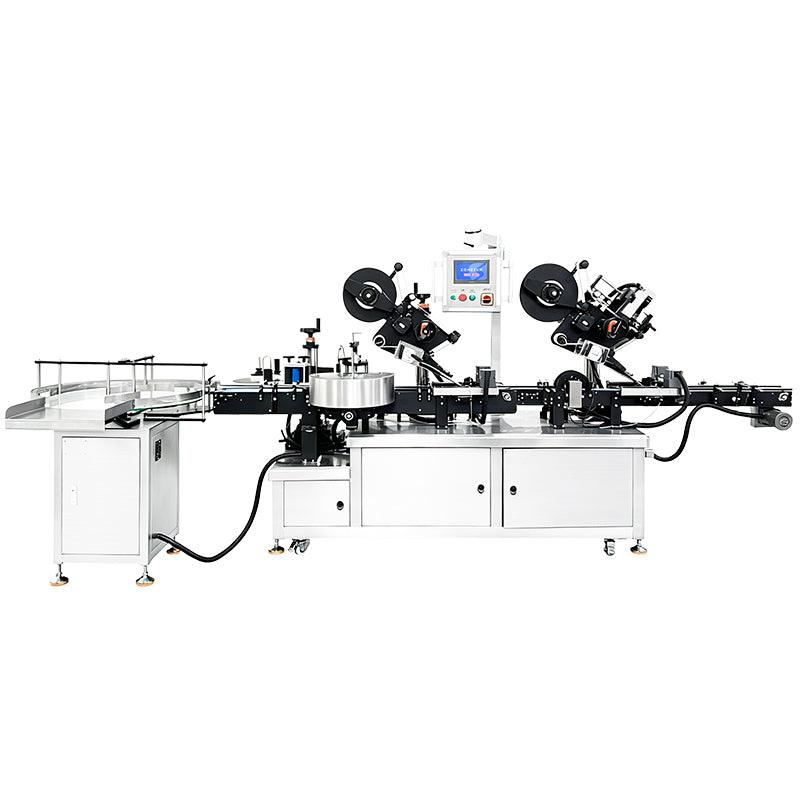

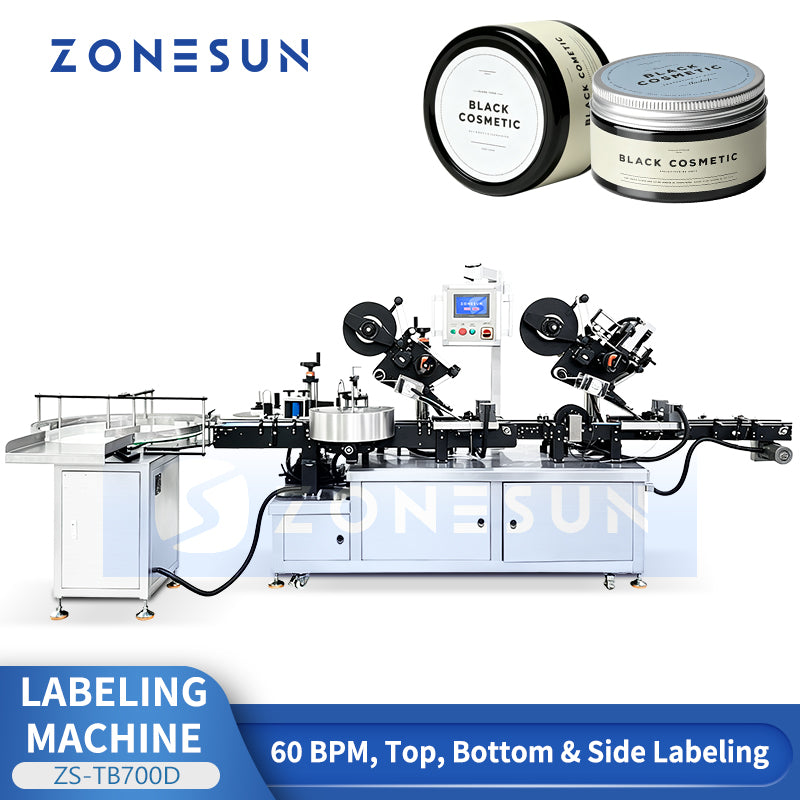

The ZONESUN ZS-TB700D Automatic Top, Bottom & Side Bottle Labeling Machine is designed for multi-surface labeling of round jars, bottles and rigid containers. It integrates automatic bottle feeding, side labeling, top labeling, bottle turnover and bottom labeling into one continuous process.

With a speed of up to 60 bottles/min, the system reduces manual container handling and supports efficient multi-position labeling. Label positions, bottle handling parts and machine settings can be customized according to the container and label specifications.

Working Process

Bottle Feeding → Side Labeling → Top Labeling → Automatic Turnover → Bottom Labeling → Finished Product

The turnover mechanism changes the container orientation during conveying so the bottom surface can be labeled automatically.

Technical Specifications

• Machine Model: ZS-TB700D

• Power Supply: 110/220 V, 50 Hz

• Power: 2.5 kW

• Labeling Speed: 60 bottles/min (depending on bottle size)

• Labeling Accuracy: ±1 mm (excluding label error)

• Suitable Bottle Size: Customizable

• Suitable Label Size (W × H): 10–210 × 15–70 mm

• Label Roll Outer Diameter: ≤300 mm

• Label Roll Inner Diameter: Φ76 mm

• Air Pressure: 0.4–0.6 MPa

• Machine Dimensions (L × W × H): Approx. 3200 × 1300 × 1500 mm (Labeling Machine)

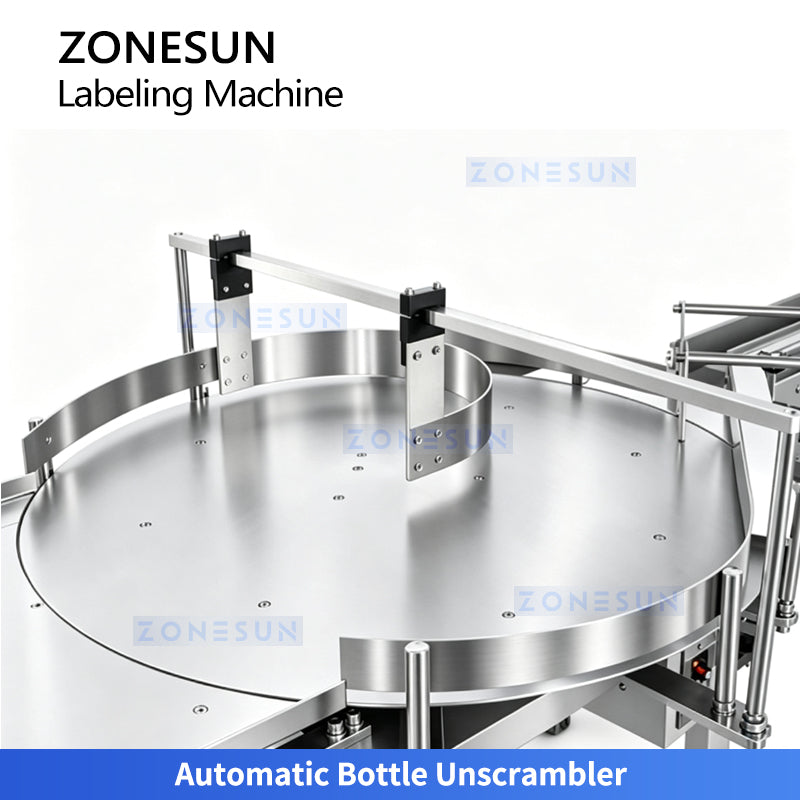

Automatic Bottle Unscrambler

Automatically organizes and feeds bottles into the labeling line for smooth, continuous production with reduced manual handling.

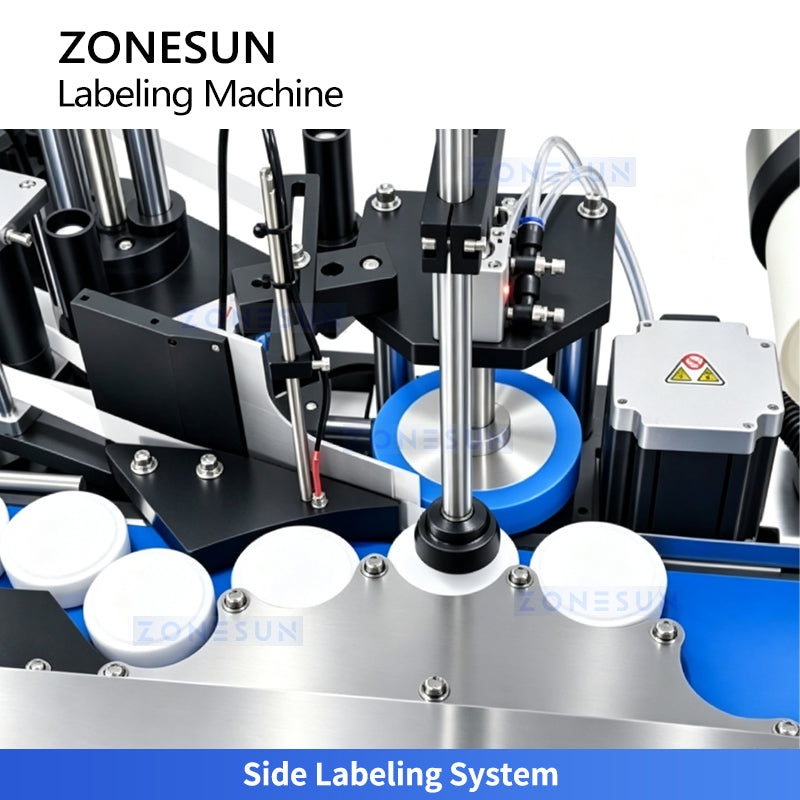

Side Labeling System

Accurately applies labels to one or both sides of bottles, with adjustable positioning to accommodate different bottle shapes and sizes.

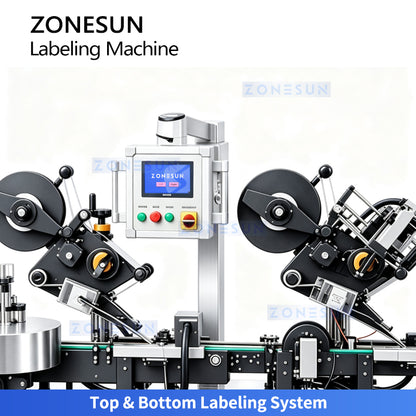

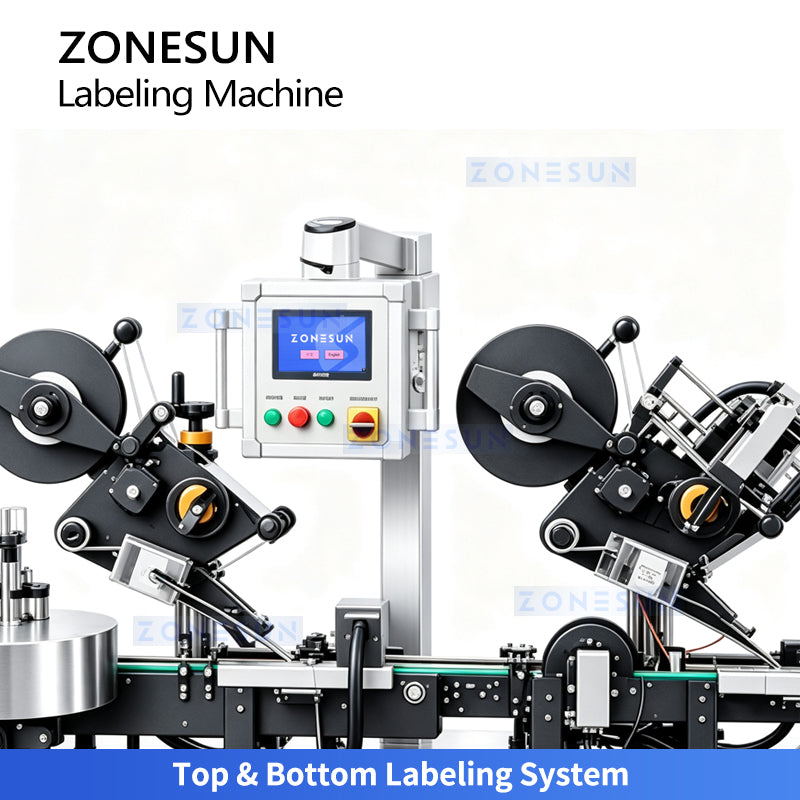

Top & Bottom Labeling System

Independent labeling heads apply labels to the top and bottom surfaces, with adjustable positions for different container sizes and labeling requirements.

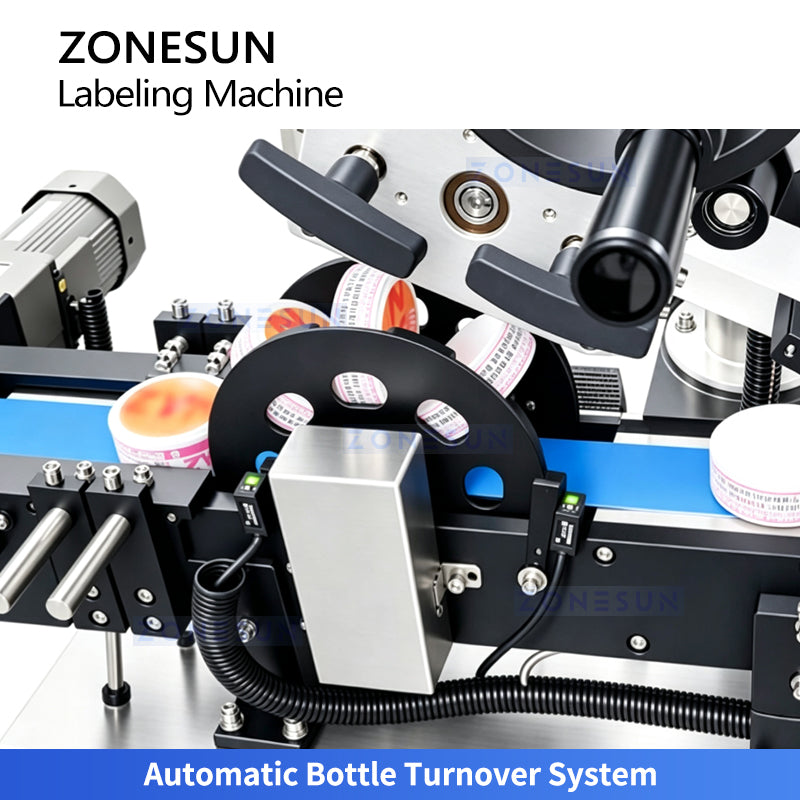

Automatic Bottle Turnover System

Automatically flips containers for bottom labeling, enabling continuous top-and-bottom labeling without manual handling.

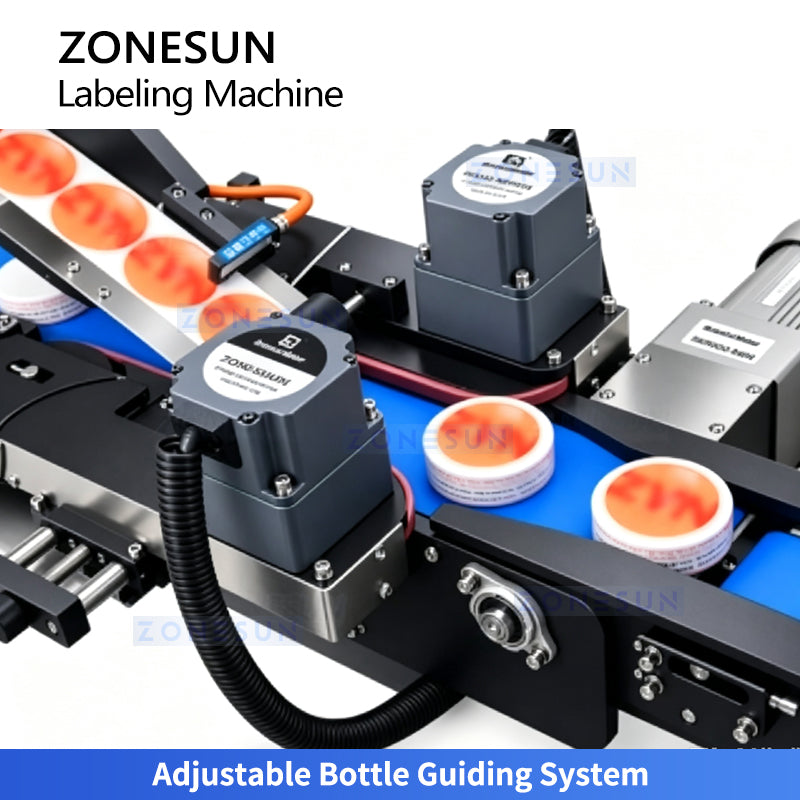

Adjustable Bottle Guiding System

Adjustable guides keep containers aligned and stable during conveying, helping improve labeling accuracy and ensure consistent label placement.

Why Choose the ZS-TB700D?

• Top, bottom and side labeling in one line: Reduces the need for separate machines or manual turning between labeling steps.
• Automatic bottle turnover: Presents the bottom surface to the labeling head automatically during conveying.
• Independent labeling heads: Side, top and bottom labeling positions can be adjusted separately for different compatible packages.
• Automatic bottle feeding: The unscrambling and guiding system helps maintain a continuous production flow.
• Expandable configuration: Optional coding and integration with compatible filling or capping equipment can be evaluated for complete packaging lines.

Best-Suited Containers

This model is best suited to rigid round jars, bottles and containers that can remain stable during side labeling and automatic turnover. Typical applications include cosmetic jars, cream containers, shoe-care containers and other round packages that require labels on multiple surfaces.

Needs separate evaluation: soft pouches, flexible containers, strongly tapered bottles, oval containers, irregular shapes, unstable lightweight packages or products with recessed labeling surfaces.

What Needs to Be Customized?

Before Ordering, Please Confirm

• Clear product photos or video
• Container diameter, height and weight
• Top, bottom and side label dimensions
• Exact label application positions
• Label material and roll dimensions
• Required production speed
• Whether variable coding is required
• Available voltage and compressed-air supply
• Whether the machine must connect with existing filling, capping or conveying equipment

Performance Note: The listed speed and accuracy are reference values. Actual performance depends on container stability, label size and material, turnover reliability, conveyor speed and the final customized configuration.

Frequently Asked Questions

Can it apply top, bottom and side labels in one process?
Yes. The machine is designed to complete side labeling, top labeling, automatic turnover and bottom labeling within one continuous workflow.

Can it label only one or two surfaces?
Yes. The labeling sections can be configured according to the required process, but the final control logic should be confirmed before production.

Can it handle different jar or bottle sizes?
Yes, within the machine's adjustment and customization range. Significant size changes may require different guides, turnover parts or other change parts.

Why is sample testing recommended?
The turnover process depends heavily on container shape, center of gravity and surface geometry. Testing with actual containers helps confirm stable conveying and label placement.

Can it be integrated into an existing packaging line?
Yes. Conveyor height, speed, product spacing and signal connection should be checked against upstream and downstream machines.

Need Help Confirming Your Labeling Application?

Send us your container dimensions, container photos, top/bottom/side label sizes, label positions and target speed. We can evaluate the bottle feeding, turnover and labeling configuration before production. Use the chat window on this page to contact ZONESUN.
