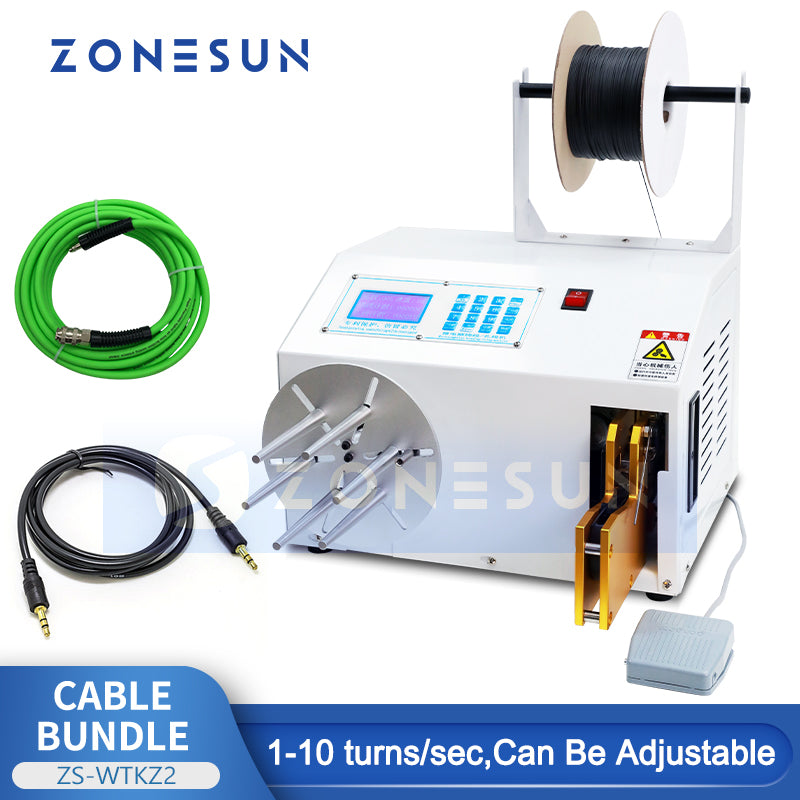

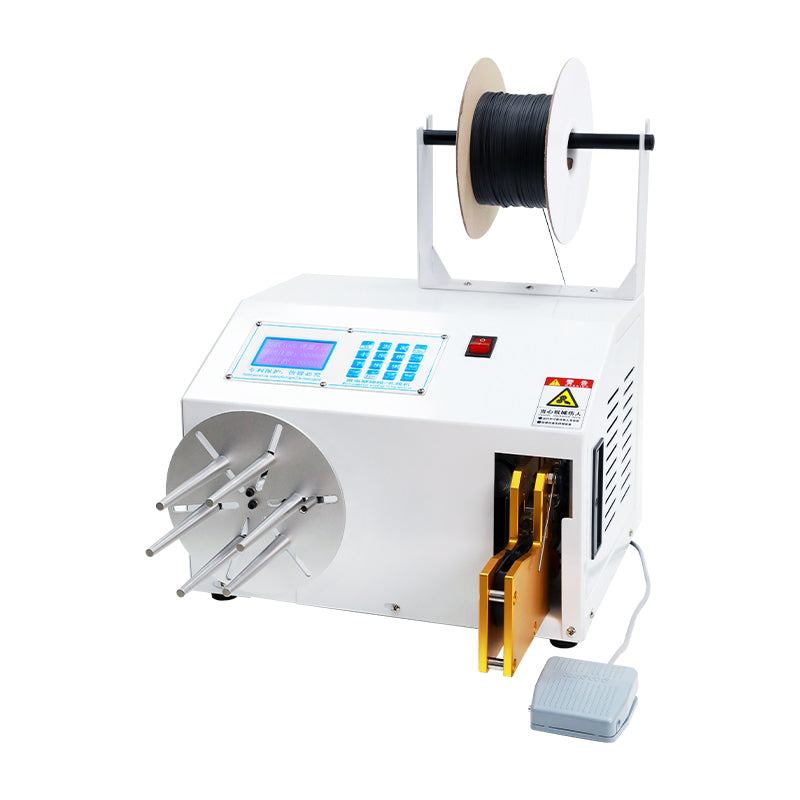

ZONESUN ZS-WTKZ2 Automatic Cable Winding and Binding Machine Multifunctional Machinery

Description

The ZONESUN ZS-WTKZ2 is a fully automatic cable winding and binding machine designed for efficient bundling of various wire types. Supporting cable tie lengths from 60 to 260 mm, it integrates winding, inductive sensing, automatic tying, and real-time parameter control into one compact system. Equipped with a PLC-controlled interface and stainless steel winding reel, it ensures consistent bundling, reduced labor intensity, and compatibility with AC/DC power cords, data cables, headphone wires, and more. Ideal for electronics, wire harness production, and cable assembly lines.

Parameter

• Model：ZS-WTKZ2A

• Binding Diameter：5–30 mm

• Tying Wire Length：70–140 mm

• Coil Diameter：50–150 mm

• Winding Speed：1–10 turns/sec

• Rated Power：300 W

• Voltage：AC 220 V, 60 Hz

• Tying Wire Type：PE oval fan wire

• Machine Weight：22 kg

• Machine Dimensions (L × W × H)：50 × 43 × 36 cm

• Model：ZS-WTKZ2B

• Binding Diameter：5–50 mm

• Tying Wire Length：70–200 mm

• Coil Diameter：50–200 mm

• Winding Speed：1–10 turns/sec

• Rated Power：750 W

• Voltage：AC 220 V, 60 Hz

• Tying Wire Type：PE oval fan wire

• Machine Weight：28 kg

• Machine Dimensions (L × W × H)：50 × 50 × 40 cm

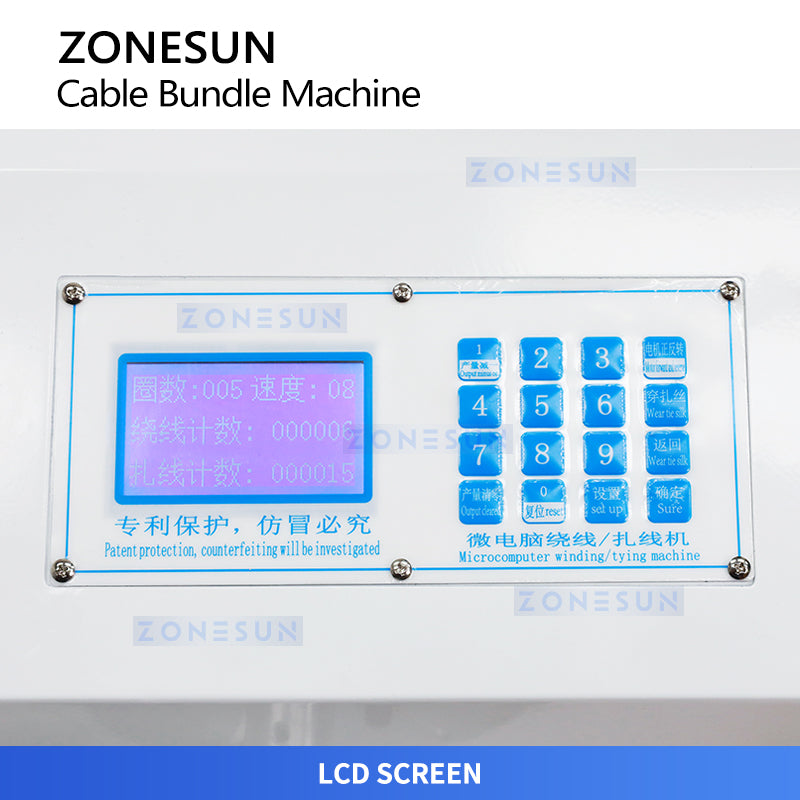

LCD SCREEN

Displays real-time status, speed, and production count.Allows precise parameter setting for efficient cable tying and batch control.

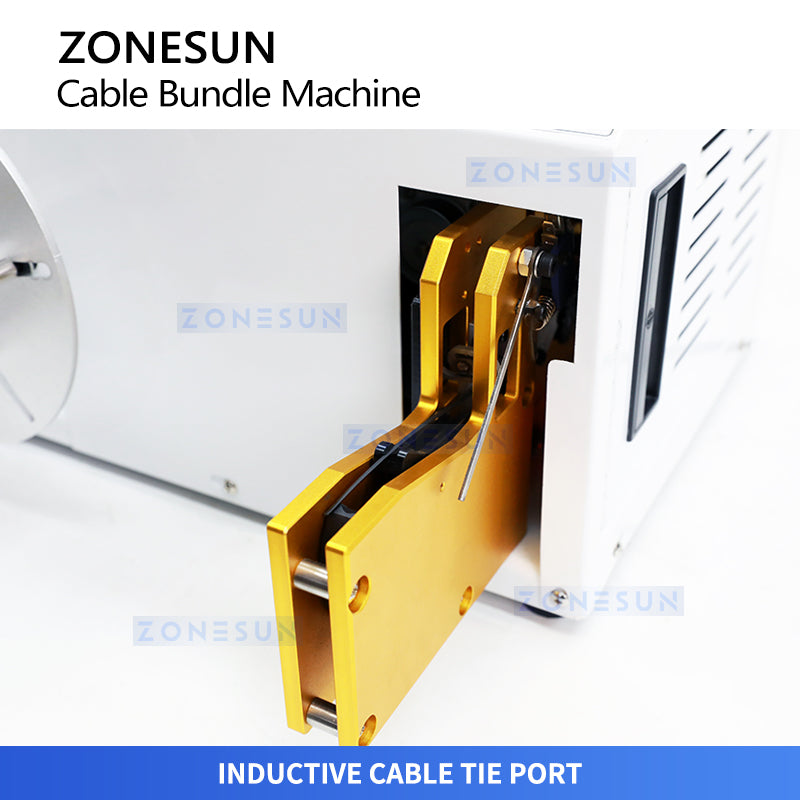

INDUCTIVE CABLE TIE PORT

Detects cable presence through induction and triggers automatic tying.Ensures precise positioning and consistent bundling for efficient operation.

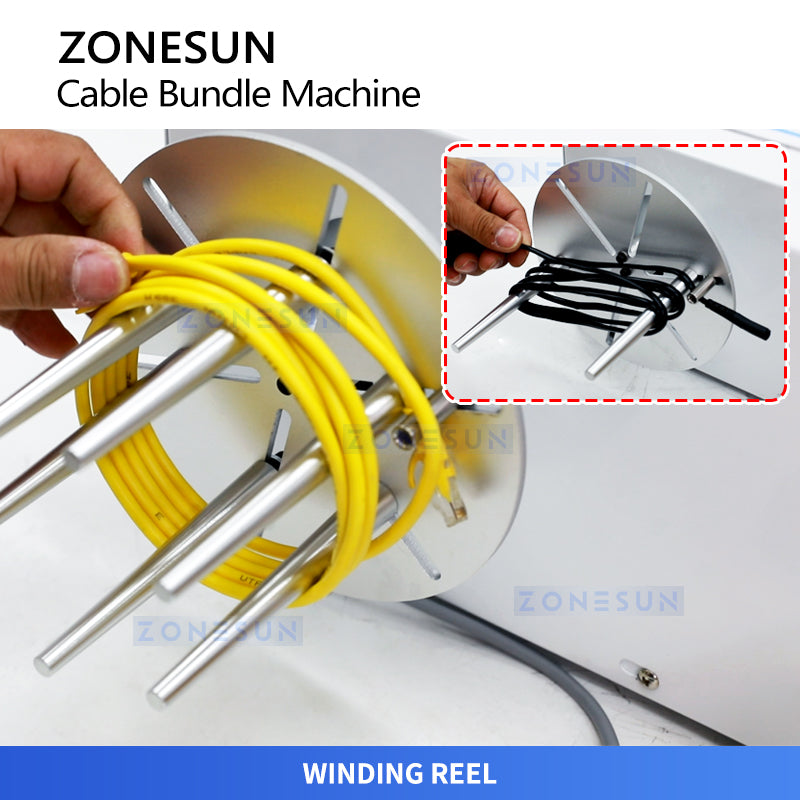

WINDING REEL

Made of stainless steel, the number of turns can be adjusted according to needs. Just step on the pedal to start winding.

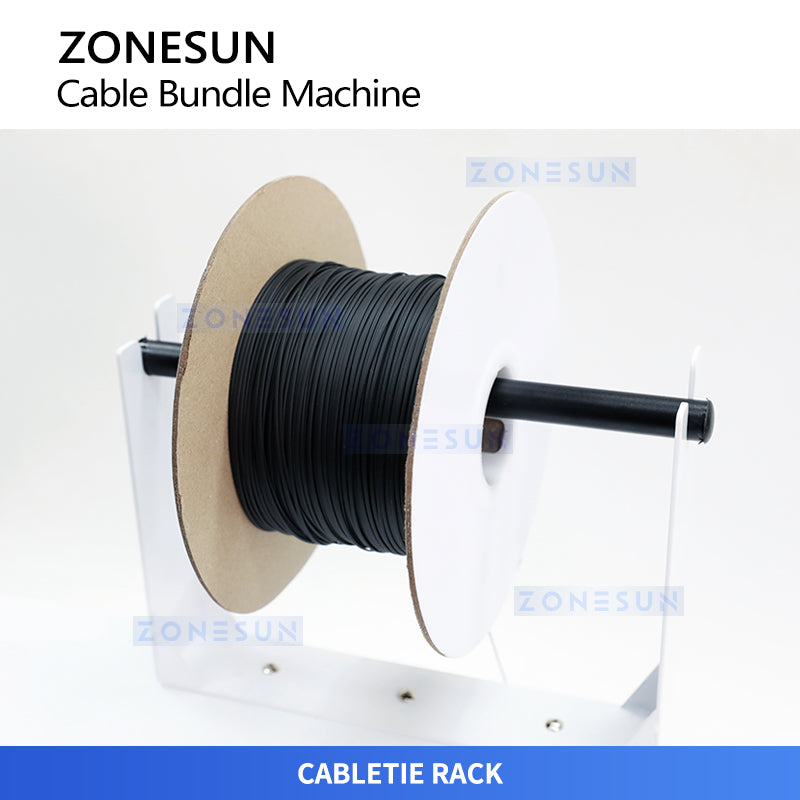

CABLETIE RACK

Made of stainless steel, the number of turns can be adjusted according to needs. Just step on the pedal to start winding.

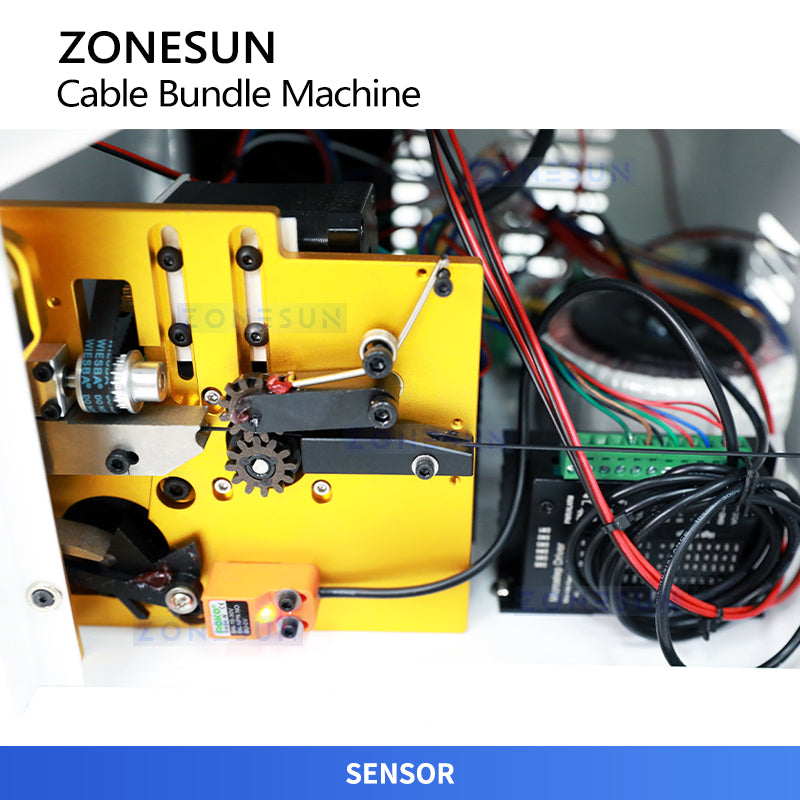

SENSOR

Detects cable position with high sensitivity. Triggers tying action to ensure precise and consistent bundling.
