ZONESUN ZS-WTKZ4 Automatic Nylon Cable Tie Binding Machine Wire Strapping Machine

Description

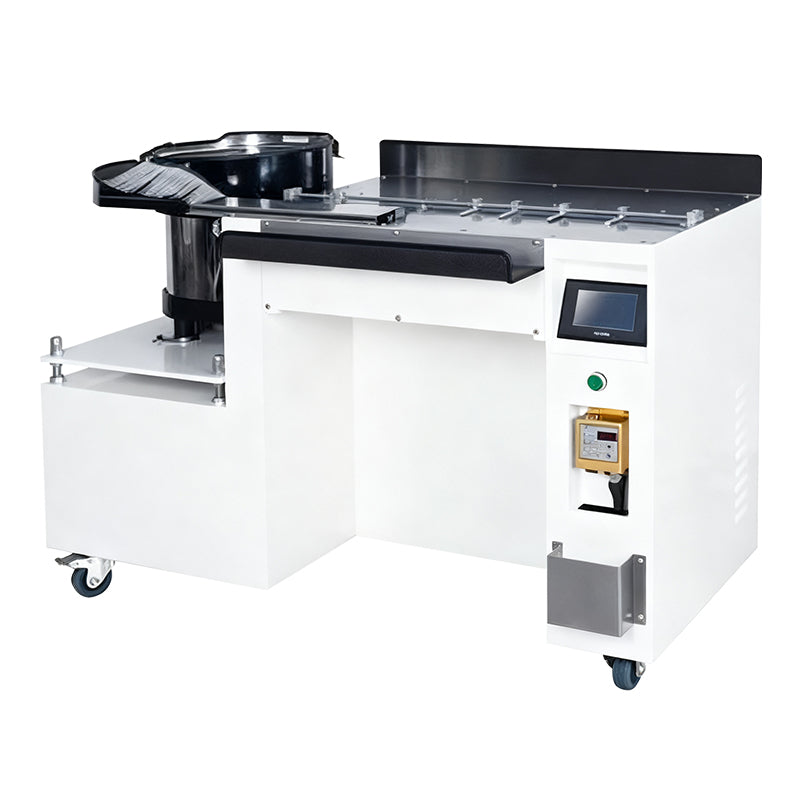

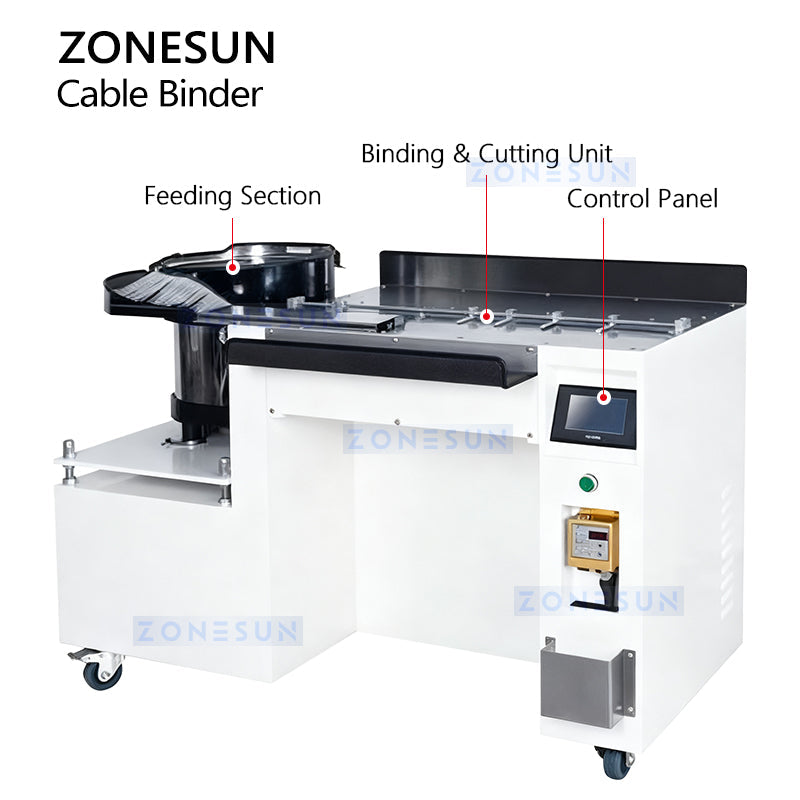

The ZONESUN ZS-WTKZ4 is a fully automatic nylon cable tie machine designed for efficient wire harness bundling. With a productivity of 0.8 seconds per cycle (up to 1800 straps per hour), it streamlines feeding, binding, tightening, and cutting in one process. Controlled by a PLC program with a high-definition touchscreen, it allows easy parameter adjustments and stable operation. The vibration bowl feeder ensures continuous tie supply without manual input, while the binding and cutting unit guarantees neat, consistent results. Compact yet powerful, it is widely used in new energy vehicles, charging equipment, aerospace, medical devices, electronics, and home appliances.

Parameter

• Model: ZS-WTKZ4
• Power Supply: AC220V, 50/60Hz
• Power Consumption: 750 W
• Applicable Wire Length: 120 mm

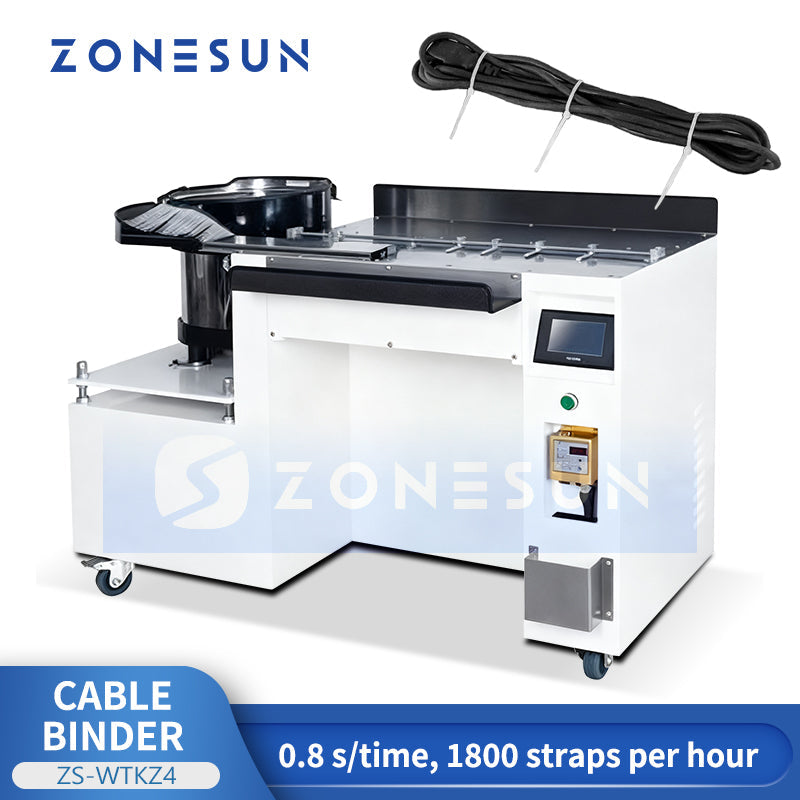

• Productivity: 0.8 s/time (1800 straps/hour)
• Machine Weight: About 120 kg
• Machine Size (L×W×H): 1230 × 680 × 900 mm

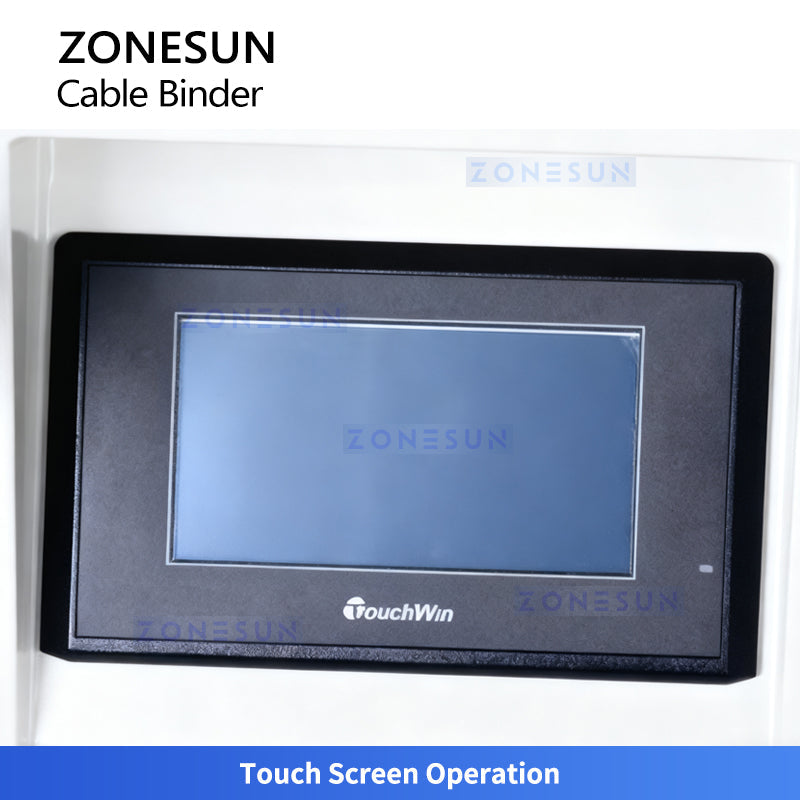

Touch Screen Operation

It is controlled by a PLC program, and parameters can be set via a high-definition touch screen.The operation is simple and convenient.

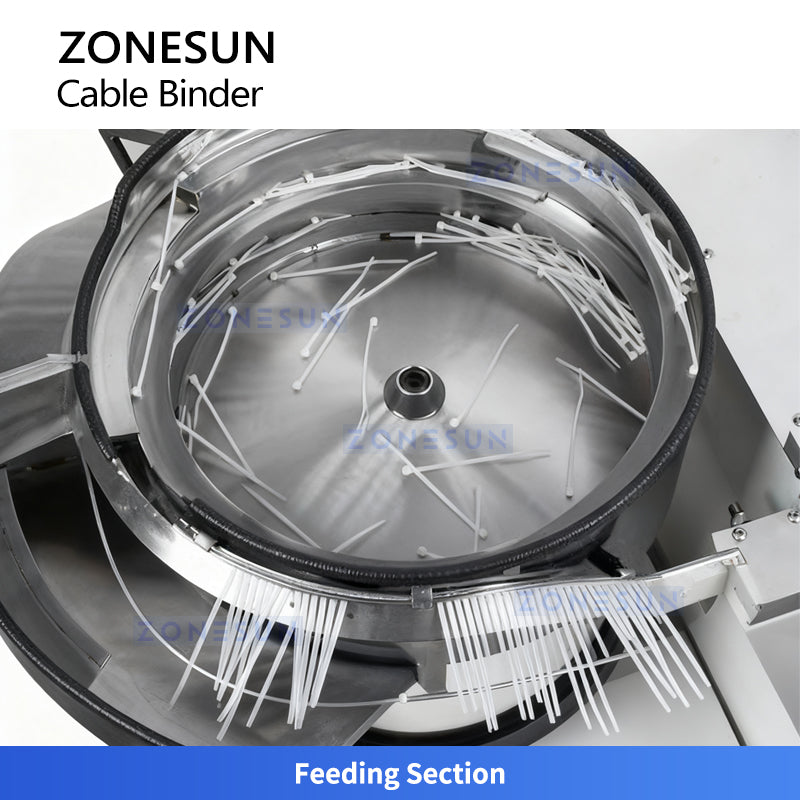

Feeding Section

For bulk materials, vibration bowl feeding is adopted, which requires no manual intervention.This improves work efficiency and reduces labor Costs.

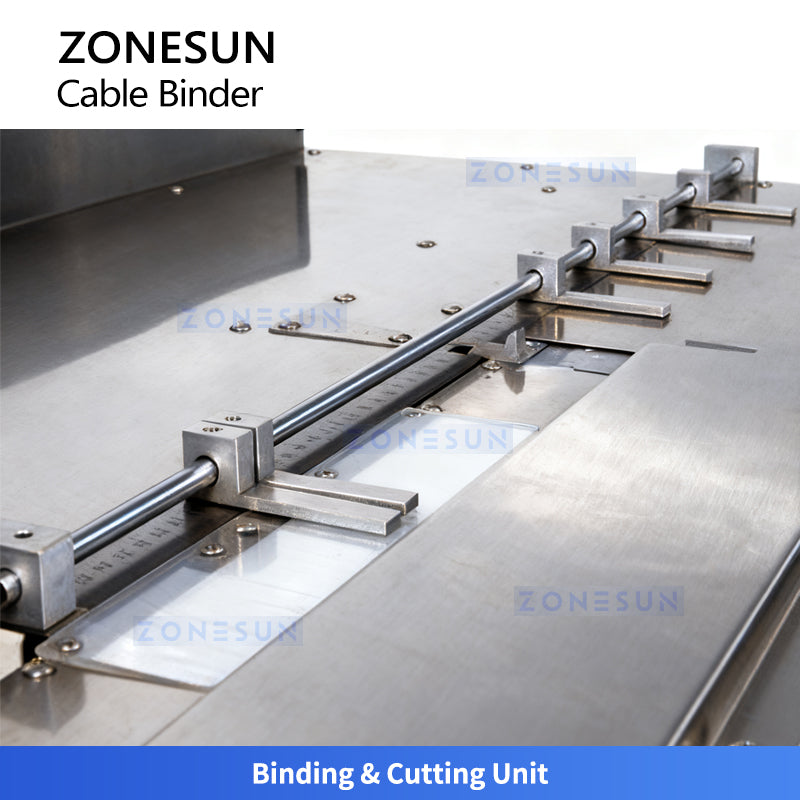

Binding & Cutting Unit

Guides nylon cable ties into position, clamps them securely for tightening, and cuts the excess tail to ensure neat and consistent results.

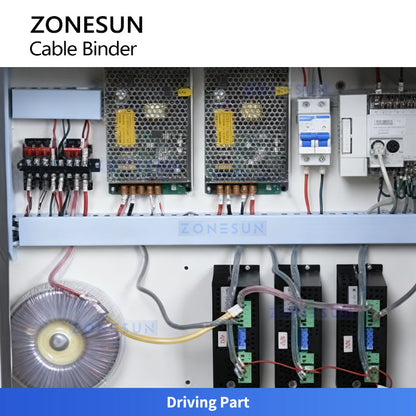

Driving Part

Controlled by a stepper motor, the rotation and feeding are more precise and stable.
