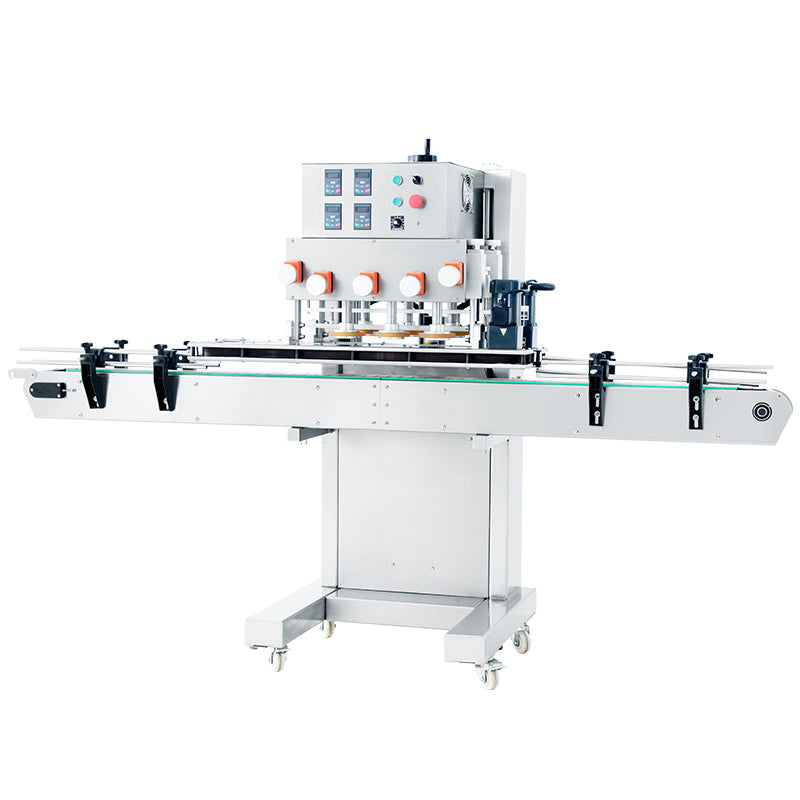

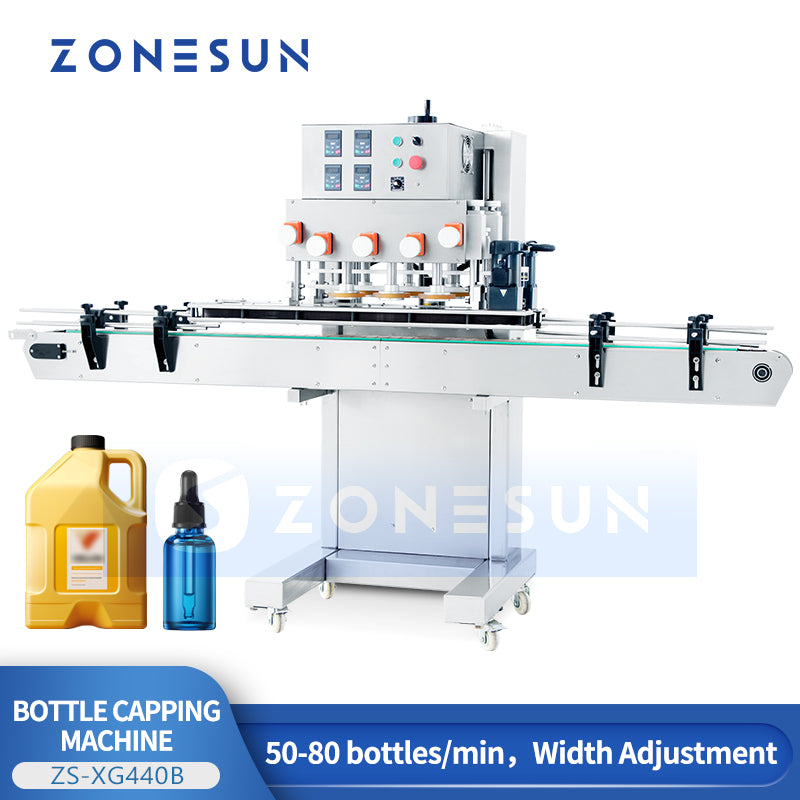

ZONEUSN ZS-XG440B Spind Spray Screw Capping Machine

ZONEUSN ZS-XG440B Spind Spray Screw Capping Machine

$6,499.00 USD
$6,499.00 USD
Sleva Vyprodáno
Poštovné se vypočítá na pokladně.
Voltage

Description

This high speed capping machine can work stably and fast,the working speed is adjustable,and this machine is with guiding device which is adjustable according to bottle width.This ensures the capping speed and effect. With rotary knob can be used to control the width according to bottle diameter.it is with visual data that can help you control the capping width more accurately.This machine is suitable for food,beverage,cosmetics and pharmaceutical industries.


Product information

Machine Model    ZS-XG440B
Voltage    220V 60HZ
Capping Speed    About 50-80 bottles/min
Bottle height    45-320mm
Botle diameter    23-100mm
Cap diameter    19-55mm
Capping Torsion    4-9 kgf/cm
Air pressure    0.4-0.6Mpa
Max power    300W

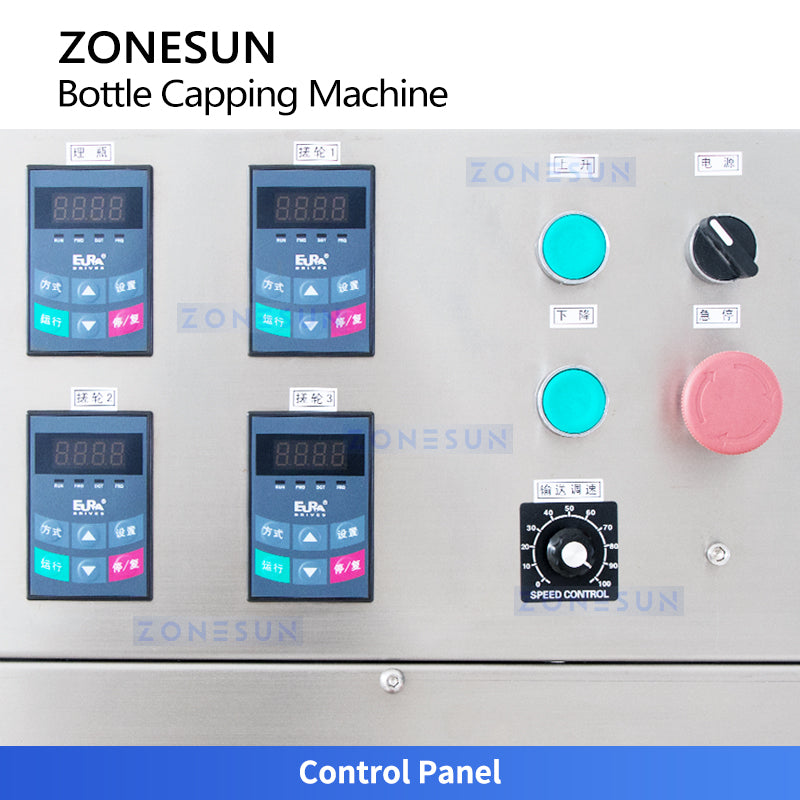

Control Panel

Adjusts the speed of capping wheels and the guiding device easily via intuitive digital meters and switches, simplifying machine setups for various bottle dimensions.

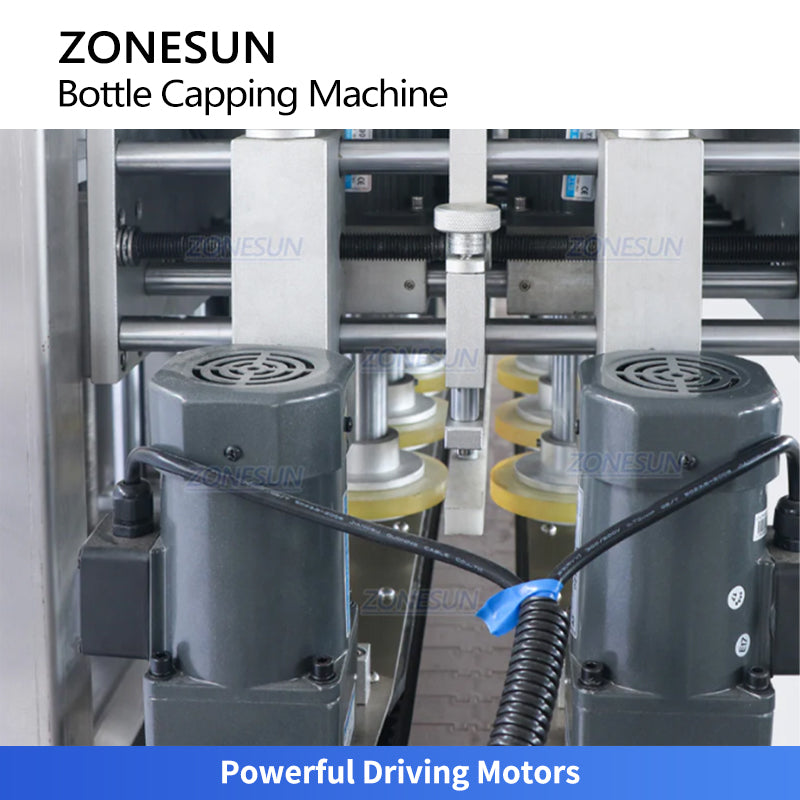

Powerful Driving Motors

Drives the capping mechanism efficiently via high-performance heavy-duty motors, delivering faster speeds up to 80 bottles per minute for reliable, high-volume production.

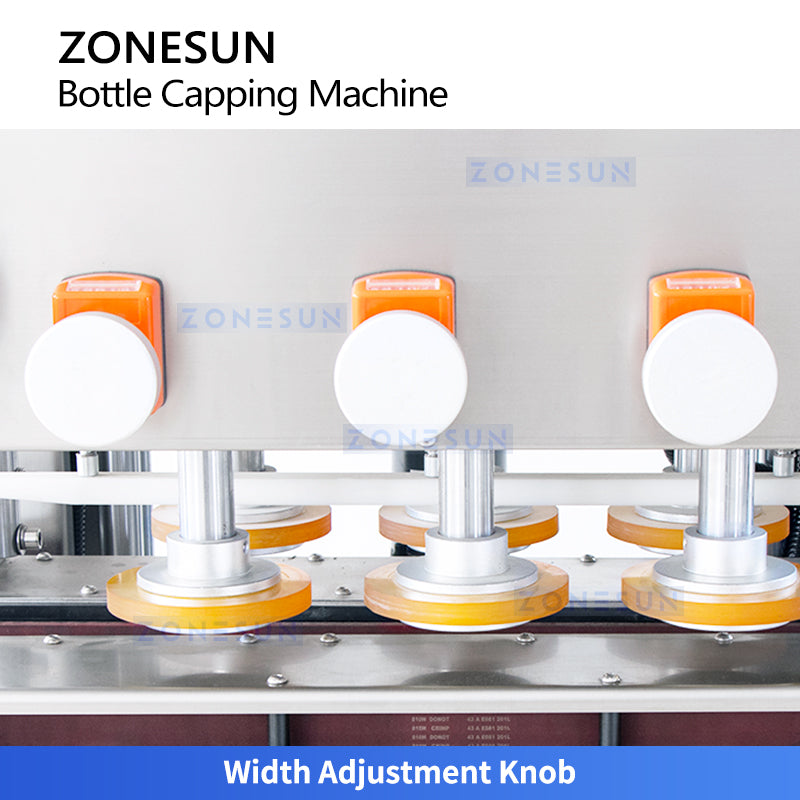

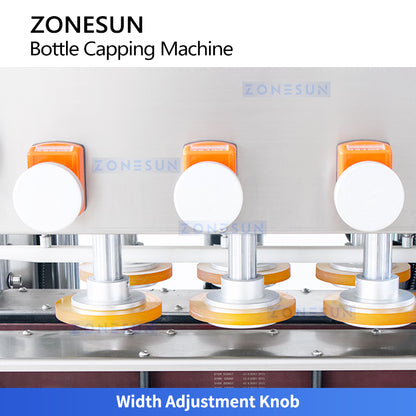

Width Adjustment Knob

Adjusts the capping width according to different bottle diameters. The visual scale allows precise adjustment for quick changeover and stable capping performance.

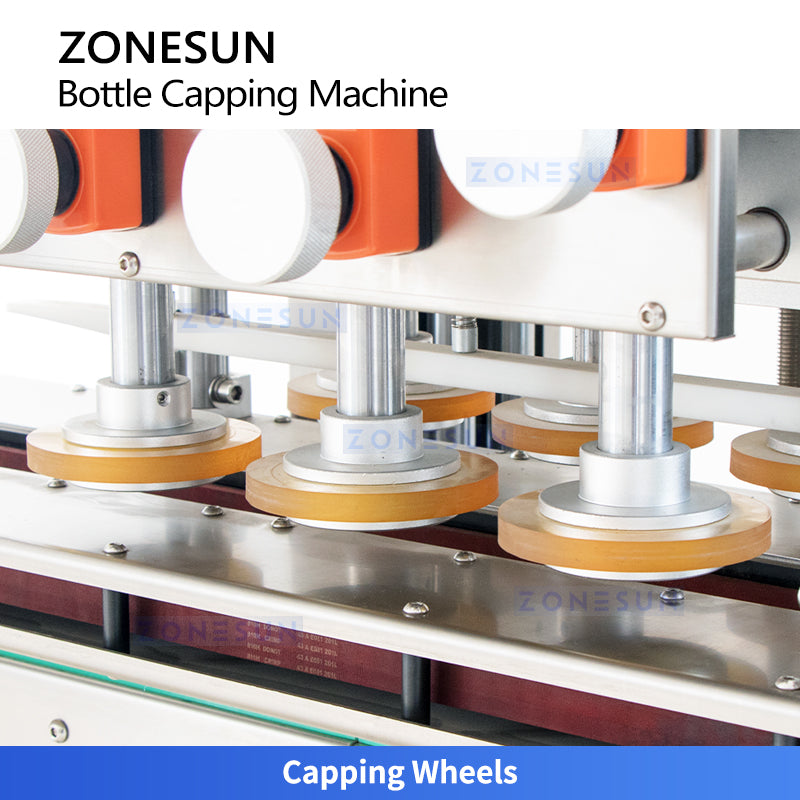

Capping Wheels

The number of capping wheel can be customized according to production needs.The working speed of each two capping wheel can be controlled according to production needs

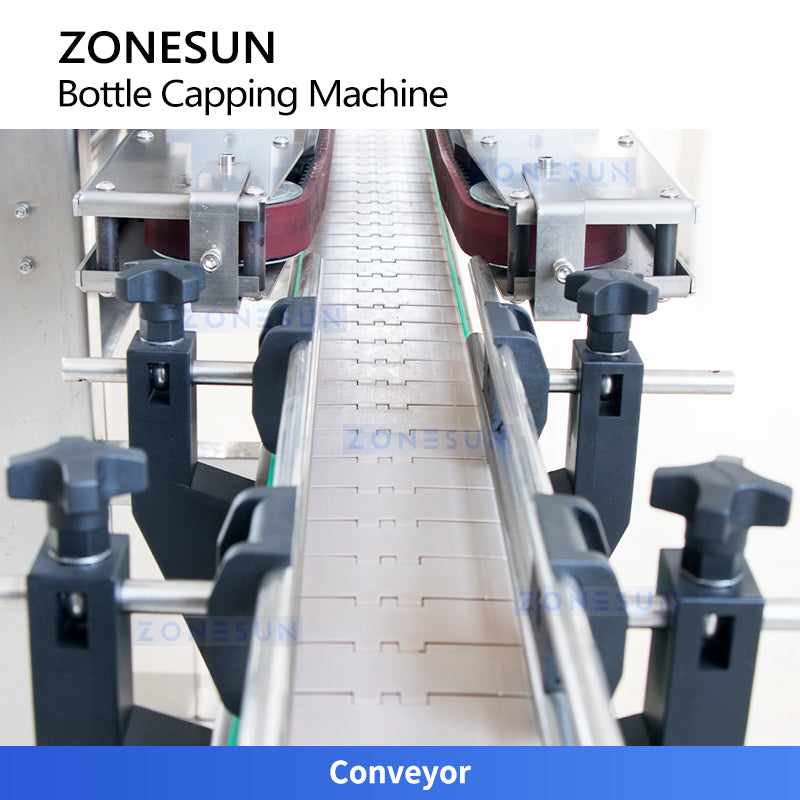

Conveyor

Transfers bottles smoothly to the capping station. The conveyor speed is adjustable according to production needs, improving efficiency and reducing labor.
