DESCRIPTION

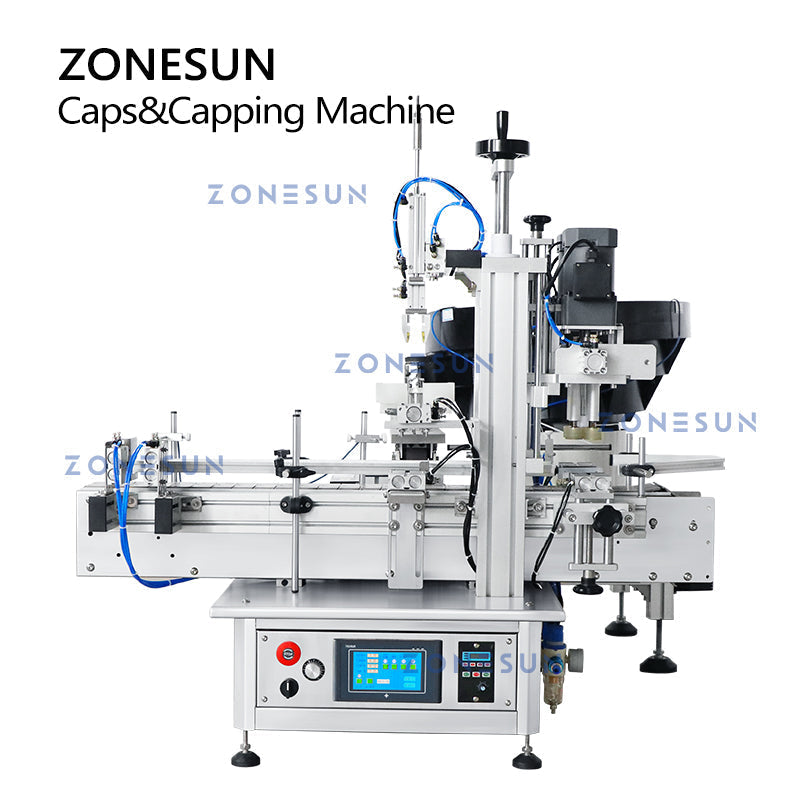

This is a desktop capping machine for dropper bottles. It comes with a vibratory bowl that needs customization. Whatever your packaging needs are, you can rely on ZONESUN.

PARAMETER

• Machine Type：Vibratory Bowl

• Power Supply：110V / 220V, 50–60Hz

• Material Stainless Steel：Suitable Cap Diameter Customized

• Working Speed：Customized

• Machine Size：Customized
  Capping Machine
• Model：ZS-XG1870R

• Working Voltage：AC 220V / 110V, 50–60Hz

• Bottle Height Range：60–270 mm

• Cap Diameter Range：18–70 mm

• Working Speed：20–40 bottles per minute (varies by bottle and cap)

• Working Pressure：0.4–0.6 MPa

• Conveyor Length：1117 mm

• Air Compressor Connector Size：Outer Diameter 8 mm

• Machine Dimensions Approx.：1120 × 580 × 1110 mm

• Package Dimensions Approx.：1160 × 610 × 1140 mm

• Package Weight Approx.：97.5 kg

PRODUCT DETAILS

Touch Screen Control Panel

Through the touch screen panel, it’s easy to set working parameters. The language of panel can be customized according to customers’ need.

Cap Grabbing Feeder

The cap grabbing structure can imitate human hand to grab bottle caps and put it on bottles,this can prevent from scratching bottle caps and improves working accuracy.

Capping Head

Made of four rubber wheels, it is suitable for various shapes of caps, such as dropper bottle caps, sprayer bottle caps. The working height of machine can be adjusted as needed.

Vibratory Bowl Feeder

Equipped with vibratory bowl feeder,it can help to arrange and feed bottle caps before capping work, reducing production labor and error. It should be customized according to cap size.

Conveyor Belt

With chain conveyor belt, it has large loading capacity, which can transport bottles stably. The width and conveying speed of it can be adjusted as needed.
