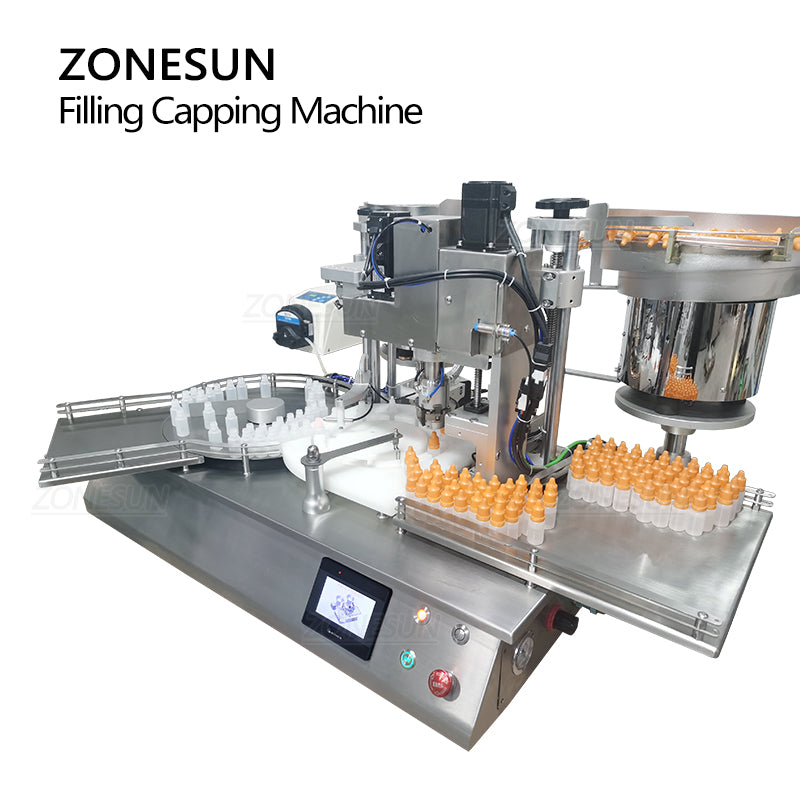

ZONESUN ZS-AFC12A Custom Rotary Peristaltic Pump Liquid Filling Capping Machine
ZONESUN ZS-AFC12A Custom Rotary Peristaltic Pump Liquid Filling Capping Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Parameter
|
Voltage |
220V/110V 50-60Hz |
|
Power |
2.5kW |
|
Machine Pump |
Peristaltic Pump |
|
Filling Range |
5-30ml(Can be customized) |
|
Filling Speed |
About 1200bottles/h (depend on bottle size and liquid) |
|
Filling Accuracy |
±1% |
|
Air Pressure |
0.5-0.8MPa |
|
Machine Size |
About 1230*780*600mm |
|
Machine Weight |
About 120kg |
|
Package Size |
About 1500*1500*1500mm |
|
Package Weight |
About 200KG |
Description
This machine can automatically fill liquid, feed inner plug and caps, tighten caps, etc. It is in desktop type, which greatly saves working space and improves working efficiency. It is suitable for eye drops bottles, perfume bottles.
Attention
1. This machine should be customized according to your bottles' size and caps' size. Please contact us before placing an order.
2.This machine should work with air compressor, which should be bought separately. Pls contact us if you need.
PLC CONTROL PANEL
Through the touch screen panel, it's easy to set working parameters. The language of panel can be customized as needed.
FILLING AND CAPPING
This machine can fill liquid, feed caps, cap bottles at the same time, improving working efficiency. The height of filling head and capping head can be adjusted.
PERISTALTIC PUMP
With it, the liquid only flows in the tube, ensuring its cleanliness. It is easy to change tube when filling different liquid.
ELECTRIC EYE
It is used for detecting bottles and controlling the machine to work, intelligent and efficient. The sensitivity of it can be adjusted as needed.
CAP FEEDER
It can arrange caps in order and feed caps automatically, saving labor cost. The size of it can be customized according to caps' size.
