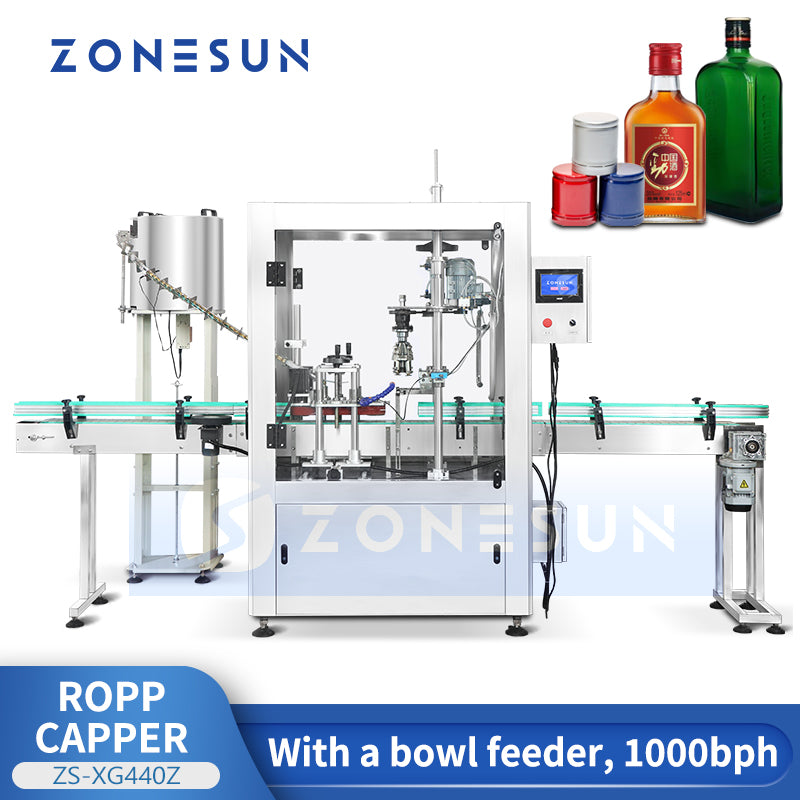

ZONESUN Automatic ROPP Capper Pilfer Proof Capping Machine ROPP Cap Sealing Equipment Tamper Rvident Closure ZS-XG440Z
ZONESUN Automatic ROPP Capper Pilfer Proof Capping Machine ROPP Cap Sealing Equipment Tamper Rvident Closure ZS-XG440Z
Verfügbarkeit für Abholungen konnte nicht geladen werden
DESCRIPTION
Introducing our cutting-edge High-Precision Automatic ROPP Capping Machine, designed to elevate your bottle sealing process to new heights of efficiency and accuracy. ROPP capping machines are available as a single head to multiple head high speed rotary systems. The big advantage of a ROPP capper machine is that it is sealing the product at the same time it is providing tamper evident security.
Whatever your packaging needs are, you can rely on Zonesun.
PARAMETER
|
Model |
ZS-XG440Z |
|
Machine voltage |
110/220V 50-60HZ 1KW |
|
Capacity |
1000bph |
|
Suitable cap size |
φ25-38mm |
|
Suitable bottle height |
About 150-320mm |
|
Machine size |
About 3550*1700*2250mm |
|
Package size |
About 1720*1600*2380mm(Main Machine) About 550*640*1780mm(Vibratory Bowl) |
|
Package weight |
About 640kg(Main Machine)+123kg(Vibratory Bowl) |

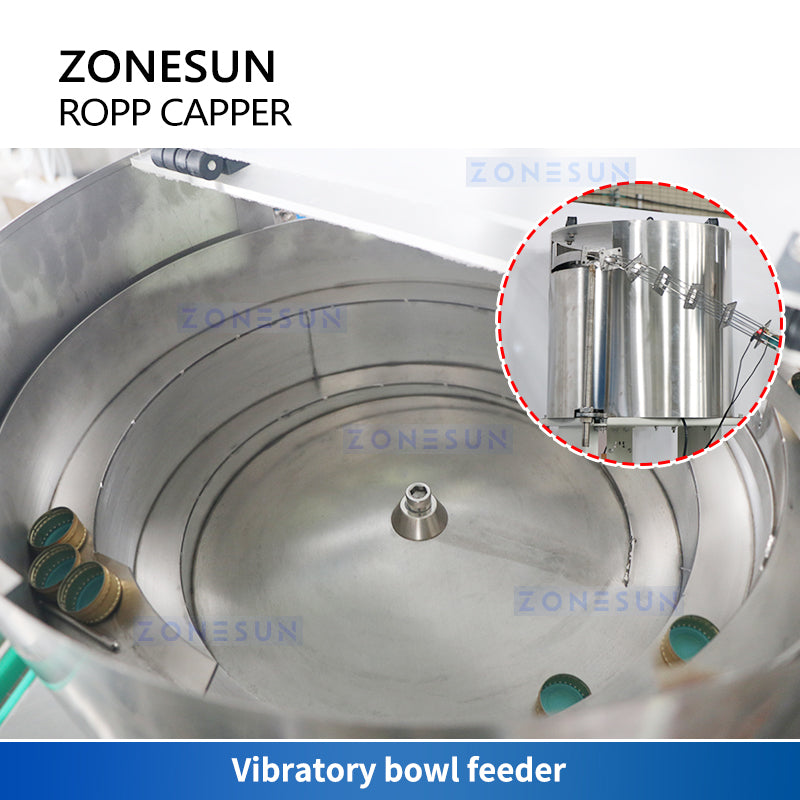

The vibratory bowl feeder uses vibrators to orient and align the caps in a controlled manner, ensuring a steady and consistent supply of caps for the capping process.

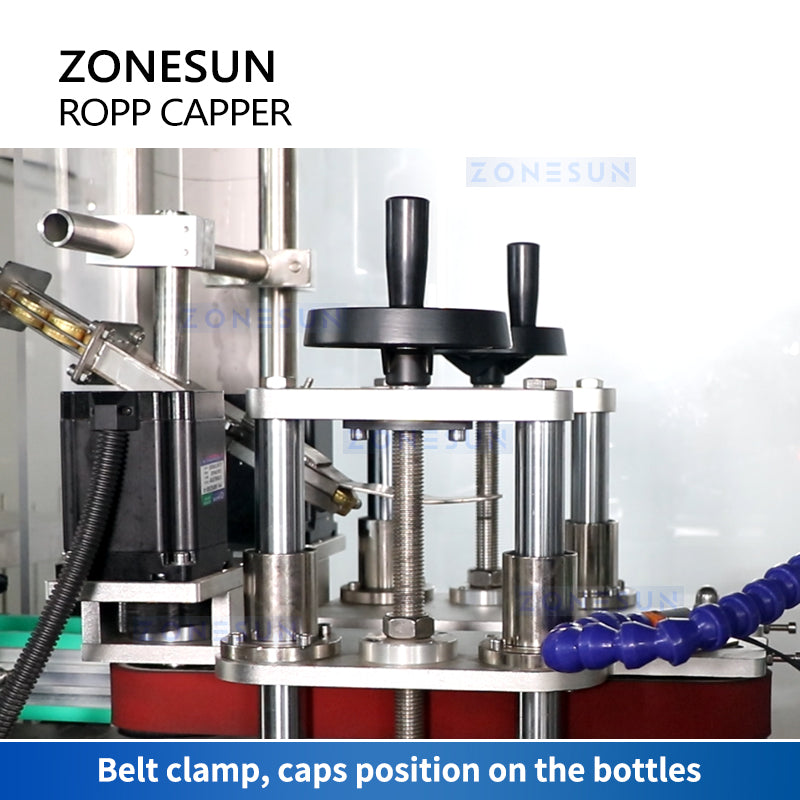

The bottle clamp mechanism serves two primary functions: precise positioning of the bottle caps onto the bottles and controlling the transportation of the bottles.

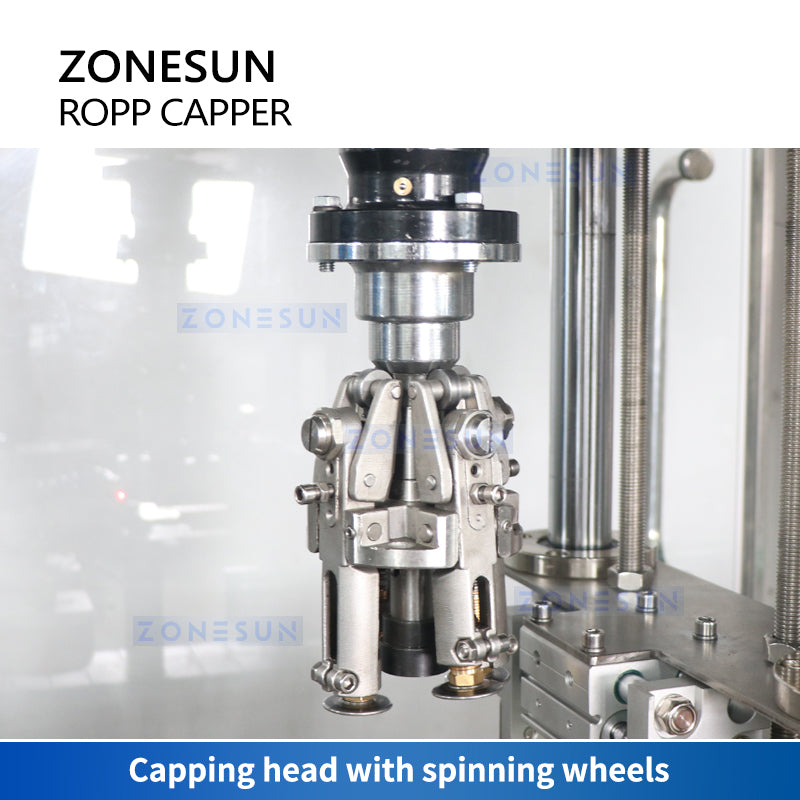

At the capping station, a descending head comes into action. The thread forming wheels spin around the shell and press against it to conform to the existing threads of the bottle and locking ring.

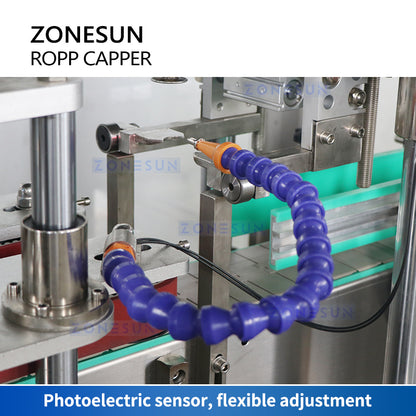

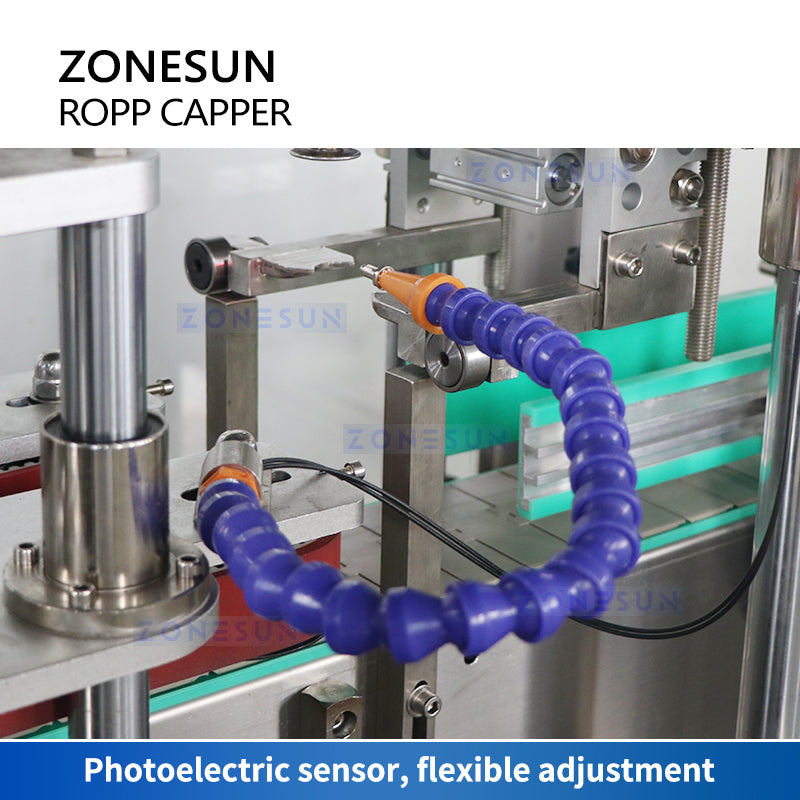

The adjustable nature of the sensor allows it to be positioned and oriented in different angles, making it easier to align with the bottles regardless of their orientation or position. This flexibility ensures accurate detection and efficient capping.

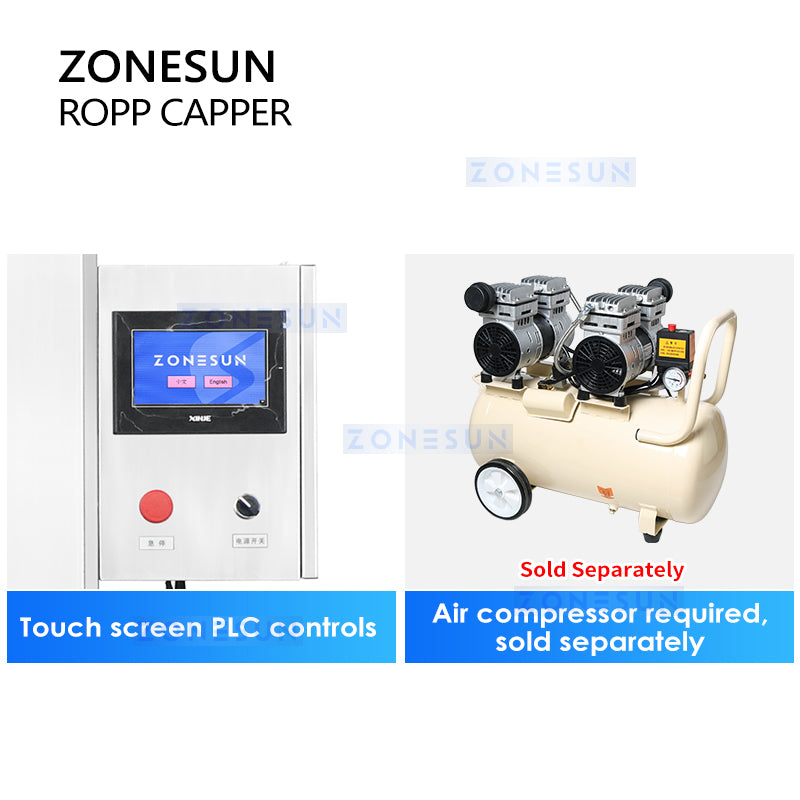

Touch screen PLC controls.
Air compressor required, sold separately.
