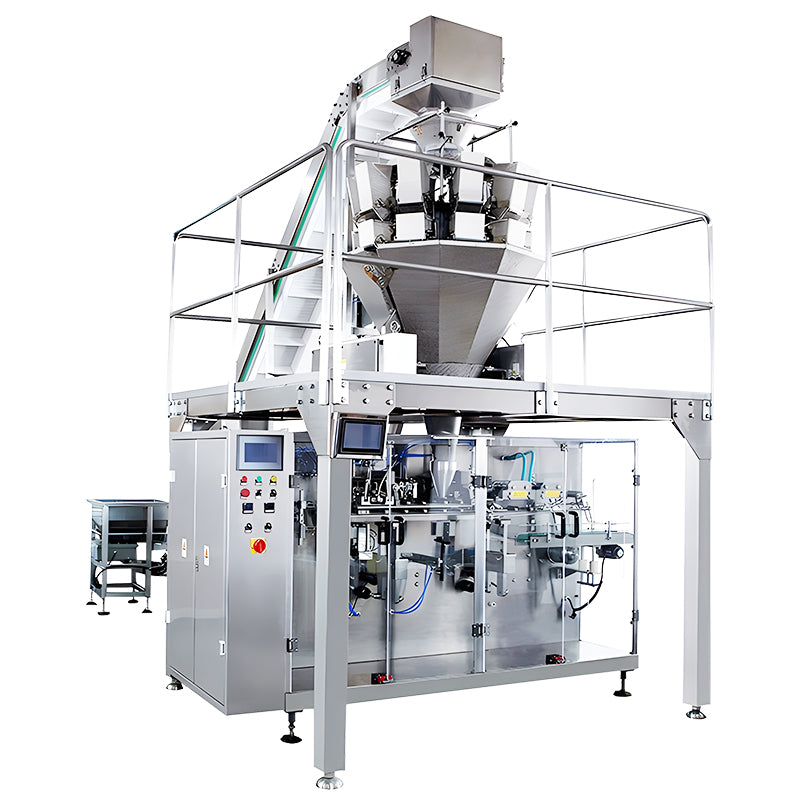

ZONESUN Automatic Vertical Form Fill Seal Machine Multihead Weigher Packing Equipment ZS-GW160

DESCRIPTION

This is an automatic granule packaging machine. It can be applied to a wide range of bags made of multi-layer composite film, single-layer PE, PP, etc. The finished bags have clear pattern and good sealing quality. The electrical control system adopts PLC, which can conveniently adjust the packing speed and other parameters. Compact mechanical structure design, reasonable transmission system arrangement, convenient maintenance.

ZONESUN ZS-GW160 Automatic Packaging Machine – Technical Specifications
Parameter Specification
Model ZS-GW160
Speed 5–55 bags/min
Filling Range 50–1000 ml
Voltage Triphase, 380V, 50/60Hz
Power 2.5 kW, 50Hz
Bag Size Width: 55–160 mm, Length: 80–260 mm
Machine Weight 600 kg
Machine Size 1100 × 950 × 1100 mm

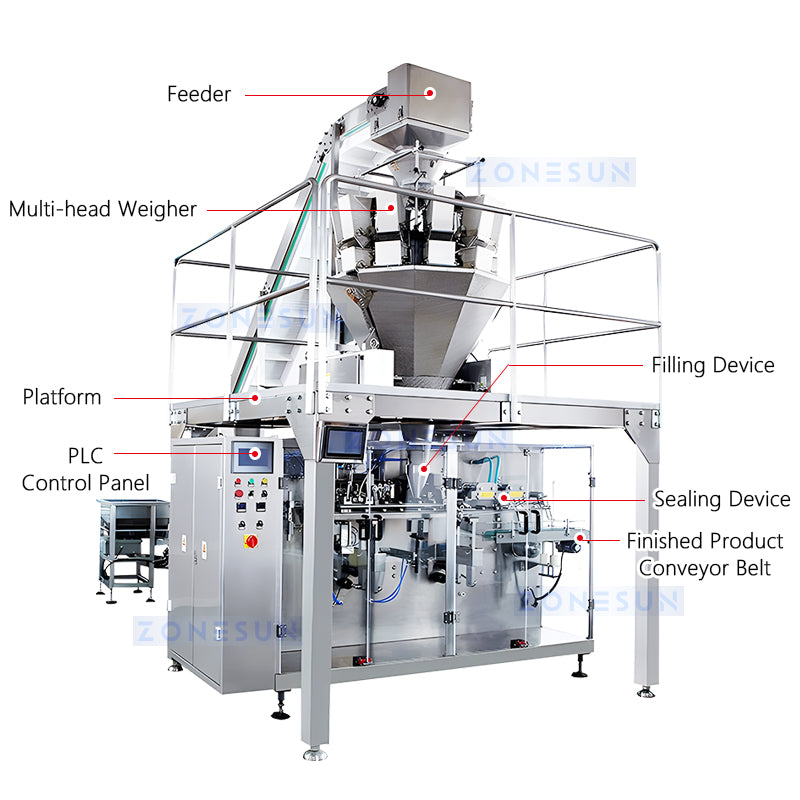

CONTROL PANELIntelligent panel, easy to operate, advanced electronic control system, high stability.Z-FEEDER304 stainless steel with plexiglass cover, fully enclosed, dustproof, no pollution.

MULTI-HEAD WEIGHERHigh precision sensor, stable and accurate measurement.FILLING DEVICEAdapt to the packaging needs of a variety of materials, with intelligent detection and automatic filling function.
