ZONESUN ZS-AFC18 Automatic Vial Filling and Dual-Station Crimp Capping Machine

Description

The ZONESUN ZS-AFC18 is an automatic vial filling and dual-station crimp capping machine designed for compatible small-dose liquid containers. It integrates vial unscrambling, conveyor feeding, 4-head magnetic pump filling, automatic closure placement, and dual-station crimp capping in one continuous automated process.

A star-wheel indexing system precisely positions and secures each vial through the filling, closure placement, and crimp capping stations. Four magnetic pump heads dispense 5–50 ml. The line operates at approximately 60–70 bottles/min and can operate independently or integrate with upstream bottle washing and drying equipment for a complete vial processing line.

Parameter

• Model: ZS-AFC18
• Power Supply: 220V / 50Hz / 5A
• Filling Volume: 5–50 ml
• Filling Accuracy: ±1%
• Pump Type: Magnetic pump | Pump Heads: 4
• Peristaltic Pump Tubing: 25#
• Production Capacity: 60–70 bottles/min
• Capping Qualification Rate: ≥99.9%
• Positioning System: Star-wheel indexing
• Capping System: Dual-station crimp capping
• Outer Vibratory Bowl Material: SUS304
• Filling Needle Material: SUS304
• Machine Weight: 1,000 kg

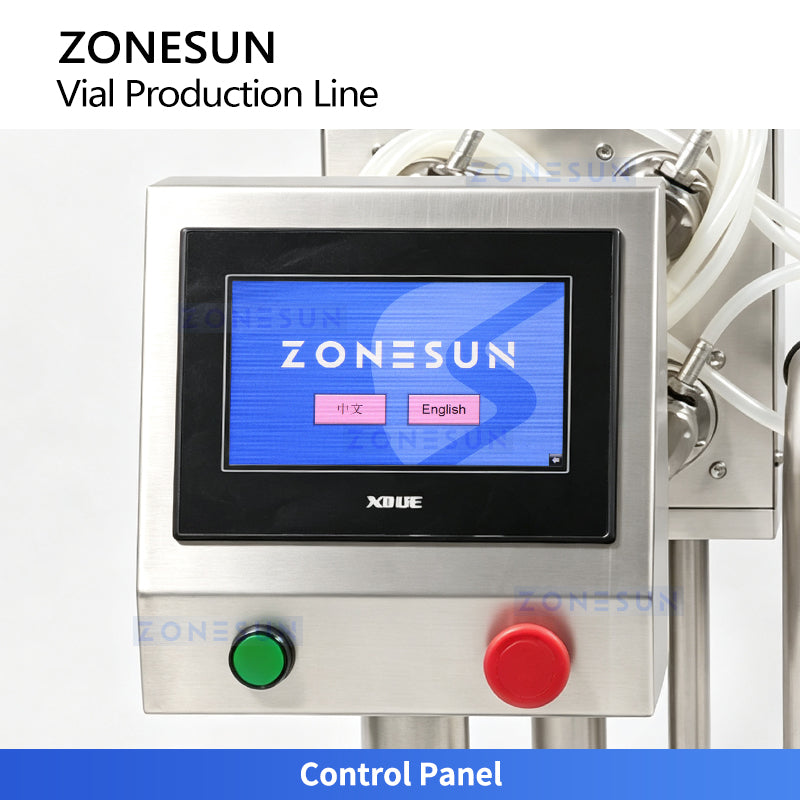

Control Panel

Centralized touchscreen control provides convenient machine operation, parameter adjustment, and production monitoring.

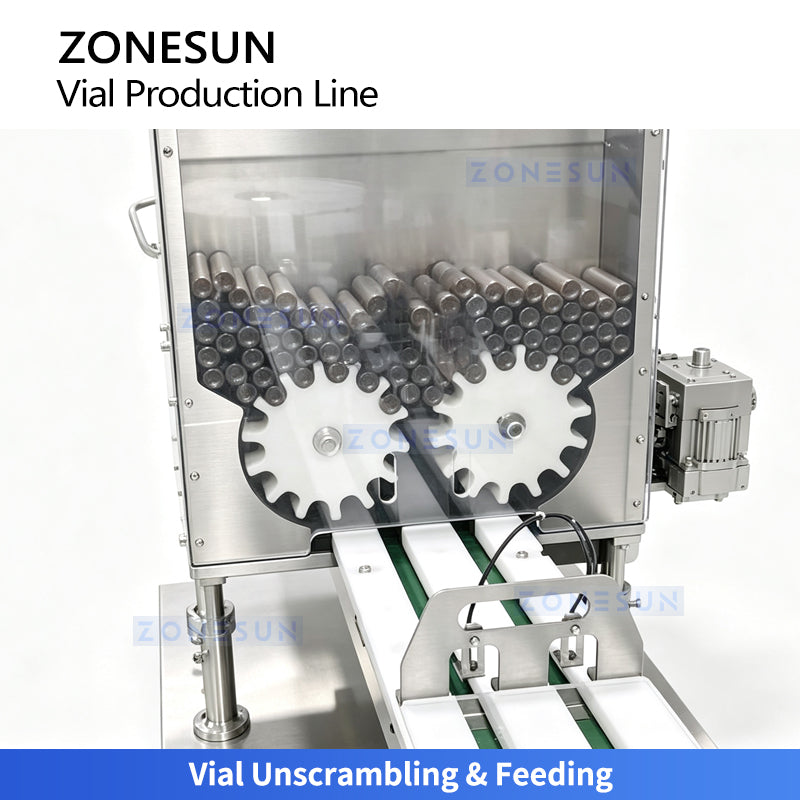

Vial Unscrambling & Feeding

The loading turntable organizes vials and feeds them continuously into the conveyor for automatic processing.

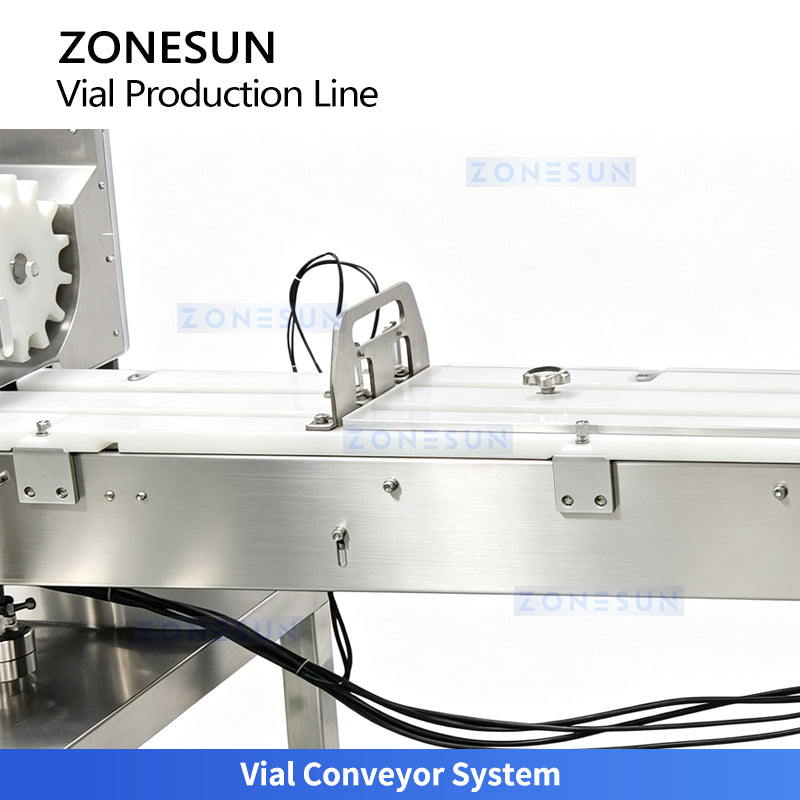

Vial Conveyor System

The conveyor guides vials smoothly toward the star-wheel processing station for continuous production.

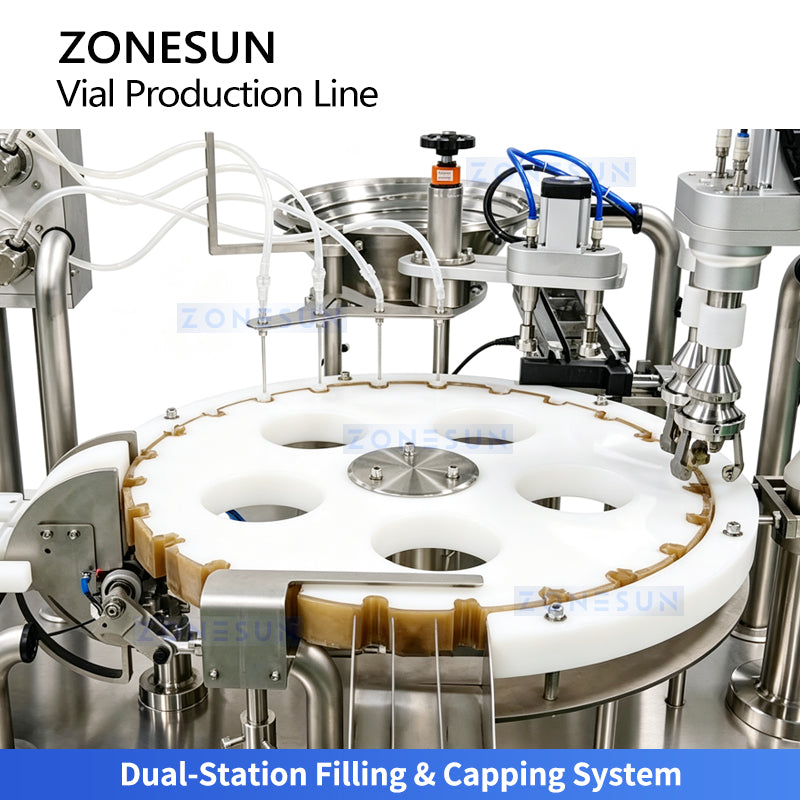

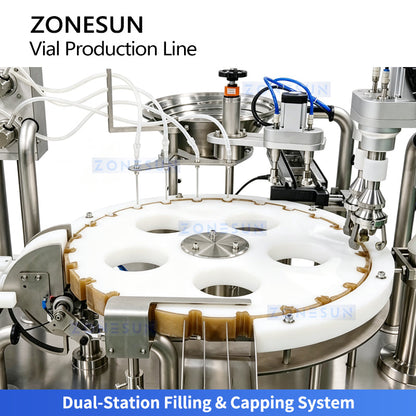

Dual-Station Filling & Capping System

Star-wheel positioning holds each vial securely through filling, cap placement, and capping for stable automatic processing.

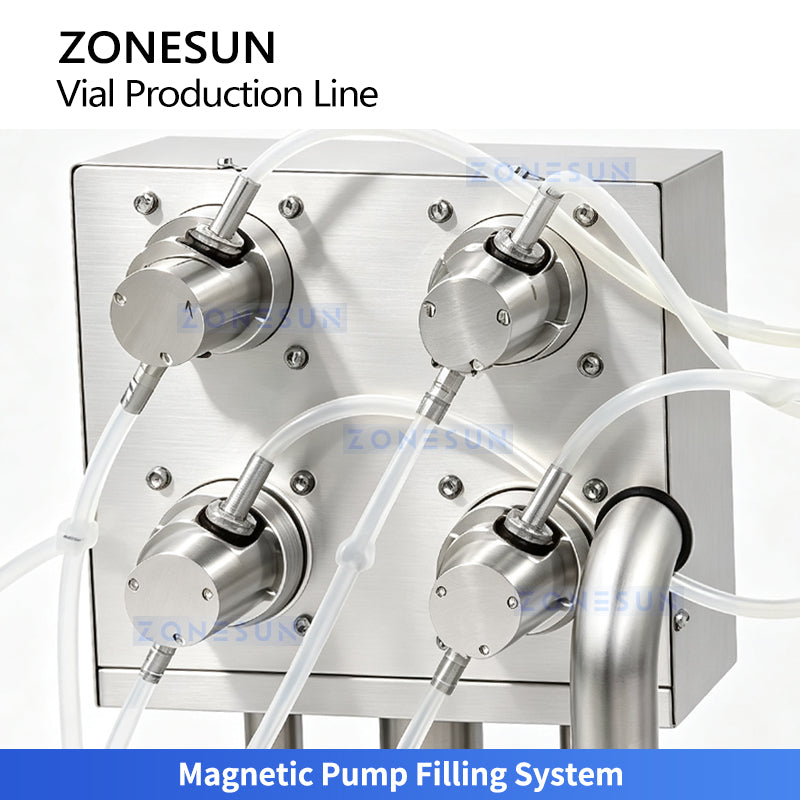

Magnetic Pump Filling System

Magnetic pumps provide controlled liquid dispensing for accurate and consistent vial filling.

Key Features

✅ Integrated 5-Stage Automated Vial Line: Vial unscrambling → conveyor feeding → 4-head magnetic pump filling → automatic closure placement → dual-station crimp capping — all in one continuous automated process without manual handling between stations.

✅ 60–70 Bottles/Min High-Speed Output: Continuous automated processing at 60–70 bottles/min for high-efficiency small and medium-dose vial production.

✅ 4-Head Magnetic Pump Filling — ±1% Accuracy: Four magnetic pump heads fill simultaneously with ±1% specified accuracy across a 5–50 ml range, providing consistent controlled liquid dosing for each vial.

✅ Precision Star-Wheel Indexing — Stable Vial Positioning: Star-wheel indexing accurately positions and secures each vial through the filling, closure placement, and crimp capping stations for consistent processing at every cycle.

✅ Dual-Station Crimp Capping — ≥99.9% Qualification Rate: Dual-station crimp capping system achieves a specified qualification rate of ≥99.9%, delivering reliable and consistent finished vial closure quality.

✅ Automatic Closure Placement: Caps or stoppers are automatically placed onto vial openings before crimp capping, eliminating manual closure handling and maintaining uninterrupted production flow.

✅ SUS304 Filling Needles & Vibratory Bowl: Filling needles and outer vibratory bowl are specified as SUS304 stainless steel for durability and compatibility with food, pharmaceutical, and chemical liquid products.

✅ Automatic Vial Unscrambling & Feeding: Loading turntable organizes incoming vials and continuously feeds them onto the conveyor, maintaining stable vial supply to the processing station without manual loading.

✅ Standalone or Line Integration: Operates independently or connects with upstream bottle washing and drying equipment (e.g., ZS-UVS3 drying tunnel) to form a complete Bottle Washing → Drying → Filling → Closure Placement → Crimp Capping vial production line.

Applications

• Oral Liquid Vial Filling: High-speed filling and crimp capping of oral liquid medicines, health supplements, and nutraceutical liquid products in 5–50 ml vials for pharmaceutical and health product packaging.
• Essential Oil Vial Packaging: Magnetic pump filling and crimp capping of compatible essential oils, aromatic liquids, and botanical extract products in small-dose vials for cosmetic and aromatherapy brands.
• Injectable Liquid Filling: Filling and crimp capping of compatible injectable liquid preparations in vials; actual configuration should match required production and hygiene specifications for pharmaceutical-grade applications.
• Pharmaceutical Vial Production: Automatic vial unscrambling, controlled filling, closure placement, and crimp capping for small-dose pharmaceutical liquid product packaging lines requiring consistent dosing and reliable closure.
• Food & Nutritional Liquid Vials: Filling small-dose food-grade liquid products, nutritional supplements, and functional beverage concentrates into vials requiring magnetic pump filling and crimp cap closure.
• Chemical & Laboratory Liquid Vials: Filling compatible small-dose chemical and laboratory liquid products into crimp-capped vials for research, analytical, and industrial applications.
• Complete Vial Processing Lines: Combines with ZS-UVS3 drying tunnel and compatible bottle washing equipment for a continuous Bottle Washing → Drying/Cooling → Filling → Closure Placement → Crimp Capping automated vial production line.
