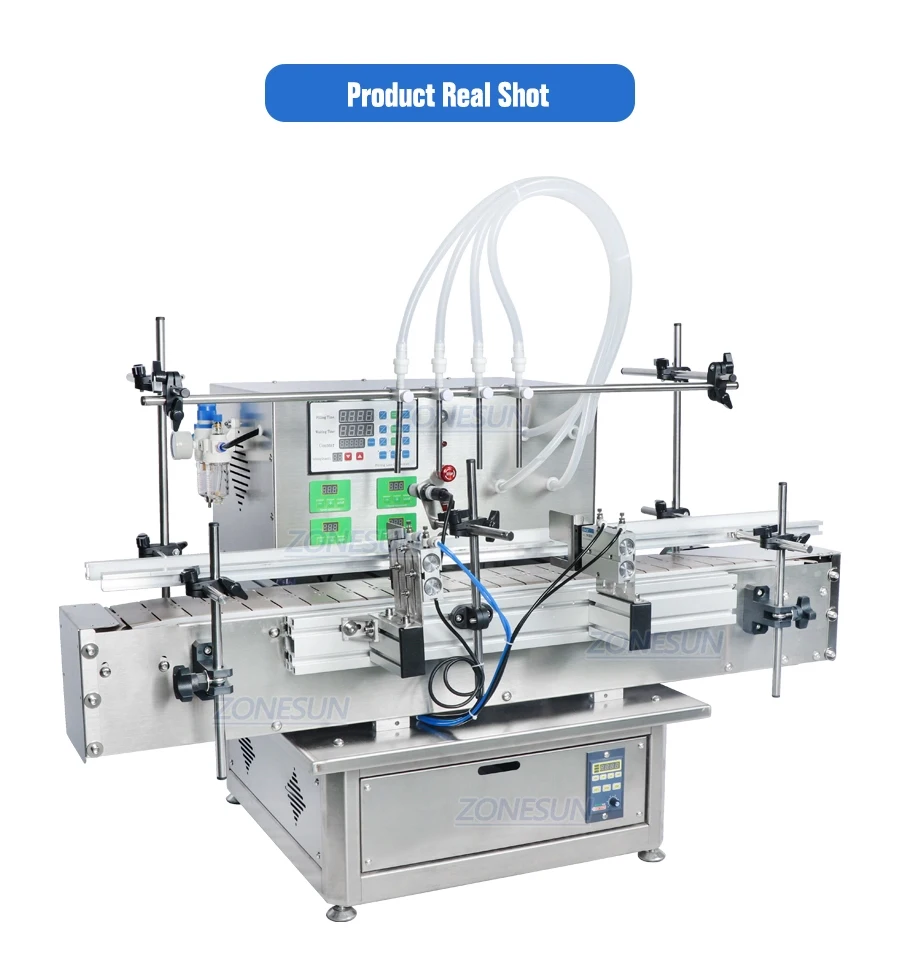

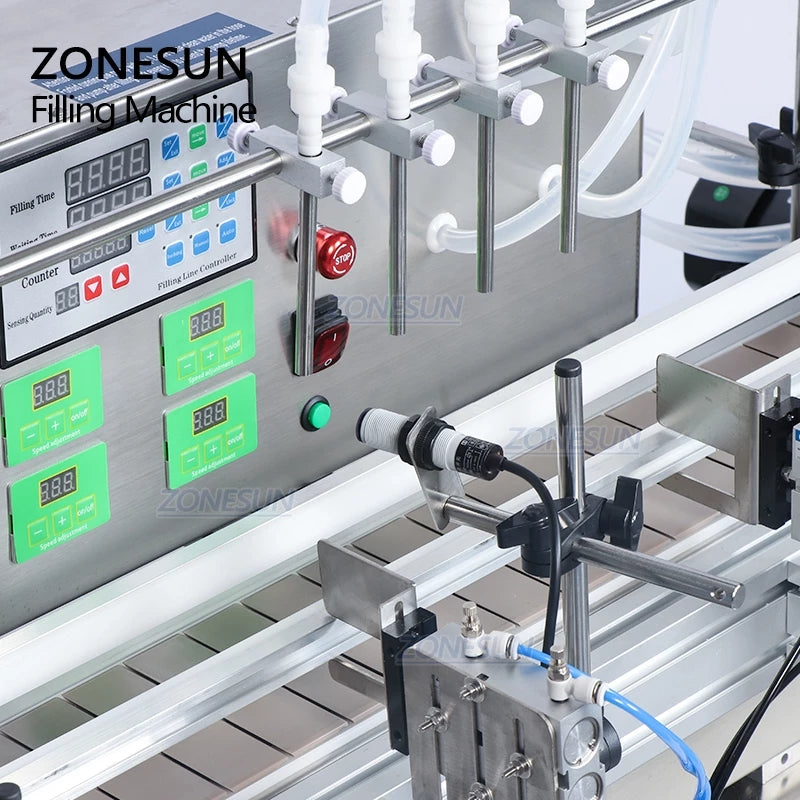

ZONESUN ZS-DTDP-4P Automatic 4 Nozzles Diaphragm Pump Liquid Filling Machine
ZONESUN ZS-DTDP-4P Automatic 4 Nozzles Diaphragm Pump Liquid Filling Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Parameter
|
Machine Model |
ZS-DTDP-4P |
|
Voltage |
110/220V 50-60HZ |
|
Power |
250W |
|
Maximum flow velocity |
4000ml/min(Each nozzle and base on water) |
|
Working speed |
1500-3000 bottles/hour(depends on bottle size and liquid) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤+1% (For water) |
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
Diameter of filling nozzle |
6/8mm |
|
Conveyor size |
1030*115mm(L*W) |
|
Size of air compressor connector |
OD 8mm |
|
Machine size |
About 1114*650*765mm |
|
Package size |
About 1145*605*795mm |
|
Net weight/Gross weight |
About 52kg/78kg |
Description
This automatic filling machine is suitable for liquid that has no particles, such as shampoo, juice, perfume, essential oil, etc. Equipped with a chain conveyor, it can bear heavy products, and the conveyor belt will run steadily. Durable and reliable. The machine can be widely used in pharmaceutical, cosmetic, beverage, daily chemical industries.
