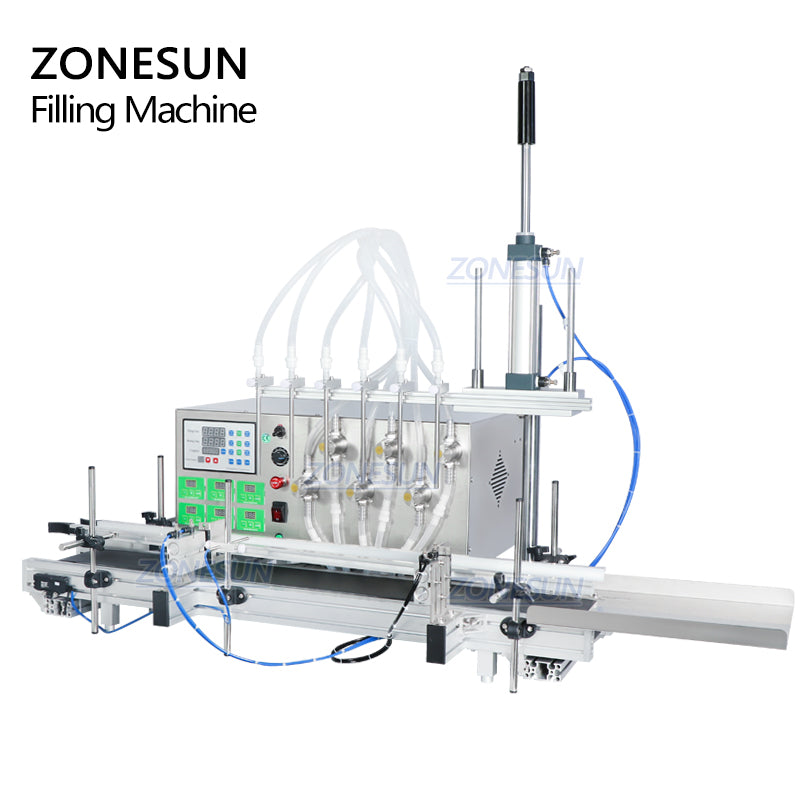

ZONESUN ZS-DTMP6 Automatic 6 Diving Nozzles Magnetic Pump Liquid Filling Machine
ZONESUN ZS-DTMP6 Automatic 6 Diving Nozzles Magnetic Pump Liquid Filling Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Parameter
|
Machine model |
ZS-DTMP6A |
ZS-DTMP6B |
|
Power supply |
110/220V 50-60HZ |
|
|
Maximum flow velocity |
5500ml/min (Each nozzle and base on water)
|
9000ml/min (Each nozzle and base on water）
|
|
Working speed |
30-40 bottles/min (based on 50-1000ml filing volume)
|
40-55 bottles/min (based on 50-1000ml filling volume)
|
|
Air pressure |
0.3-0.4MPa |
|
|
Filling accuracy |
≤±1% (For water) |
|
|
Diameter of Filling Nozzle |
6/8mm |
|
|
Delay Range |
0.01-999.9s |
|
|
Count Range |
1-99999 Times |
|
|
Filling Volume |
3-1000ml(220V)3- 500ml(110V) |
|
|
Size of air compressor connector |
OD8mm |
|
|
Bottle height |
＜220mm(Can be customized,max height 300mm) |
|
|
Package Size |
About 1120*740*460mm |
|
|
Gross weight |
About 68kg |
About 70kg |
Description
This automatic desktop filling machine is suitable for low-viscousity liquid, like juice, perfume, cooking oil, etc. With six diving heads, it can be used for foamy liquid. Equipped with magnetic pump, it will fill liquid accurately. The six nozzles can be controlled separately. The machine can be widely used in medicine, cosmetic, daily chemical industries.
