ZONESUN ZS-LPR40 Automatic Robotic Bottle Unscrambler with Vision System
ZONESUN ZS-LPR40 Automatic Robotic Bottle Unscrambler with Vision System
Verfügbarkeit für Abholungen konnte nicht geladen werden
Description
The ZONESUN ZS-LPR40 Automatic Robotic Bottle Unscrambler uses industrial vision and a Delta robot to organize randomly loaded empty bottles and place them upright onto the output conveyor.
It automatically detects bottle position and orientation, picks and rotates bottles, and places them into individual holders for downstream packaging. Unpicked bottles are recirculated automatically, reducing manual handling. Suitable for round, square and irregular-shaped bottles.
|
Model |
ZS-LPR40 |
ZS-LPR70 |
|
Configuration |
Single-Head |
Dual-Head |
|
Production Capacity |
≥40 bottles/min |
≥70 bottles/min |
|
Applicable Bottle Shapes |
Round, square, and irregular-shaped bottles |
Round, square, and irregular-shaped bottles |
|
Bottle Width |
60–112 mm |
60–112 mm |
|
Bottle Height |
130–330 mm |
130–330 mm |
|
Air Pressure |
0.6–0.8 MPa |
0.6–0.8 MPa |
|
Compressed Air Requirement |
Dry and clean compressed air |
Dry and clean compressed air |
|
Power Supply |
AC 380 V, 50 Hz, Three Phase |
AC 380 V, 50 Hz, Three Phase |
|
Power |
4 kW |
6 kW |
|
Air Consumption |
150 L/min |
250 L/min |
|
Overall Dimensions (L × W × H) |
4500 × 4200 × 2400 mm |
5000 × 4200 × 2400 mm |
|
Approximate Weight |
1500 kg |
2000 kg |
Automatic Bottle Feeding System
Randomly arranged bottles are elevated, separated and continuously fed into the vision-guided robotic picking area.
Robotic Pick-and-Place System
The Delta robot automatically picks up horizontally oriented bottles, rotates them upright, and places them accurately onto the output conveyor.
Bottle Holder Conveyor System
Upright bottles are placed into individual holders by the robotic arm and conveyed securely to the downstream production line.
Unpicked Bottle Detection & Rejection
Bottles that are not successfully picked are automatically detected and diverted from the output line.

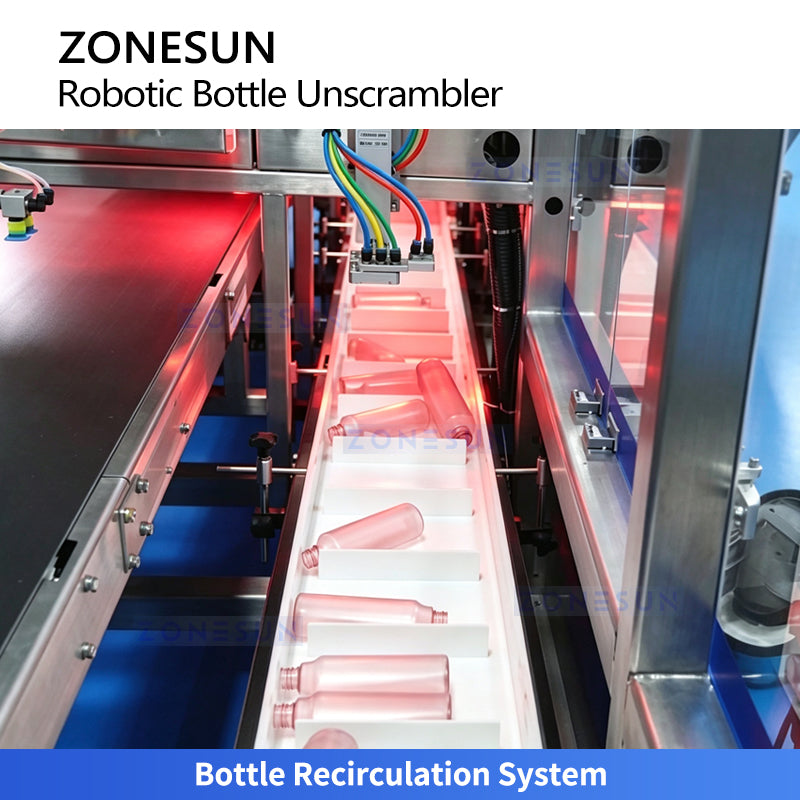

Bottle Recirculation System
Unpicked bottles are automatically returned to the feeding area for another detection and picking cycle, reducing material waste and manual handling.
Vision Detection & Positioning System
The industrial vision system detects bottle position and orientation in real time, providing accurate positioning data for robotic picking.
