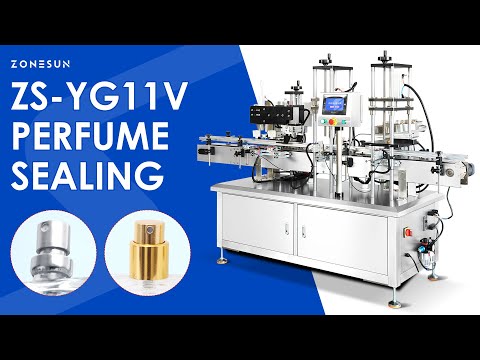

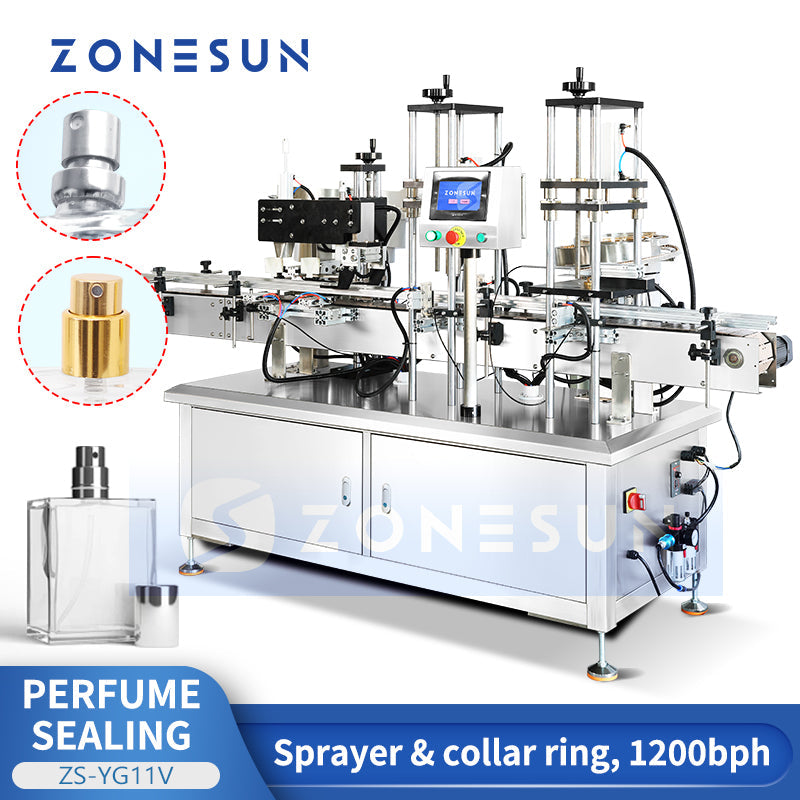

ZONESUN ZS-YG11V Automatic Perfume Bottle Cap Pressing Machine
ZONESUN ZS-YG11V Automatic Perfume Bottle Cap Pressing Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden

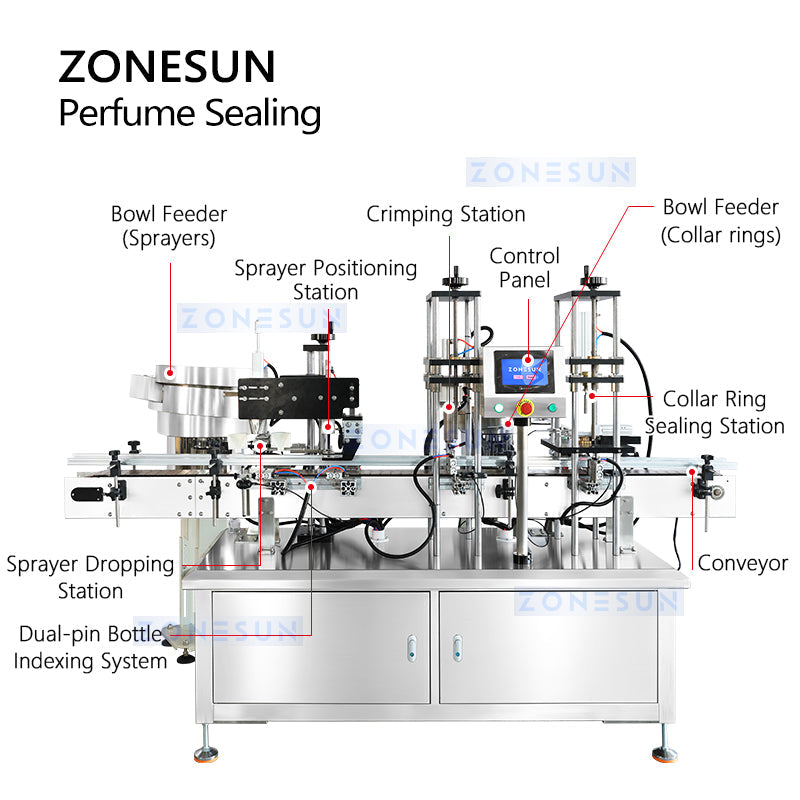

DESCRIPTION
The ZONESUN ZS-YG11V perfume capping machine is suitable for both pressing-type and crimping-type caps. It can also be used to press collar rings. The machine can work with an automatic filling machine to support automated production. By changing the capping mold, it can accommodate different bottle sizes.
APPLICATIONS
Suitable for perfume bottles using sprayer caps and collar rings.
PARAMETER
| Machine Model | ZS-YG11V |
| Voltage | 220V/110V, 50–60Hz |
| Power | 1.5kW |
| Capping Speed | About 20 bottles/min (depending on bottle and cap size) |
| Suitable Bottle Height | 50–200mm |
| Bottle Cap Diameter | 15–22mm |
| Bottle Mouth Diameter | 14–20mm |
| Suitable Bottle Diameter | 40–110mm |
| Machine Size | About 2500 × 1403 × 1657mm |

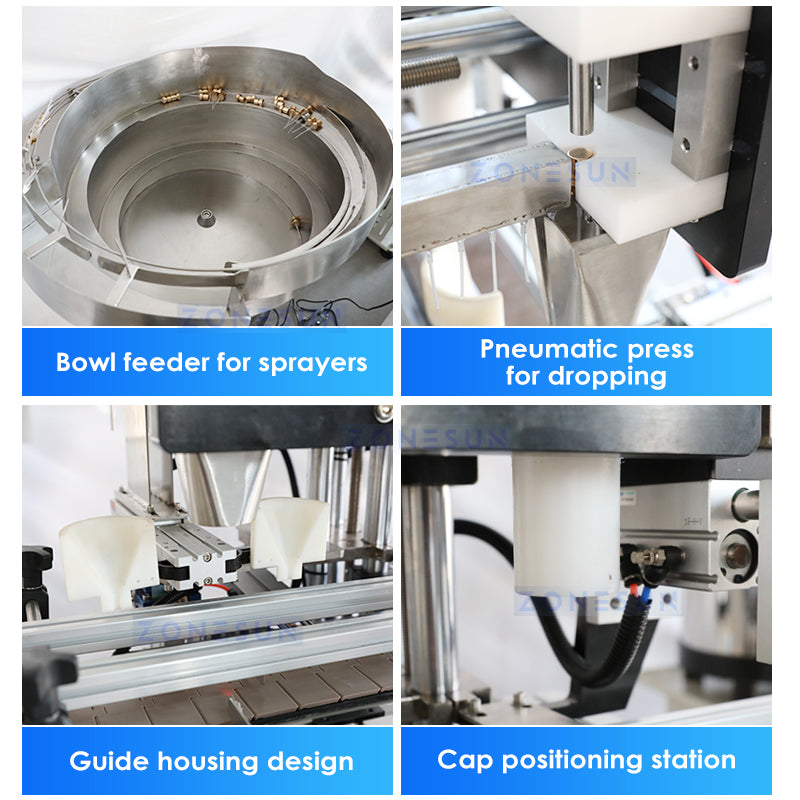

BOWL FEEDER FOR SPRAYERS
Bowl feeder for sprayers.
PNEUMATIC PRESS FOR DROPPING
Pneumatic press for dropping.
GUIDE HOUSING DESIGN
Guide housing design.
CAP POSITIONING STATION
Cap positioning station.

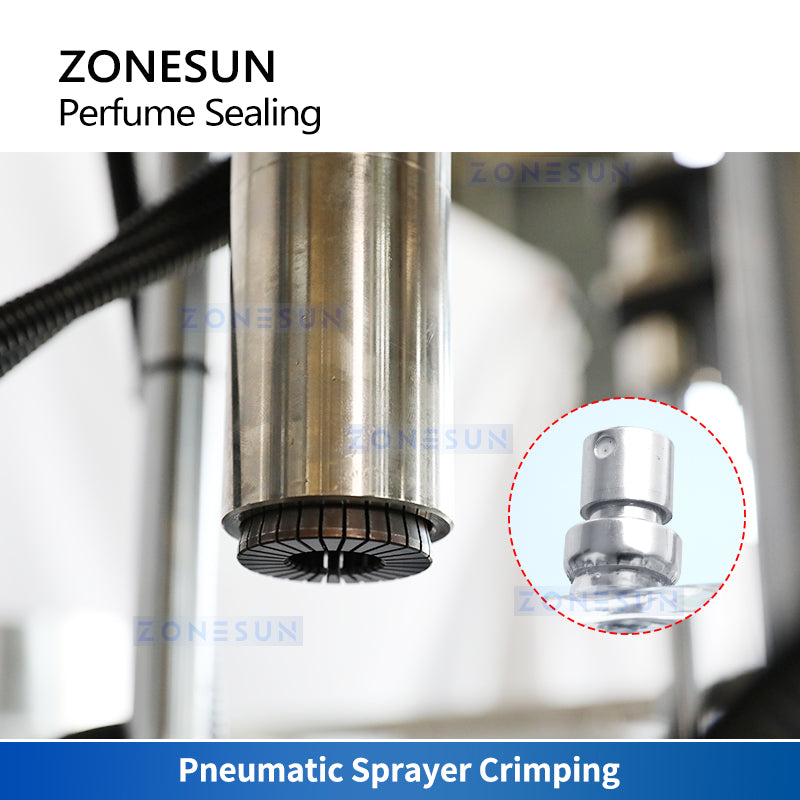

SPRAYER CRIMPING
Custom head for any size, with adjustable height for different bottles.

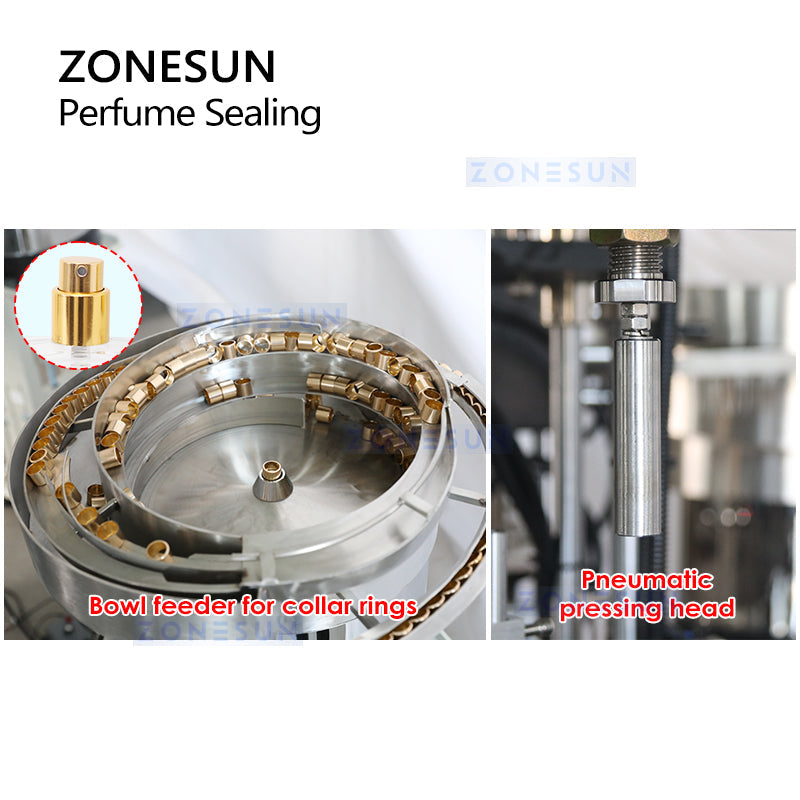

COLLAR RING PRESSING
Custom head for any size, with adjustable height for different bottles.
REMOTE OPERATION
With this feature, you can control and operate the machine from a distance using your mobile phone or computer. It eliminates the need for physical proximity to the machine, allowing you to manage and monitor the sealing process conveniently from anywhere.
