DESCRIPTION

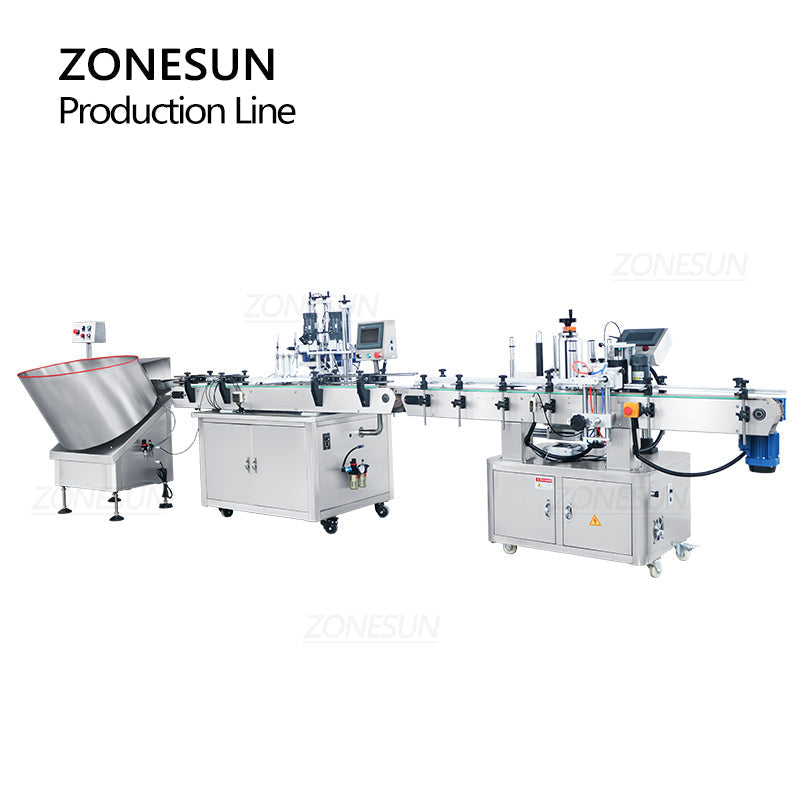

This automatic production line consists of a bottle unscrambler, a filling and capping machine, and a labeling machine, which greatly improves production efficiency and saves labor. It applies to daily chemical products, skin care products, liquid healthcare products, etc.
PARAMETER
BOTTLE TURNTABLE
- Model：ZS-LP750
- Machine Voltage & Power：110/220V 50-60HZ 500W
- Rotary Plate Diameter：755mm
- Suitable Bottle Diameter：Customized according to your bottles
- Working Speed：20-80 bottles/min
- Machine Size：About 570*685*1325mm
- Machine Weight：About 177kg
- Package Size：About 1110*1080*1490mm
- Package Weight：About 208kg
FILLING & CAPPING MACHINE
- Model：ZS-AFC1
- Machine Voltage & Power：AC220V 50Hz/60Hz300W
- Bottle Diameter：25-50mm (Customizable)
- Bottle Height：50-350mm
- Working Speed：30-40 bottles/min. (Depending on liquid, bottle, and caps)
- Air Air Pressure：0.4-0.6MPa
- Capping Torsion：4-9kgf/cm
- Conveyor Size：About 2000*100mm(L*W)
- Machine Size：About 1015*800*1560mm
- Machine Weight：About 341kg
- Packing Size：About 2210*980*1740mm
- Package Weight：About 411kg
LABELING MACHINE
- Model：ZS-TB260
- Power Supply：AC220V 50Hz/60Hz 1500W
- Labeling Capacity：25-50PCS /min (depends on bottle size)
- Labeling Accuracy：±1.0mm
- Suitable Bottle Diameter：φ30-100mm
- Label Size：(L)15-200mm (H)15-150mm
- Roll inside Diameter：φ76mm
- Roll outside Diameter：φ350mm
- Conveyor Size：1950(L)*100mm(W)
- Machine Size：About 2000*1400*1300mm
- Packing Size：About 2120*940*1500mm
- Net Weight/Gross Weight：About 226kg/290kg
BOTTLE UNSCRAMBLE
Automatic bottle unscrambling
The white component makes bottles face up before the next process.
FILLING HEADS AND PUMPS
Double magnetic pumps and filling heads to achieve high-precision filling and high-efficiency production.
VIBRATORY BOWL
Feed caps and put on caps on bottles automatically, which is labor-saving.
CAPPING STRUCTURE
Complete the capping process for different sizes of screw caps, including droppers and sprayers
LABELING STRUCTURE
Apply to both single-sided and double-sided labeling for various round bottles
