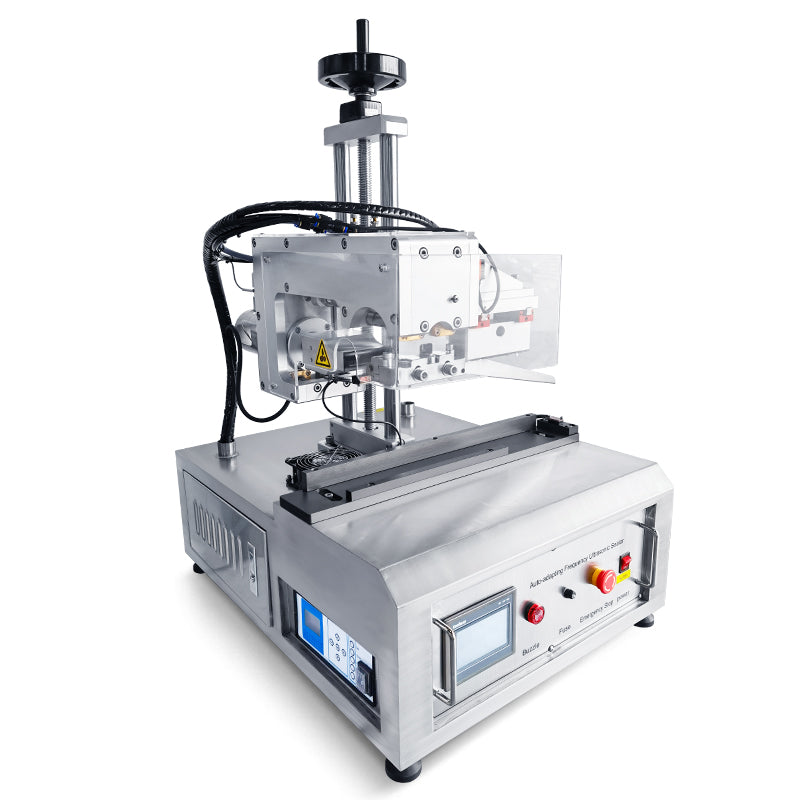

ZONESUN ZS-FK003U Ultrasonic Tube Heat-Sealing Machine
ZONESUN ZS-FK003U Ultrasonic Tube Heat-Sealing Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden
DESCRIPTION
This machine is used for sealing tubes. It adopts ultrasonic and heat-sealing. This machine is suitable for soft metal and plastic tubes which are 10-50mm in diameter.This machine is widely used in the food, cosmetics, and daily chemical industries.
PARAMETER
- Model：ZS-FK003U
- Voltage：220 V / 110 V, 50–60 Hz
- Power：600 W
- Frequency：20 kHz
- Tube Height：10–250 mm
- Sealing Diameter：10–50 mm
- Capacity：8–18 pcs/min
- Air Pressure：0.5–0.6 MPa
- Machine Dimensions (L × W × H)：56 × 53.7 × 88 cm
- Net Weight：105 kg
CONTROL PANEL
Sets and adjusts welding time, pressure hold time, and power. Equipped with emergency stop and power switch to ensure safe, stable operation.
ULTRASONIC HEAT-SEALING UNIT
Flattens and seals tube ends using ultrasonic vibration and pressure. Generates frictional heat to melt plastic molecules, fusing them into a smooth, firm, wrinkle-free seal.
TAIL CUTTING UNIT
Trims excess plastic after sealing for neat tube ends. Adjustable cutting ensures uniform length to meet packaging standards.
HEIGHT ADJUSTMENT KNOB
Adjusts sealing position height to match different tube lengths, ensuring proper and consistent sealing.
TROUGH FOR TAILS
Collects excess material after sealing or cutting, keeping the workspace clean and organized.
JIG
Holds and positions tubes securely during sealing and cutting, ensuring stability, precision, and consistent quality.
