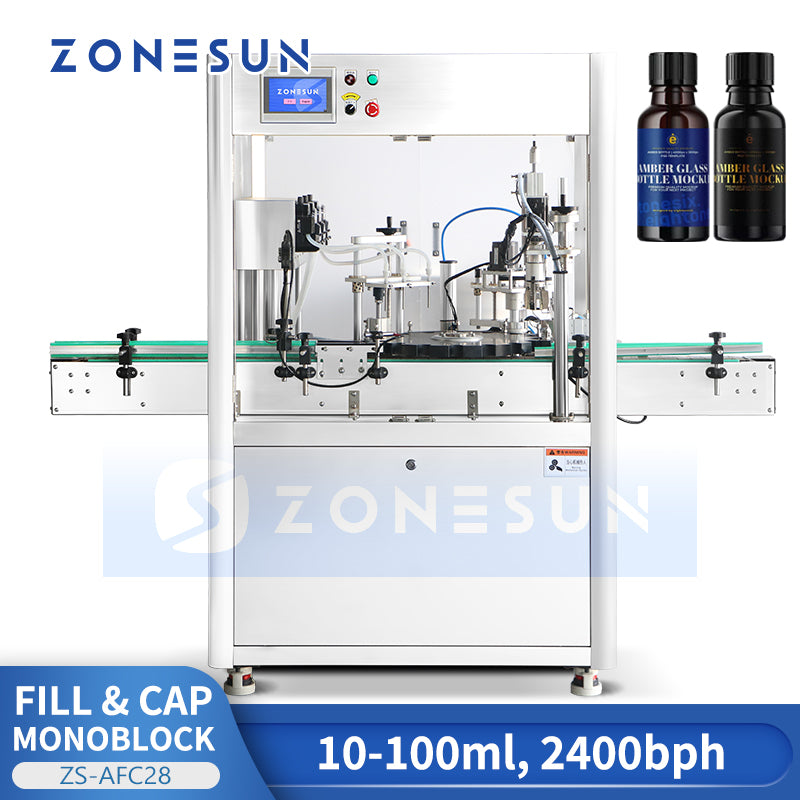

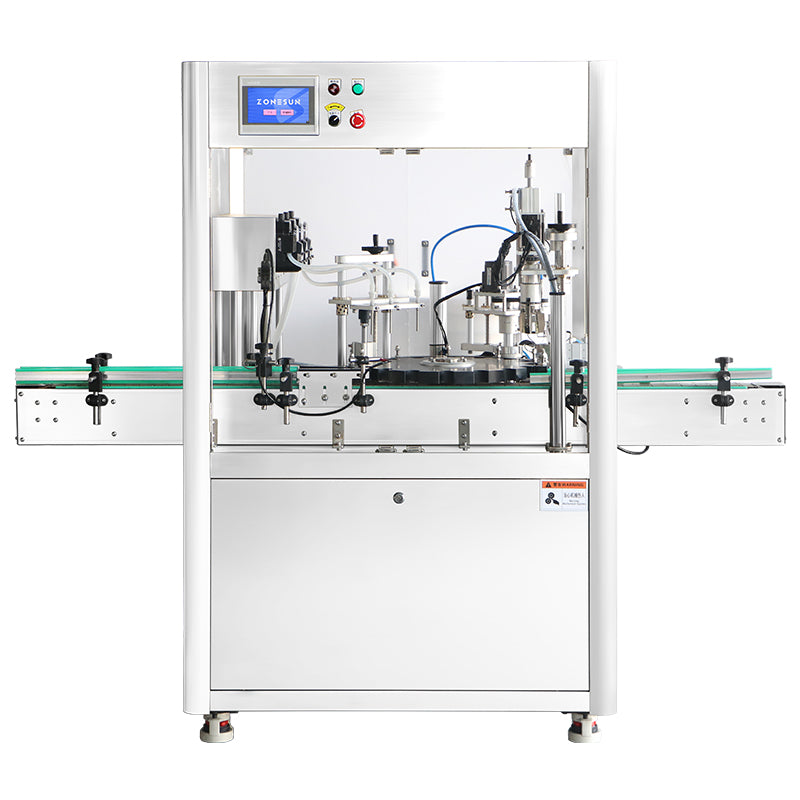

ZONESUN Automatic High Speed Rotary Filling and Capping Machine ZS-AFC28

DESCRIPTION

Introducing our latest addition, the High-Speed Filling and Capping Monoblock. Designed with precision and efficiency in mind, this innovative machine combines the capabilities of filling and capping into a single unit. Featuring a star wheel bottle indexing system, it ensures smooth and seamless operation throughout the packaging process. With its high-speed capabilities, advanced design, and the innovative use of a vacuum-based gripping system, our High-Speed Filling and Capping Monoblock offers a streamlined solution for your packaging needs. Experience enhanced productivity, precise filling, and reliable capping with this cutting-edge machine.

Whatever your packaging needs are, you can rely on Zonesun.

Parameter

• Model: ZS-AFC28
• Voltage: 220V/110V 50–60Hz
• Power: About 3kW
• Production Speed: About 35 bottles/min (varies by bottle size and material)
• Filling Range: 10–100ml (Customizable)
• Filling Pump: Peristaltic Pump ×3
• Max Flow Rate: 6L/min (based on water)
• Suitable Bottle Size: Customizable
• Bottle Cap Size: Customizable
• Air Pressure: 0.5–0.7MPa
• Machine Size: Approx. 2050×1800×1500mm
• Package Size:
  • Filling Machine: Approx. 2080×1000×1960mm
  • Vibratory Bowl: Approx. 1020×610×580mm
• Gross Weight:
  • Filling Machine: Approx. 725kg
  • Vibratory Bowl: Approx. 78kg

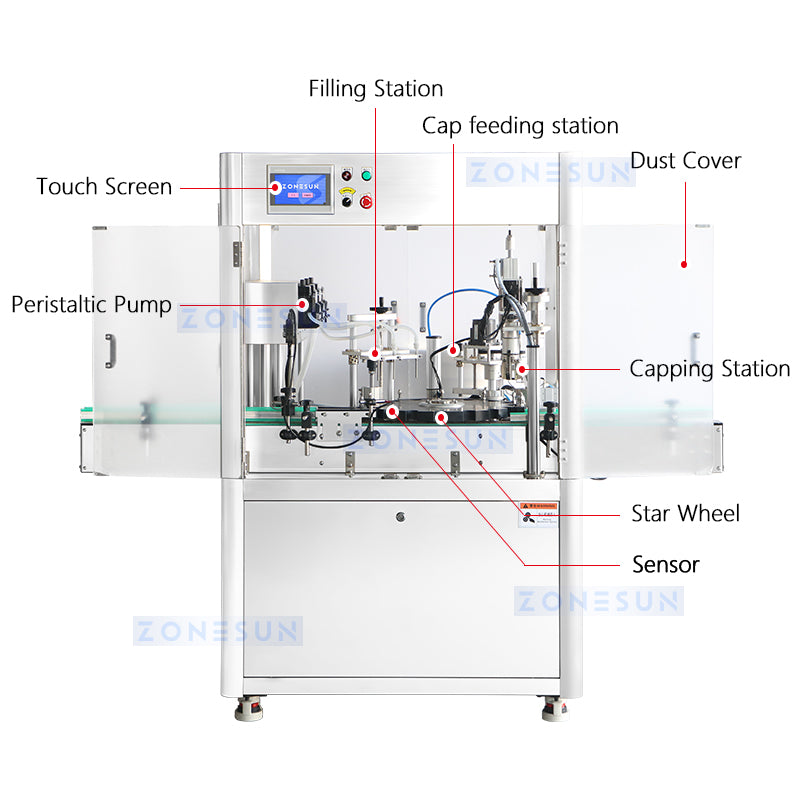

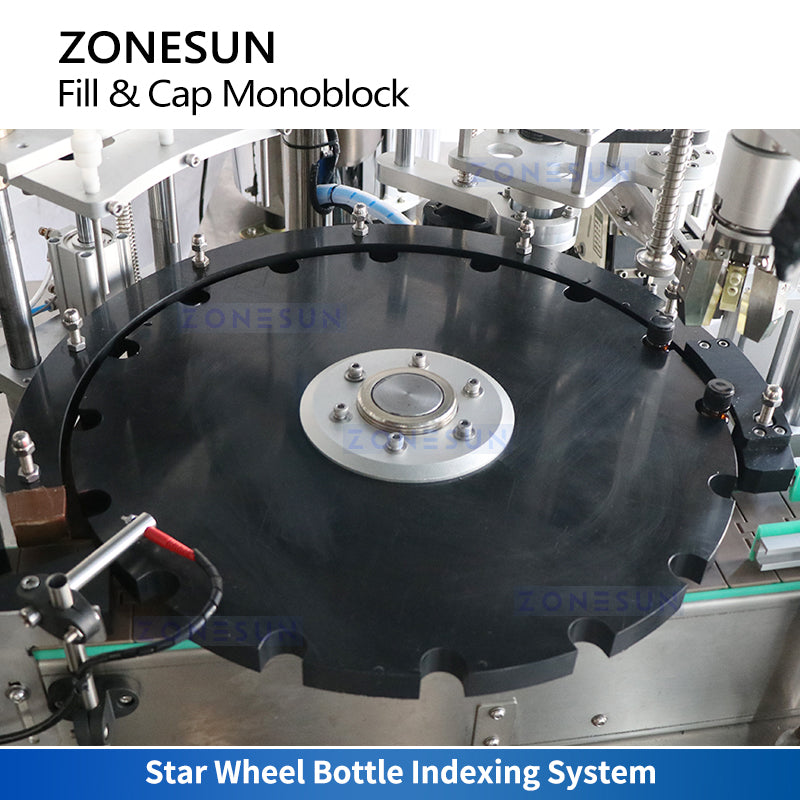

STAR WHEELThe star wheel indexing system ensures smooth and precise movement of bottles throughout the packaging process. It positions each bottle accurately, allowing for efficient filling and capping without any misalignments.

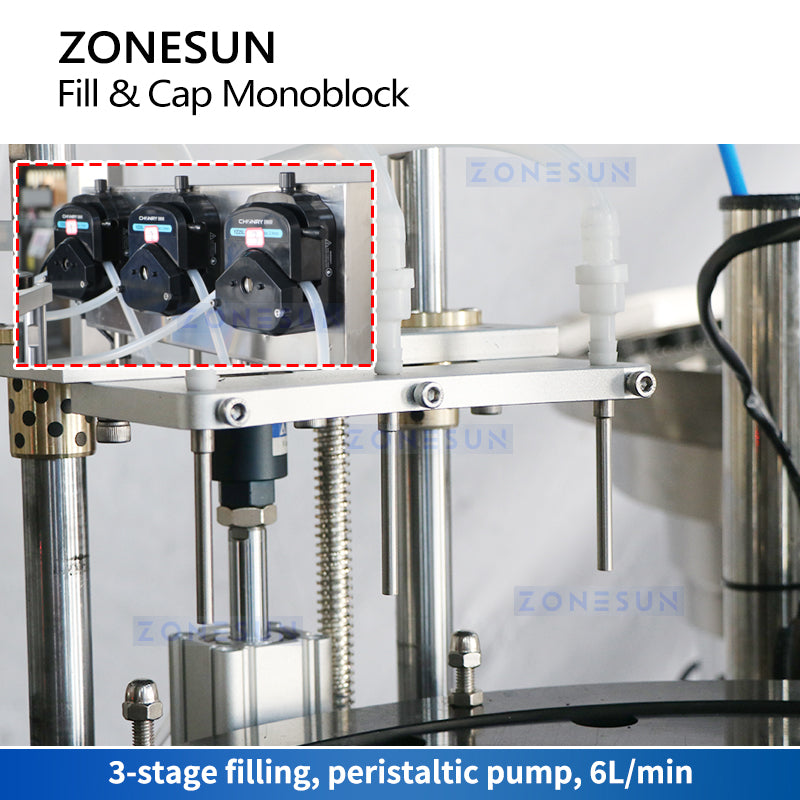

FILLINGThe machine utilizes three 6 L/min peristaltic pumps for 3-stage segmented filling. This technique involves filling each bottle in multiple cycles, ensuring precise and consistent filling levels. It maximizes efficiency by reducing the time required for each filling operation.

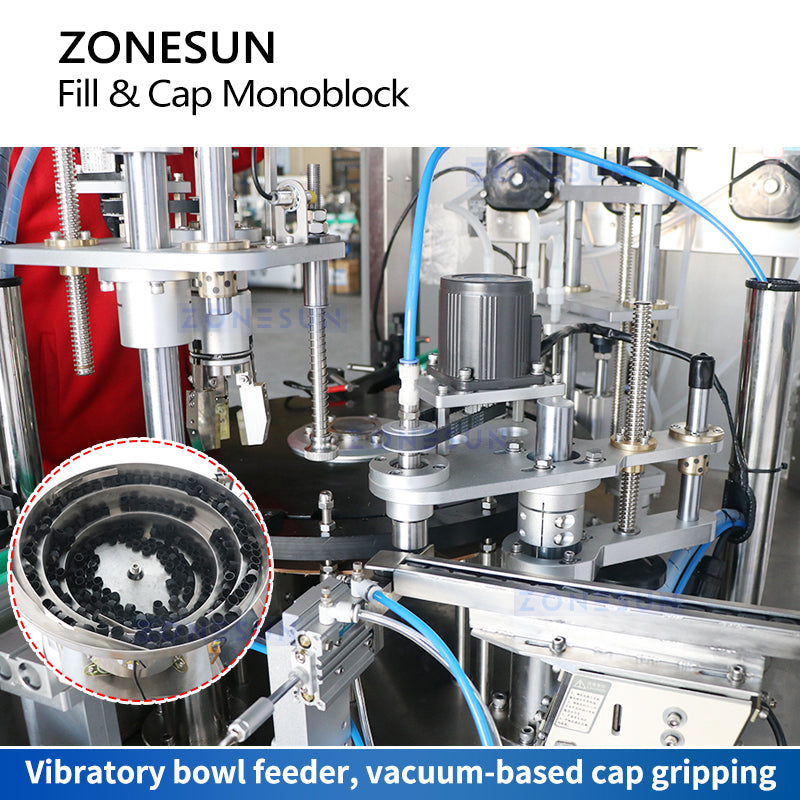

CAP FEEDINGIt incorporates a vibrating bowl that efficiently feeds the caps. The cam-driven gripper ensures accurate and reliable cap placement onto the passing bottles. The cap gripping mechanism relies on a negative pressure system. It securely holds the cap using suction, enabling precise and controlled cap placement.

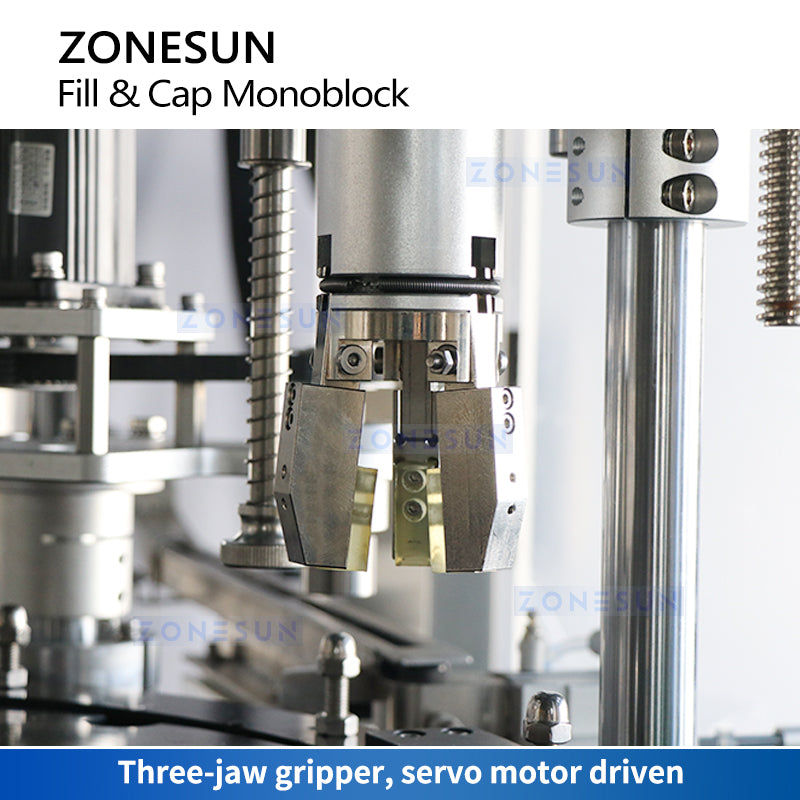

CAPPINGThe three-jaw gripper is responsible for tightening the caps onto the bottles. It securely holds the cap and applies the necessary torque for a tight and secure seal. The three-jaw design ensures a firm grip on various cap sizes, enhancing the machine's versatility.
