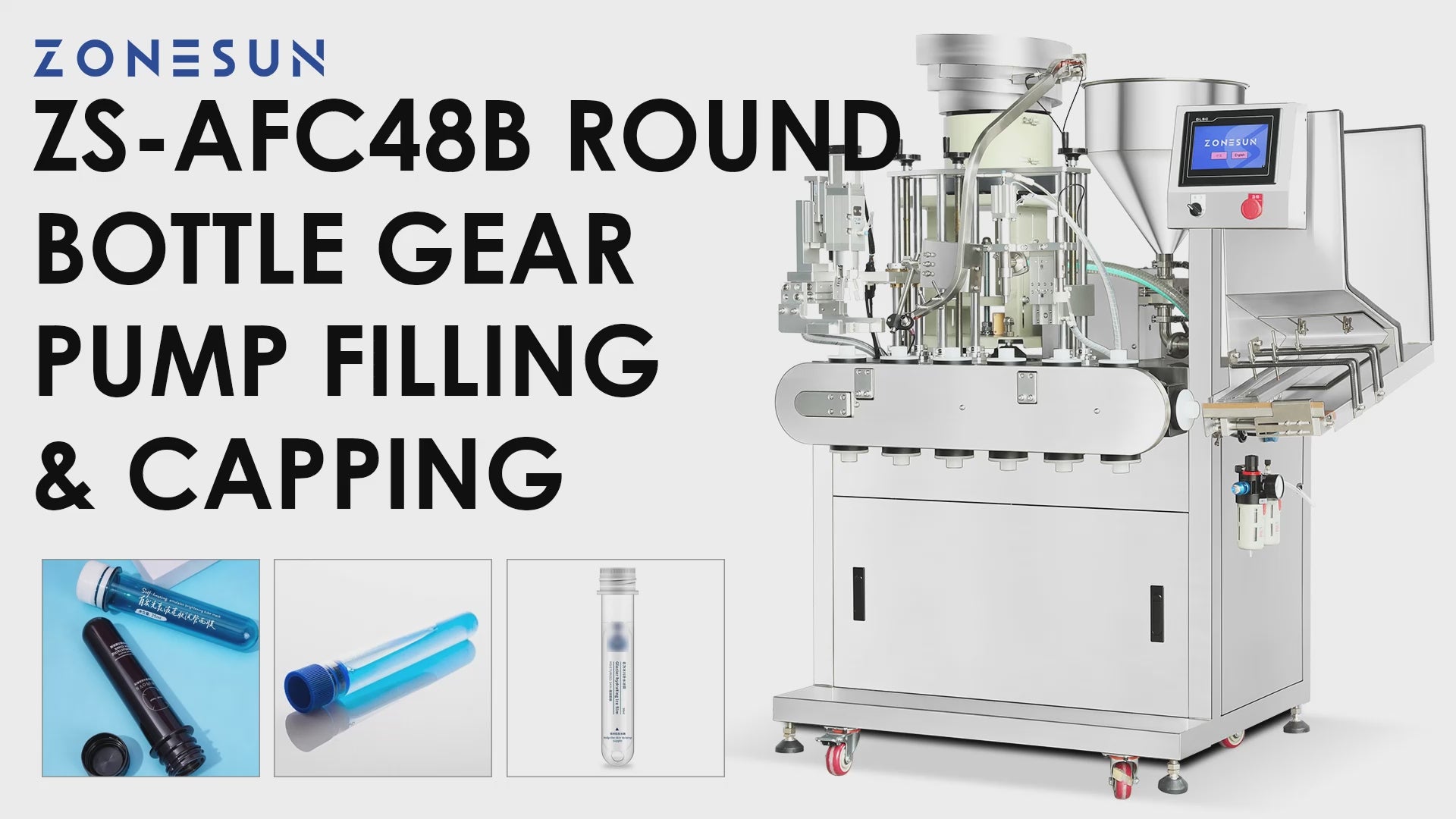

ZONESUN ZS-AFC48B Automatic Gear Pump Filling & Capping Machine for Round Tubes
ZONESUN ZS-AFC48B Automatic Gear Pump Filling & Capping Machine for Round Tubes
No se pudo cargar la disponibilidad de retiro

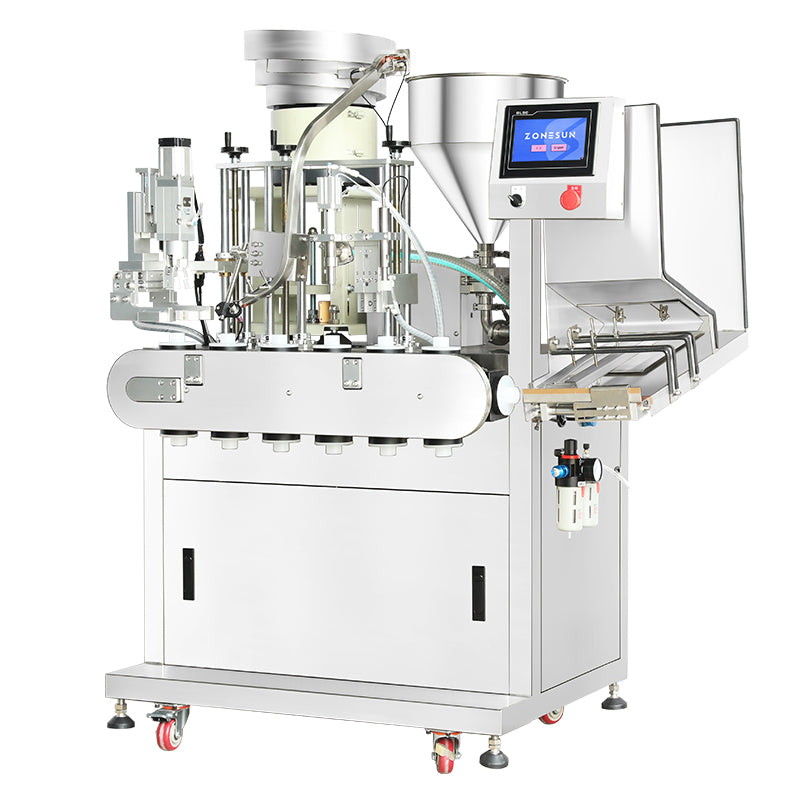

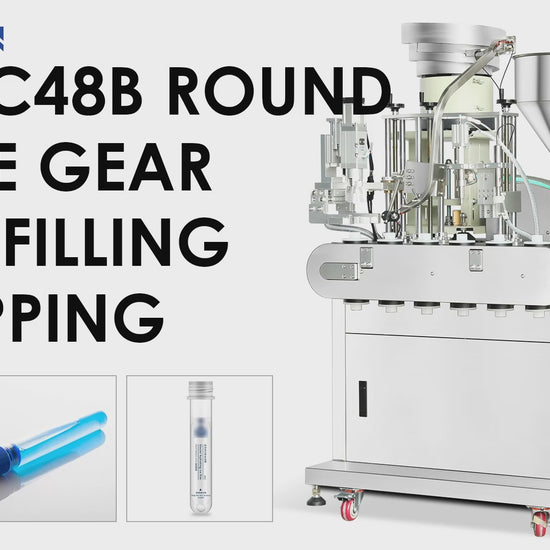

Automatic Gear Pump Filling and Capping Machine
The ZONESUN ZS-AFC48B Automatic Gear Pump Filling and Capping Machine is designed for compatible round tubes, small bottles and cylindrical containers.
It integrates automatic bottle feeding, gear pump liquid filling, cap feeding, cap placement and servo capping into one compact production process. The servo-controlled gear pump supports adjustable filling from 3 mL with a specified filling accuracy of ±1%.

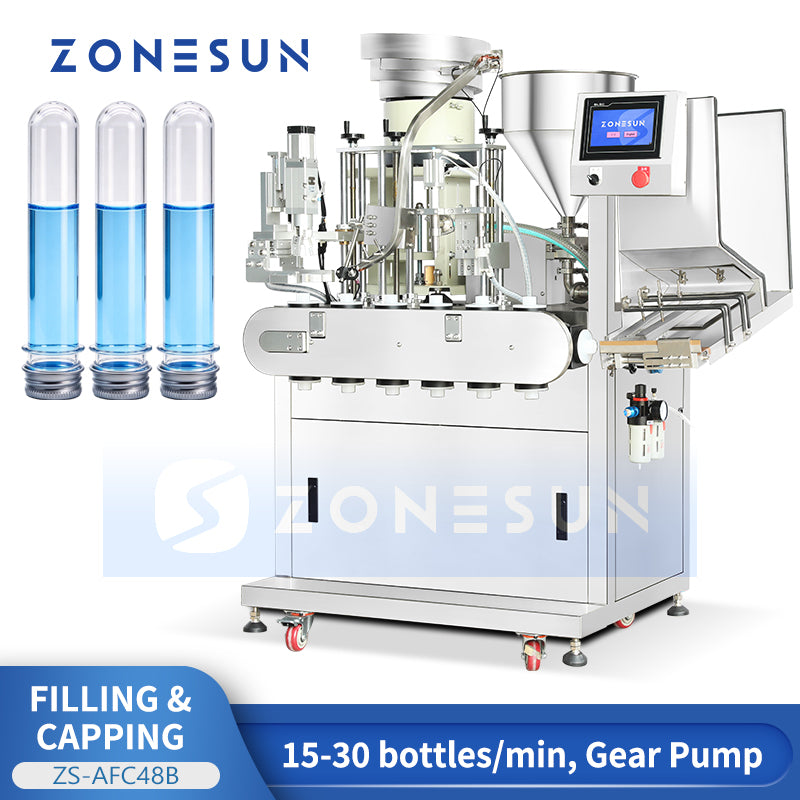

The machine operates at approximately 15–30 bottles/min, depending on filling volume and product characteristics. Horizontal bottle feeding, customized holders, vibratory cap feeding and servo three-jaw capping support continuous production.
Technical Specifications
| Model | ZS-AFC48B |
|---|---|
| Bottle Diameter | Φ15–50 mm |
| Bottle Height | 50–250 mm (Customizable) |
| Filling Volume | ≥3 mL (Adjustable) |
| Filling Accuracy | ±1% |
| Filling Method | Gear Pump |
| Production Capacity | 15–30 bottles/min (depending on filling range and materials) |
| Air Pressure | 0.6–0.7 MPa |
| Power Supply | 220 V, 50 Hz |
| Power | 3 kW |
| Machine Dimensions (L × W × H) | 1200 × 800 × 1500 mm |
| Packing Dimensions (L × W × H) | 1465 × 815 × 1600 mm |
| Machine Weight | Approx. 220 kg |
Applications
Designed for compatible liquid products in food, cosmetics and pharmaceutical packaging applications. Bottle or tube-shaped container suitability depends on dimensions, holder design, cap type and liquid properties. Provide samples to confirm the filling and capping configuration for your application.
Container dimensions, cap structure, filling volume and liquid properties should be confirmed before machine selection.

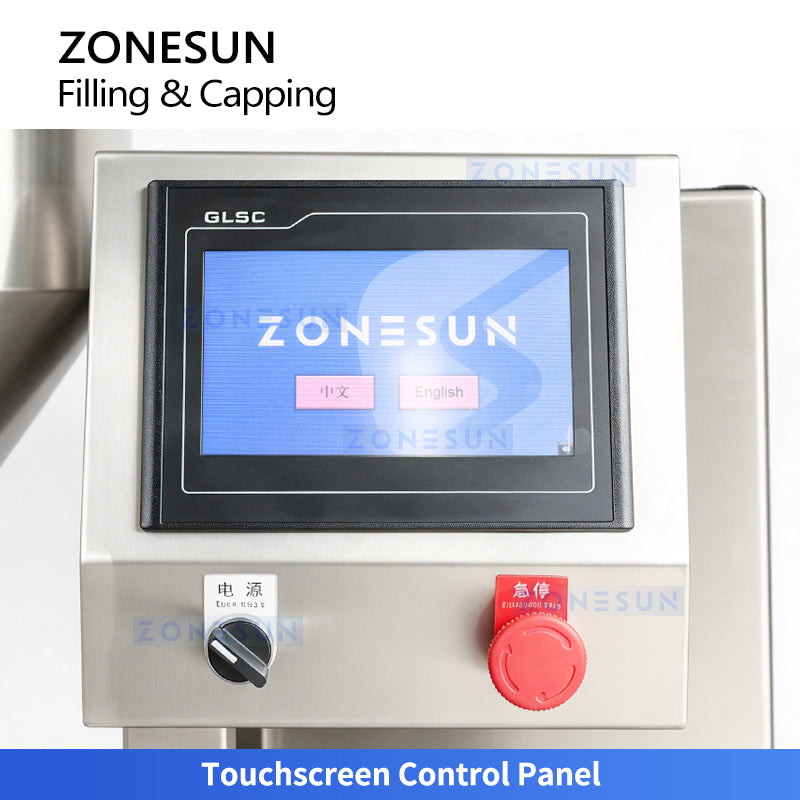

Touchscreen Control Panel
Allows operators to set filling, capping and operating parameters while monitoring machine status.

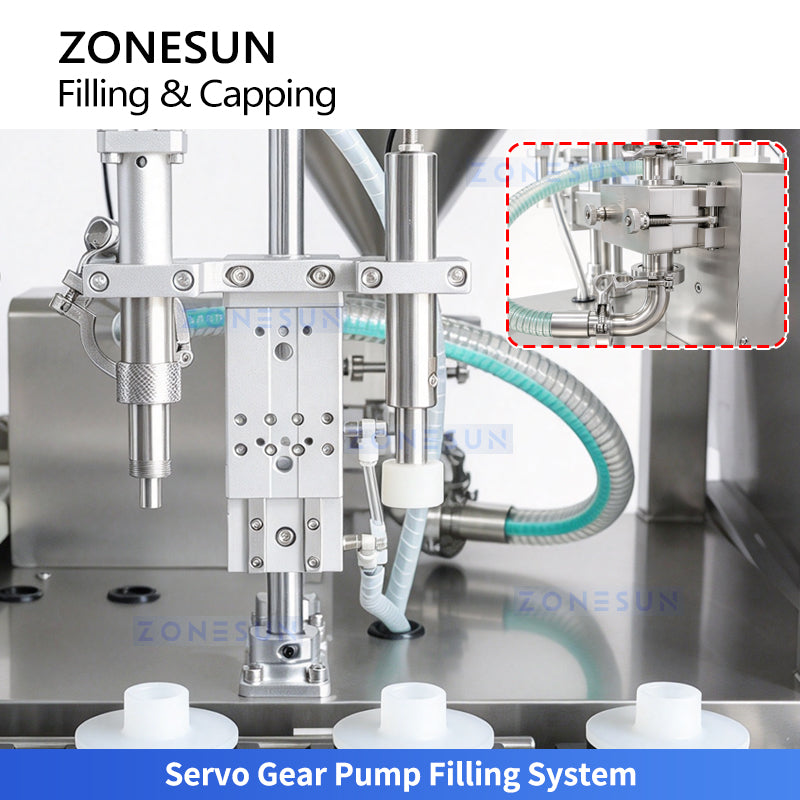

Servo Gear Pump Filling System
Servo-controlled gear pump filling provides precise control of filling volume and speed for consistent filling of viscous liquids.

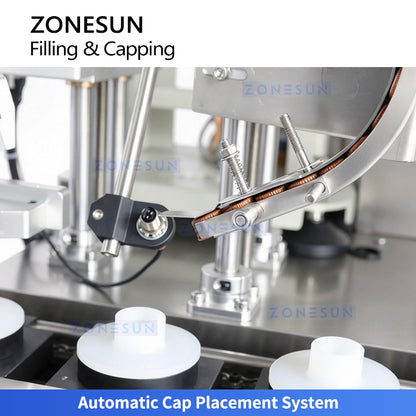

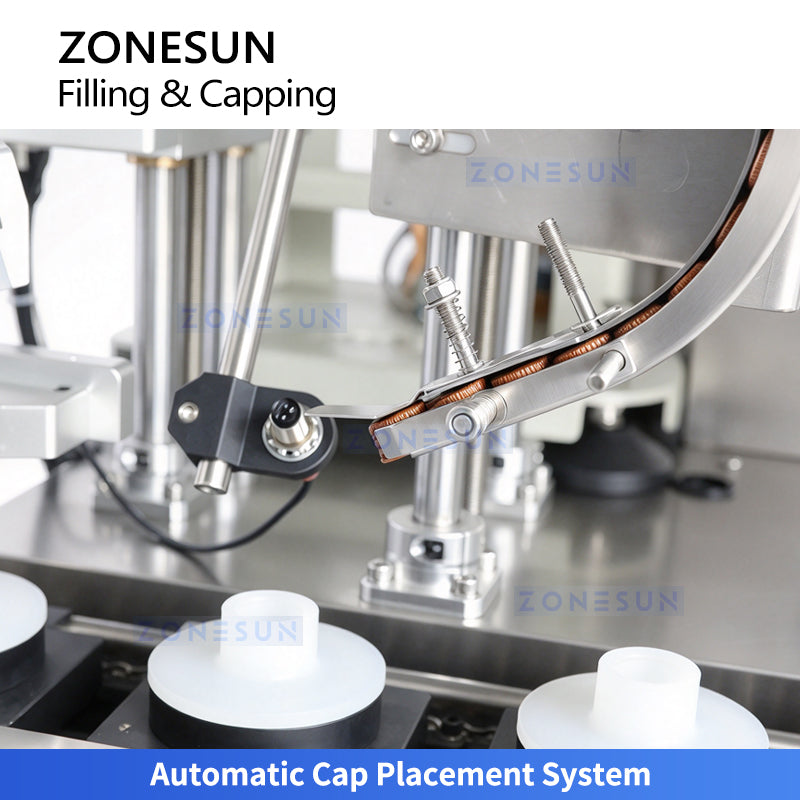

Automatic Cap Placement System
Automatically guides and places caps onto bottles before capping for continuous operation. The cap handling structure can be customized for different cap sizes.

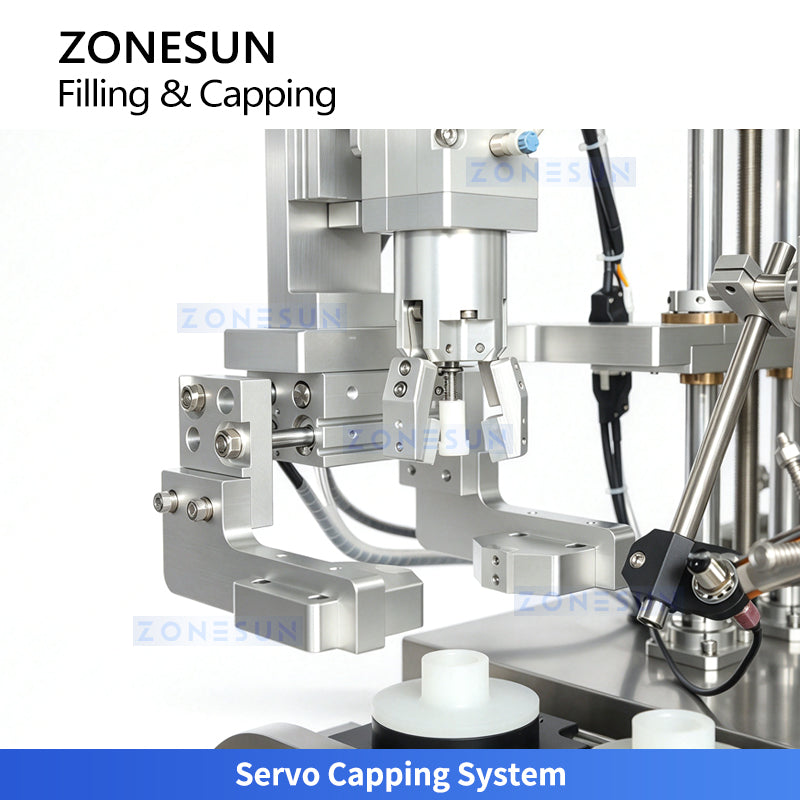

Servo Capping System
Servo-controlled capping provides adjustable torque for consistent and secure cap tightening.

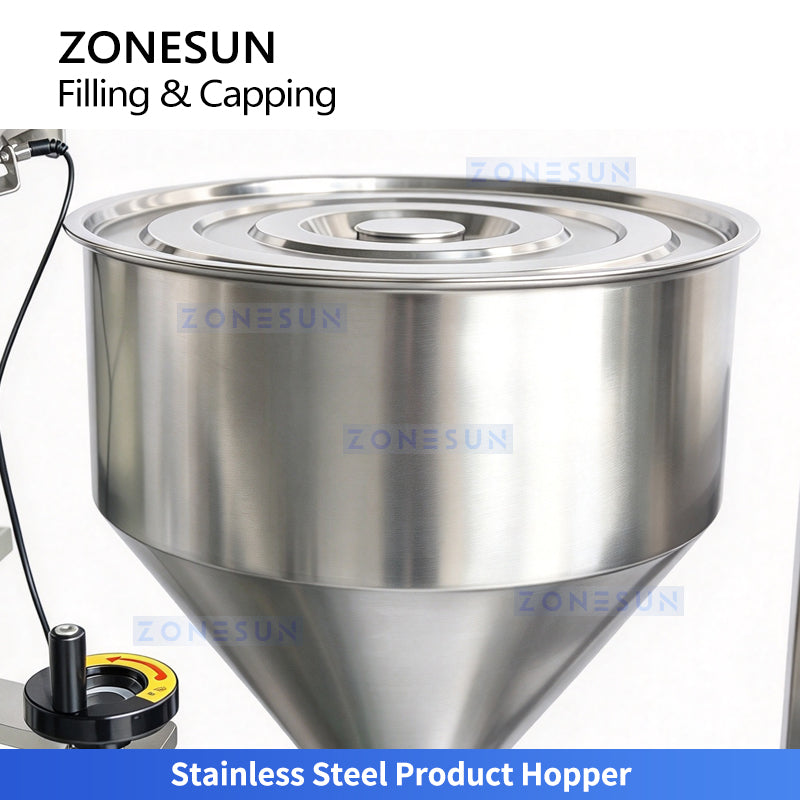

Stainless Steel Product Hopper
Stores and continuously supplies liquid to the gear pump filling system during production.
Automatic Bottle Feeding System
Feeds bottles horizontally into moving bottle holders, where they are securely positioned and automatically turned upright during conveying for subsequent filling and capping.
Customizable Bottle Holders
Securely position bottles during filling and capping, with customized holders available for different bottle sizes and shapes.
Vibratory Cap Feeding System
Automatically sorts and orients bulk caps, then continuously feeds them to the cap placement station.
