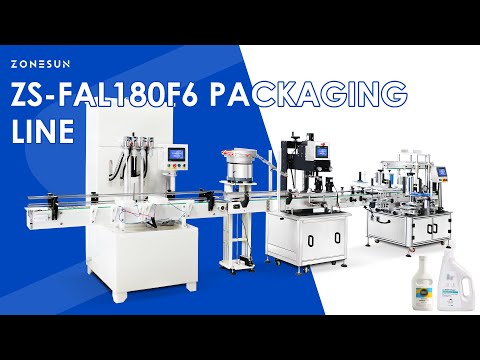

ZONESUN ZS-FAL180F6 Automatic Corrosive Liquid Packaging Production Line | Filling + Capping + Labeling | 100–3000ml

Description

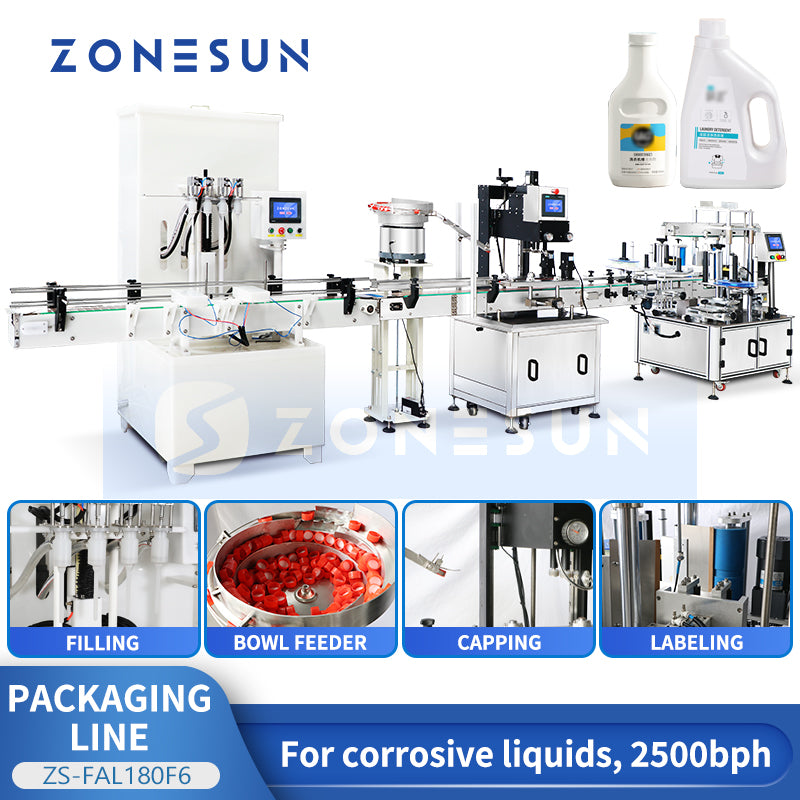

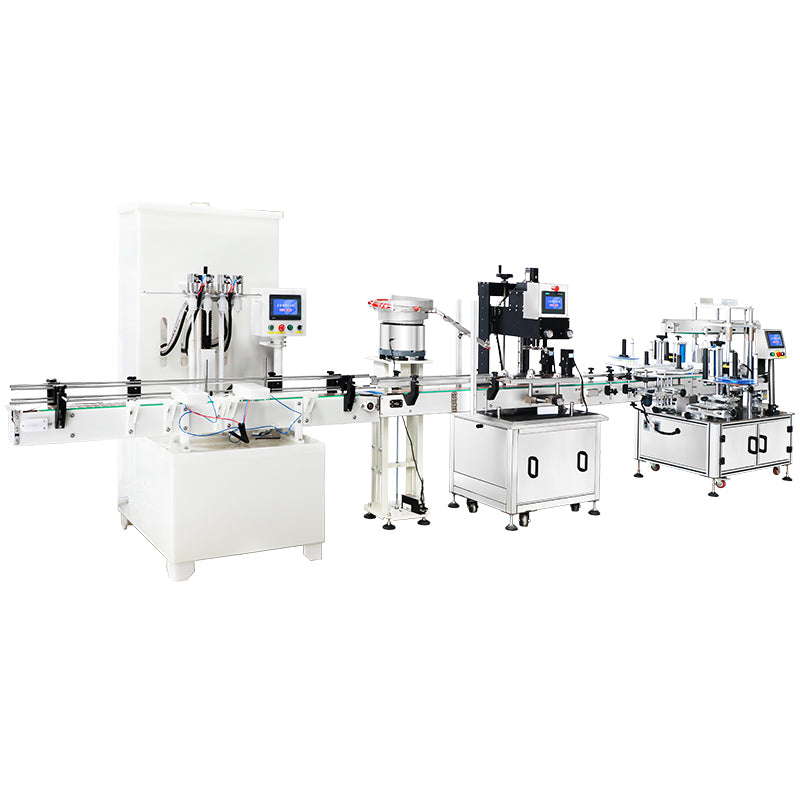

The ZONESUN ZS-FAL180F6 is a complete automatic packaging production line for corrosive liquids, integrating four key systems: a corrosive liquid filling machine (ZS-YTCR4A), vibratory bowl cap feeder, servo capping machine (ZS-XG440S), and round bottle labeling machine (ZS-TB300Z). This turnkey solution covers the full packaging workflow from filling to capping to labeling in one continuous, automated line.

Designed for chemical, industrial, and cleaning product packaging, it handles bottles from 100ml to 3,000ml with a filling speed of 200–2,500 BPH and labeling speed of 30–150 bottles/min, making it ideal for medium to large-scale corrosive liquid production operations.

Line Components & Specifications

① Corrosive Liquid Filling Machine — ZS-YTCR4A

• Voltage: 110V / 220V, 50–60Hz, 550W
• Air Pressure: 0.4–0.7 MPa
• Filling Range: 100–3,000ml
• Filling Speed: 200–2,500 BPH (based on filling volume)
• Suitable Bottle Diameter: φ60–φ110mm
• Suitable Bottle Height: 100–290mm
• Hopper Size: Approx. 90L
• Conveyor: 1,900 × 114mm
• Machine Size (L×W×H): 2,000 × 1,207 × 1,887mm
• Machine Weight: Approx. 200kg

② Vibratory Bowl Cap Feeder

• Voltage: 110V / 220V, 50–60Hz
• Material: Stainless Steel
• Suitable Cap Diameter: Customizable
• Working Speed: Customizable
• Machine Size: Customizable

③ Servo Capping Machine — ZS-XG440S

• Voltage: 110V / 220V, 50–60Hz, 2.8kW
• Working Speed: 30–100 bottles/min
• Suitable Bottle Size: H = 50–300mm, Φ30–120mm
• Suitable Cap Size: Φ20–60mm
• Machine Size (L×W×H): Approx. 2,000 × 750 × 1,650mm
• Machine Weight: Approx. 300kg
• Package Size (L×W×H): Approx. 2,070 × 830 × 1,730mm
• Package Weight: Approx. 321kg

④ Round Bottle Labeling Machine — ZS-TB300Z

• Voltage: 110V / 220V, 2,500W
• Working Speed: 30–150 bottles/min (based on bottle size)
• Labeling Accuracy: ±1mm
• Suitable Object Size: L 30–300mm × W 30–100mm × H 50–350mm
• Suitable Label Size: L 15–300mm × W 15–150mm
• Label Roll OD / ID: Φ280mm / Φ76mm
• Machine Size (L×W×H): Approx. 2,710 × 1,450 × 1,540mm
• Package Size (L×W×H): Approx. 1,900 × 970 × 1,690mm

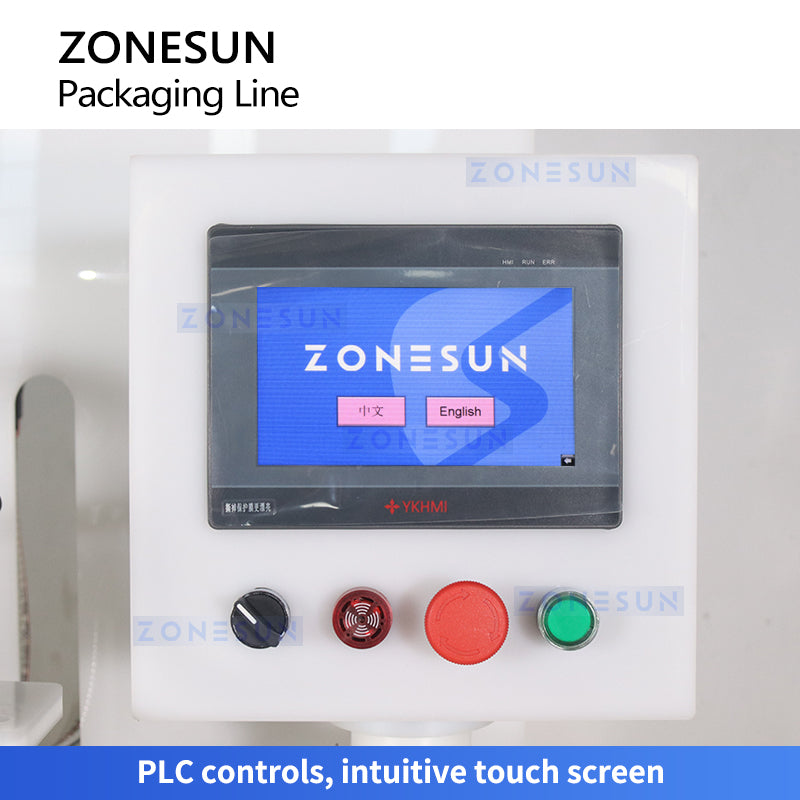

CONTROL

Shows machine working data and production status intuitively, simplifies operation.

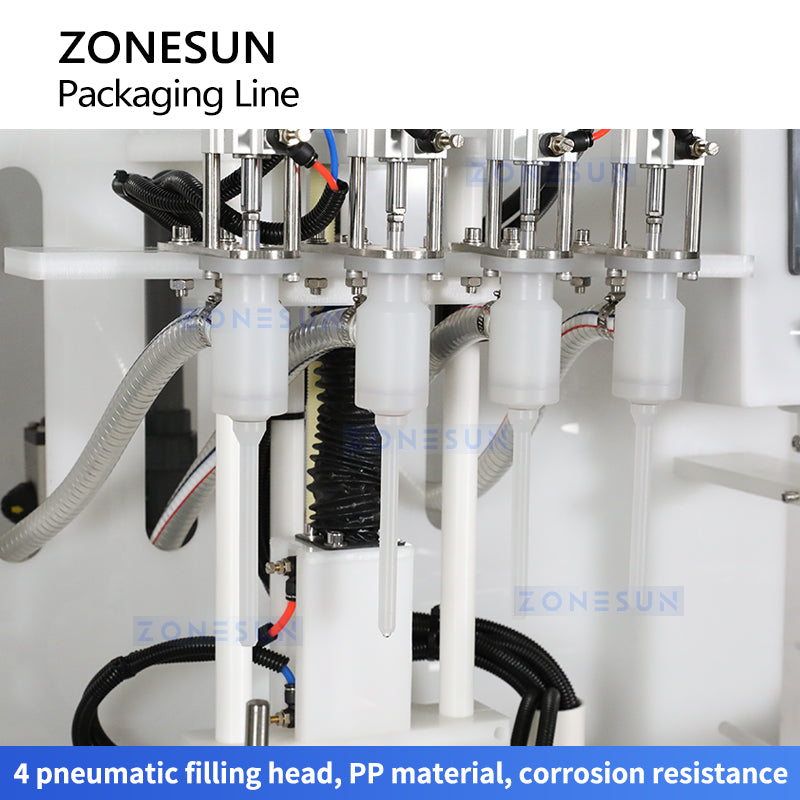

FILLING

Anti-dripping Filling Nozzle, Prevent corrosive liquid from dripping onto machine.

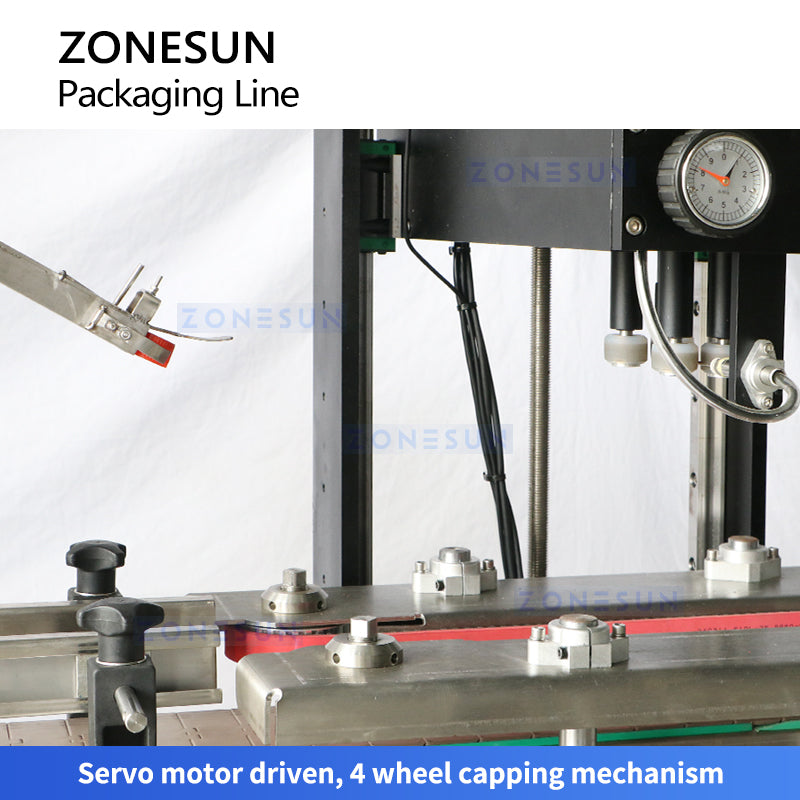

CAPPING

Controlled by servo motor, capping torsion can be adjusted more accurately.

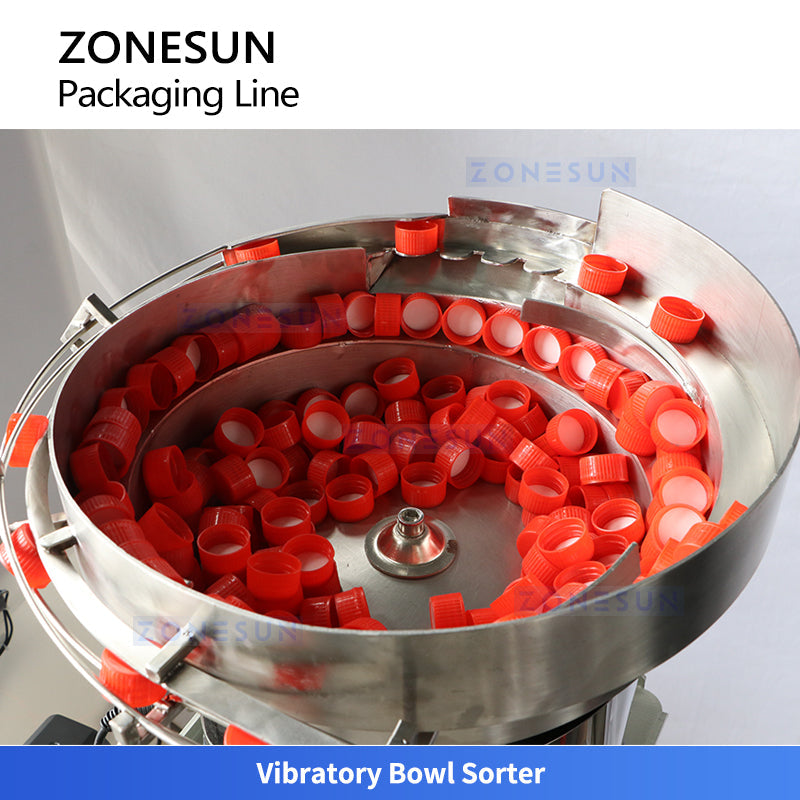

BOWL

Can handle a large volume of caps and supply them to next working process in time.

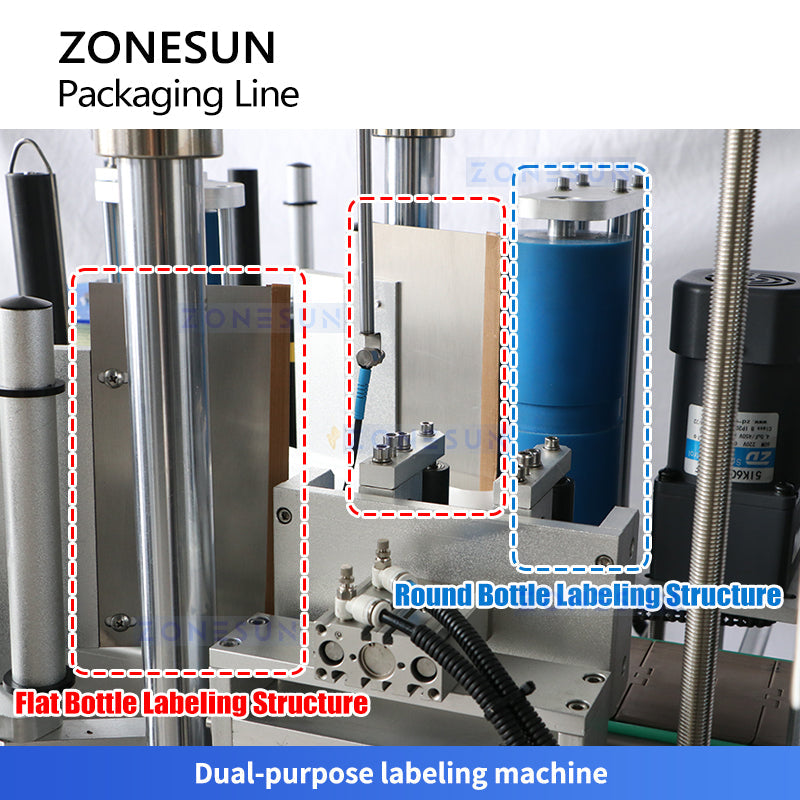

LABELING

Suitable for sticking labels on round & flat bottles, each of them can work separately.

CONVEYOR

Has higher weight capacity, the width and length can be customized as needed.

Why Choose the ZS-FAL180F6?

• ✅ Complete Turnkey Line: Filling + vibratory bowl cap feeder + servo capping + labeling — one integrated system, one supplier
• ✅ Corrosive Liquid Ready: Anti-corrosion materials and design for chemical, cleaning, and industrial liquid packaging
• ✅ 200–2,500 BPH Filling: Wide speed range for flexible production volume requirements
• ✅ 100–3,000ml Filling Range: Covers small to large bottle formats in one machine
• ✅ Servo Capping Precision: ZS-XG440S servo capper ensures consistent, damage-free cap tightening at 30–100 BPM
• ✅ ±1mm Labeling Accuracy: ZS-TB300Z round bottle labeler for precise, professional label application
• ✅ Automatic Cap Sorting: Vibratory bowl feeder automatically orients and feeds caps for uninterrupted capping
• ✅ Multi-Voltage: 110V / 220V, 50–60Hz for global compatibility
• ✅ Scalable & Customizable: Cap size, bottle size, and line speed customizable to your production requirements

Ideal Applications

• 🧪 Chemical & Industrial: Bleach, disinfectant, acid, alkali, solvent, industrial cleaner
• 🧼 Cleaning Products: Detergent, floor cleaner, toilet cleaner, laundry liquid, dishwashing liquid
• 🔧 Automotive & Lubricants: Antifreeze, brake fluid, engine cleaner, rust remover
