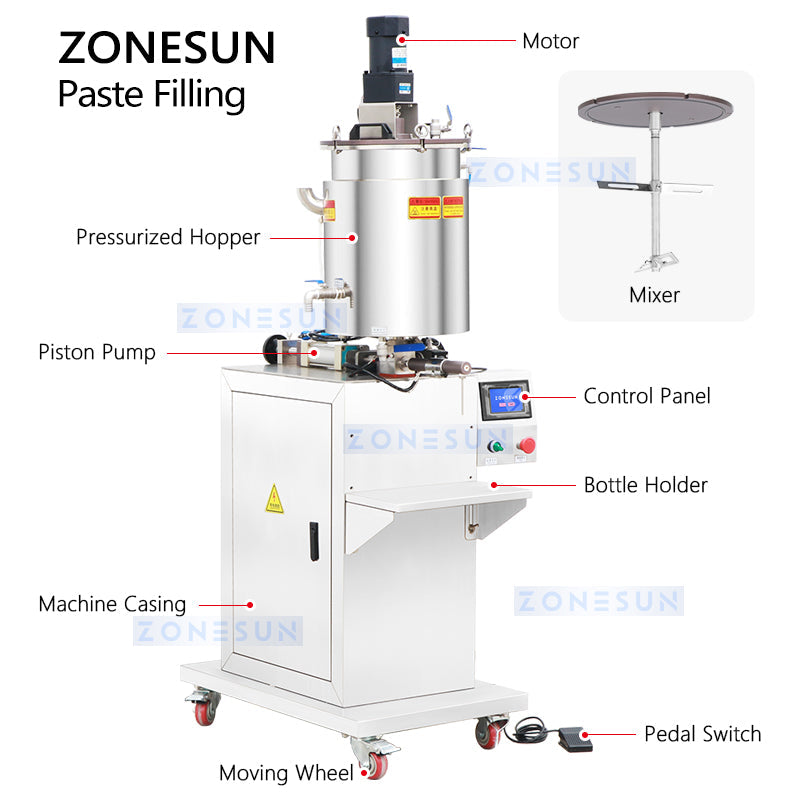

ZONESUN ZS-GTPP1H Semi-automatic Piston Pump Paste Filler Cream Lipstick Paste Filling Machine

DESCRIPTION

The ZONESUN ZS-GTPP1H is a high-performance semi-automatic piston filling machine specifically engineered for products requiring constant temperature and agitation, such as lipsticks, balms, creams, and waxes.

Designed with a focus on durability and hygiene, this filler features a 30L jacketed hopper with integrated heating and a high-torque stirring motor to ensure product homogeneity and prevent solidification. The precision volumetric piston system provides consistent dosing accuracy for high-viscosity materials. Built with corrosion-resistant, food-grade materials, the ZS-GTPP1H offers a robust and easy-to-sanitize solution for small-to-medium batch production.

PARAMETER

• Machine Model: ZS-GTPP1H

• Power Supply: 110/220V 50-60Hz 2.3KW

• Air Supply: 0.3-0.6Mpa

• Filling Pump: Piston Pump

• Stirring Speed: 0-90RPM

• Barrel Volume: 20L

• Filling Range: 1-20 ml

• Filling Accuracy: ±0.1 ml

• Nozzle Size: OD 3 mm/4 mm/6 mm

• Working Capacity: 1200-1800 BPH

• Machine Body Material: Stainless Steel (SUS304)

• Machine Size: 500*750*1710 mm(L*W*H)

• Package Size: About 900*740*1880 MM

• Package Weight: About 120 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.

Control Panel: The user-friendly interface enables operators to easily adjust settings, monitor performance, and manage the filling process efficiently.

Control Panel
The user-friendly interface enables operators to easily adjust settings, monitor performance, and manage the filling process efficiently.

Hopper & Mixer: This feature ensures thorough blending of ingredients, achieving a consistent texture and quality for products like mascara and lip gloss.

Hopper & Mixer
This feature ensures thorough blending of ingredients, achieving a consistent texture and quality for products like mascara and lip gloss.

Bottle Holder: Designed to securely hold bottles in place during the filling process.

Bottle Holder
Designed to securely hold bottles in place during the filling process.

Filling Structure: Controlled by piston pump, multiple sizes of filling nozzles can be chosen as production need to ensure accurate filling.

Filling Structure
Controlled by piston pump, multi sizes of filling nozzles can be chosen as production need to ensure accurate filling.

Heating Rod: Maintains optimal temperature for the filling material, ensuring smooth flow and preventing clogs during the filling process.

Heating Rod
Maintains optimal temperature for the filling material, ensuring smooth flow and preventing clogs during the filling process.
