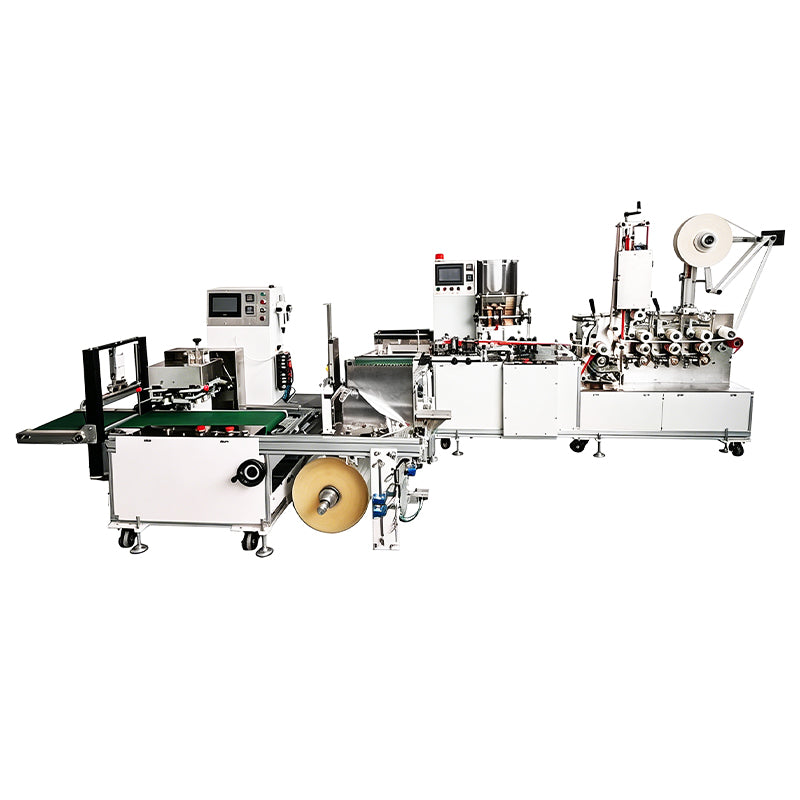

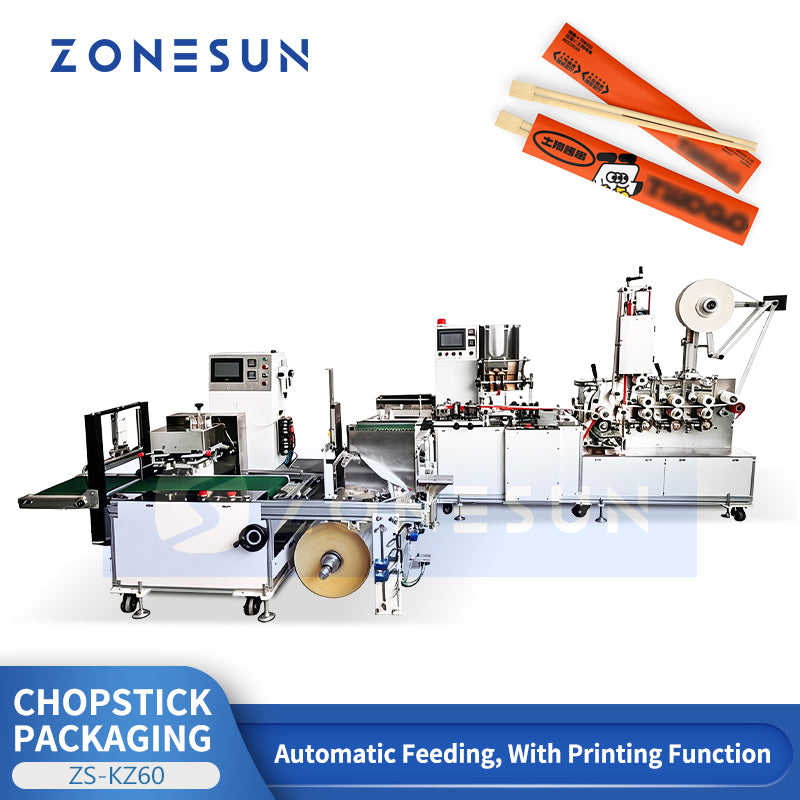

ZONESUN ZS-KZ60 Automatic Disposable Chopstick Packaging Machine with Paper Sleeve Printing, Filling, Sealing and High Speed Packing System
ZONESUN ZS-KZ60 Automatic Disposable Chopstick Packaging Machine with Paper Sleeve Printing, Filling, Sealing and High Speed Packing System
No se pudo cargar la disponibilidad de retiro
Overview
The ZONESUN ZS-KZ60 is a fully automatic high-speed chopstick packaging machine designed for large-scale production of paper-sleeved disposable chopsticks. It integrates six processes into one continuous system: automatic chopstick feeding, 3-color printing with IR drying, paper bag forming, filling, end sealing, and cutting — reaching up to 600 pieces per minute.
Built for restaurants, food service operations, hotel catering, and export markets, the ZS-KZ60 uses eco-friendly paper packaging materials and enables inline brand printing on every sleeve, making it an ideal solution for high-volume, branded chopstick production.
Technical Specifications
- Model: ZS-KZ60
- Voltage: 220V
- Production Capacity: 600 pieces/min
- Automation Grade: Fully automatic
- Applicable Materials: Eco-friendly paper packaging materials
- Main Functions: 3-color printing, automatic packaging, end sealing
- IR Drying: Integrated infrared drying system for fast ink curing after printing
- Machine Dimensions (L×W×H): 4111 × 1913 × 1711mm

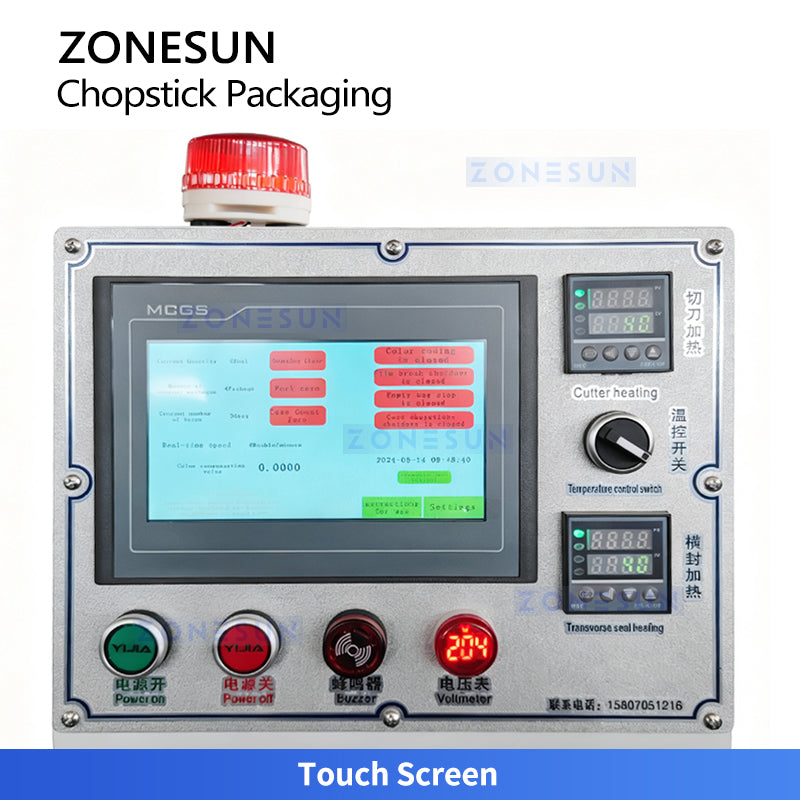

TOUCH SCREEN
Allows operators to configure packaging parameters easily and select desired operation languages directly via an intuitive touch screen.

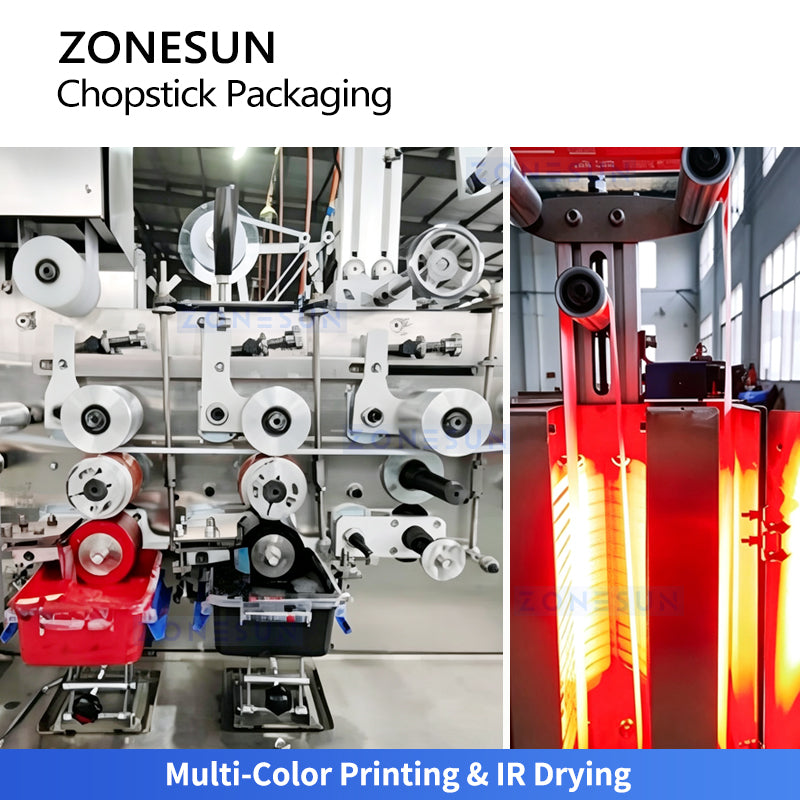

PRINTING & IR DRYING
Integrates a high-precision printing system with infrared drying for multi-color logo printing on paper packaging materials, completing packaging and branding simultaneously.

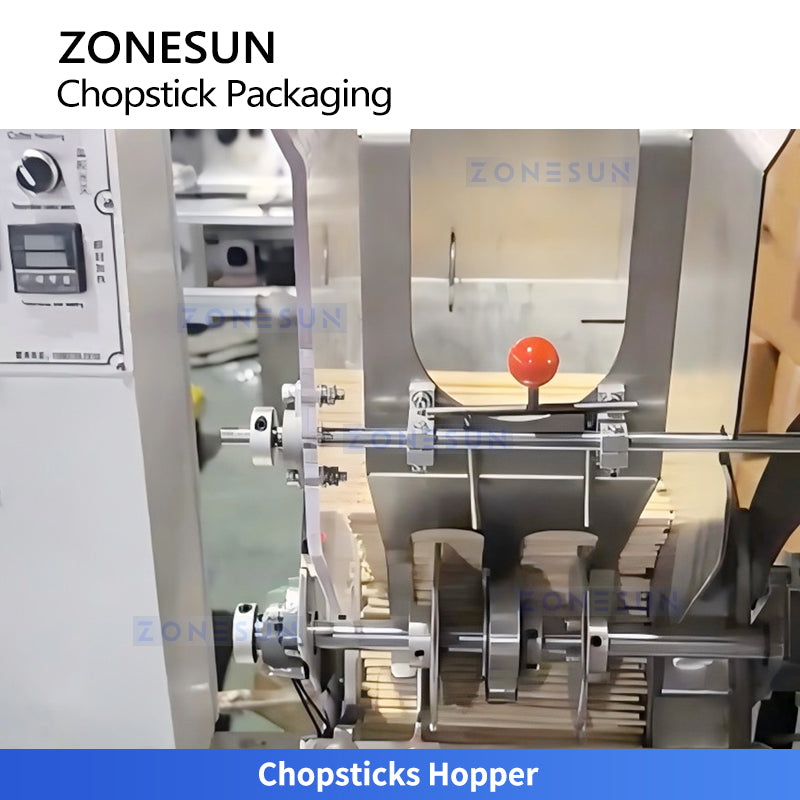

CHOPSTICKS HOPPER
Features a large-capacity silo with a rotary unscrambler wheel to automatically sort and feed sticks row-by-row into the wrapper smoothly.

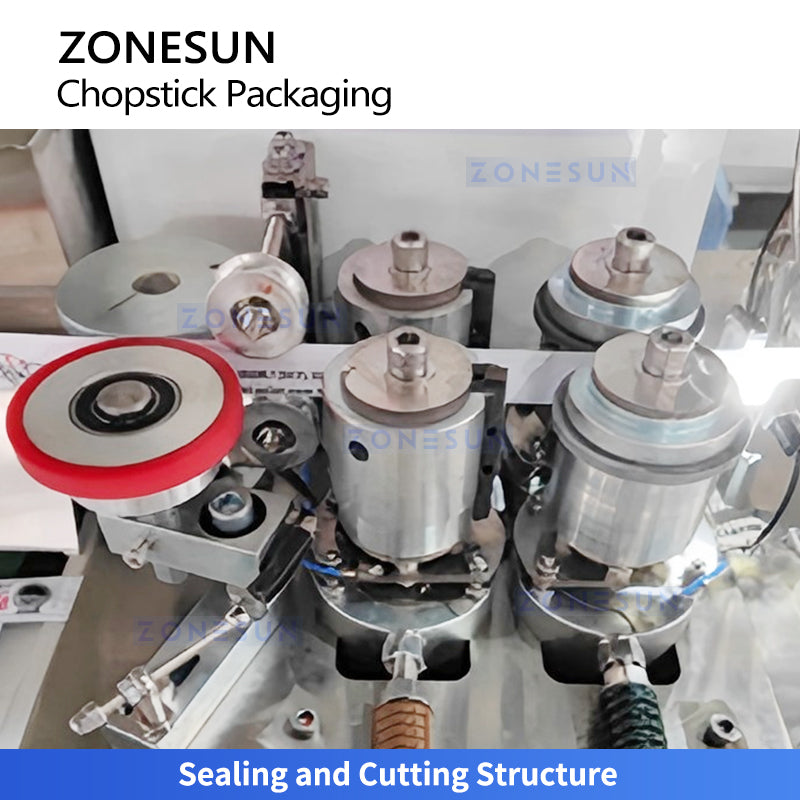

SEALING & CUTTING
Utilizes continuous heat-sealing rollers to create reliable longitudinal seals, combined with an automated cutting knife to produce neatly finished single packages.
COUNTING & SPEED TUNING
Equipped with a digital counting system and inverter to track total output and adjust packaging speed flexibly, facilitating subsequent bagging operations.

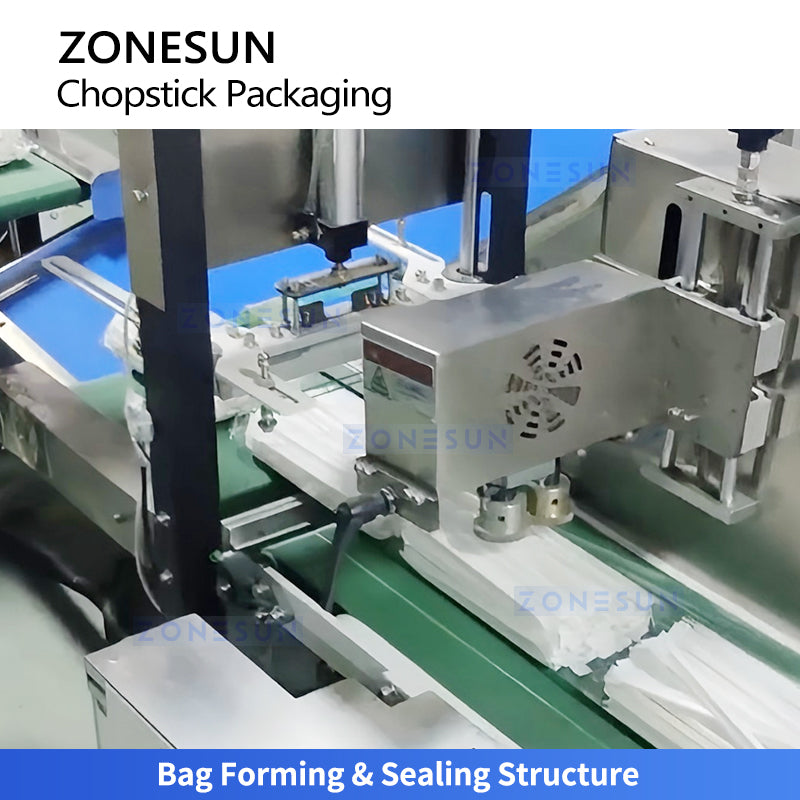

FORMING & SEALING
Automatically folds roll-fed plastic film into bags, precisely pushes chopsticks into them, and completes sealing.
CONVEYOR BELT
Serves as the precise location where the wrapped film is cut, smoothly transporting the packed chopsticks out of the machine for collection.
Key Features
- ✅ 600 Pieces/Min — 6-in-1 Fully Automatic Process
Integrates feeding, printing, drying, forming, filling, and sealing into one continuous line with minimal manual intervention. - ✅ 3-Color Inline Printing with IR Drying
Prints logos, QR codes, and patterns directly onto each sleeve during production; ink is fully cured before sealing. - ✅ Eco-Friendly Paper Packaging
Meets international sustainability and food contact material standards for restaurant, hotel, and export use. - ✅ Automatic Chopstick Feeding
Continuous feeding maintains full-speed throughput without manual loading between cycles. - ✅ Precision End Sealing & Cutting
Produces clean, uniform sealed packages suitable for branded retail and export presentation.
Ideal Applications
- 🍽️ Restaurant & Food Service — High-volume branded chopstick packaging for chains, canteens, and distributors.
- 🏨 Hotel & Catering — Custom logo-printed sleeves for hotel restaurants, banquets, and airline catering.
- 📦 Chopstick Manufacturing & Export — Eco-compliant packaging for domestic and international markets.
- 🏪 Retail & Convenience Stores — Attractive printed sleeves for supermarket and grocery shelf display.
