ZONESUN ZS-MMN94 Automatic KF94 3D Face Mask Making Machine
ZONESUN ZS-MMN94 Automatic KF94 3D Face Mask Making Machine
No se pudo cargar la disponibilidad de retiro
Automatic KF94 3D Face Mask Making Machine
The ZONESUN ZS-MMN94 Automatic KF94 3D Face Mask Making Machine is designed for producing three-dimensional KF94-style face masks with an integrated automatic manufacturing process.
The machine combines multi-layer material feeding, nose bridge strip feeding, mask body forming, ultrasonic welding, cutting and automatic ear-loop welding into one continuous production sequence.
With a listed production speed of 150–170 pieces/min, the machine supports adult and child mask formats. Material guiding and tension control help maintain stable feeding, while ultrasonic welding technology provides efficient bonding for mask production.
Technical Specifications
| Model | ZS-MMN94 |
|---|---|
| Power Supply | Single-Phase 220 V, 60 Hz |
| Production Capacity | 150–170 pcs/min |
| Listed production qualification rate | 98–99% |
| Adult Mask Size | 205 × 80 mm |
| Child Mask Size | 140 × 80 mm |
| Machine Dimensions (L × W × H) | 7500 × 2700 × 2100 mm |
| Weight | 1950 kg |
Applications
- Manufacturing compatible KF94-style mask bodies from layered nonwoven and filter materials.
- Adult and child mask projects using the corresponding tooling.
- Integrated nose-strip insertion and ear-loop welding for compatible mask formats.
Product Details
Material Guiding & Tensioning System
Guides multiple material layers into the machine while maintaining stable alignment and tension for continuous production.
Multi-Layer Material Feeding System
Aligns and feeds multiple layers of nonwoven and filter materials for subsequent mask forming and welding.
Nose Bridge Strip Feeding System
Automatically feeds, cuts, and positions the nose bridge strip for integration into the mask body.
Mask Forming & Ultrasonic Welding
Forms the layered materials into the required KF94-style mask shape and ultrasonically welds the seams.
Mask Cutting
Cuts individual mask bodies for downstream processing.

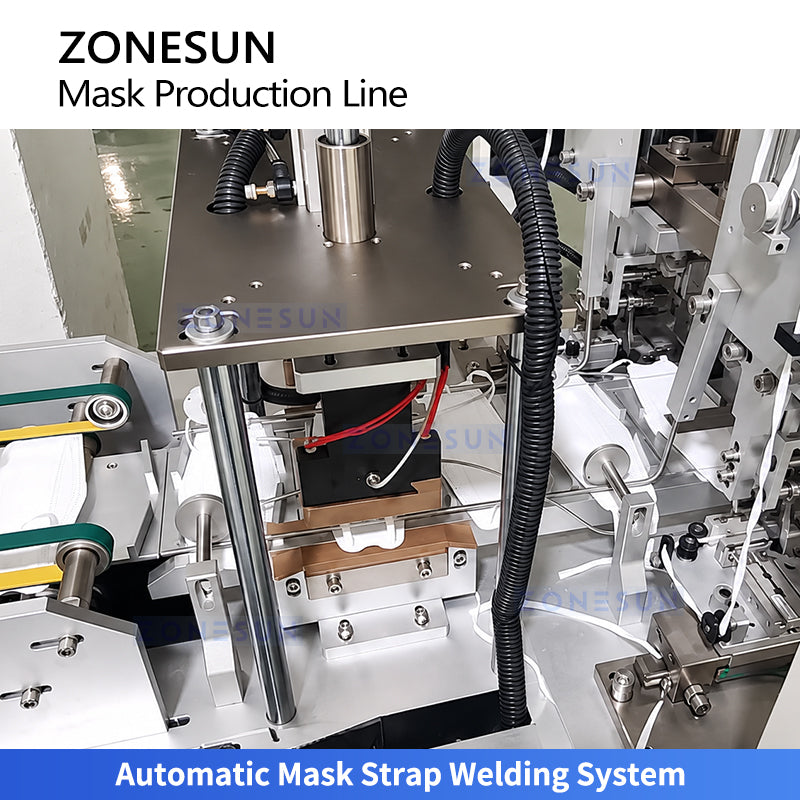

Automatic Mask Strap Welding System
Automatically positions and welds elastic ear loops onto KF94-style mask bodies for efficient and consistent assembly.
Ultrasonic Generator
Provides stable ultrasonic energy for mask welding.
Cooling System
The cooling fan helps dissipate heat during continuous operation.
