ZONESUN ZS-MPYT900 Magnetic Pump Diving Nozzle Liquid Filling Machine

$769.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Voltage 110V 220V

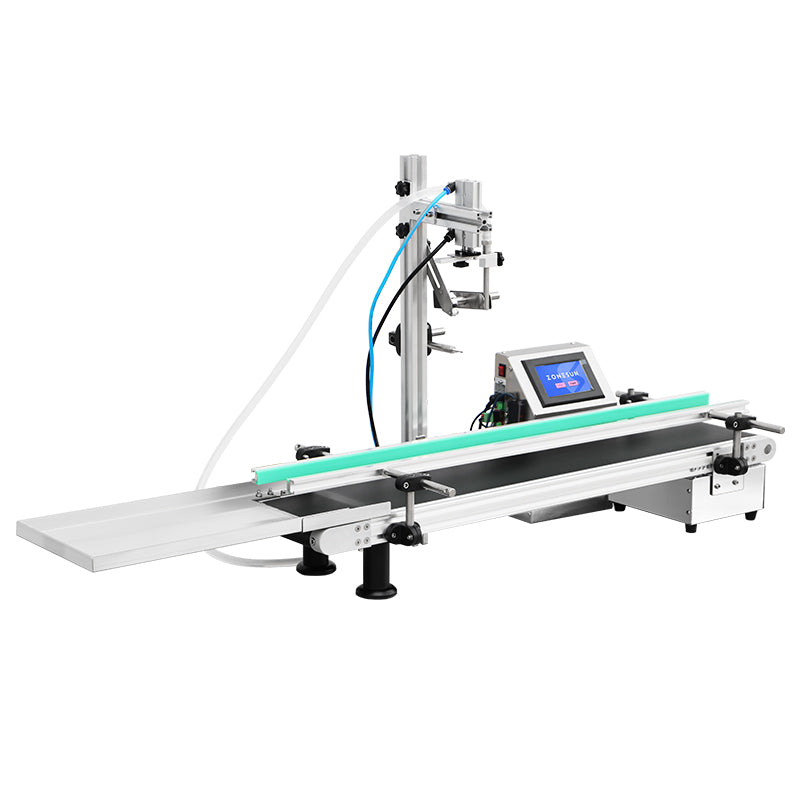

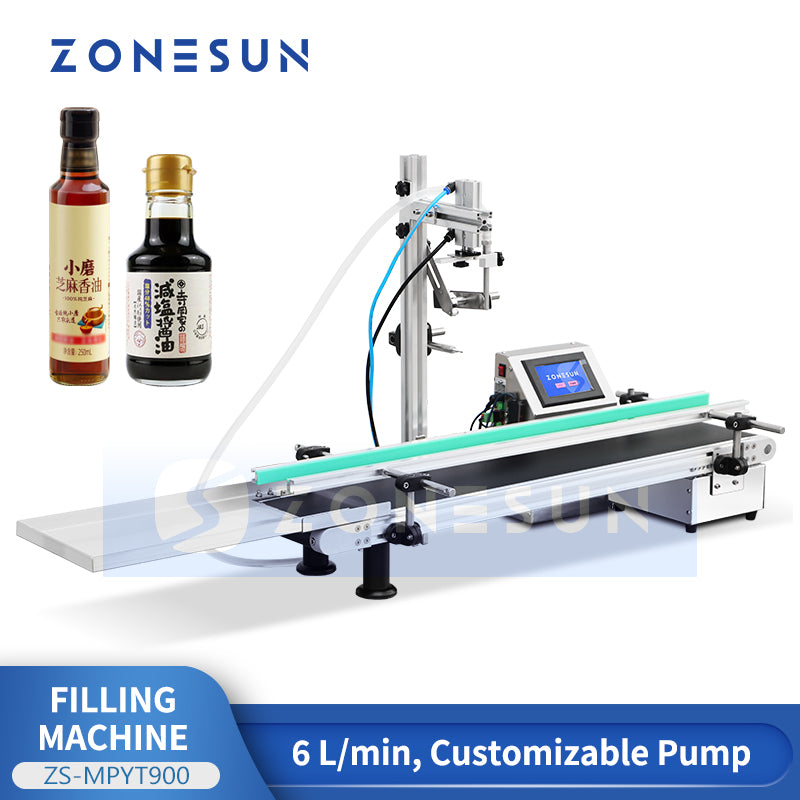

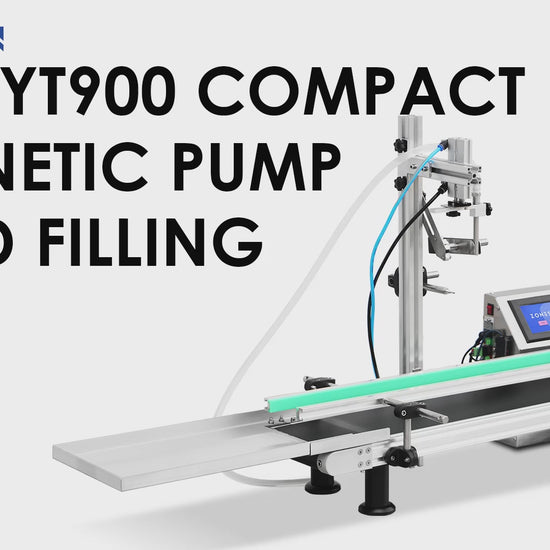

ZONESUN ZS-MPYT900 Magnetic Pump Liquid Filling Machine

The ZONESUN ZS-MPYT900 is a semi-automatic liquid filling machine designed for compatible cosmetic and personal-care liquids, including serums, essential oils, massage oils and makeup removers.

With a 10–1000 mL filling range and a standard SUS316 magnetic pump delivering up to 6 L/min, it features a pneumatic diving nozzle and slow–fast–slow filling control to help reduce foaming and splashing.

The machine supports digital volume setting, filling calibration, three saved parameter sets and no-bottle-no-fill operation. The standard configuration includes one filling head and a conveyor with a maximum load of 15 kg. A two-head configuration and alternative pump types can be customized.

Confirm pump compatibility, liquid properties and filling performance using your actual product before ordering.

Technical Specifications

Machine Model	ZS-MPYT900
Filling Range	10–1000 mL
Standard Pump	SUS316 Magnetic Pump, 6 L/min
Standard Pump Max. Flow	6.0 L/min
Filling Head Quantity	1 (Customizable for 2 heads)
Filling Stand Height	Adjustable From 0–200 mm
Suitable Bottle Height	≤150 mm
Pneumatic Lifting Nozzle Stroke	50 mm
Filling Nozzles	φ6 mm and φ9 mm, one each
Compatible Bottle Opening	Inner Diameter Above 12 mm
Air Pressure	0.4–0.6 MPa
Conveyor Capacity	Max. 15 kg
Conveyor Dimensions	Total Length 1.2 m; Belt Width 150 mm; Height 140 mm
Optional Filling Pump	3.0 L/min Diaphragm Pump, 1.5 L/min Heat-Resistant Diaphragm Pump, 0.7 L/min or 2.4 L/min Peristaltic Pump
Machine Dimensions	About 1250 × 400 × 600 mm
Machine Weight	About 15.6 kg
Package Size	About 990 × 360 × 220 mm
Package Weight	About 19.4 kg

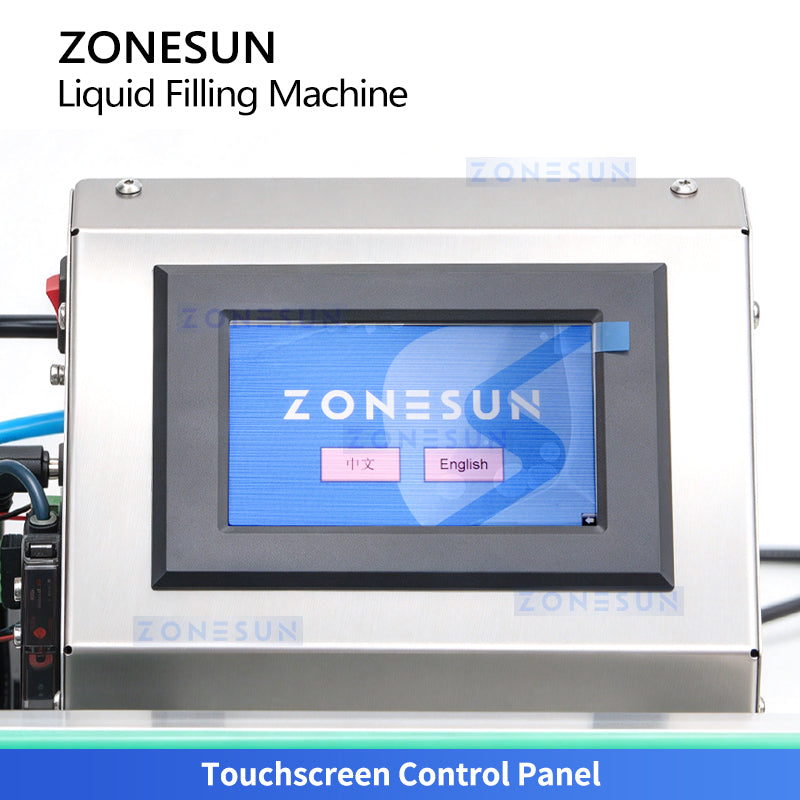

Touchscreen Control Panel

Allows direct filling volume input and storage of three preset parameter sets for convenient operation.

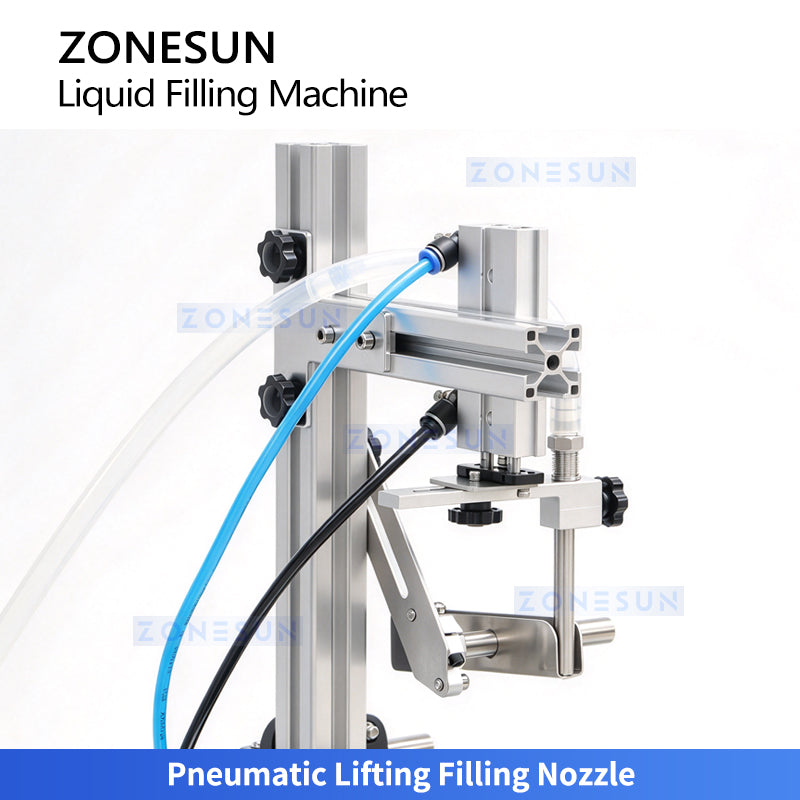

Pneumatic Lifting Filling Nozzle

Adjusts to different bottle heights, with an anti-drip design to help keep the filling area clean.

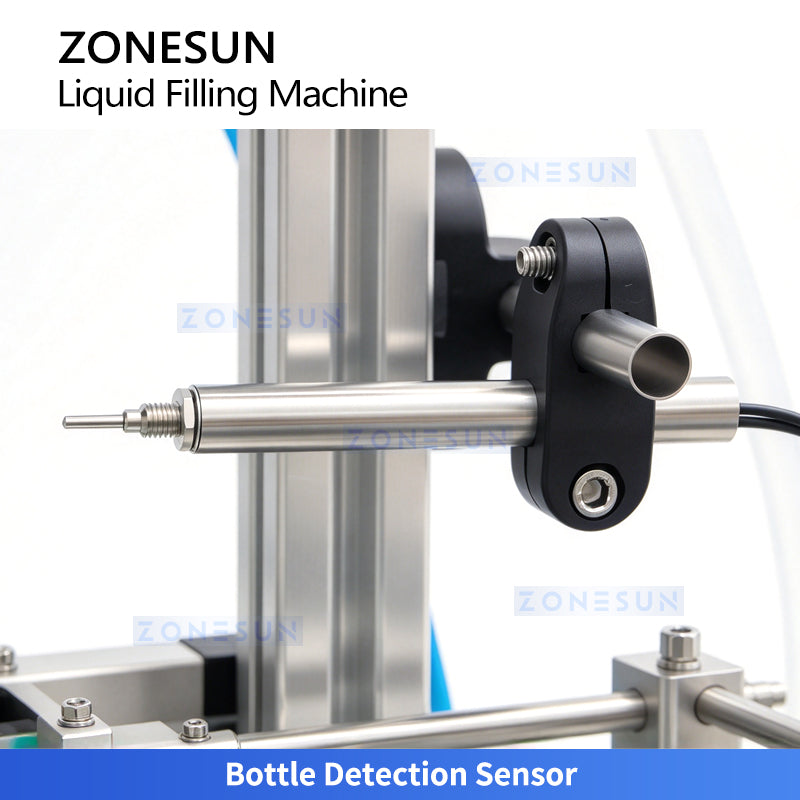

Bottle Detection Sensor

Detects bottle presence to enable no-bottle-no-fill operation and production counting.

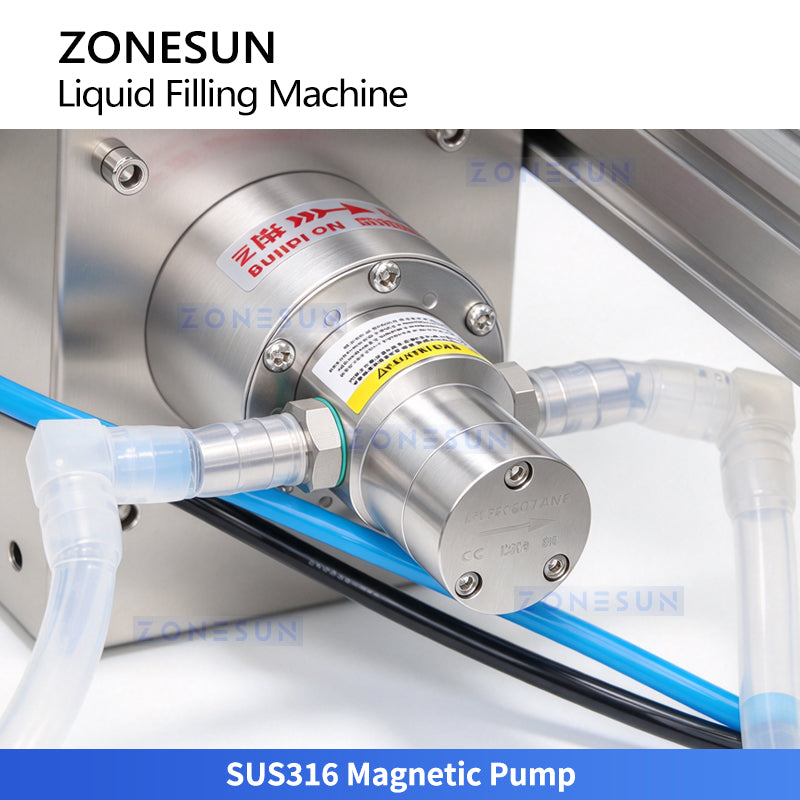

SUS316 Magnetic Pump

The standard SUS316 magnetic pump handles compatible serums, essential oils and massage oils. Alternative pump types are available.

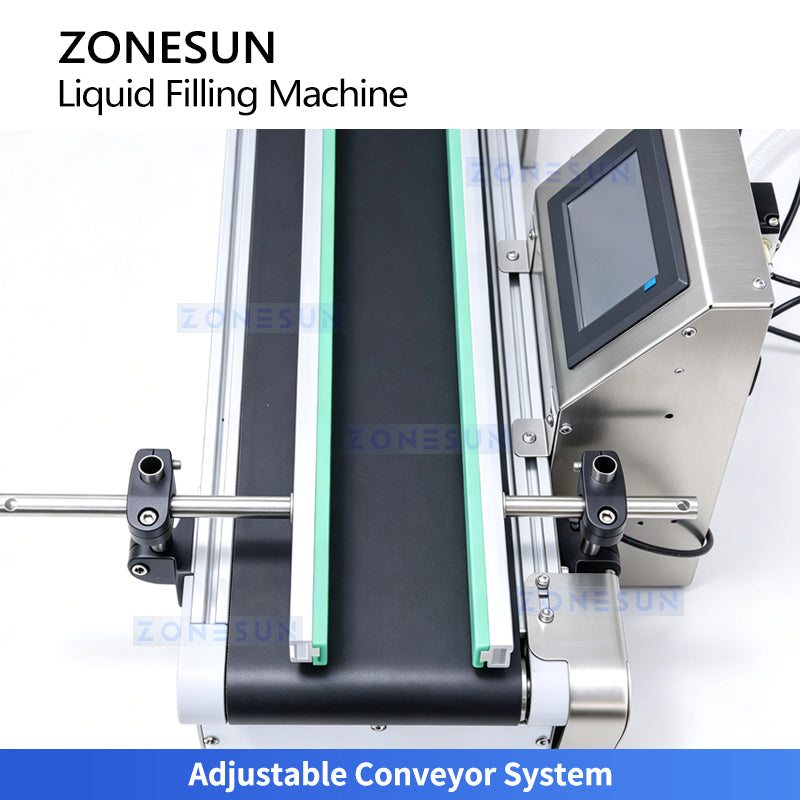

Adjustable Conveyor System

Transports bottles through the filling station, with adjustable guide rails and a maximum load capacity of 15 kg.

Key Features

Direct filling volume input with liquid calibration
Three-stage filling speed to help reduce foaming and splashing
Pneumatic lifting nozzle with anti-drip design
No-bottle-no-fill function and preset-count stop
Three savable parameter sets for repeat production
One standard filling head, with optional two-head customization

Operating Process

Connect the liquid supply and utilities according to the manual.
Adjust the bottle guides and nozzle position.
Enter the target volume and calibrate using the actual liquid.
Test filling speed, volume and anti-drip performance.
Save the settings and set the required production count.

Configuration Guide

Provide the liquid properties, temperature, target volume, bottle dimensions, mouth inner diameter and required output. Confirm pump selection, nozzle position and bottle compatibility before ordering.

The listed bottle height is ≤150 mm, with a mouth inner diameter greater than 12 mm. Actual output depends on filling volume, liquid properties and cycle time.

Frequently Asked Questions

Can it fill foaming liquids?

The lifting nozzle and three-stage speed control help reduce foaming. Test with the actual liquid and bottle to confirm performance.

Which pump is supplied as standard?

The standard SUS316 magnetic pump has a maximum listed flow rate of 6 L/min. Diaphragm and peristaltic pump options are available.

What bottle sizes are supported?

The listed bottle height is ≤150 mm, with a mouth inner diameter above 12 mm. Standard nozzles are φ6 mm and φ9 mm, one each. Check bottle compatibility against the 50 mm nozzle stroke and adjustable stand.
