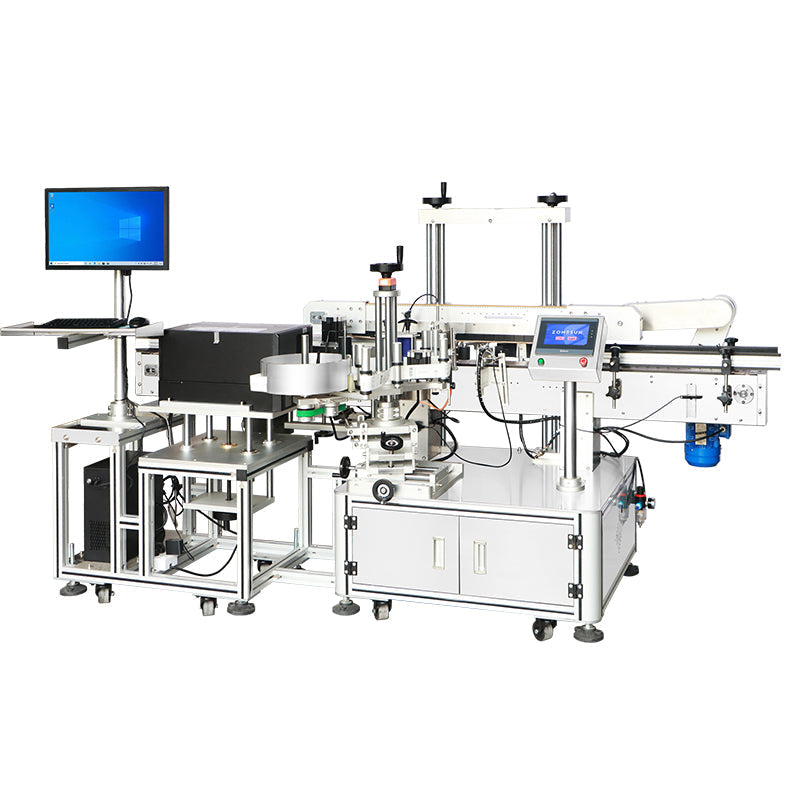

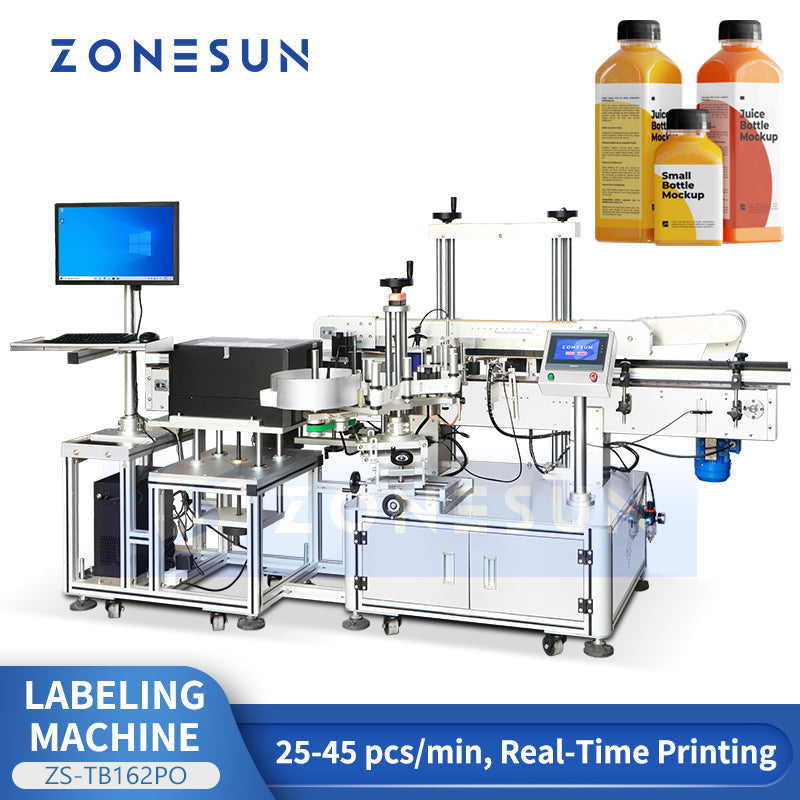

ZONESUN ZS-TB162PO Wrap-Around Square Bttle Labeling Machine With Real-Time Printing Function
ZONESUN ZS-TB162PO Wrap-Around Square Bttle Labeling Machine With Real-Time Printing Function
No se pudo cargar la disponibilidad de retiro
DESCRIPTION
The ZONESUN ZS-TB162PO Automatic Real-Time Printing Labeling Machine is designed for high-speed wrap-around labeling of square bottles. It supports real-time printing of logos, QR codes, and text directly from a computer interface. With adjustable labeling speed (25–45 pcs/min) and ±1 mm accuracy, it handles both semi-circle and full-circle labeling formats. Ideal for cosmetics, beverages, and chemical packaging lines requiring flexible, on-demand label customization.
Parameter
- Machine Model: ZS-TB162PO
- Power Supply: 220V 50-60Hz 570W
- Labeling Speed: About 25-45 pcs/min(depending on product size)
- Labeling Accuracy: ±1 mm
- Suitable Bottle Size: Diameter: φ25 mm-φ110 mm, Height: 25 mm-150 mm
- Suitable Label Size: 20-130 mm(H)*20-290 mm(W) (Can be customized)
- Label Roll ID: φ76 mm
- Label Roll OD: φ280 mm
- Conveying Speed: 5-18 m/min
- Air Pressure: 0.4-0.6 Mpa

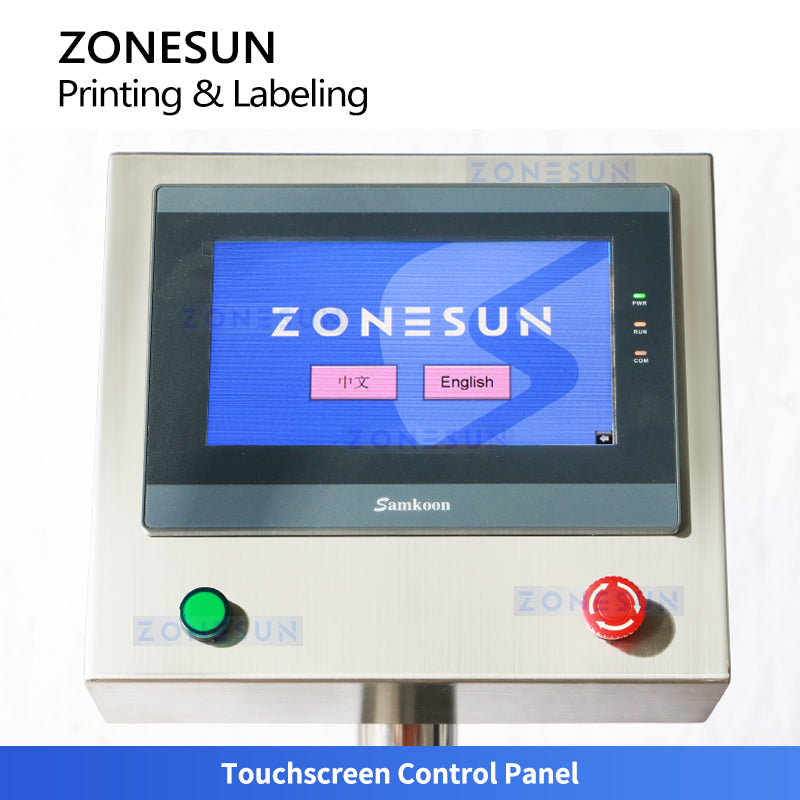

Control Panel: User-friendly interface for easy operation and quick parameter adjustment. Multiple languages can be customized.

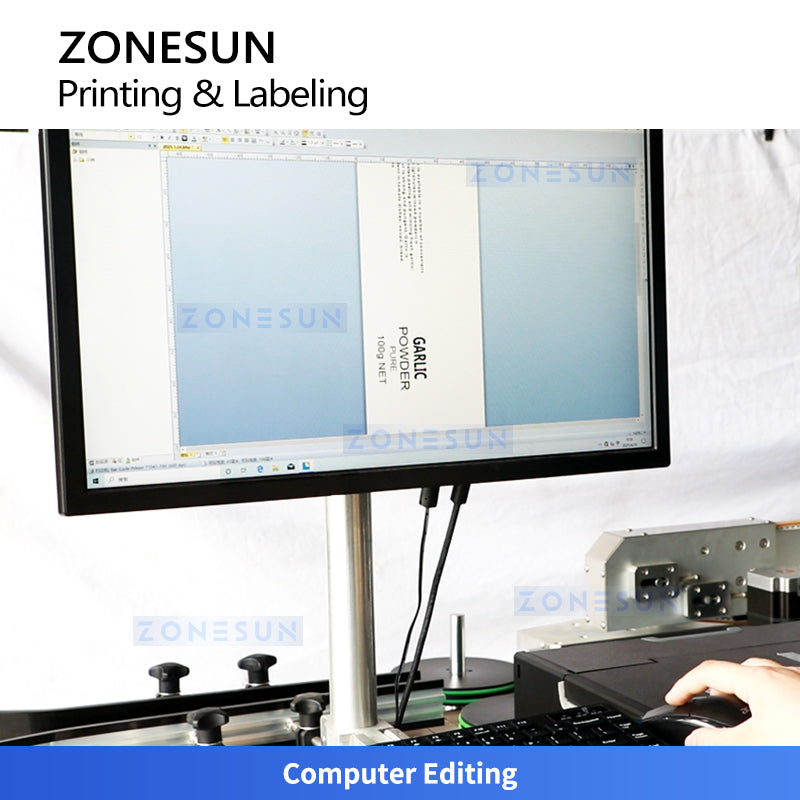

Computer Editing: Printed label information can be edited through the computer easily.

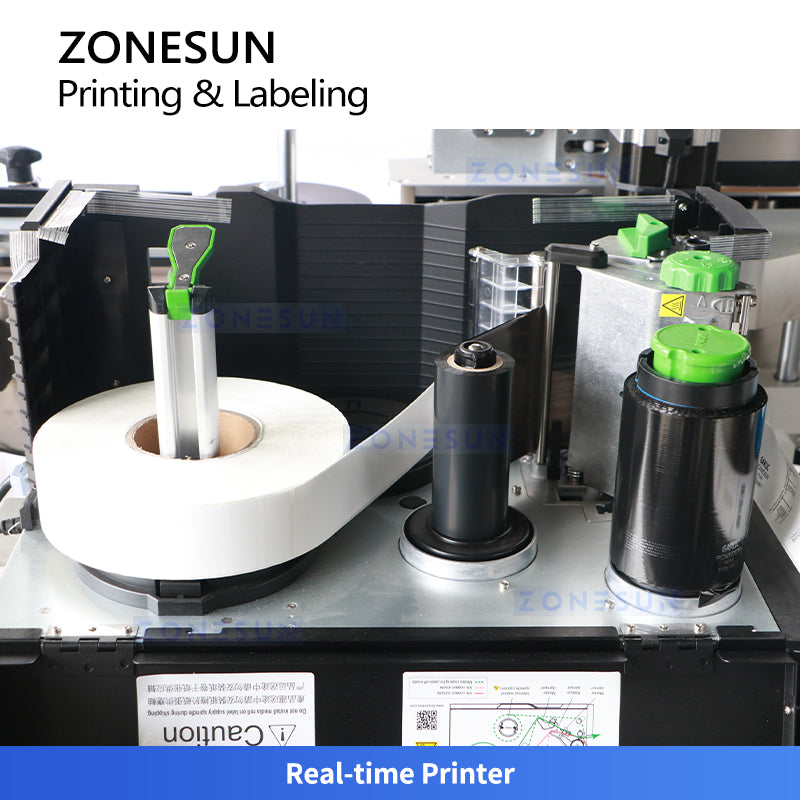

Real-time Printer: Capable of printing logos, QR codes, barcodes, patterns, numbers on labels.

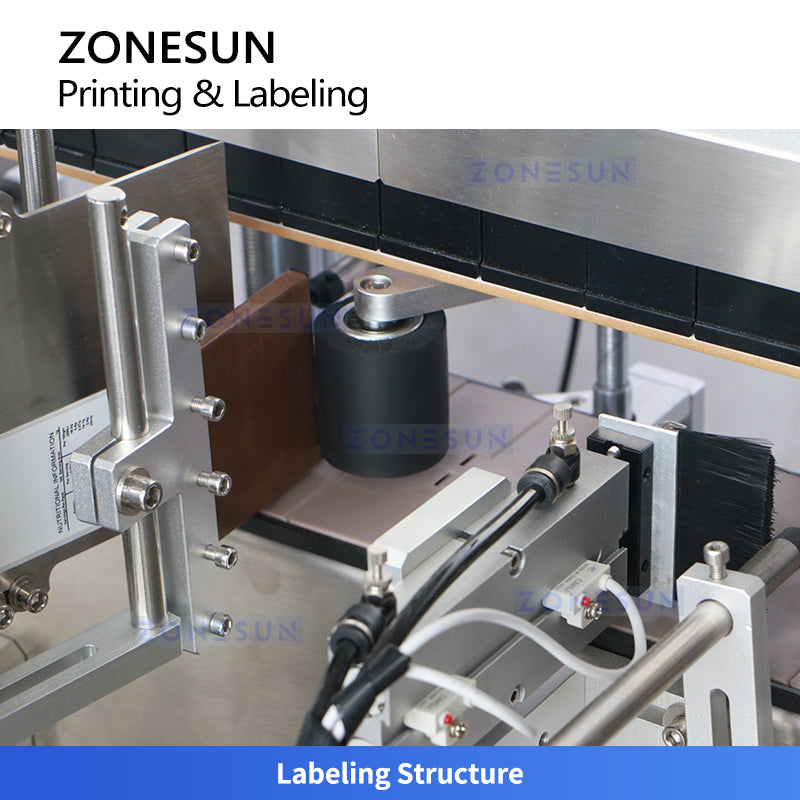

Labeling Structure: Can be used for semi-circle or full-circle labeling on square bottles.

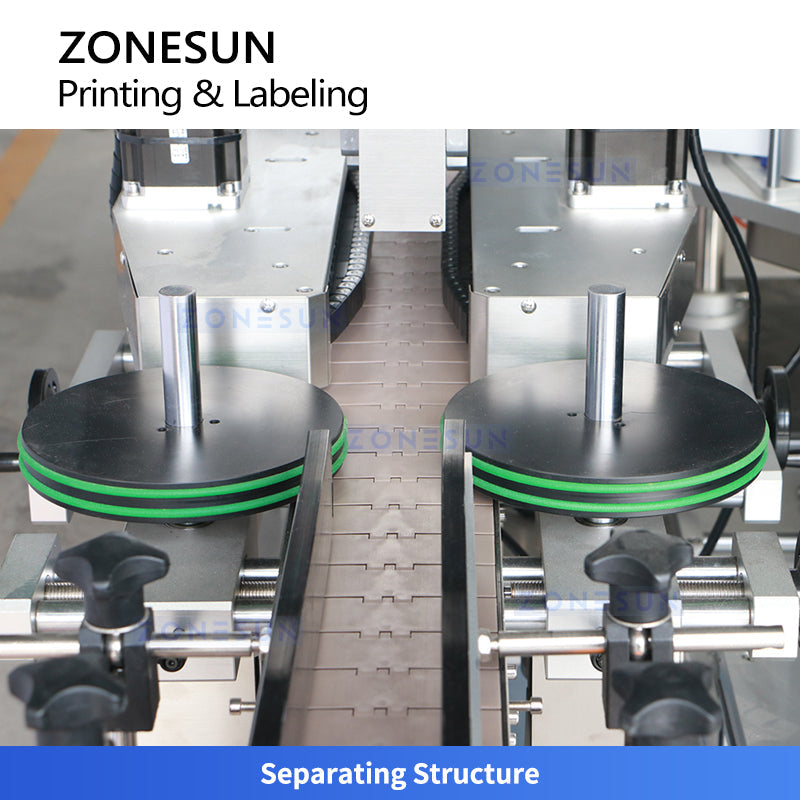

Separating Structure: Can space out bottles evenly before labeling, ensuring smooth production.
Electric Circuits: All circuits are well-arranged for safety, reliability, and easy maintenance.
