ZONESUN ZS-TB300T Automatic Carton Side & Corner Labeling Machine

Description

The ZONESUN ZS-TB300T Automatic Carton Side & Corner Labeling Machine is designed for applying pressure-sensitive labels to filled cartons for product identification, barcode labeling, logistics tracking, and tamper-evident sealing.

Featuring vacuum label transfer and configurable side and corner labeling stations, it supports one, two, or three labeling heads for different labeling requirements.

Operating at 10–15 cartons/min with ±1 mm labeling accuracy, the machine provides reliable end-of-line carton labeling. Optional thermal transfer or inkjet printers can add production dates, batch numbers, and variable information before label application.

Key Specifications

• Machine Model: ZS-TB300T
• Power Supply: 110/220 V, 50–60 Hz / 1 kW
• Labeling Speed: 10–15 pcs/min (depending on product size)
• Labeling Accuracy: ±1 mm (excluding errors caused by the product and label itself)
• Applicable Product Size: Customizable
• Applicable Label Size (L × W): Length: 250 mm; Width: 20–150 mm
• Package Dimensions (L × W × H): About 3350 × 1800 × 1370 mm
• Package Weight: About 690 kg

PLC Touchscreen Control

Set labeling speed, label position, and other operating parameters through the touchscreen for quick setup and easy operation.

Vacuum Label Transfer System

Vacuum adsorption securely transfers each label from the dispensing plate for stable, accurate label placement.

Side Labeling System

Accurately applies self-adhesive labels to carton sides for consistent positioning during continuous production.

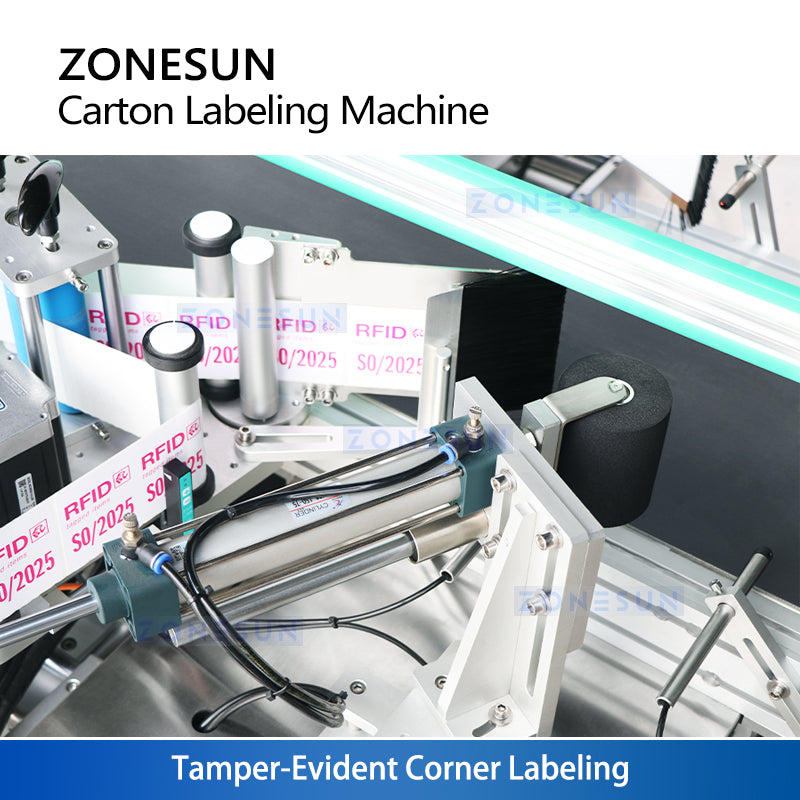

Tamper-Evident Corner Labeling

Applies labels across carton corners to cover two adjacent surfaces, making it suitable for tamper-evident sealing applications.

Conveyor System

Provides smooth, continuous carton transport through each labeling station for consistent label positioning.

Electrical Control Cabinet

Organized electrical components provide reliable machine control and stable operation for continuous production.

Why Choose the ZS-TB300T?

✅ Three-Station System — Side & Corner Labeling in One Pass: Integrates vacuum label transfer, side labeling, and corner labeling across three stations in one continuous conveyor pass — applying pressure-sensitive labels to carton sides and corners simultaneously without repositioning or multiple machine passes, supporting end-of-line carton labeling at 10–15 cartons/min for logistics, barcode, and tamper-evident applications.

✅ ±1mm Accuracy — Consistent Label Placement on Carton Surfaces: Three-station labeling system delivers ±1mm label placement accuracy (excluding product and label dimensional variation), ensuring consistent barcode label positioning for scanner readability and precise tamper-evident corner label alignment across carton sides and adjacent corner surfaces during continuous 10–15 cartons/min production.

✅ Tamper-Evident Corner Labeling — Two-Surface Label Application: Corner labeling station applies a single label across two adjacent carton surfaces simultaneously, creating a tamper-evident seal that covers the carton corner — supporting retail and logistics carton tamper-evident labeling requirements without requiring separate label application steps for each surface.

✅ Vacuum Label Transfer — Stable Peel & Place Without Label Drop: Vacuum adsorption system picks each pressure-sensitive label from the dispensing plate and holds it securely during transfer to the carton surface — preventing label drop, curl, or misalignment between dispense and application, supporting accurate and repeatable label placement on carton sides and corners at continuous production speed.

✅ Optional Coder Integration — Print Date & Batch Before Labeling: Compatible with optional thermal transfer coder or inkjet printer integration, printing production dates, expiry dates, and batch numbers onto labels immediately before application — eliminating pre-printed date label inventory management and supporting on-demand variable data printing on carton labels within the three-station labeling process.

✅ 1–3 Configurable Labeling Heads — Flexible Format for Different Carton Requirements: System can be configured with one, two, or three labeling heads to match specific carton labeling requirements — supporting single-side barcode labeling, dual-side labeling, or combined side and tamper-evident corner labeling configurations on the same ZS-TB300T platform for different end-of-line carton packaging applications.

Ideal Applications

Logistics & Warehousing Carton Barcode Labeling: Automatic side and corner pressure-sensitive label application for logistics carton barcode labeling, shipping label application, and pallet-ready carton identification — with ±1mm accuracy supporting barcode scanner readability and consistent label placement on filled cartons at 10–15 cartons/min for distribution center and warehousing end-of-line labeling operations.

Retail Carton Tamper-Evident Sealing: Automatic corner label application covering two adjacent carton surfaces for retail product tamper-evident carton sealing — with vacuum transfer ensuring accurate label positioning across the carton corner and optional thermal transfer or inkjet date/batch coding supporting retail carton tamper-evident labeling compliance for consumer goods, food, and daily chemical product carton packaging.

Food & Beverage Carton End-of-Line Labeling: Automatic pressure-sensitive side and corner label application for filled food and beverage product cartons — with ±1mm accuracy, 10–15 cartons/min throughput, and optional date/batch coder integration supporting food product traceability labeling, best-before date label application, and logistics barcode labeling on food product secondary packaging carton lines.

Daily Chemical & Household Product Carton Labeling: End-of-line automatic carton side labeling and tamper-evident corner sealing for daily chemical, cleaning product, and household goods packed cartons — with configurable 1–3 labeling heads accommodating different carton labeling configurations and the conveyor system providing smooth continuous carton transport through the three-station labeling process.

Pharmaceutical & Healthcare Carton Identification Labeling: Automatic pressure-sensitive label application for pharmaceutical and healthcare product secondary packaging cartons requiring consistent barcode label placement, lot number and expiry date coding, and tamper-evident corner sealing — with ±1mm accuracy and optional thermal transfer coder integration supporting pharmaceutical carton labeling and traceability requirements at 10–15 cartons/min.
