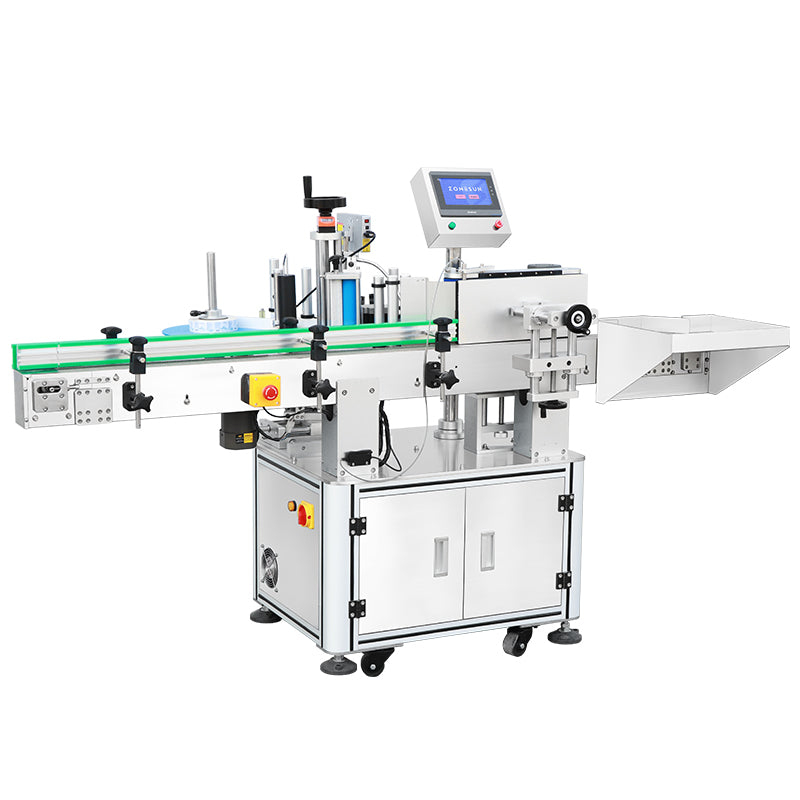

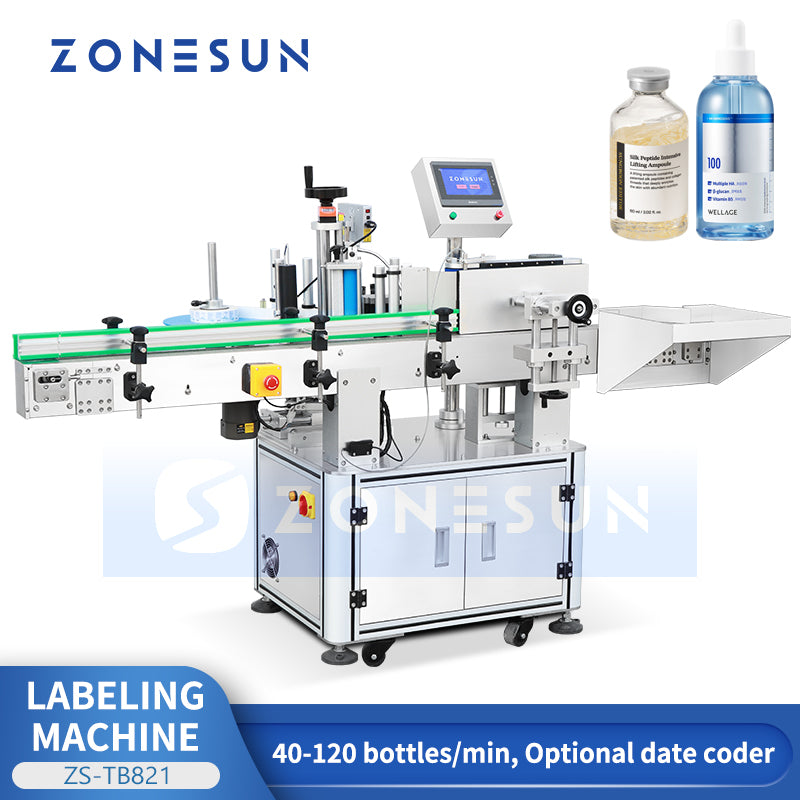

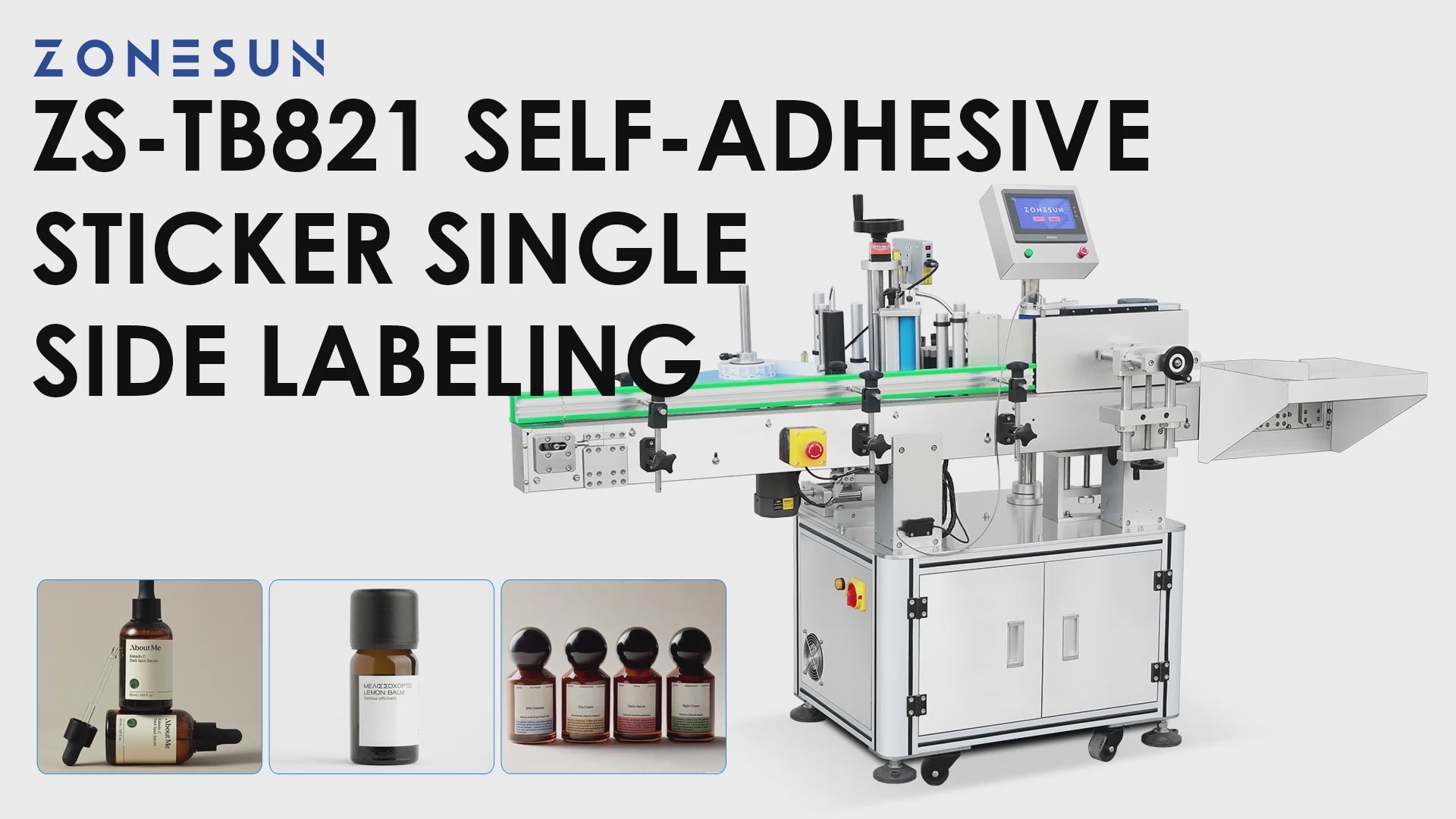

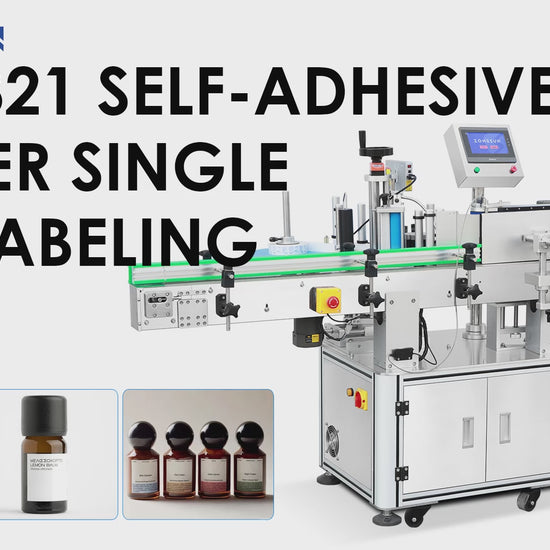

ZONESUN ZS-TB821 Automatic Round Bottle Single Side Labeling Machine
ZONESUN ZS-TB821 Automatic Round Bottle Single Side Labeling Machine
No se pudo cargar la disponibilidad de retiro
Automatic Round Bottle Single-Side Labeling Machine
The ZONESUN ZS-TB821 Automatic Round Bottle Labeling Machine is designed for applying self-adhesive labels to round bottles, jars and cylindrical containers.
The machine integrates automatic bottle separation, label feeding, adjustable labeling positioning and finished-product collection for continuous labeling operation. It supports container diameters of Φ25–120 mm with a labeling speed of approximately 40–120 bottles/min.
With PLC touchscreen control and labeling accuracy of approximately ±1.0 mm, the ZS-TB821 provides stable labeling performance for various round container applications.
Technical Specifications
| Model | ZS-TB821 |
|---|---|
| Power supply | 110/220 V, 50–60 Hz |
| Power | 570 W |
| Labeling accuracy | ±1.0 mm |
| Labeling speed | Approximately 40–120 bottles/min (depending on label size) |
| Bottle diameter | Φ25–120 mm (round bottles) |
| Label size (W × H) | 20–300 × 20–95 mm |
| Label roll inner diameter | Φ76 mm |
| Label roll outer diameter | Φ300 mm |
| Machine dimensions | Approx. 2040 × 1180 × 1370 mm |
| Package dimensions | Approx. 2070 × 890 × 1550 mm |
| Package weight | Approx. 260 kg |
Key Features
-
Automatic round bottle labeling
-
Single-side self-adhesive label application
-
Speed: 40–120 bottles/min
-
Labeling accuracy: ±1.0 mm
-
Bottle diameter: Φ25–120 mm
-
PLC touchscreen control
-
Adjustable labeling position
-
Automatic bottle separation
-
Optional date coding system
Suitable for round bottles, jars and cylindrical containers. Container size, label material and production requirements should be confirmed before machine selection.

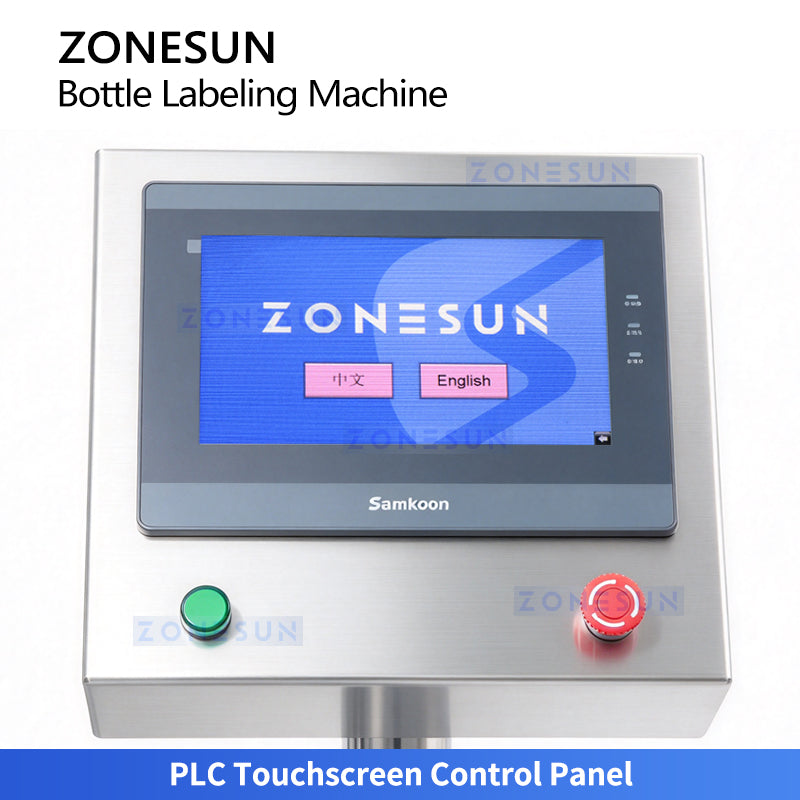

PLC Touchscreen Control Panel
Allows operators to set labeling parameters and monitor machine operation in real time. Interface languages can be customized.

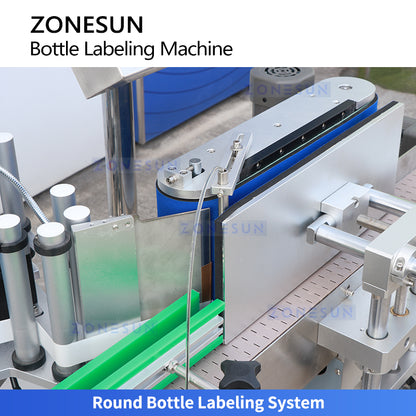

Round Bottle Labeling System
Applies self-adhesive labels to round bottles and jars at the specified production speed, depending on container and label size.

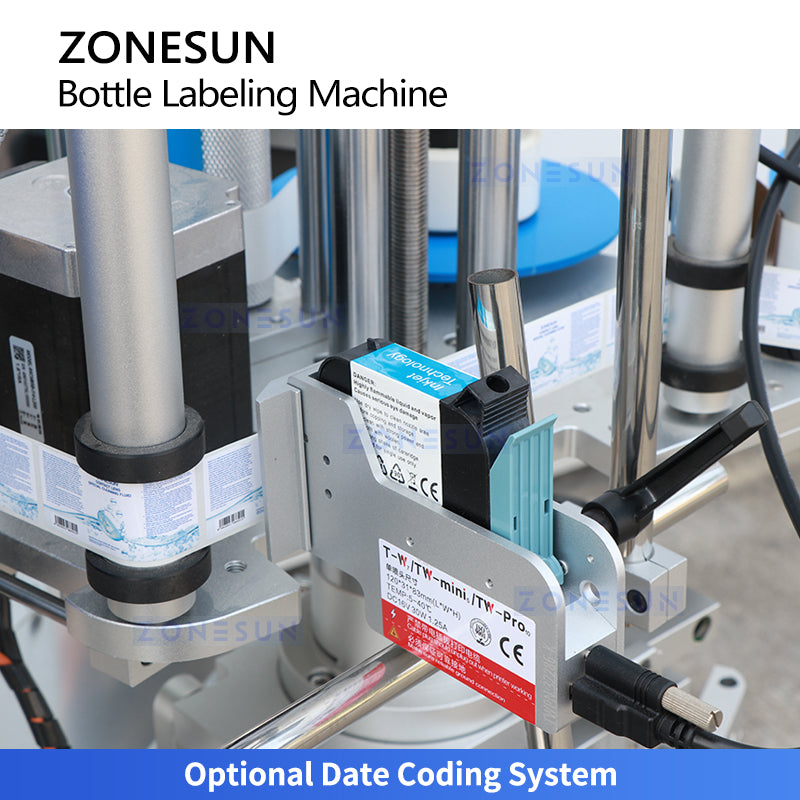

Optional Date Coding System
Can print production dates, QR codes, batch numbers and other information during labeling, subject to the selected coder and print configuration.

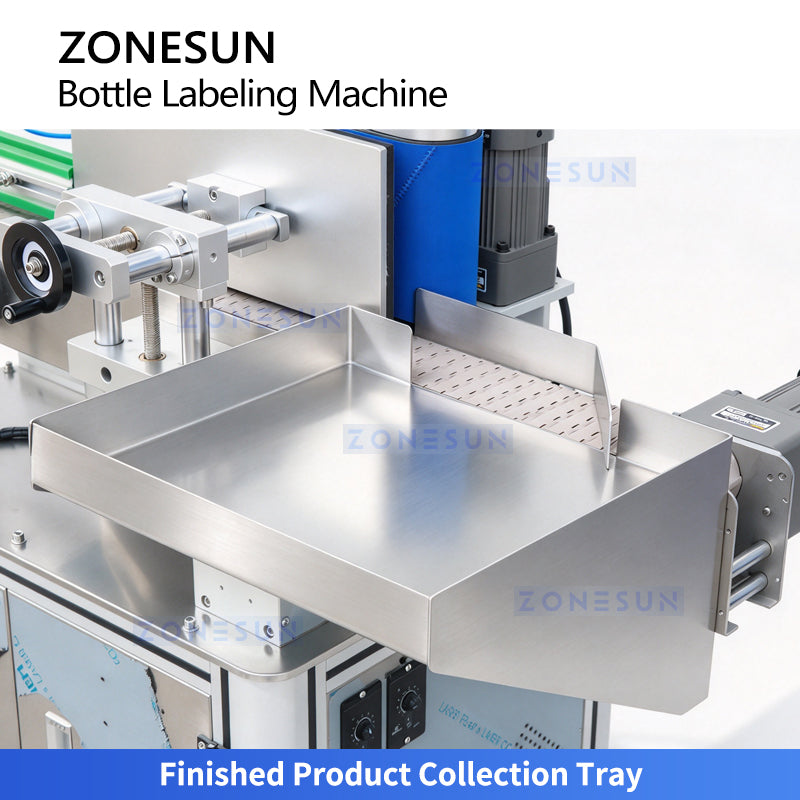

Finished Product Collection Tray
Collects labeled bottles and jars for convenient handling after labeling.

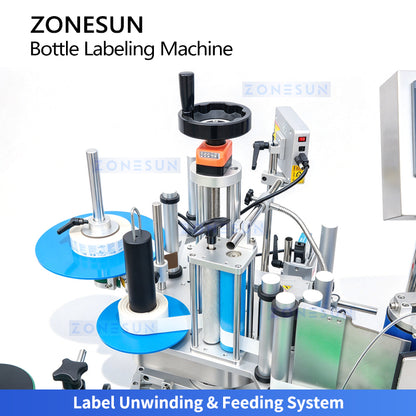

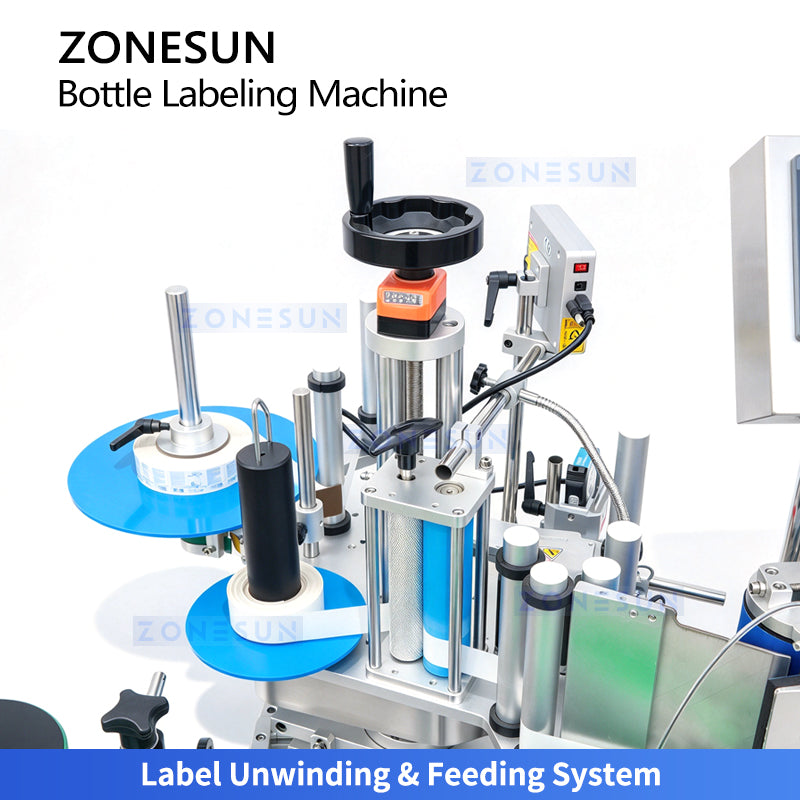

Label Unwinding & Feeding System
Holds and feeds the label roll continuously into the labeling mechanism.
Labeling Position Adjustment System
Enables fine adjustments for container dimensions and the required label position.
Bottle Separating Wheel
Spaces incoming bottles for consistent feeding into the labeling station.
Electrical Control Cabinet
Houses and protects the electrical and control components.
