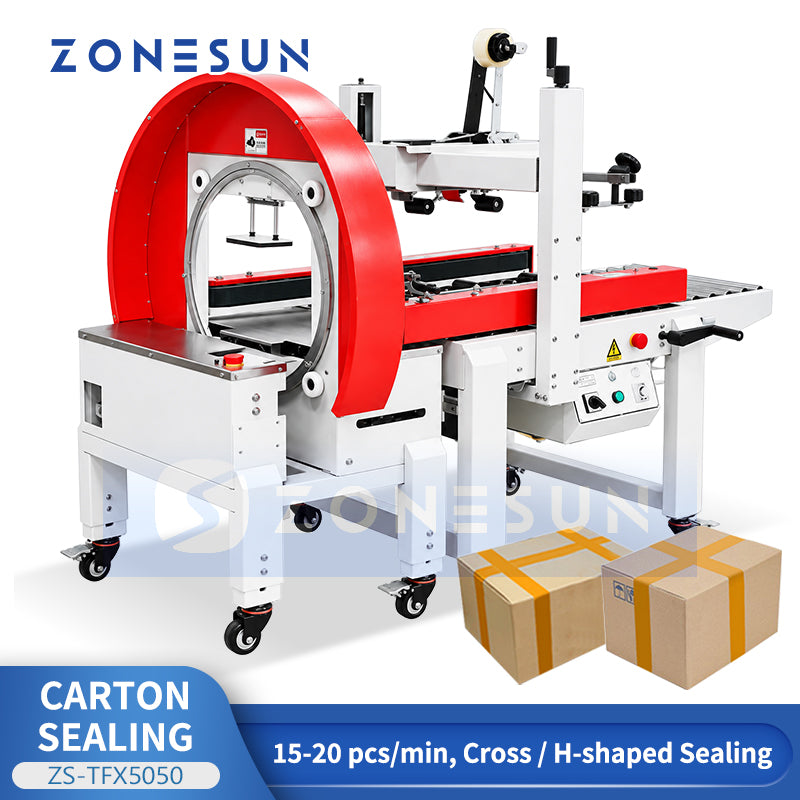

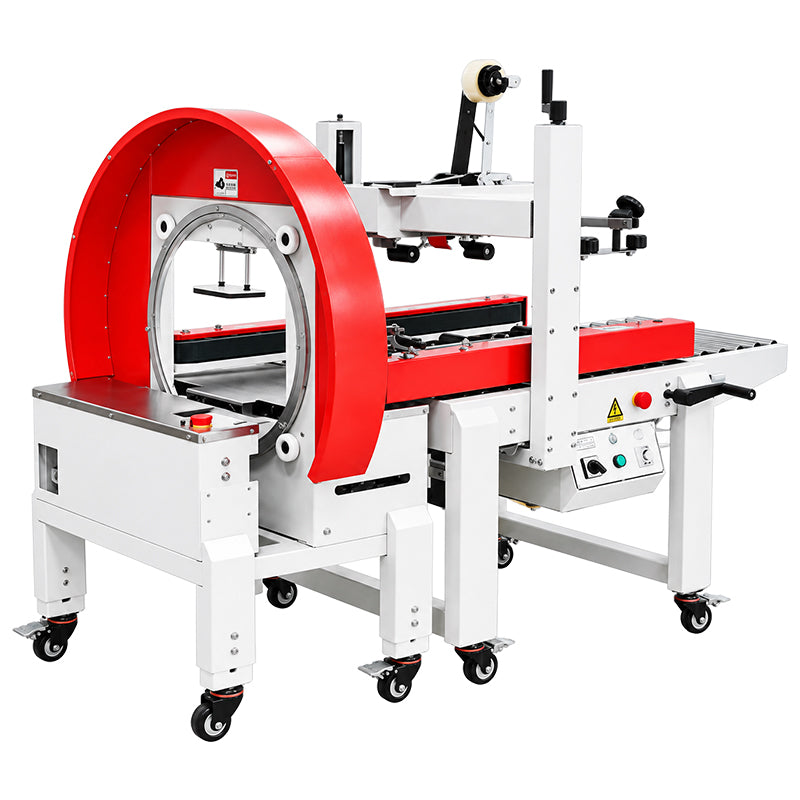

ZONESUN ZS-TFX5050 Automatic Carton Tape Sealing 360° Orbital Wrapping Machine

$3,080.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Voltage 220V

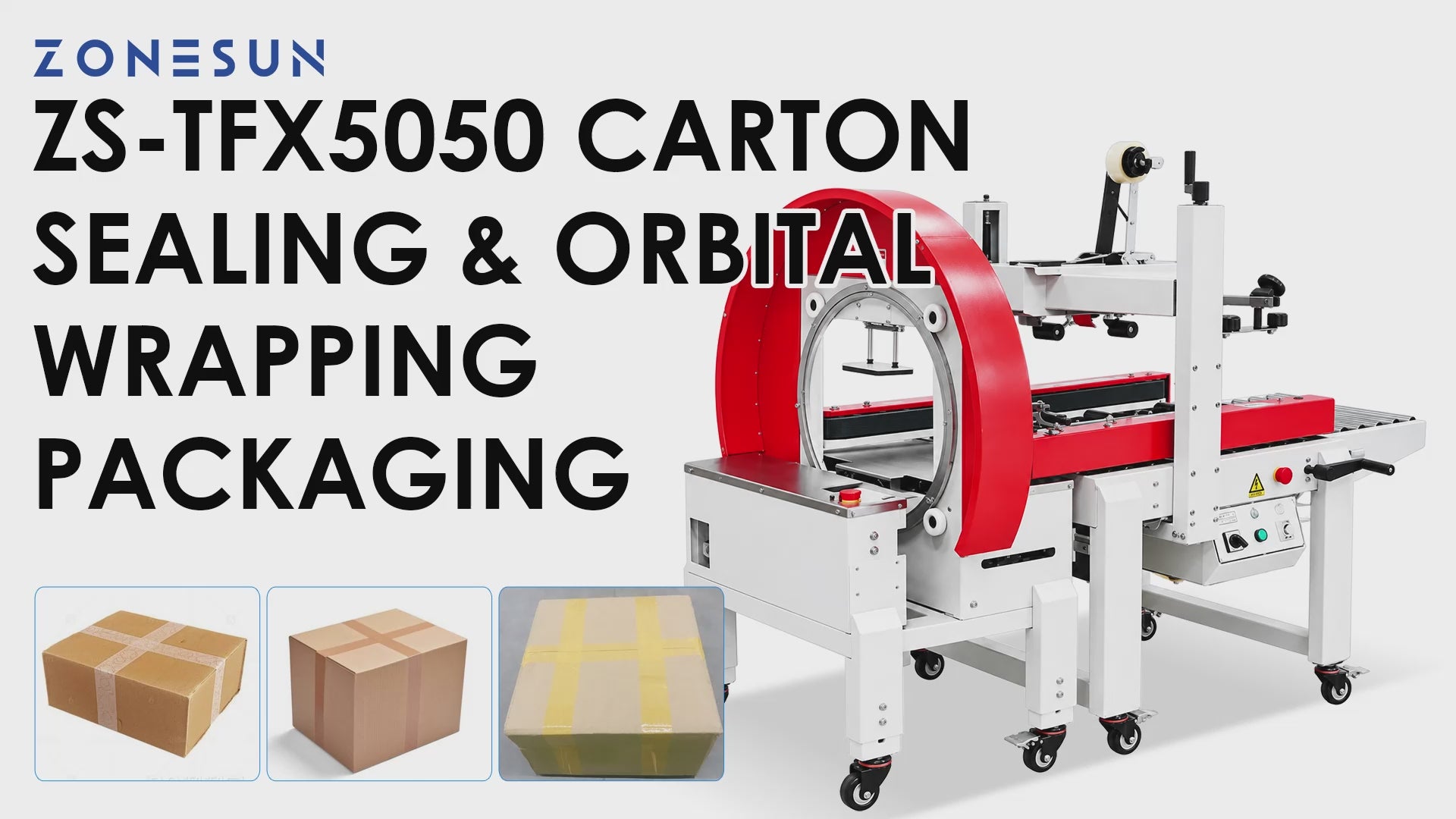

Automatic Carton Tape Sealing and 360° Orbital Wrapping Machine

The ZONESUN ZS-TFX5050 Automatic Carton Tape Sealing Machine is designed for end-of-line carton reinforcement using adhesive tape. It combines carton conveying, tape sealing and 360° orbital wrapping into one continuous packaging process.

Dual-side belts guide cartons through the machine, while the orbital mechanism applies tape around the carton according to the selected sealing pattern.

With a working speed of 15–20 cartons/min, the machine supports cartons up to 400 mm wide and 300 mm high using 45 mm tape.

Key Features

Automatic carton tape sealing
360° orbital tape wrapping
Speed: 15–20 cartons/min
Dual-side belt carton conveying
Touchscreen operation
Adjustable pressure plate
Suitable for end-of-line packaging
Compatible with cartons up to 400 × 300 mm

The machine uses adhesive tape for carton sealing and is not designed for pallet stretch film wrapping. Carton size and tape specifications should be confirmed before selection.

Technical Specifications

Model	ZS-TFX5050
Power Supply	AC 220 V, 50–60 Hz
Power	120 W
Sealing Speed	15–20 pcs/min
Sealing Tape Width	45 mm
Working Table Height	720–800 mm
Overall Dimensions (L × W × H)	560 × 1005 × 1365 mm
Minimum Sealing Size (L × W × H)	130 × 80 × 90 mm
Maximum Sealing Size (L × W × H)	Length: No Limit; Width: ≤400 mm; Height: ≤300 mm

Applications

Tape reinforcement of compatible shipping cartons.
Carton sealing for consumer goods, household products and industrial components.
End-of-line packaging stations requiring tape wrapping around carton bodies.

Product Details

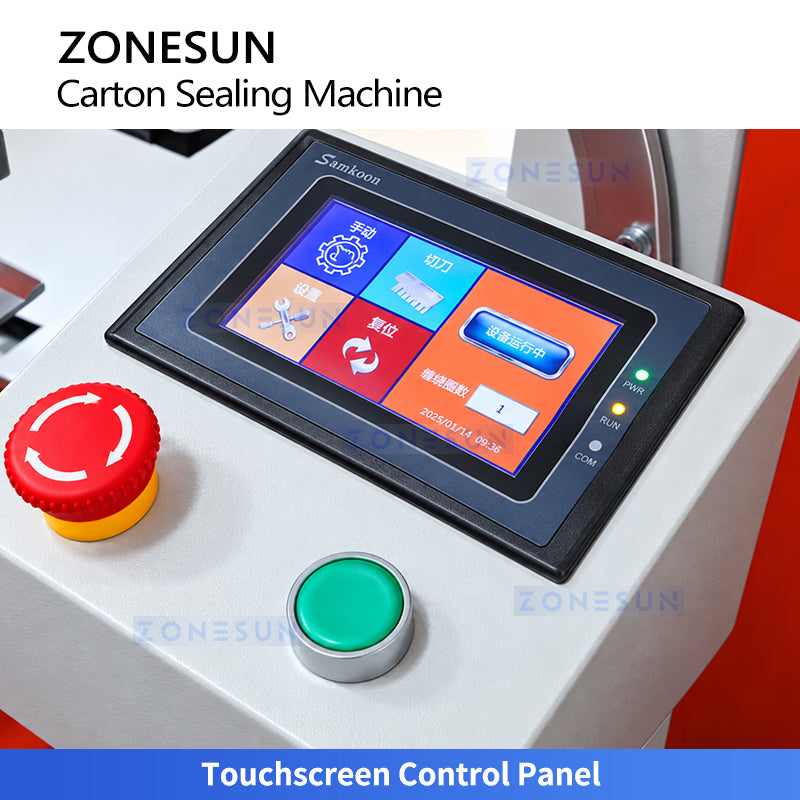

Touchscreen Control

Set wrapping parameters and monitor operation; an emergency-stop control is provided.

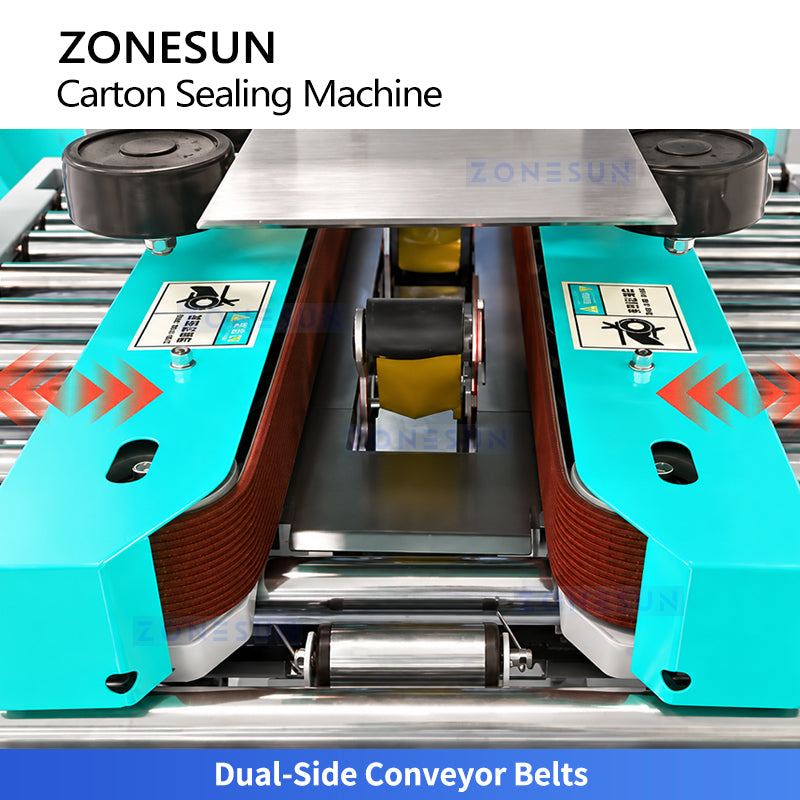

Dual-Side Conveyor Belts

Grip and guide the carton during transport.

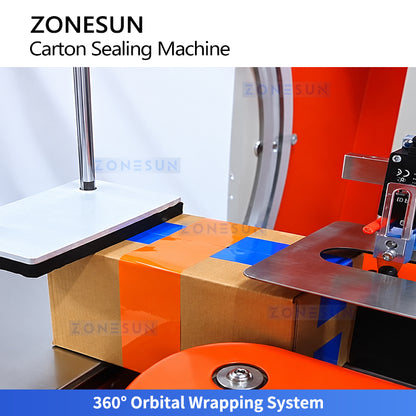

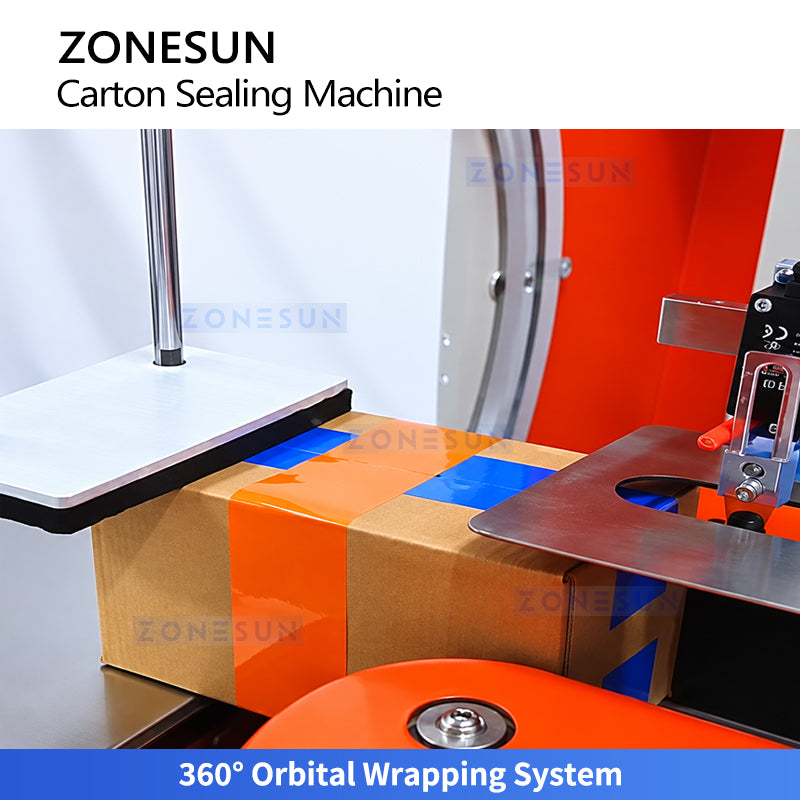

360° Orbital Tape Wrapping

Carries tape around the carton, with an adjustable pressure plate supporting carton positioning.

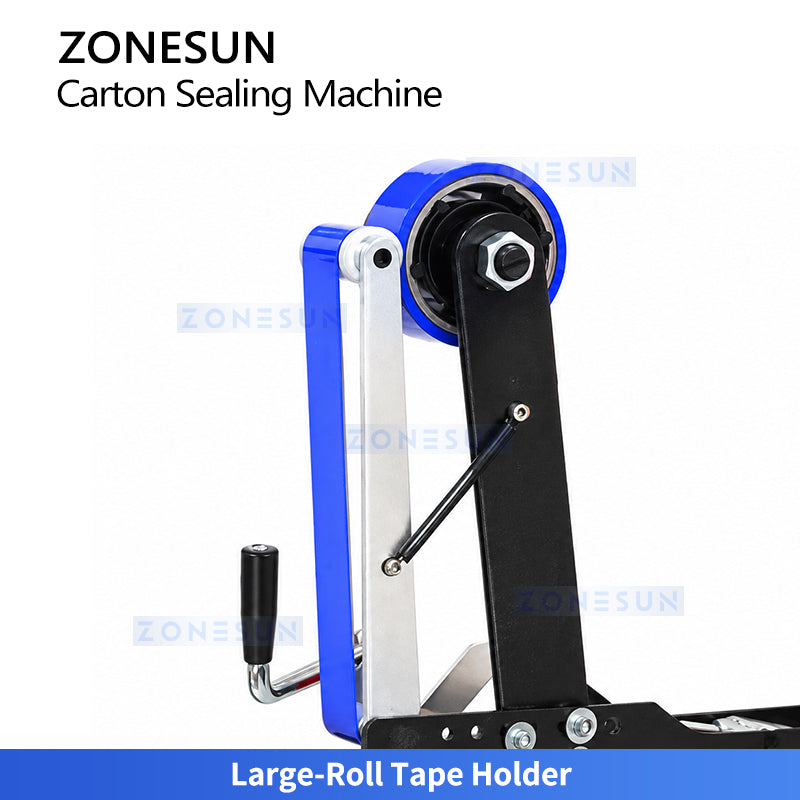

Large-Roll Tape Holder

Supports larger tape rolls to reduce replacement frequency.

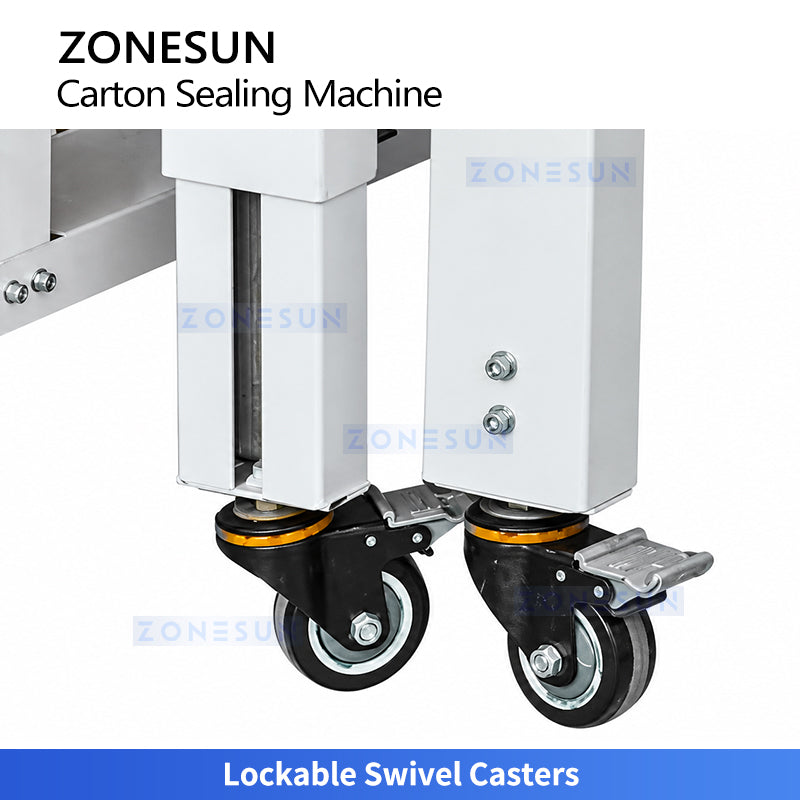

Lockable Casters

Allow repositioning and locking of the machine at the workstation.

Key Features

Orbital tape application: Wraps tape around compatible cartons for reinforcement.
Side-belt transport: Guides cartons through the packaging position.
Adjustable support: The pressure plate helps stabilize cartons during wrapping.
Touchscreen operation: Provides wrapping parameter settings and operating monitoring.
Workstation adjustment: Adjustable table height and lockable casters support installation.

How It Works

Load compatible tape and adjust guides and support for the carton batch.
Set the wrapping parameters and run a sample carton.
Feed prepared cartons into the side-belt transport system.
Apply tape through the configured sealing and orbital wrapping sequence.
Discharge the carton and inspect tape placement.

Selection Guide

Share carton dimensions, weight, board strength, tape specifications and a drawing of the required sealing pattern. Cross or H-shaped results depend on tape paths and carton presentation; specify the required sequence. Include upstream flap preparation and conveyor heights when planning integration.

Frequently Asked Questions

Does it wrap cartons with stretch film?

The described wrapping material is adhesive tape, with a listed tape width of 45 mm. Stretch-film wrapping is not established by these specifications.

Does it automatically erect cartons or fold flaps?

Carton erection and automatic flap folding are not listed. Supply cartons prepared for the configured sealing operation.

Can it make an H-shaped seal in one pass?

Cross and H-shaped sealing are described applications, but the exact tape path and pass sequence should be established using the intended carton and pattern.

Can it process randomly mixed carton sizes?

Adjustable positioning is listed; automatic size sensing or random-size adjustment is not established.

Does unlimited length mean any carton can be processed?

The table lists no fixed maximum length. Carton support, weight, stability and required tape placement still determine suitability.

Is the listed speed guaranteed?

The stated range is 15–20 cartons per minute. Carton format, feed spacing and wrapping pattern affect practical output.

Discuss Your Carton Sealing Requirements

Use the chat window on this page to send carton photos, dimensions, weight and the desired tape pattern. Our team can help evaluate the wrapping arrangement and line connections.
