ZONESUN ZS-ZDS800 Vibratory Powder Screening Machine, 800mm Multi-Layer Sieve Separator

$2,580.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Model ZS-ZDS800

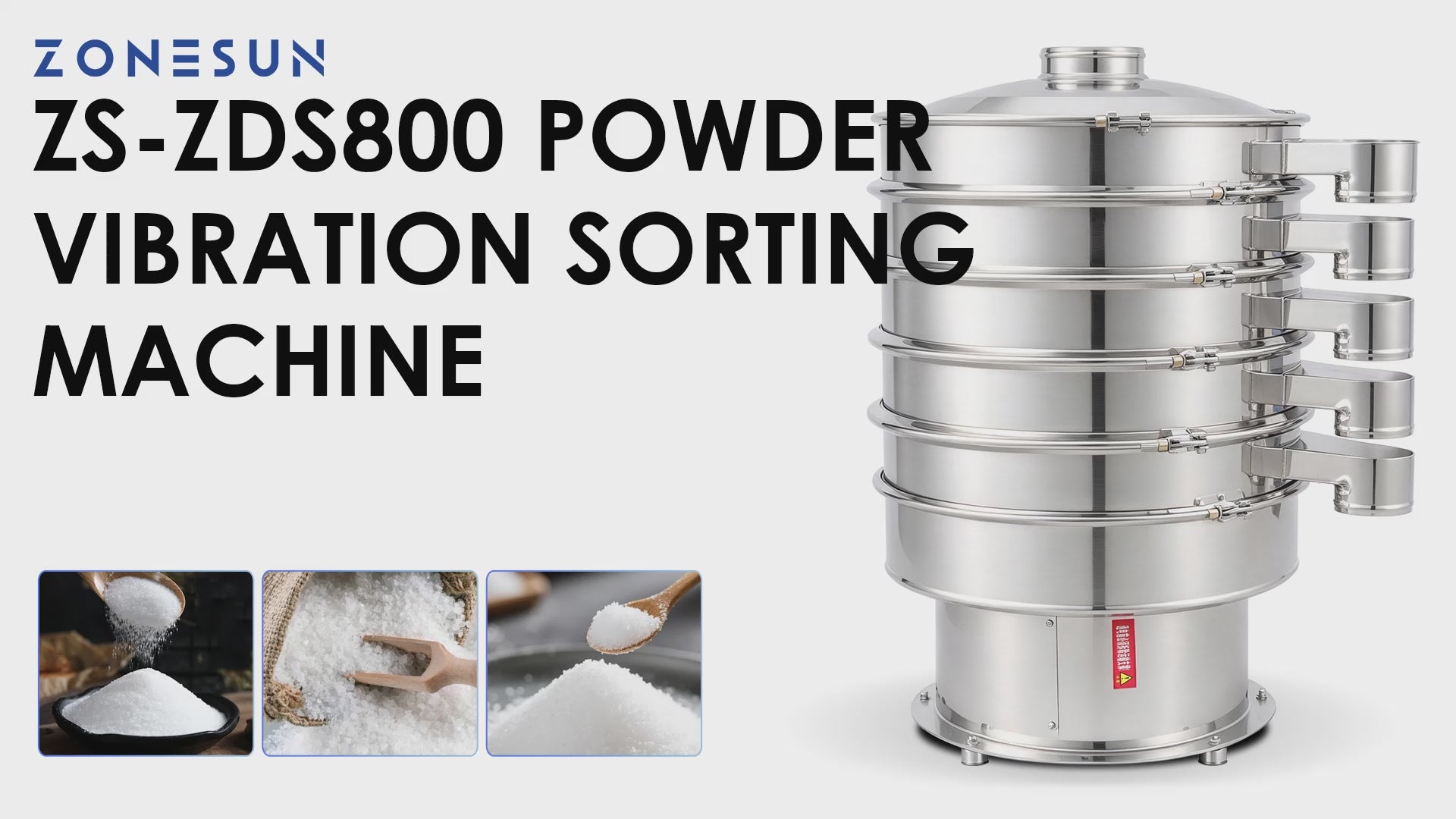

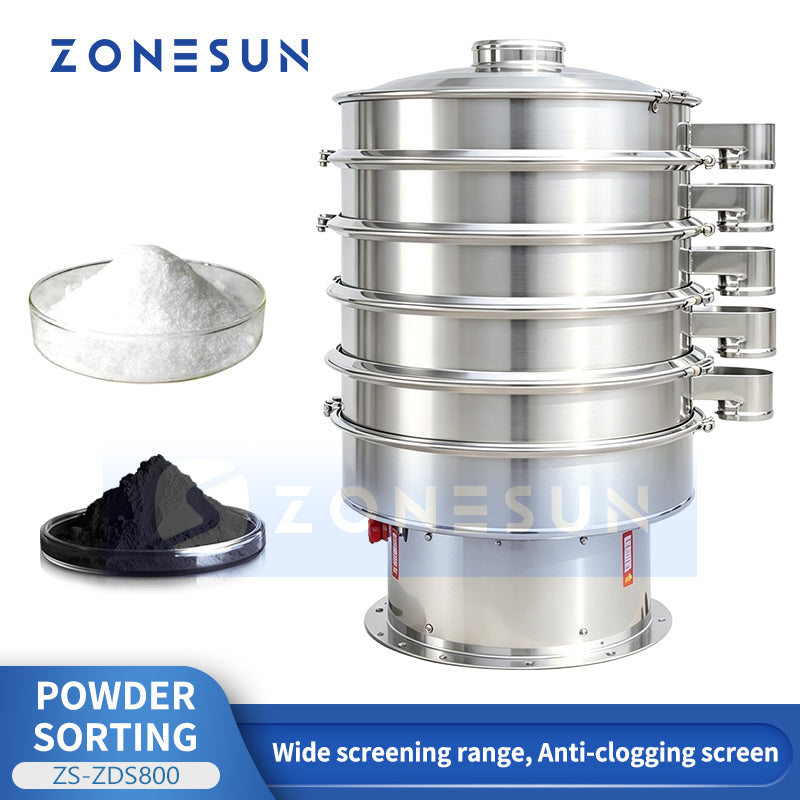

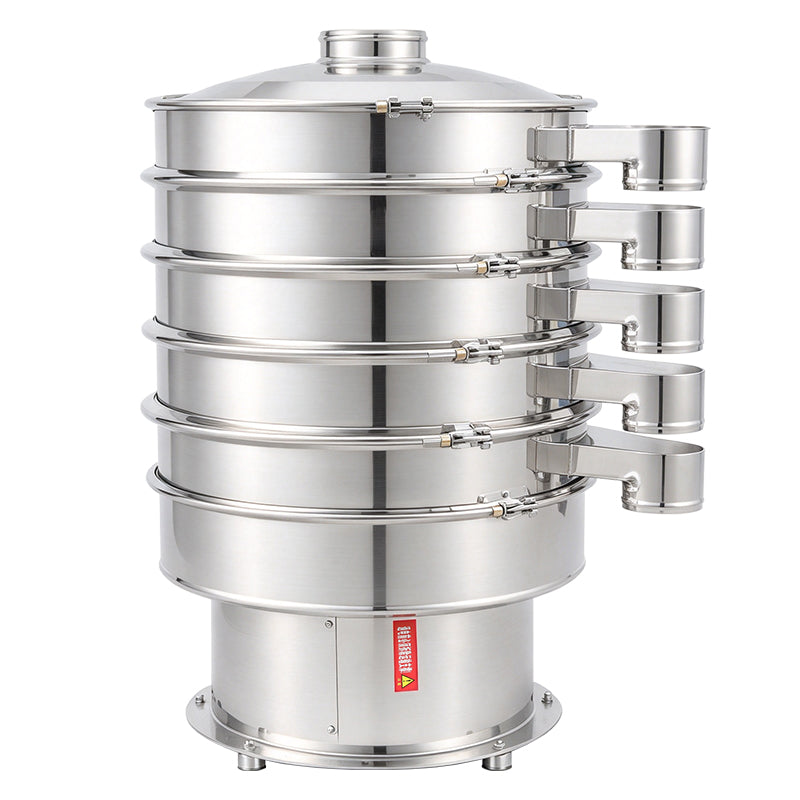

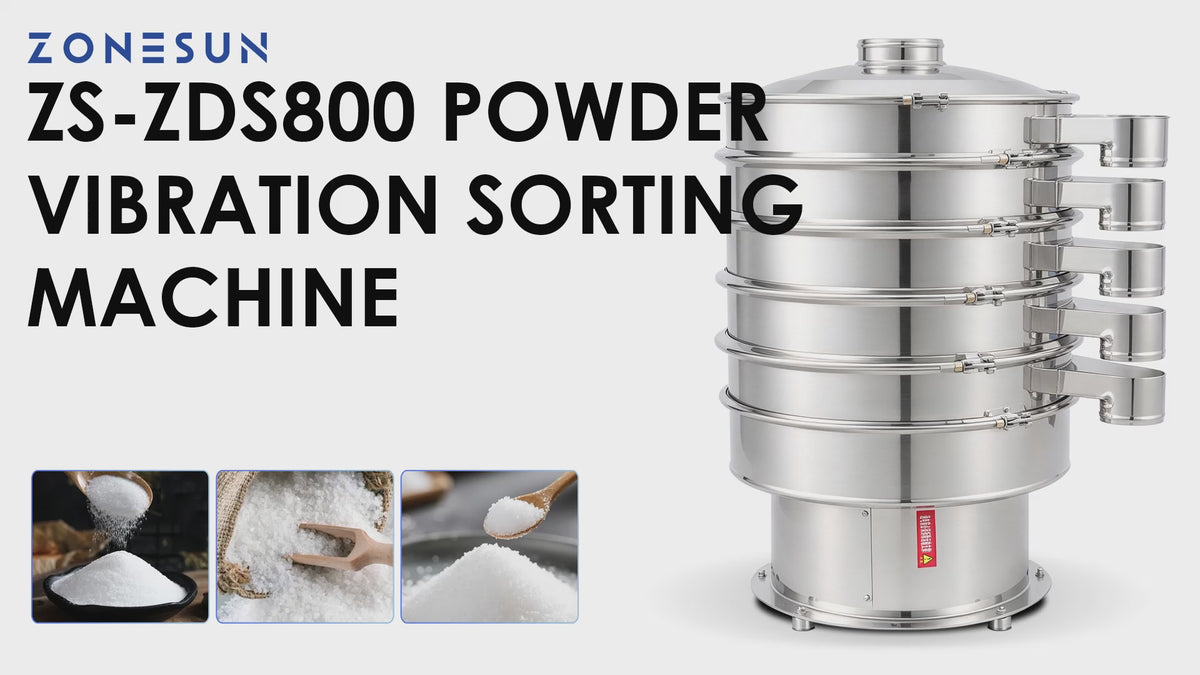

ZONESUN ZS-ZDS800 Vibratory Powder Screening Machine

The ZONESUN ZS-ZDS800 Vibratory Powder Screening Machine is designed for efficient particle separation, powder screening, size classification and impurity removal in compatible industrial processing applications. Featuring an 800 mm nominal sieve diameter and a configurable multi-layer screen system, this vibrating sieve machine helps separate suitable powders and granules into different particle size grades.

Technical Specifications & Model Comparison

Compare the ZDS600, ZDS800, ZDS1000, ZDS1200, ZDS1500, ZDS1800 and ZDS2000 models below. For the ZDS800: effective screen diameter 760 mm, feed particle size below 15 mm, rated rotation speed 1460 rpm and power 0.75 kW.

Parameter	ZDS600	ZDS800	ZDS1000	ZDS1200	ZDS1500	ZDS1800	ZDS2000
Diameter	Φ600 mm	Φ800 mm	Φ1000 mm	Φ1200 mm	Φ1500 mm	Φ1800 mm	Φ2000 mm
Screen Area	0.24 m²	0.45 m²	0.68 m²	1.0 m²	1.6 m²	2.3 m²	2.8 m²
Screen Mesh Size	2–500 mesh	2–500 mesh	2–500 mesh	2–500 mesh	2–500 mesh	2–500 mesh	2–500 mesh
Feed Particle Size	<Φ10 mm	<Φ15 mm	<Φ20 mm	<Φ30 mm	<Φ30 mm	<Φ30 mm	<Φ30 mm
Rotation Speed	1460 rpm	1460 rpm	1460 rpm	1460 rpm	1460 rpm	1460 rpm	1460 rpm
Effective Screen Diameter	Φ560 mm	Φ760 mm	Φ930 mm	Φ1130 mm	Φ1430 mm	Φ1730 mm	Φ1905 mm
Screen Layers	1–5	1–5	1–5	1–5	1–5	1–5	1–5
Power	0.55 kW	0.75 kW	1.1 kW	1.5 kW	2.2 kW	3.0 kW	3.7 kW

Typical Applications

Particle sizing and grading of suitable dry powders and granules, removal of oversize particles and foreign matter, and solid-liquid separation for compatible slurry materials. Confirm the screen specification and product-contact materials for each application. For combustible dusts, do not assume standard electrical or mechanical components are appropriate for hazardous areas.

Detailed Machine Features

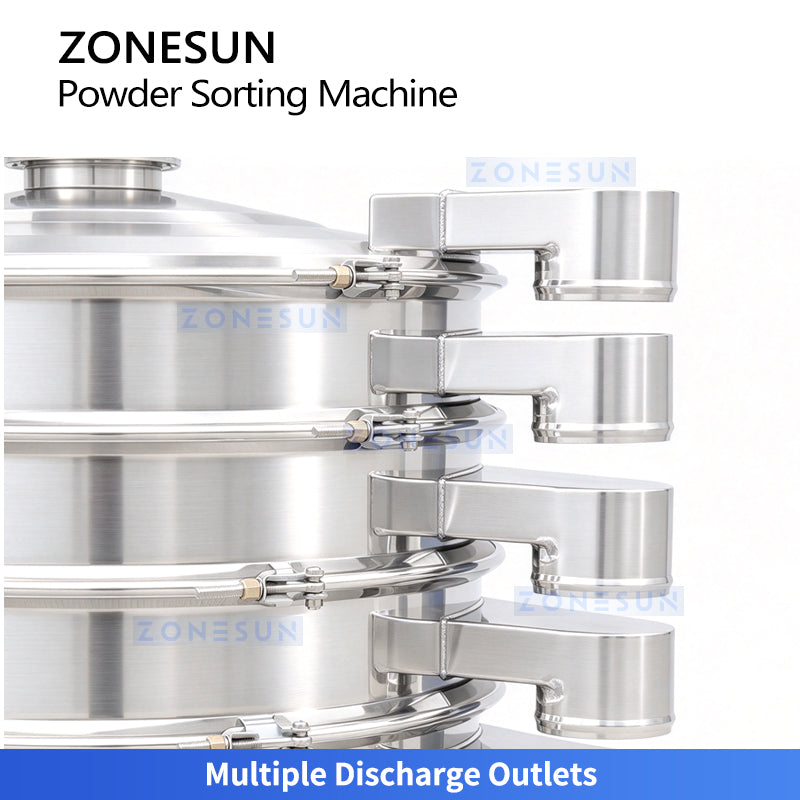

Multiple Discharge Outlets

Separately discharge materials from each screening layer for convenient collection and classification.

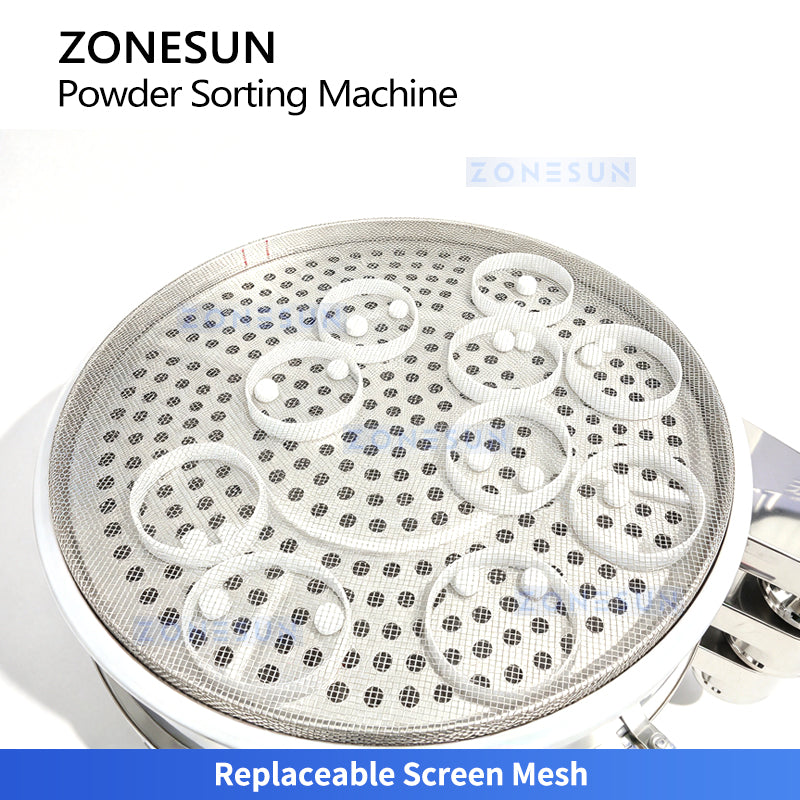

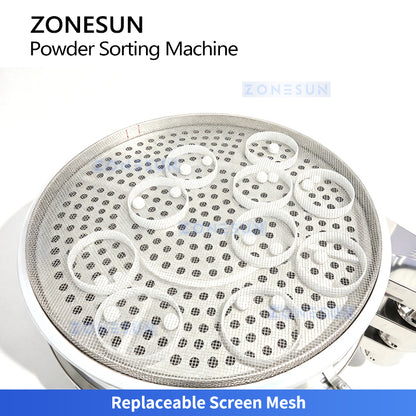

Replaceable Screen Mesh

Different mesh sizes can be selected according to material characteristics and screening requirements.

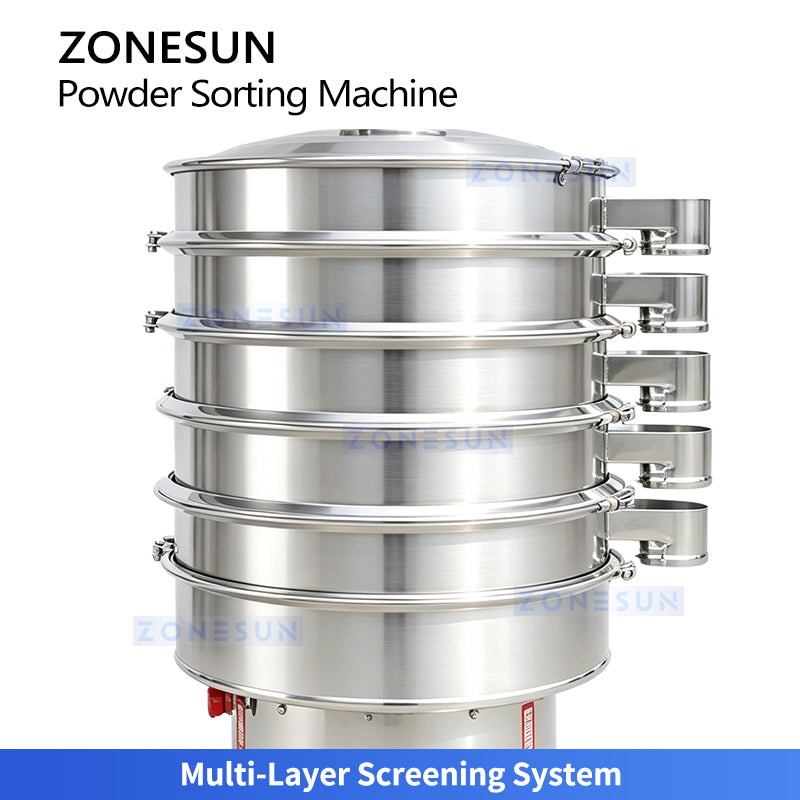

Multi-Layer Screening System

Multiple sieve layers separate powders or granules into different particle sizes in a single screening process.

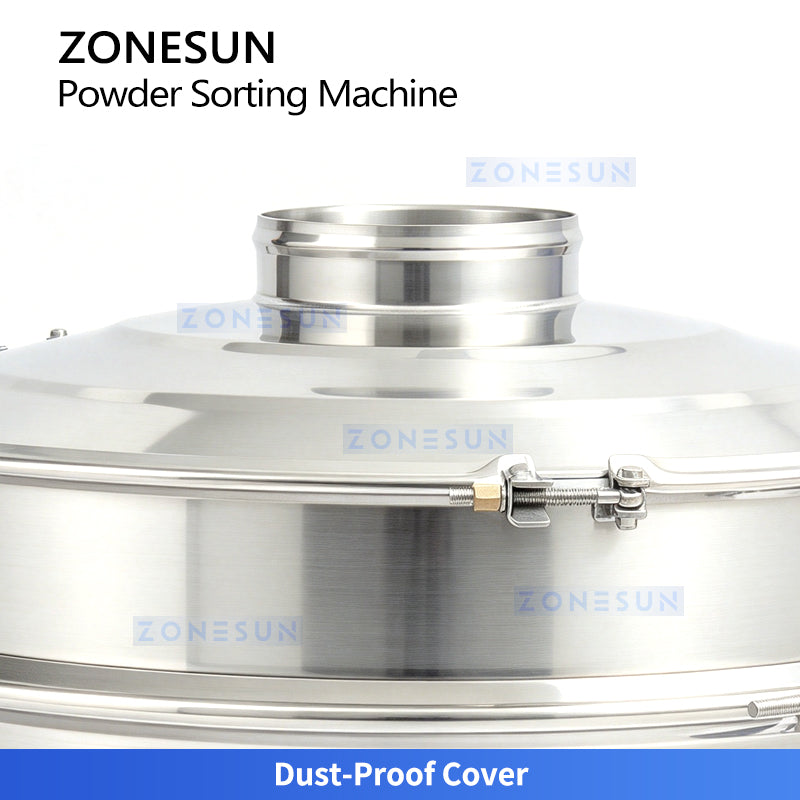

Dust-Proof Cover

Helps contain dust during screening while protecting materials from external contamination.

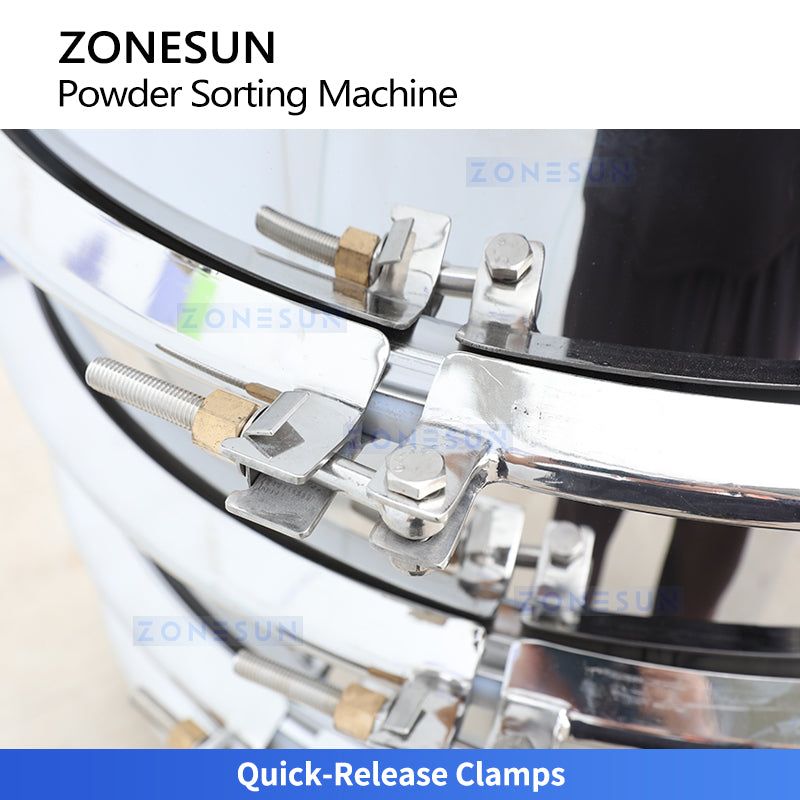

Quick-Release Clamps

Securely connect the sieve layers while allowing convenient disassembly for cleaning and screen replacement.

Stable Machine Base

Provides stable support for the screening structure and vibration system during continuous operation.

How the Screening Process Works

Select the appropriate screen mesh and the number of screening layers according to material characteristics and required particle grades.
Install the screen frames, secure the clamps and check the cover and discharge connections.
Check the electrical installation and machine condition according to the operating manual, then start the screening system.
Feed material into the inlet at a controlled rate. Vibration moves the material across each mesh to separate different size fractions.
Collect the separated material from the corresponding discharge outlets and inspect the separation result.
After shutdown and safe isolation, clean the machine and inspect or replace meshes when needed.

How to Choose the Right Screening Machine

When requesting a configuration, provide your material name, particle-size distribution, target mesh, throughput, bulk density, moisture content and desired number of graded outputs. Screen diameter and layering should be selected based on actual test results and your production needs.

Frequently Asked Questions

What materials can the ZS-ZDS800 screen?

It can be configured for compatible powders, granules and some slurries. Screening suitability depends on particle properties and the product-contact materials.

What sieve mesh sizes are available?

The listed screening range is 2–500 mesh, with the mesh selected according to the material and separation target.

Can one machine separate several particle sizes?

Yes. The machine supports 1–5 screening layers depending on the selected configuration, with separate discharge outlets for collection.

How quickly can the screens be changed?

The original equipment description indicates approximately 3–5 minutes depending on the screen-frame setup and operator procedure.

What is the ZDS800 screen diameter and motor power?

The ZDS800 model lists a nominal 800 mm screen diameter and 0.75 kW power.

Can the machine be integrated into a production line?

Possible integration depends on upstream feeding, downstream collection, layout and required capacity. Share your production process to confirm a suitable arrangement.
