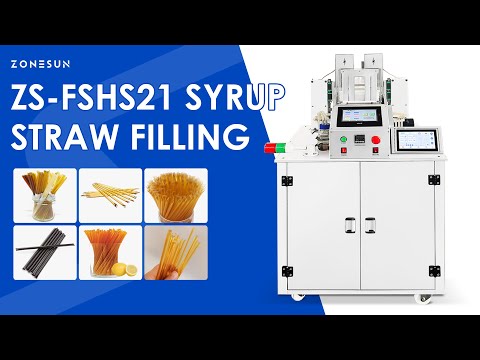

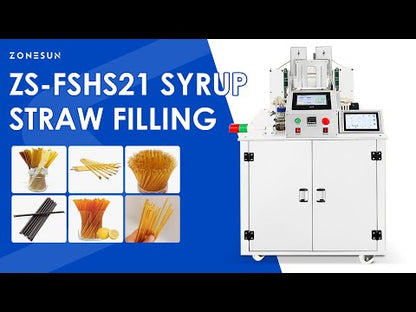

ZONESUN ZS-FSHS21 Honey Straw Filling Sealing Machine

DESCRIPTION

The honey straw filling and sealing machine is an automated machine designed to efficiently and hygienically fill and seal honey straws. This machine offers a range of features to ensure accurate filling, secure sealing, and consistent production quality.

Parameter

• Model：ZS-FSHS21

• Voltage：220V / 110V, 50–60Hz

• Power：About 3 kW

• Production Speed ：About 2500–3000 pcs/hour (depending on straw size and filling material)

• Pump Flow Rate：0.007–1140 ml/min

• Filling Accuracy：≤ ±1%

• Filling Pump：Peristaltic Pump

• Sealing Method：Ultrasonic Sealing

• Original Straw Length：196.8 mm (Customizable)

• Finished Straw Length：172 mm (Customizable)

• Machine Size (L×W×H)：About 1000 × 750 × 1700 mm

• Machine Weight：About 220 kg

OPERATION PANEL

The operation panel provides an intuitive control interface with real-time parameter adjustment and supports multilingual customization for different operator needs.

PERISTALTIC PUMP CONTROL

The controller adjusts peristaltic pump speed for precise honey flow, accurate filling-volume calibration, and stable liquid transfer.

FILLING NOZZLES

Driven by peristaltic pumps, the filling nozzles provide high filling accuracy with clean and consistent honey dispensing.

ULTRASONIC SEALING

Ultrasonic sealing seals the straws firmly and quickly, providing a leak-proof and hygienic closure.

AUTOMATIC FEEDING

The feeding system automatically stores and supplies honey straws, reducing manual labor and supporting efficient continuous production.

PERISTALTIC PUMP AND ULTRASONIC SYSTEM

The system combines precise honey transfer by peristaltic pumps with ultrasonic sealing for efficient, reliable, and hygienic packaging.
