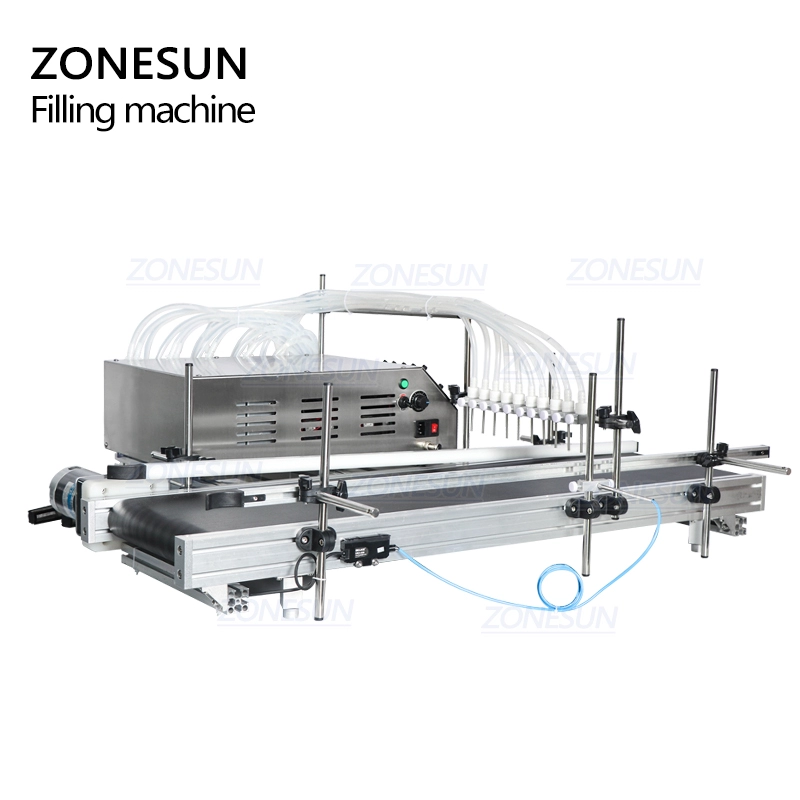

ZONESUN ZS-DTPP10B Desktop 10 Heads Peristaltic Pump Liquid Filling Machine With Conveyor
ZONESUN ZS-DTPP10B Desktop 10 Heads Peristaltic Pump Liquid Filling Machine With Conveyor
Impossible de charger la disponibilité du service de retrait
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Attention
1.We default shipping the machine whose filling range is 5-50ml.
2.If you want the one whose filling range is 0.3-5ml,
[1] Please remark when placing the order. Or we'll ship the 5-50ml one.
[2]The pump and appearance of the 0.3-5ml machine is different from the one shown on the page. Please contact us to confirm it. Thank you!
Parameter
|
Machine model |
ZS-DTPP10B |
|
Power supply |
AC110V/220V 50Hz-60Hz 60W*4 |
|
Filling Range |
A. 5-50ml(default) B. 0.3-5ml |
|
Maximum flow |
650ml/min for each nozzle (based on water ) |
|
Filling nozzles |
10(we can customize nozzles based on your demands) |
|
Working speed |
70-90 bottles/min(based on 50ml-water) |
|
Filling accuracy |
≤±1% (For water) |
|
Diameter of filling nozzle |
4mm |
|
Delay range |
0.01-999.9s |
|
Conveyor size |
1080*350mm(L*W) |
|
Machine size |
About 380*490*300mm(Without conveyor belt) |
|
Net weight |
About 38kg |
Description
This desktop automatic filling machine is suitable for filling liquid like eye drop, perfume, essential oil, etc. The ten filling heads can be controlled separately, easy to operate.Equipped with peristaltic pumps, the liquid won't pass through the pump, ensuring its cleanliness. This machine can be widely used in pharmaceutical, daily chemical, cosmetic, beverage industries. Help to improve work efficiency.
Attention
The bottle tray can be customized according to customers' need. If you need, please contact us. Thank you!
