ZONESUN ZS-EVF03 Automatic Edible Oil Filler with Anti-Drip Nozzles and Bottle Positioning

Description

The ZONESUN ZS-EVF03 is an automatic 14-head edible oil filling machine with anti-drip nozzles and bottle neck positioning, designed for high-speed, accurate filling of cooking oil, olive oil, sunflower oil, and other compatible liquid food products. Its 14 independently servo-controlled magnetic pumps provide precise, responsive liquid dosing with ≤0.5% filling accuracy — filling 500 ml–1 L bottles at 2,800–3,000 bottles/hour.

A PLC touchscreen automatically adjusts the filling volume to reach the preset target, supporting operation control, real-time monitoring, and operator guidance. Anti-drip nozzles help prevent product dripping for cleaner operation, while the bottle neck positioning system precisely aligns each bottle beneath the filling nozzle for accurate, consistent filling across different container formats. The enclosed hygienic design helps prevent external contamination. The machine can be integrated with compatible capping, labeling, and inspection equipment for complete packaging line configurations. Powered by 3-phase 380V / 12 kW.

Parameter

• Model: ZS-EVF03
• Number of Filling Heads: 14
• Filling Range: 500 ml – 1 L
• Production Capacity: 2,800–3,000 bottles/hour
• Filling Accuracy: ≤0.5%
• Power Supply: 3-Phase 380V ±10%, 50/60Hz
• Power Consumption: 12 kW
• Required Air Pressure: 0.5–0.8 MPa
• Working Air Pressure: 0.6–0.7 MPa
• Machine Dimensions (L×W×H): 2,400 × 1,200 × 2,200 mm

PLC Touchscreen Control

Automatically adjusts the filling volume to reach the preset target, while supporting operation control, real-time monitoring, and operating instructions.

Anti-Drip Filling Nozzles

Specially designed nozzles control product flow during filling and refilling, helping prevent dripping for cleaner, more stable operation.

Servo-Driven Magnetic Pump System

Servo-controlled magnetic pumps provide accurate, responsive liquid dosing for efficient multi-head edible oil filling.

Bottle Neck Positioning System

Precisely positions the bottle neck beneath the filling nozzle for accurate alignment during filling, with convenient adjustment for different containers.

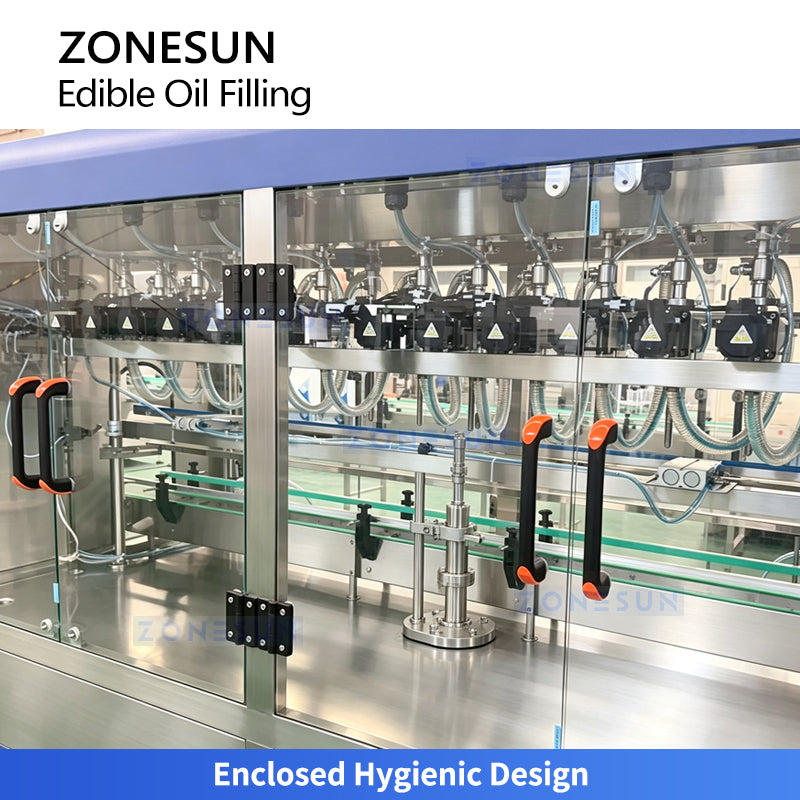

Enclosed Hygienic Design

The enclosed filling area helps prevent external contamination while providing clear visibility, meeting hygiene standards for clean and hygienic filling.

Key Features

✅ 14-Head Servo Magnetic Pump Filling — ≤0.5% Accuracy: 14 independently servo-controlled magnetic pumps deliver precise, responsive liquid dosing with ≤0.5% specified filling accuracy across all heads for consistent product volumes in every bottle.

✅ 2,800–3,000 Bottles/Hour High-Speed Production: 14-head simultaneous filling delivers 2,800–3,000 bottles per hour (500 ml–1 L range), supporting high-throughput edible oil bottling line requirements.

✅ Anti-Drip Filling Nozzles — Cleaner Operation: Specially designed anti-drip nozzles control product flow at the nozzle tip during filling and nozzle retraction, helping prevent oil dripping for cleaner, more stable continuous production.

✅ Bottle Neck Positioning System — Consistent Filling Alignment: Automated bottle neck positioning guide precisely centers each bottle beneath its filling nozzle before filling begins, ensuring accurate nozzle-to-bottle alignment across different container diameters with convenient format adjustment.

✅ PLC Touchscreen — Auto Volume Adjustment & Real-Time Monitoring: PLC-based touchscreen automatically adjusts filling volume to reach the preset target, while supporting operation control, real-time production monitoring, and on-screen operating instructions.

✅ Enclosed Hygienic Design: Fully enclosed filling zone with clear visibility helps prevent external contamination during production, supporting hygienic filling standards for food-grade edible oil packaging applications.

✅ 500 ml–1 L Filling Range: Optimized for standard consumer edible oil bottle formats from 500 ml to 1 L — the most common retail cooking oil, olive oil, and specialty oil packaging sizes.

✅ 3-Phase 380V / 12 kW — Industrial Production Ready: Three-phase 380V / 12 kW power with 0.5–0.8 MPa pneumatic supply supports sustained high-speed filling production in industrial edible oil bottling facility environments.

✅ Packaging Line Integration Ready: Designed to integrate with compatible capping, labeling, and inspection equipment for complete automated edible oil packaging line configurations.

Applications

• Cooking Oil Bottling — 500 ml–1 L Consumer Retail: High-speed 14-head filling of cooking oil, blended vegetable oil, and refined edible oil into 500 ml and 1 L PET and glass consumer retail bottles at 2,800–3,000 bottles/hour.
• Olive Oil Filling: Precision servo magnetic pump dosing of extra virgin olive oil, pure olive oil, and flavored olive oil into glass and PET bottles for premium olive oil brand and private label packaging lines requiring consistent fill volumes and clean nozzle operation.
• Sunflower & Canola Oil Packaging: High-throughput filling of sunflower oil, rapeseed oil, canola oil, and other light vegetable oils into standard 500 ml–1 L consumer retail bottle formats.
• Sesame & Specialty Oil Filling: Accurate servo-controlled dosing of sesame oil, coconut oil, avocado oil, flaxseed oil, and other premium specialty oils into consumer retail packaging requiring ≤0.5% fill accuracy and anti-drip nozzle performance.
• Vinegar & Liquid Condiment Filling: Compatible application for filling vinegar, rice vinegar, and other free-flowing food-grade liquid condiments into 500 ml–1 L bottles on food and sauce packaging lines.
• Sauce & Food Liquid Filling: Filling compatible low-to-moderate viscosity food sauces, dressings, and liquid food products into consumer retail bottles within the 500 ml–1 L range on food industry packaging lines.
• Complete Oil Bottling Line Integration: ZS-EVF03 is designed to be integrated with compatible bottle unscrambling, capping, labeling, and carton packing equipment to form a complete automated edible oil bottling production line.
