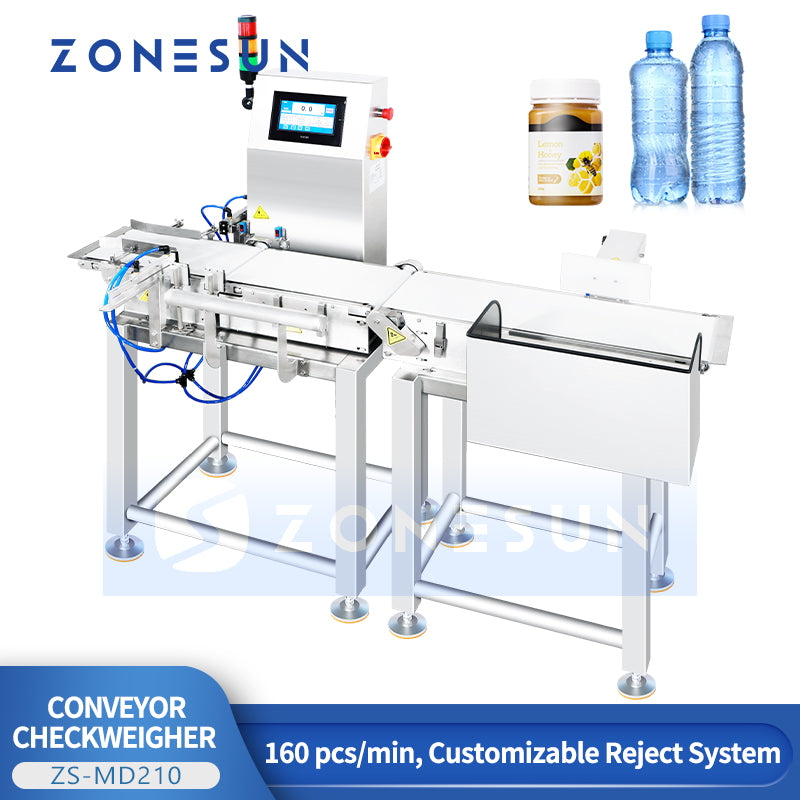

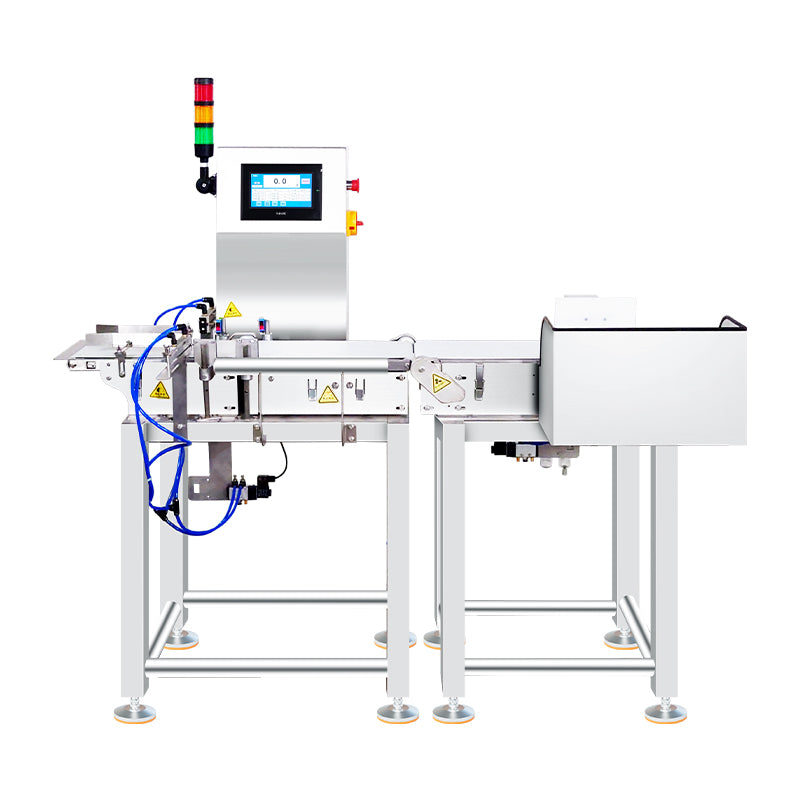

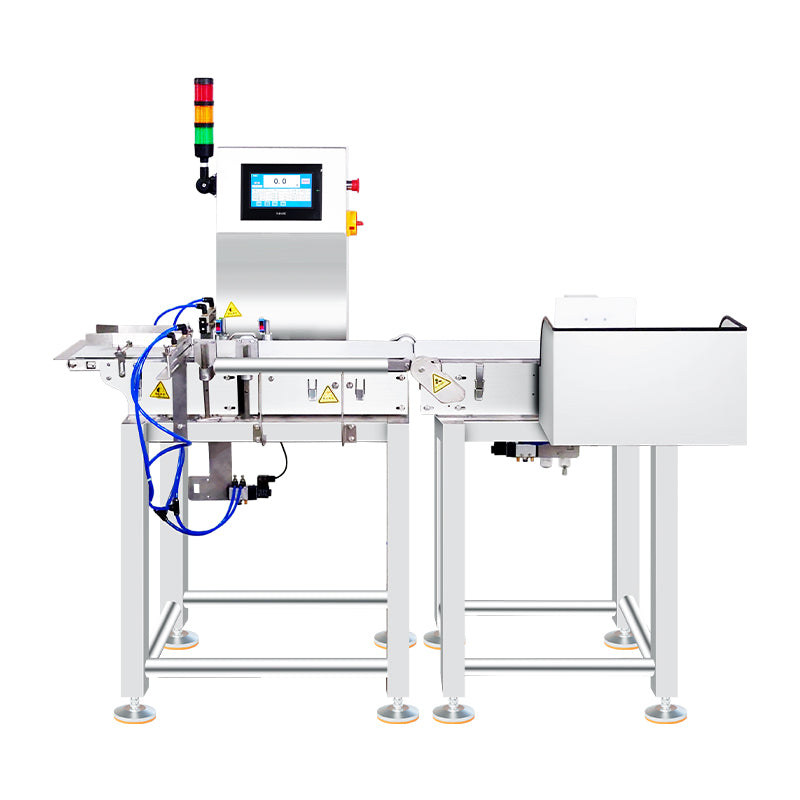

ZONESUN ZS-MD210 Industrial Check Weighing Machine

ZONESUN ZS-MD210 Industrial Check Weighing Machine

$3,899.00 USD
$0.00 USD $3,899.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Voltage
Type

DESCRIPTION

The check weigher offers speed, accuracy, and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons, and cases, and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping, and case filling is performed.


ATTENTION

This machine comes with the 220V model only. If you select the 110V option, we will send a 220V one and an extra transformer for use.

Type Checkweigher

Model：ZS-MD210
Power Supply：AC220V 50HZ (60HZ)
Rated Power：0.15 KW
Single Weighing Range：1500 g
Weighing Accuracy Range：±0.2 g—±0.5 g
Minimum Scale：0.1 g
Conveying Speed：30~100 m/min
Maximum Speed：160 pcs/min
Weighed Material Size：300 mm (L) * 200 mm (W)
Weighing Platform Conveyor Belt Size：400 mm (L) * 210 mm (W)
Product Size：1522 mm(L) * 560 mm (W) * 1222 mm(H)
Rejection Method：Push rod type / Swing Arm Type / Flip Plate Type / Air Blowing Type / Belt Sinking Type
Control System：High-speed A/D sampling controller
External Air Source：0.6-1 Mpa
Air Pressure Interface：8 mm
Body Material：SUS304
Package Size：About 1350 * 920 * 1540 mm
Package Weight：About 287 kg


Optional Bottle Clamping Conveyor

Machine Model：ZS-JP1
Voltage：220V/110V,120W
Working Speed：0–60 bottles/min (based on bottle sizes)
Adjustable Working Height：750–950 mm
Suitable Bottle Diameter：20–100 mm
Conveyor Length：850 mm
Machine Size：About 910 × 700 × 1130 mm
Package Size：About 970 × 730 × 1240 mm
Package Weight：About 94 kg

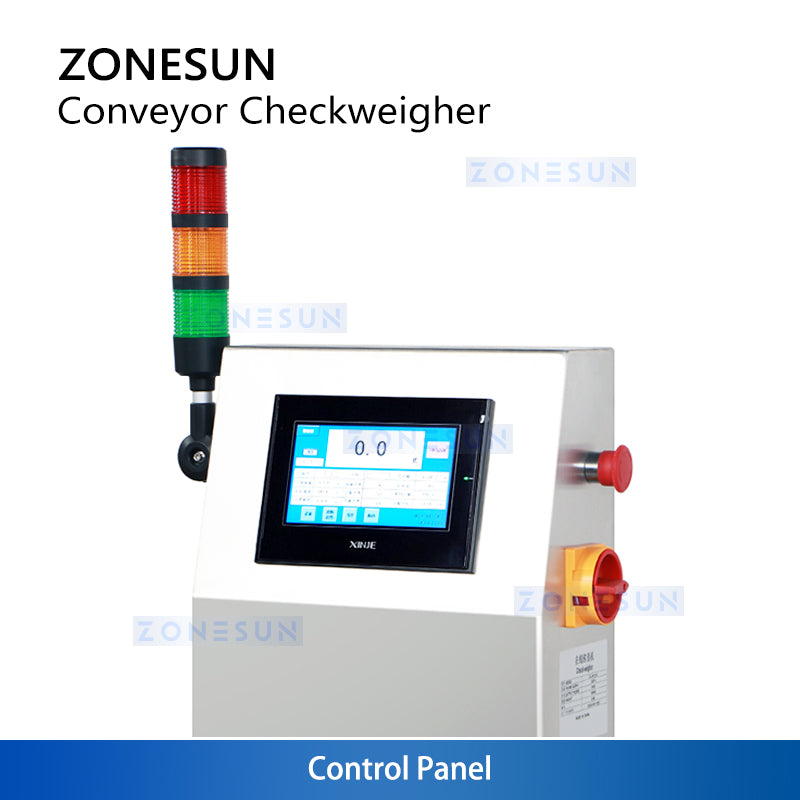

Control Panel

Intuitive touchscreen control simplifies operation while storing weighing data for efficient production management and product traceability.

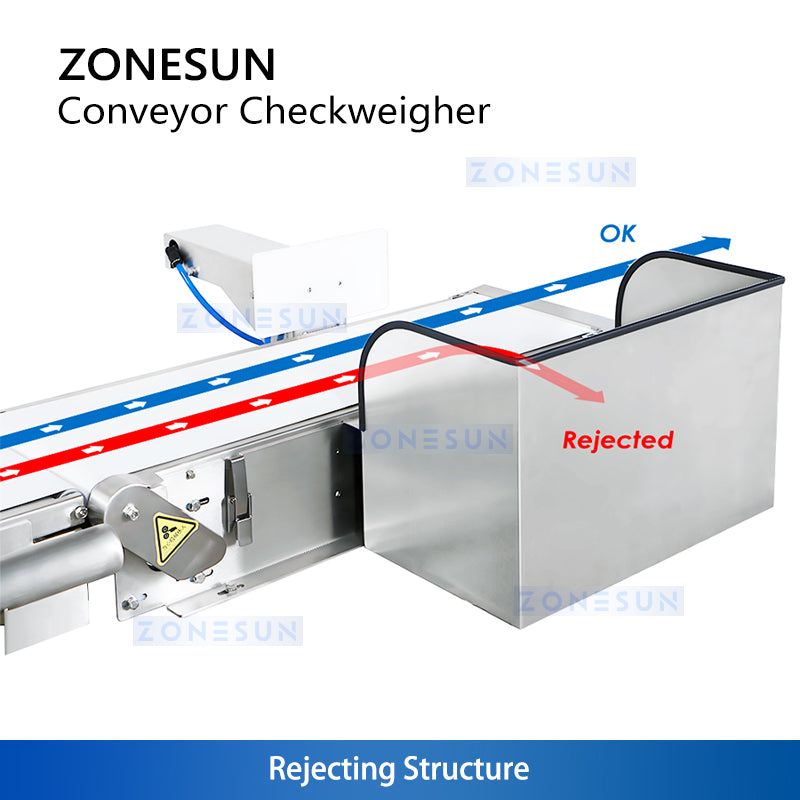

Rejecting Structure
Custom rejection method according to different kinds of products includes push rod type, swing arm type, flip plate type, air blowing type and belt sinking type.

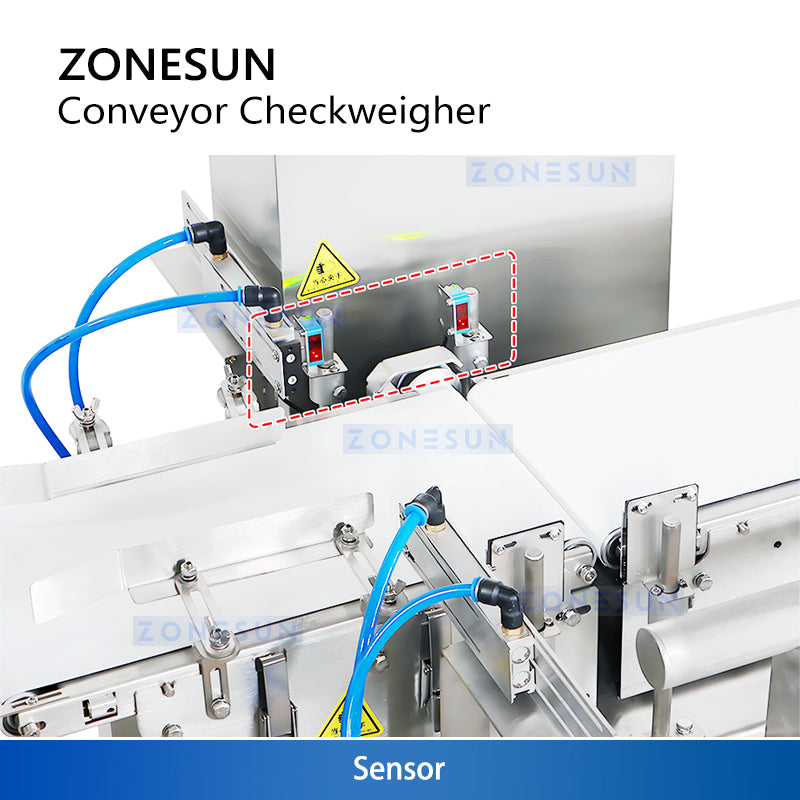

Sensor

Detects and distinguishes passing products, providing accurate signals for weighing inspection and automatic sorting to enable continuous automated production.

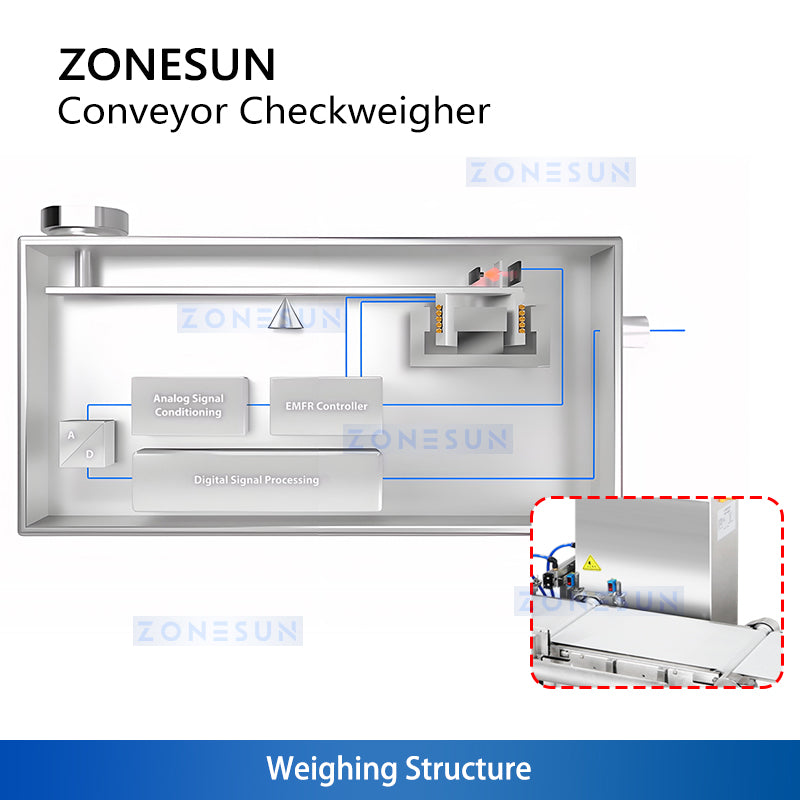

Weighing Structure

Delivers stable and accurate dynamic weight inspection, ensuring reliable quality control and consistent product weight during continuous production.

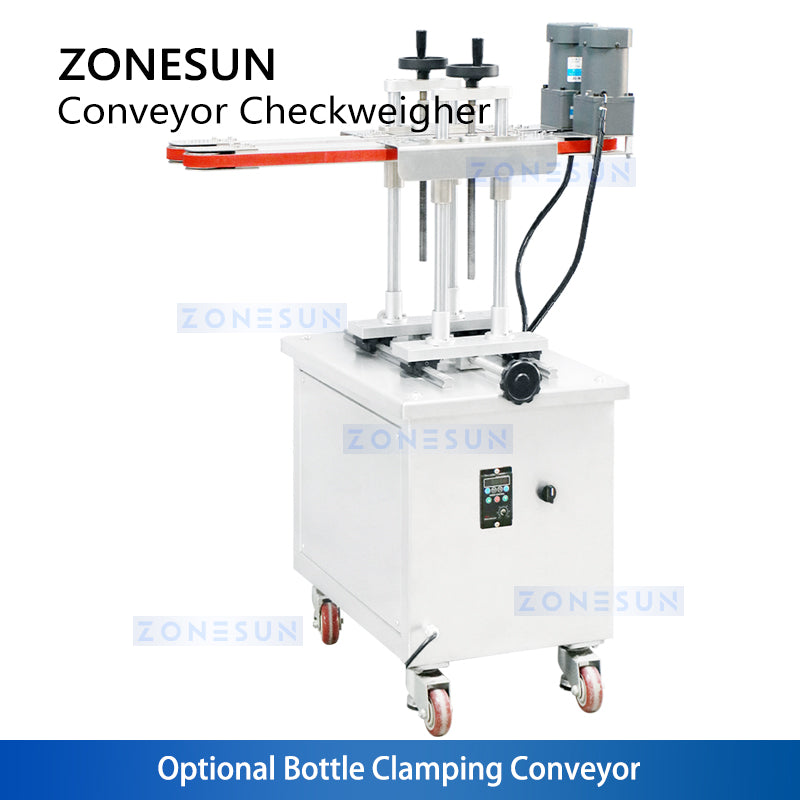

Optional Bottle Clamping Conveyor

Optional bottle clamping conveyor stabilizes bottles before they enter the weighing section, reducing vibration and tipping for more accurate weight inspection.
