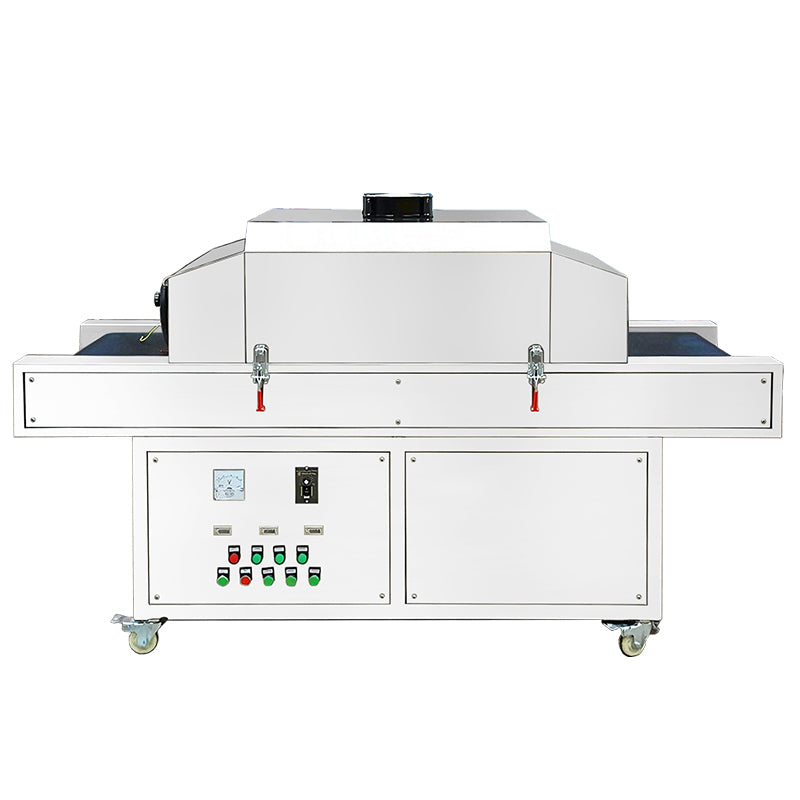

ZONESUN ZS-UVS2 UV Sterilization Tunnel for Food & Industrial Disinfection
ZONESUN ZS-UVS2 UV Sterilization Tunnel for Food & Industrial Disinfection
Impossible de charger la disponibilité du service de retrait
Pre-sale Support
Pre-sale Support
Chinese Company： Guangdong Shanghang Technology Co., Ltd.
Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223
ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.
Description

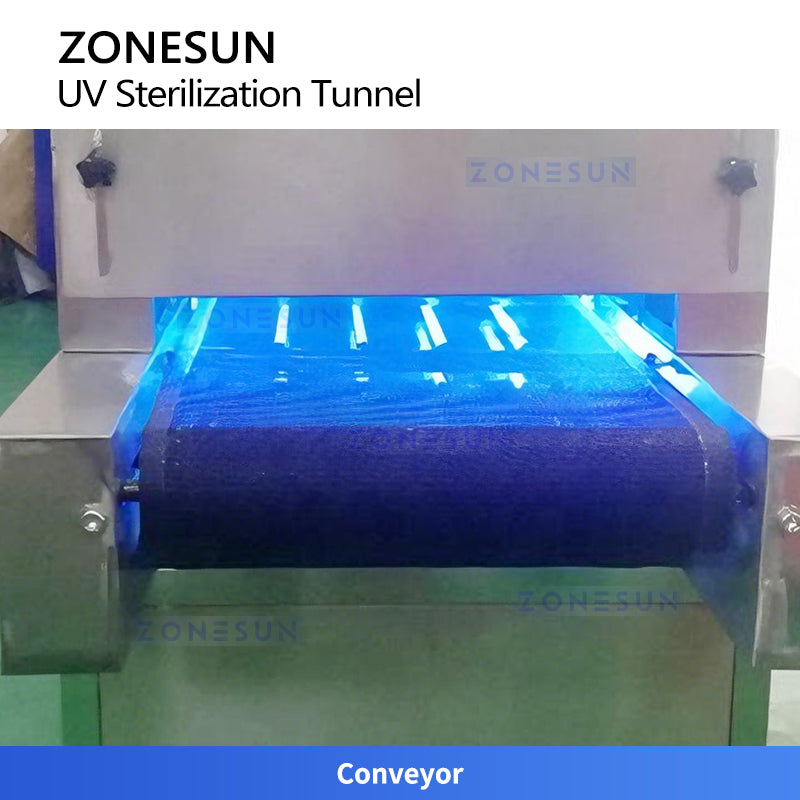

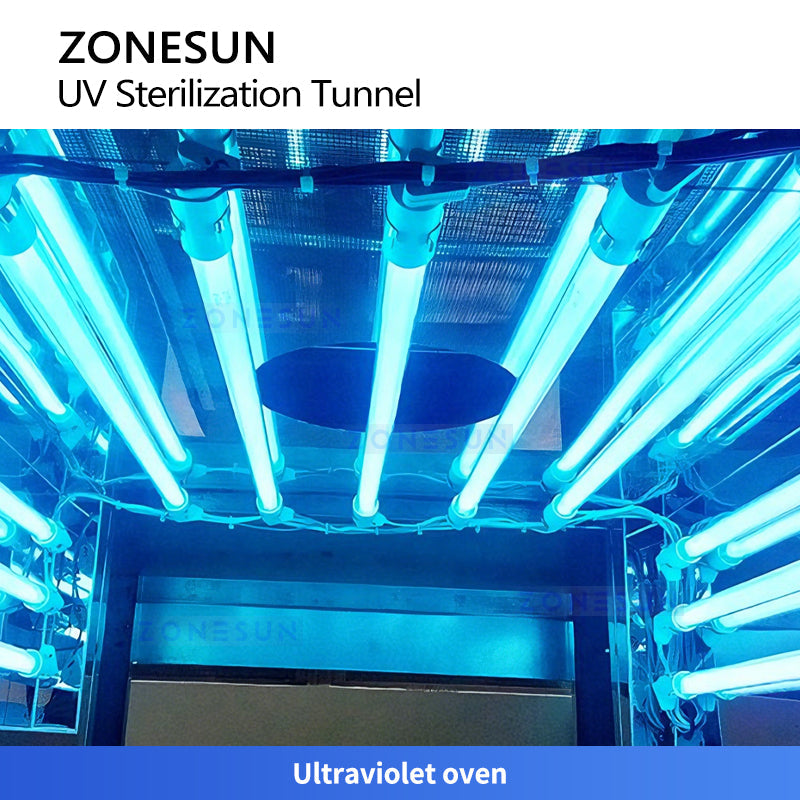

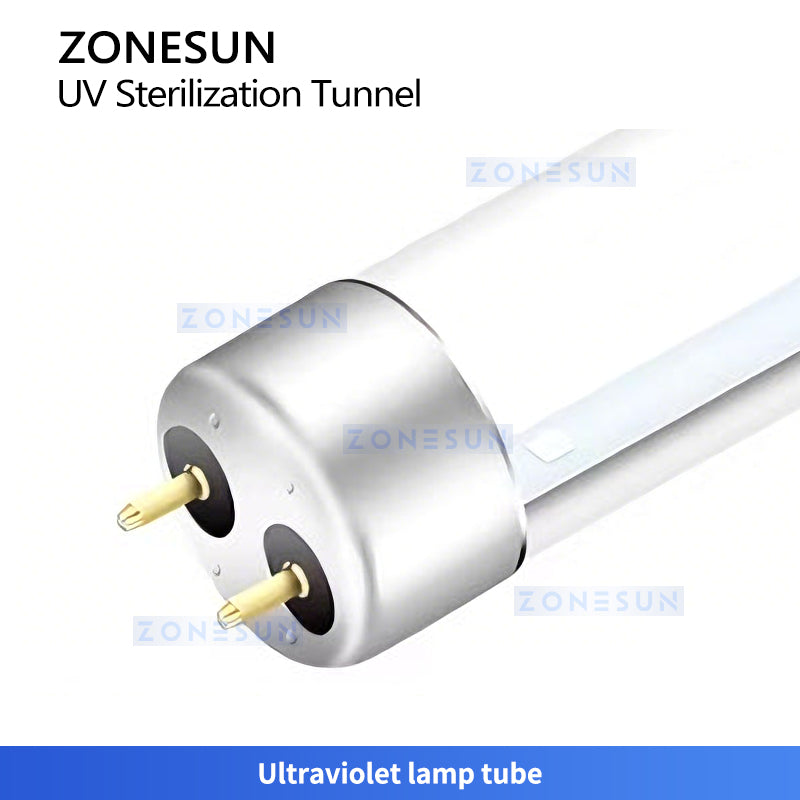

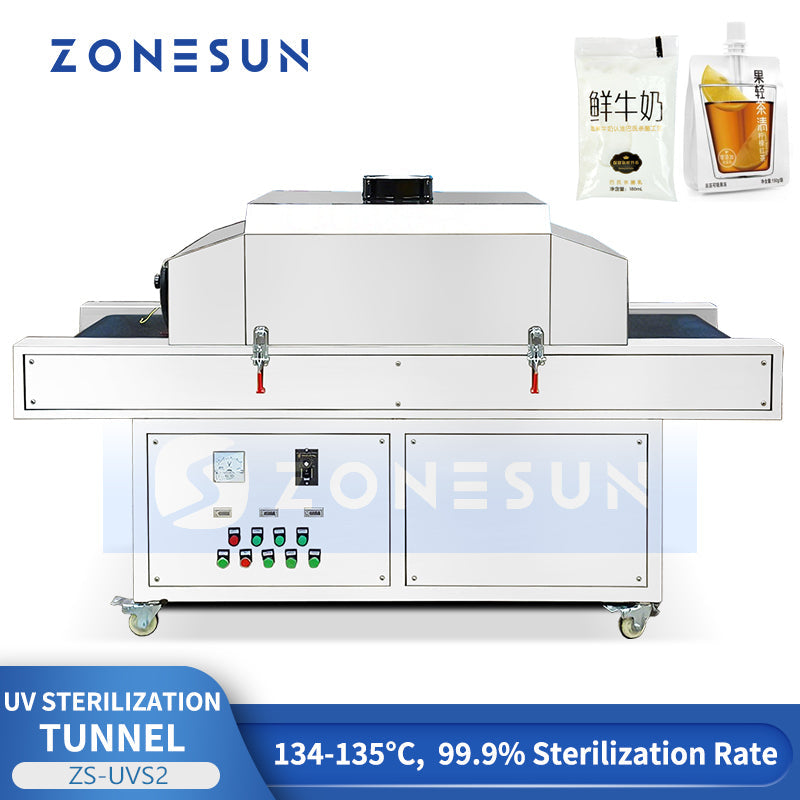

The ZONESUN ZS-UVS2 UV Sterilization Tunnel is a high‑efficiency system designed to sterilize air and objects with a 99.9% sterilization rate at 134–135°C. Equipped with UV‑C lamp tubes, stainless steel oven structure, and a Teflon mesh conveyor, it ensures uniform exposure and reliable disinfection. Widely used in hospitals, beverage plants, bakeries, cold rooms, cosmetics factories, and food processing industries, it extends product shelf life while maintaining hygiene standards. Compared with microwave sterilization, UV irradiation offers a safer and more suitable method for preserving product composition while effectively reducing bacteria and mold.
Parameter
- Model：ZS-UVS2
- Working Voltage：110V, 60HZ; 220V, 50Hz
- UV Working Area：1200 mm
- Inlet/Outlet Height：200 mm (Adjustable)
- Conveyor Height from Ground：750 ± 50 mm
- Air Circulation System：Forced Air Circulation & Exhaust Fan Combo
- Insulation Material：Vacuum Silicone Acid Aluminum + Double-layer Silk Cotton (Model: 60K)
- Conveyor Belt：Teflon Mesh Belt
- Total Power：1.5 kW
- Mesh Belt Speed Range：0–5 m/min (Stepless Speed Regulation)
- Net / Gross Wight：110kg / 166kg
- Machine Sizes：2090*830*1380mm
⚠️ UV sterilization is only effective on directly exposed surfaces and cannot penetrate liquids, sealed containers, or internal product structures. It is not a substitute for pasteurization, retort sterilization, or aseptic processing systems.
Scope of Application:
This process is only applicable to microbial inactivation on exposed surfaces of empty cans/bottles, including the inner wall, outer wall, and bottle mouth.
Equipment Nature:
This equipment is a UV disinfection system for the outer surface of bottles and packaging. It is a purely physical surface irradiation sterilization process. It is not designed for internal material sterilization of containers.
Important Notice:
This process cannot replace pasteurization, ultra-high temperature (UHT) instantaneous sterilization, or retort sterilization processes, which are thermal sterilization methods designed for product contents.
