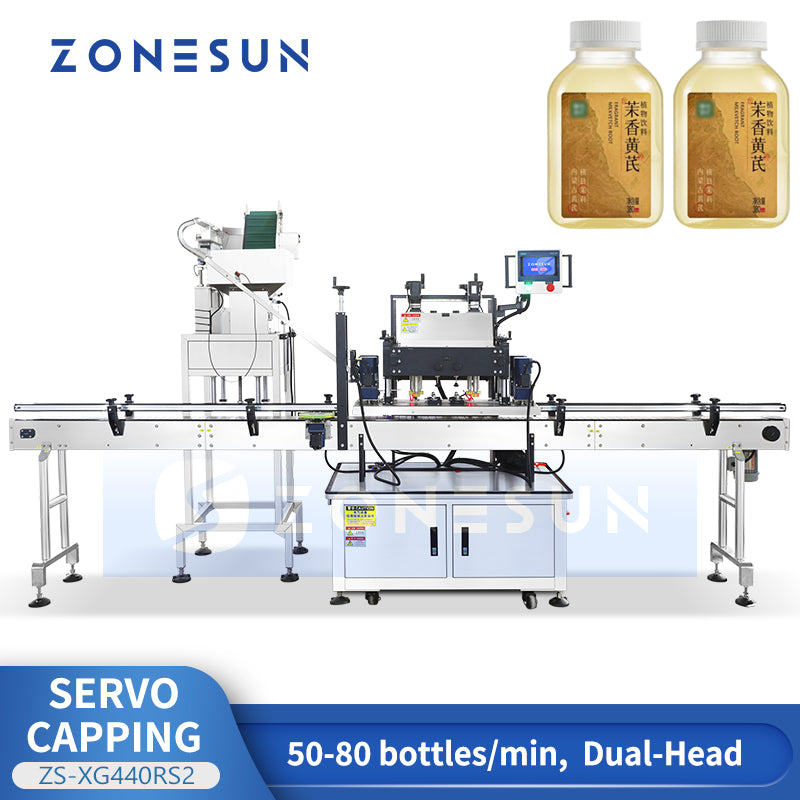

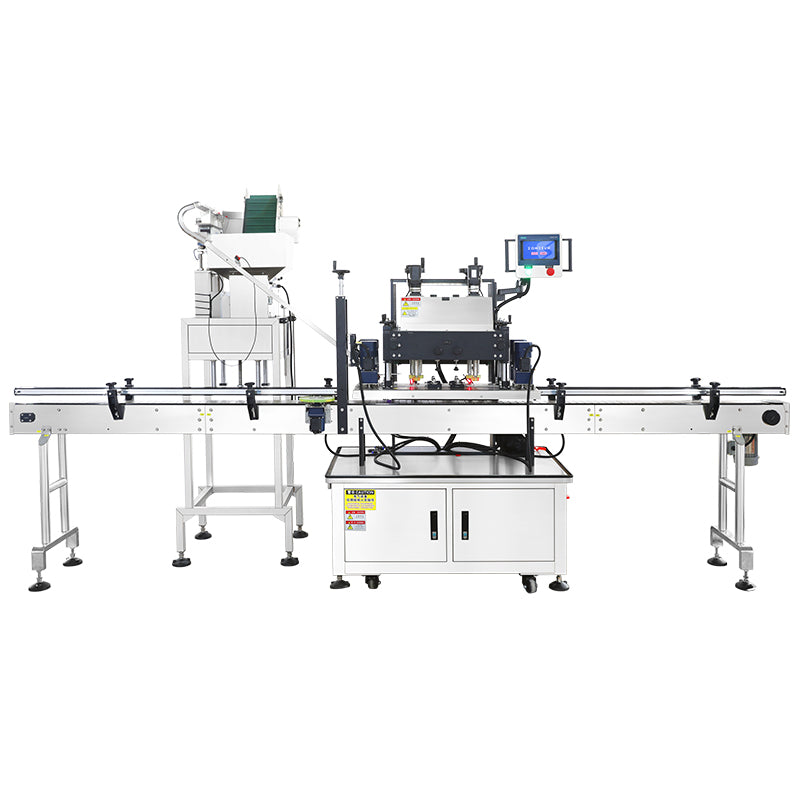

ZONESUN ZS-XG440RS2 Automatic Servo Capping Machine With Cap Feeding Placement System

Description

The ZONESUN ZS-XG440RS2 is an automatic servo capping machine with integrated cap elevator feeding, automatic cap placement, bottle separation, and dual-head servo tightening in one continuous capping system. Caps are automatically lifted from the hopper, fed, and placed onto bottle mouths before bottles enter the dual-head three-wheel tightening station for stable, consistent screw cap closure at 50–80 bottles/min.

The machine can operate independently or connect with compatible filling, sealing, labeling, and inspection equipment to form a complete packaging line. Cap diameter 30–85 mm (customizable).  Note: an external air compressor (0.5–0.7 MPa) is required and must be purchased separately.

Parameter

• Model: ZS-XG440RS2
• Power Supply: AC 220V / 50Hz (110V single-phase optional)
• Power: 2,000W
• Applicable Cap Diameter: 30–85 mm (customizable)
• Working Air Pressure: 0.5–0.7 MPa
• Production Capacity: 50–80 bottles/min
• Machine Dimensions (L×W×H): 2,000 × 900 × 1,600 mm
• Net Weight: 250 kg

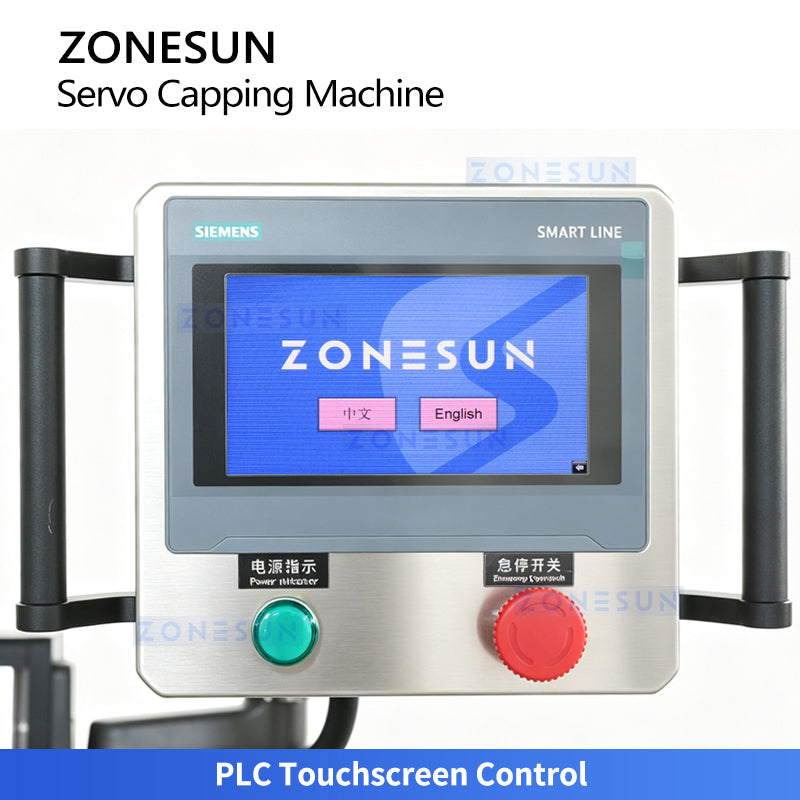

PLC Touchscreen Control

Set capping speed and operating parameters through the touchscreen for convenient centralized machine control.

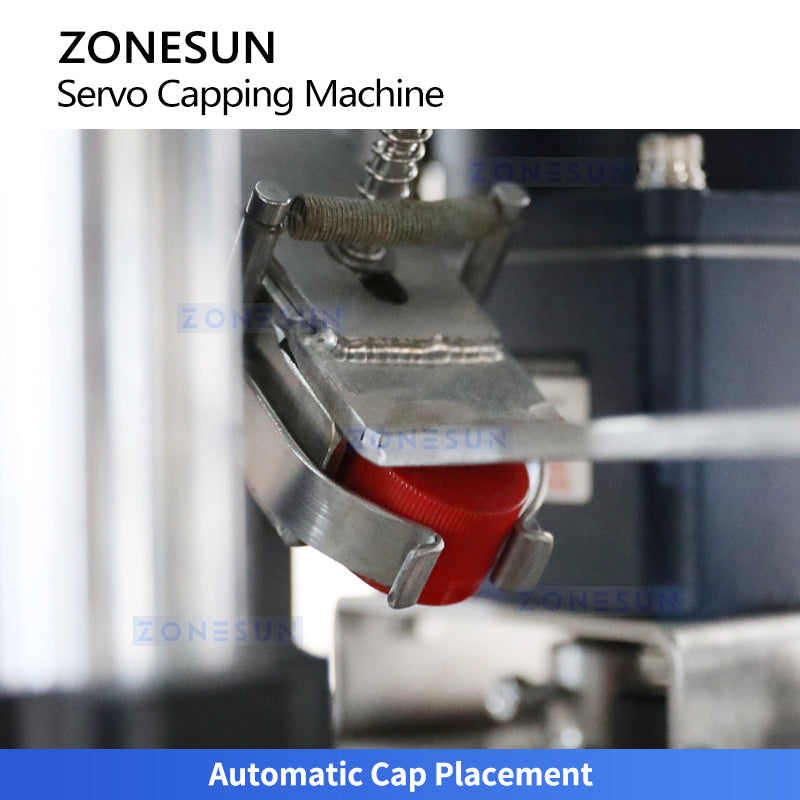

Automatic Cap Placement

Receives caps from the cap elevator and automatically places them onto bottle mouths before capping for smooth, continuous operation.

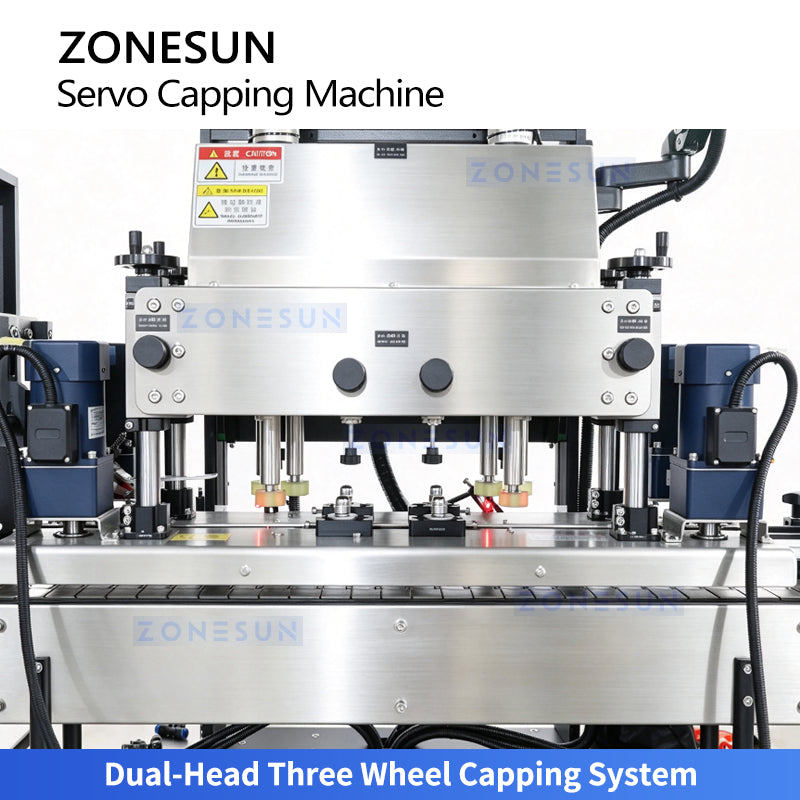

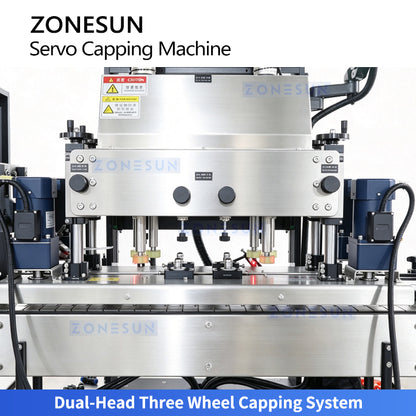

Dual-Head Three-Wheel Capping System

Two capping heads operate simultaneously, with three-wheel mechanisms gripping and tightening caps for stable and consistent capping.

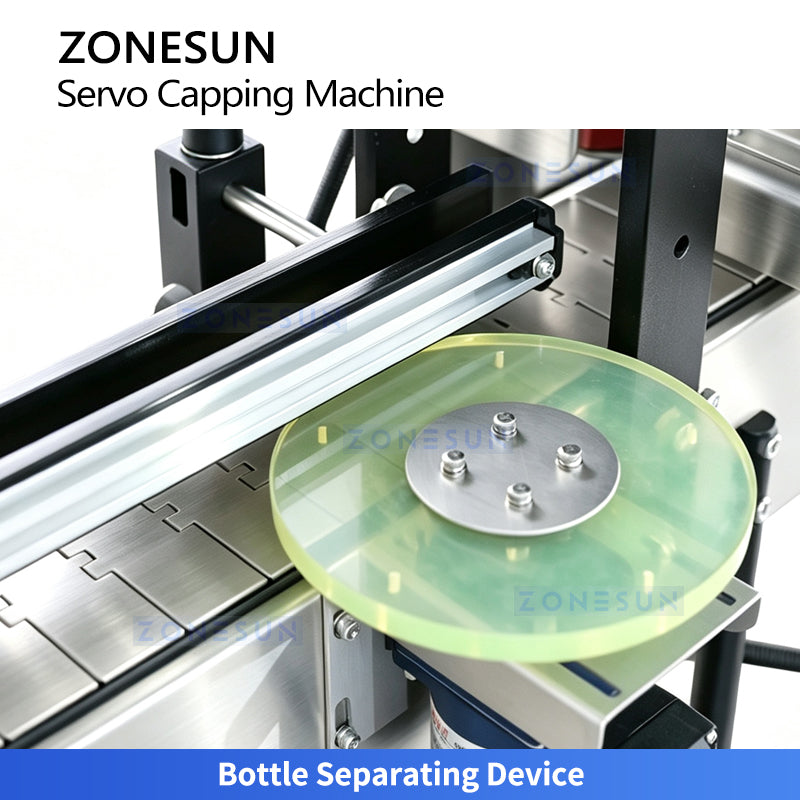

Bottle Separating Device

The rotating disc automatically separates and spaces bottles for smooth, orderly feeding into the capping station.

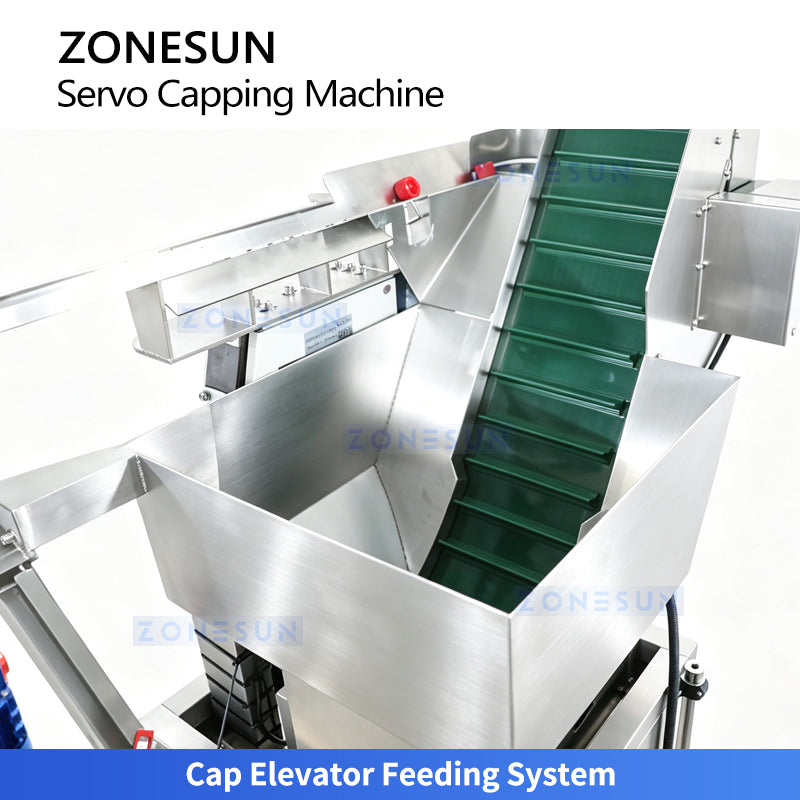

Cap Elevator Feeding System

Automatically lifts and feeds caps from the hopper to the cap feeding system for continuous capping operation.

Conveyor Belt

Continuously transports bottles through the capping process for smooth integration with upstream and downstream equipment.

Key Features

✅ Integrated Cap Elevator + Auto Placement + Dual-Head Servo Tightening: Fully automated cap handling from hopper elevator → automatic cap placement onto bottle mouths → dual-head three-wheel servo tightening in one continuous capping workflow.

✅ 50–80 Bottles/Min High-Speed Output: Dual capping heads operate simultaneously to deliver 50–80 bottles per minute throughput for medium- to high-speed packaging line capping requirements.

✅ Dual-Head Three-Wheel Capping — Stable, Consistent Torque: Two capping heads each with three-wheel gripping mechanisms tighten screw caps with consistent torque for reliable closure quality across the full production run.

✅ Rotating Disc Bottle Separation: Automated rotating disc separates and evenly spaces bottles before the capping station, preventing bottle collision and ensuring smooth, orderly cap-to-bottle alignment.

✅ 30–85 mm Cap Diameter Range (Customizable): Accommodates screw cap diameters from 30 mm to 85 mm — customizable to match specific bottle and cap format requirements.

✅ PLC Touchscreen for Simple Operation: Centralized touchscreen for capping speed and parameter adjustment, enabling straightforward machine setup and production control.

✅ Standalone or Line-Integratable: Operates as a standalone capping unit or connects with compatible filling, sealing, labeling, and inspection equipment for complete automated packaging line configurations.

✅ 110V & 220V Available: Available in single-phase 110V or 220V / 50Hz to suit different facility power configurations.

Applications

• Food & Beverage Bottle Capping: High-speed screw cap tightening on compatible food jars, sauce bottles, juice bottles, cooking oil bottles, and beverage containers for food and beverage production line automation.
• Cosmetic & Personal Care Bottle Capping: Automatic cap feeding, placement, and servo tightening of screw caps on shampoo, lotion, cream, toner, and other cosmetic and personal care product bottles for beauty brand packaging lines.
• Pharmaceutical & Nutraceutical Bottle Capping: Precise dual-head servo cap tightening on compatible pharmaceutical bottles, supplement jars, and vitamin containers requiring consistent closure torque for product safety and tamper-evidence.
• Chemical & Cleaning Product Capping: Automated screw cap closure of compatible household cleaning, detergent, lubricant, and industrial chemical bottles on high-speed daily chemical packaging lines.
• Edible Oil & Condiment Bottle Capping: Cap elevator feeding and dual-head tightening for screw-top edible oil bottles, vinegar bottles, soy sauce bottles, and other food condiment containers on continuous packaging lines.
• Complete Packaging Line Integration: ZS-XG440RS2 is designed for integration downstream of filling and upstream of labeling and inspection equipment as part of a fully automated bottle filling and capping packaging line.
