DESCRIPTION

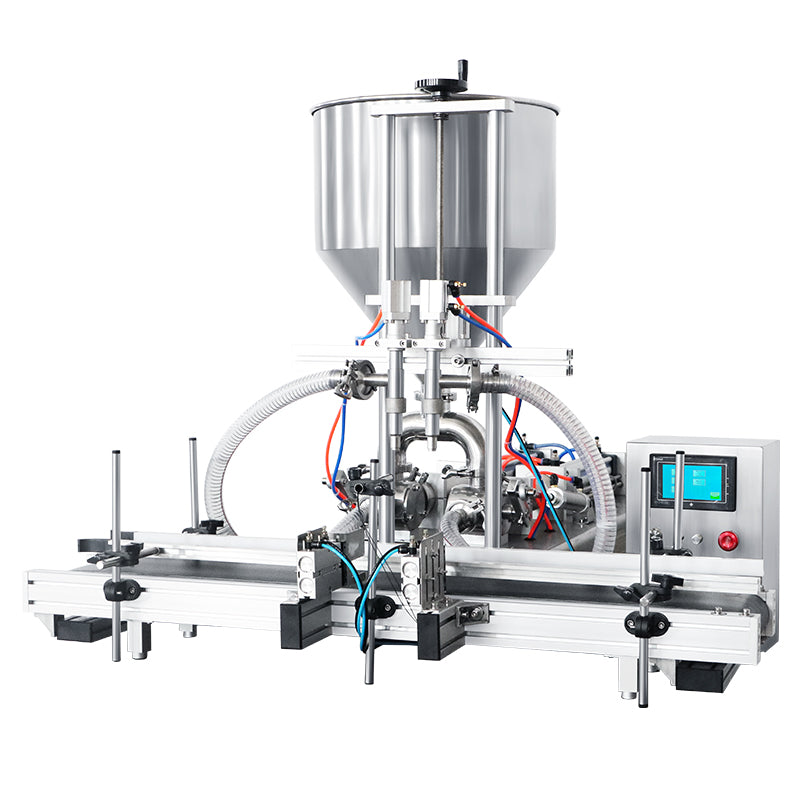

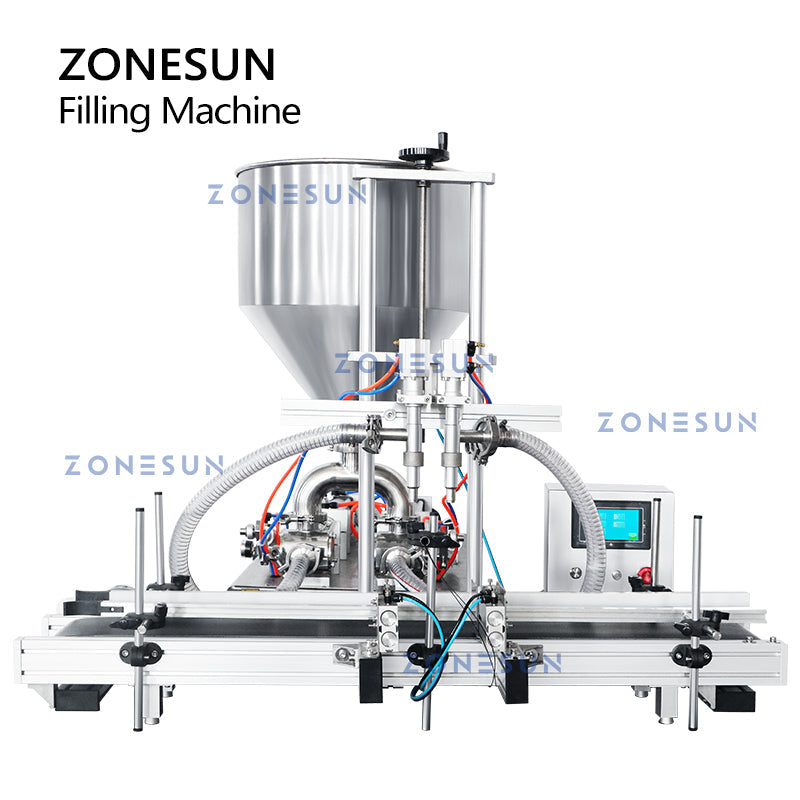

Equipped with piston pumps, this machine is suitable for filling paste and thick liquid like shampoo, engine oil, laundry detergent, and jam. It is a modular design with a filler and a conveyor. And customization is available.

PARAMETER

Model：ZS-DTGT2
Voltage：220V / 110V, 50–60Hz
Power：130W
Filling Range：10–100ml / 10–200ml / 30–300ml / 50–500ml / 100–1000ml
Filling Speed：Approx. 800–900 bottles/hour (based on 300ml ketchup)
Applicable Bottle Diameter Approx.：53–100mm
Filling Accuracy：≤ ±1%
Anti-dripping Function：Available
Conveyor Belt Size：1020 × 140mm (L × W)
Machine Dimensions：1020 × 1160 × 870mm (L × W × H)

PRODUCT DETAILS

CONTROL PANEL

Through the touch screen panel, it’s easy to set working parameters.

FILLING

Pneumatic, powerful, diving nozzles.

ADJUSTMENT

Filling speed and interval time.

PHOTOELECTRIC EYE

Optical fiber sensing, smart and efficient, auto-detecting.

CONVEYOR

With a high-quality conveyor belt, it can transport bottles steadily. The conveying speed and width of it can be adjusted.
