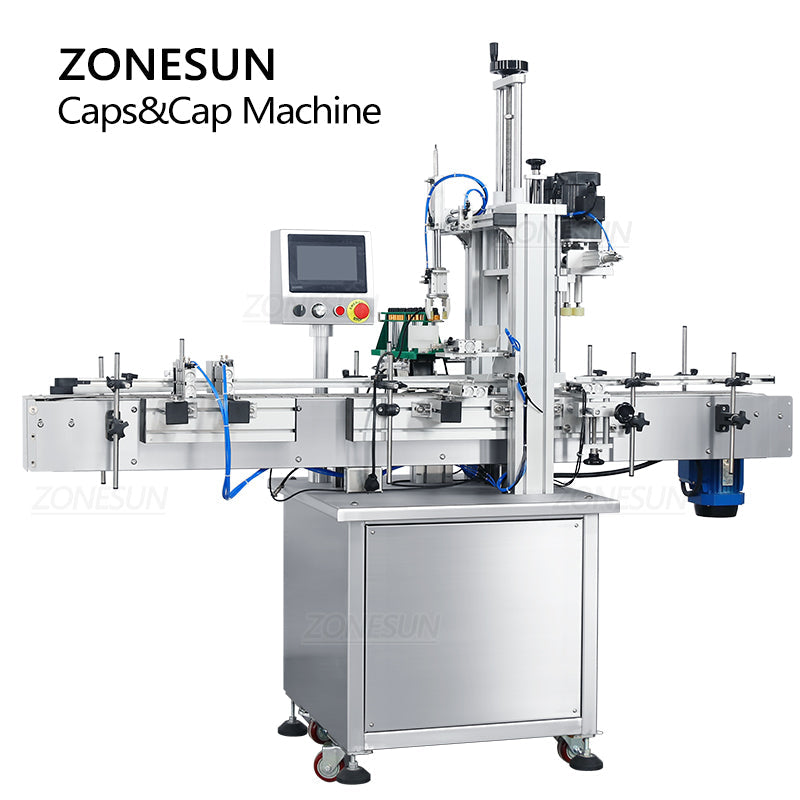

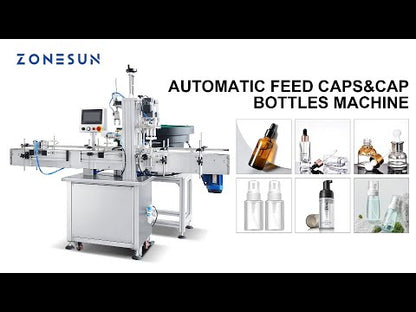

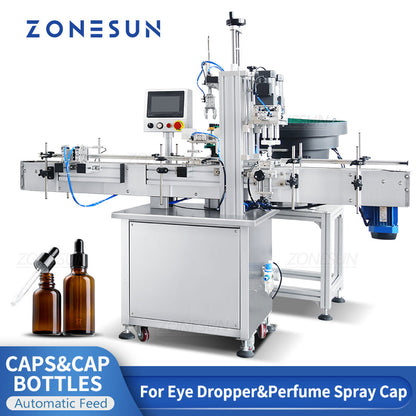

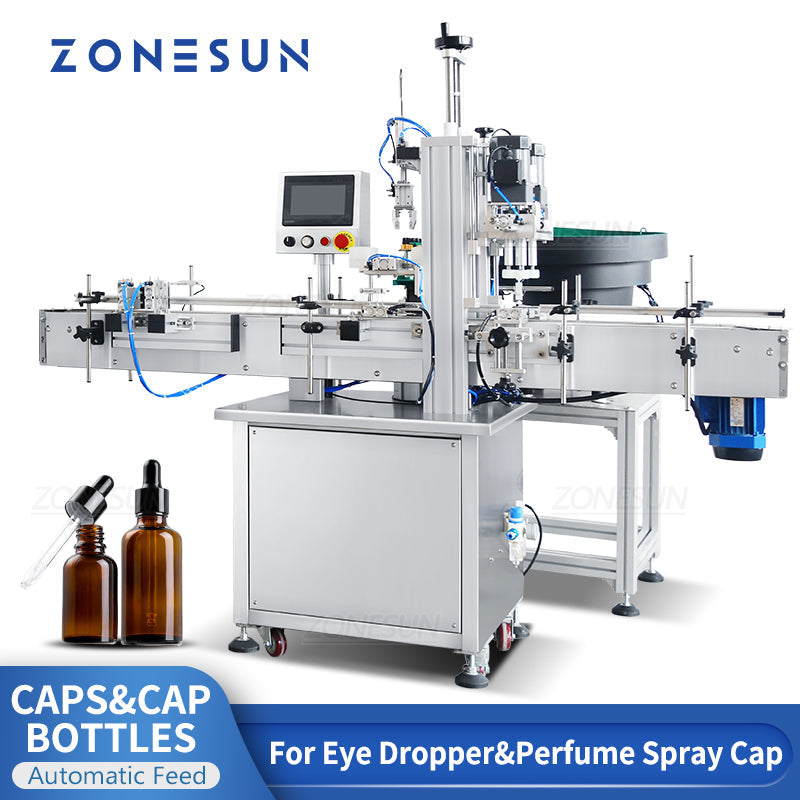

ZONESUN ZS-XG16E Automatic Capping Machine With Customizable Vibratory Cap Feeder

ZONESUN ZS-XG16E Automatic Capping Machine With Customizable Vibratory Cap Feeder

$7,000.00 USD
$7,000.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Voltage

DESCRIPTION

This automatic capping machine can feed droppers, clamp droppers, put them into bottles and tighten bottles automatically. The vibratory bowl can be customized according to the dropper. It is good for capping essential oil bottles and nail polish bottles.

PARAMETER

  • Model：ZS-XG16E
  • Bottle Height: 30–300mm
  • Cap Diameter: 18–70mm
  • Bottle Diameter: 20–160mm
  • Working Speed: 20–60 bottles/min (depending on bottle and cap size and shape)
  • Working Voltage: AC220V/110V 50-60Hz
  • Working Pressure: 0.4–0.6MPa
  • Machine Size: 1930 × 740 × 1600mm (approx.)
  • Package Size: 1970 × 990 × 1740mm (approx.)
  • Net Weight / Gross Weight: About 150kg / 334kg
ZONESUN Automatic Capping Machine



ZONESUN Automatic Capping Machine



ZONESUN Automatic Capping Machine



PRODUCT DETAILS

ZONESUN Automatic Capping Machine

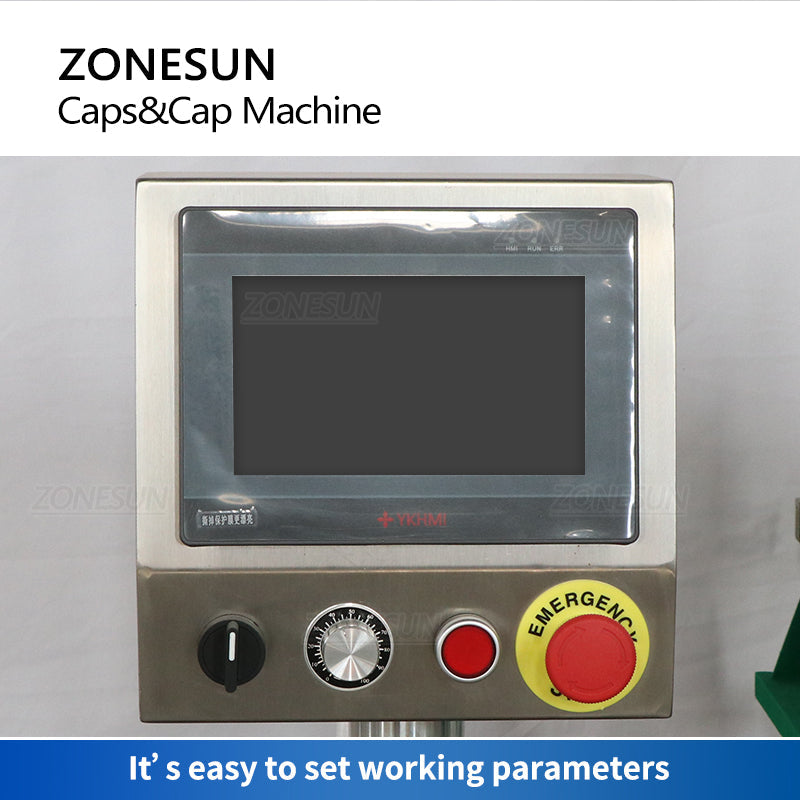

CONTROL PANEL

PLC controls, English version



ZONESUN Automatic Capping Machine

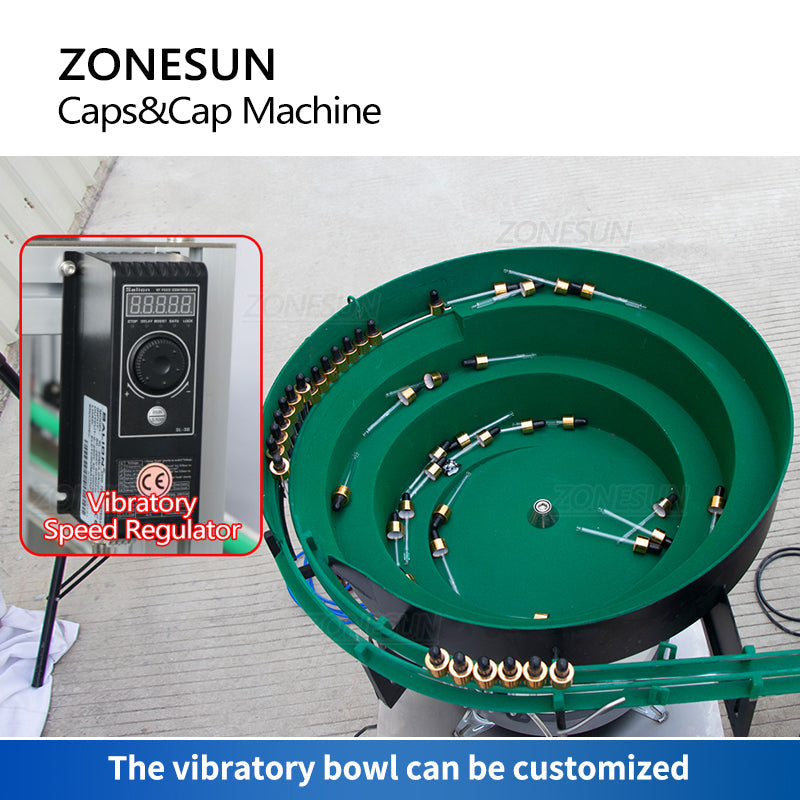

FEEDING

Automatically feed the cap, with a speed regulator.



ZONESUN Automatic Capping Machine

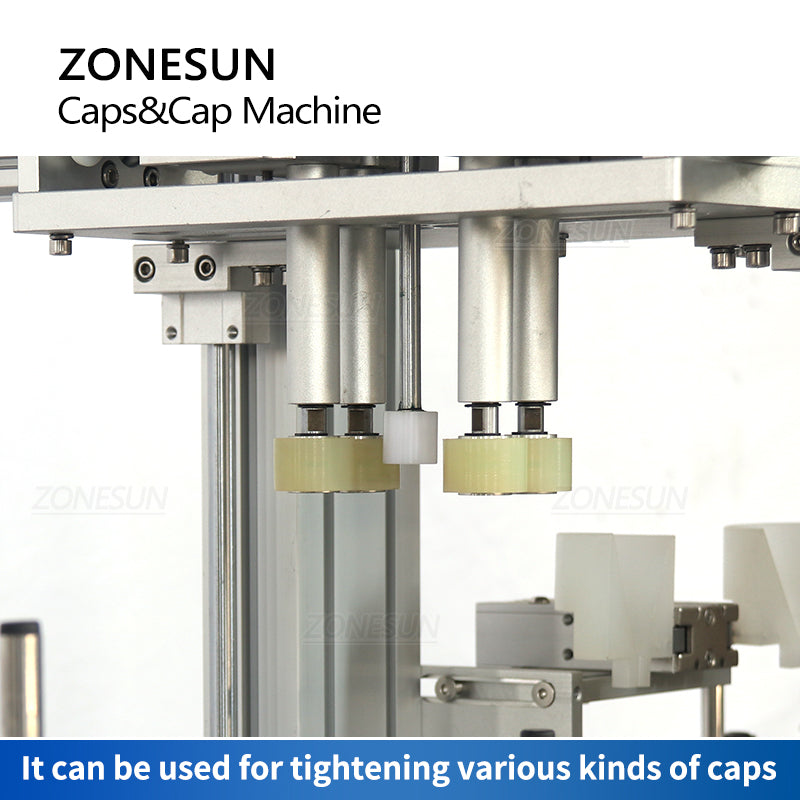

CAPPING

Used for sealing various kinds of screw caps, like twist-off caps and flip-off caps.



ZONESUN Automatic Capping Machine

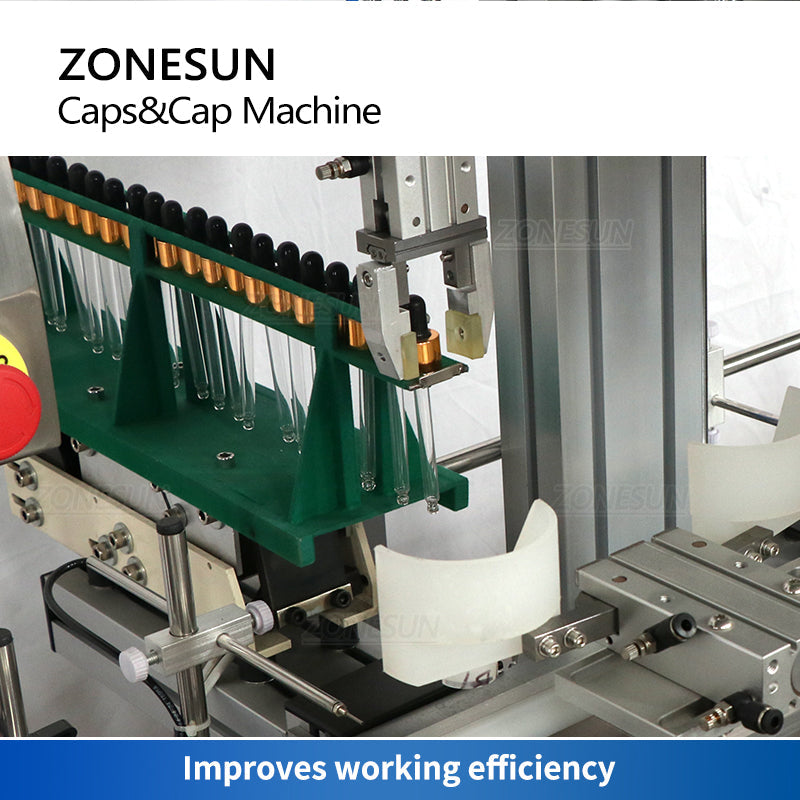

ROBOTIC ARM

Automatically hold the caps and drop them into the bottles.



ZONESUN Automatic Capping Machine

CONVEYOR

Large capacity, stable and efficient.



 ZONESUN Automatic Capping Machine ZONESUN Automatic Capping Machine
