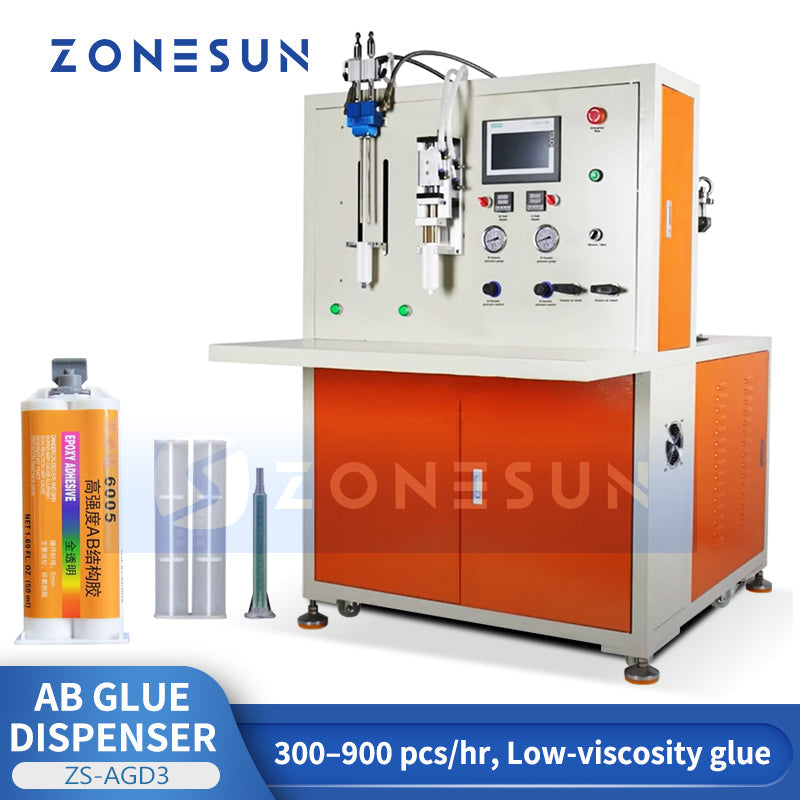

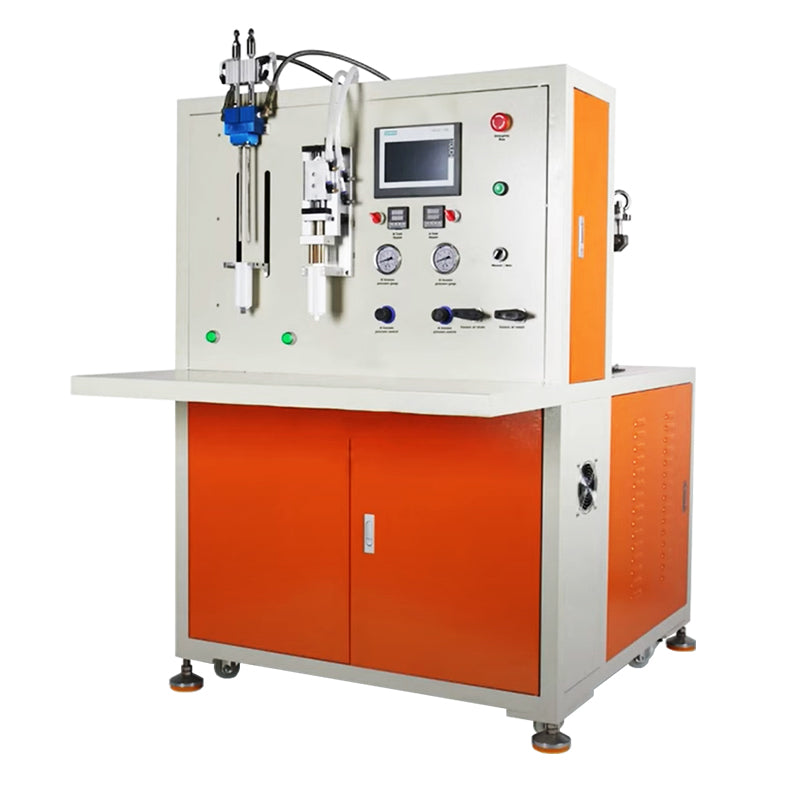

ZONESUN ZS-AGD3 Automatic Low-Viscosity AB glue Dispensing Machine

DESCRIPTION

The ZONESUN ZS-AGD3 Automatic Low-Viscosity AB Glue Filling Machine is built for precise dispensing of low-viscosity adhesives such as epoxy, PU and acrylic. With adjustable filling volumes from 50ml to 490ml and speeds up to 900 pcs/hr, it ensures ±1% metering accuracy and smooth, bubble-free flow. Integrated A/B tanks, injection valves, and piston injectors support consistent ratio control and secure sealing. Its touch screen interface and modular design make operation simple and maintenance efficient—ideal for industrial applications requiring fast, reliable adhesive filling.

Parameters

• Model: ZS-AGD3
• Pressure Barrel: 30 L (adjustable)
• Power Supply: 220V / 50Hz
• Working Air Pressure: 0.4–0.7 MPa
• Filling Volume: 50ml、75ml、200Ml/250ml、400ml/490ml (adjustable)
• Volume Precision: ±1%
• Speed: 300–900 pcs/hr
• Dimensions: 1100 × 900 × 1600 mm
• Weight: Around 300 kg

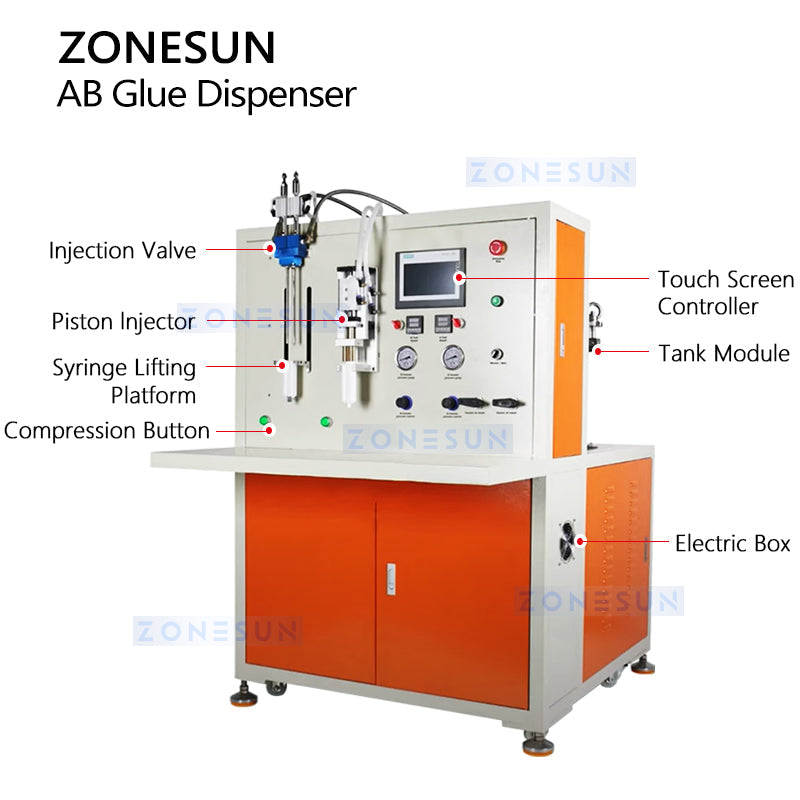

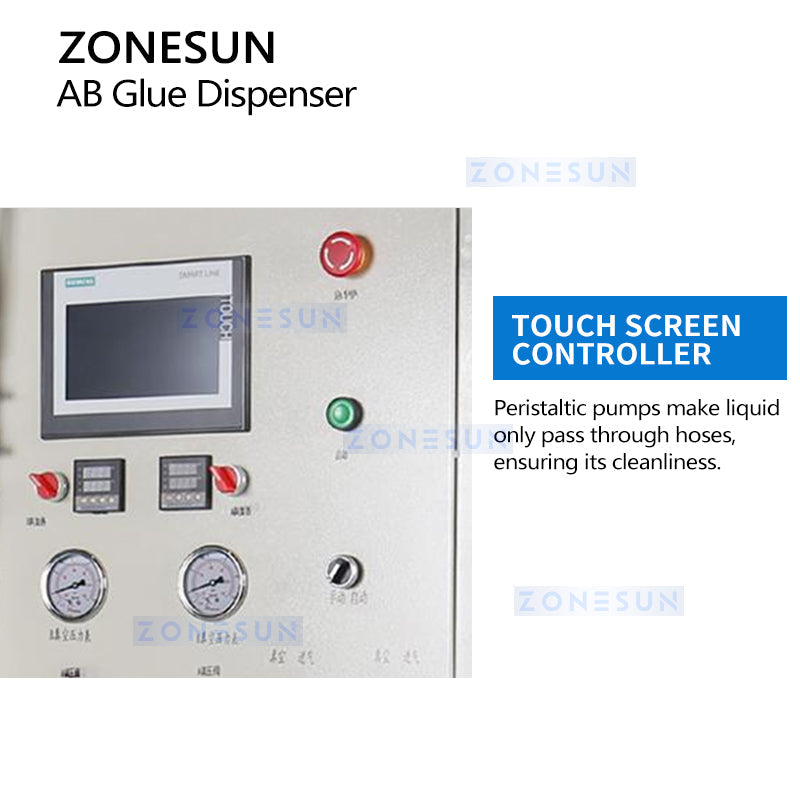

TOUCH SCREEN CONTROLLER

Peristaltic pumps make liquid only pass through hoses, ensuring its cleanliness.

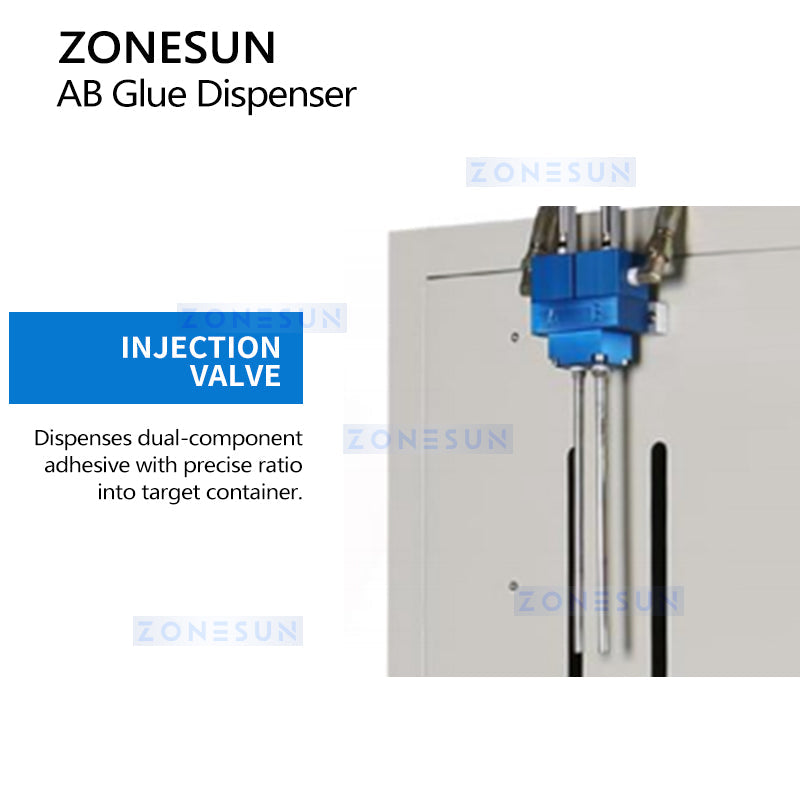

INJECTION VALVE

Dispenses dual-component adhesive with precise ratio into target container.

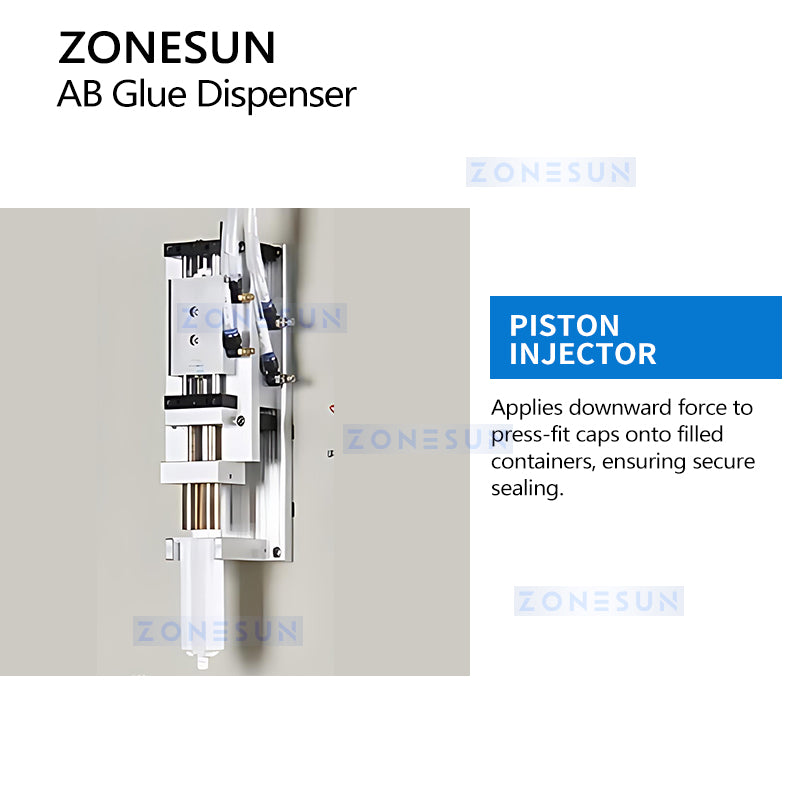

PISTON INJECTOR

Applies downward force to press-fit caps onto filled containers, ensuring secure sealing.

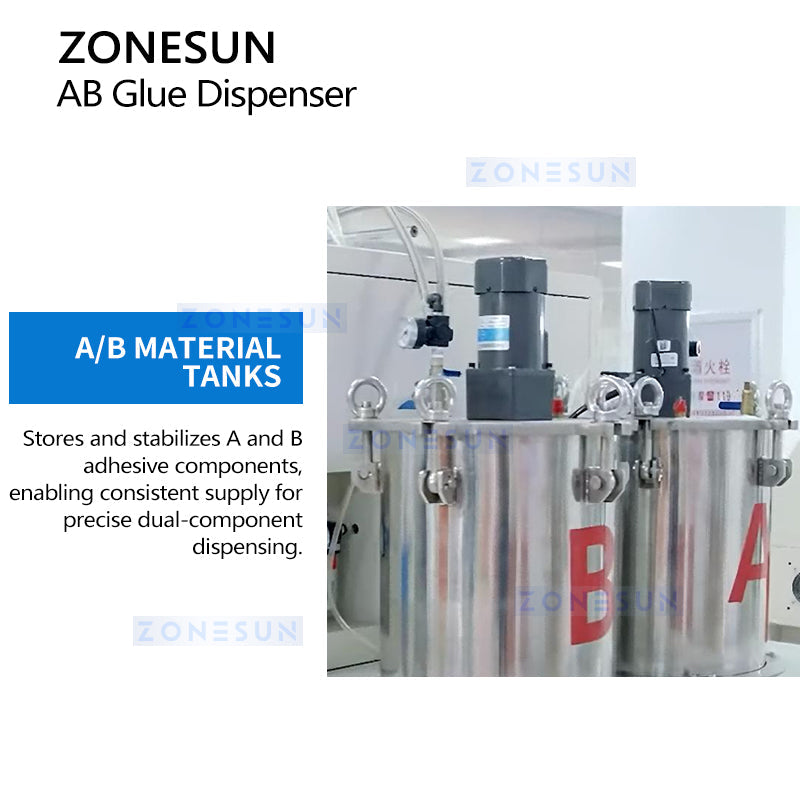

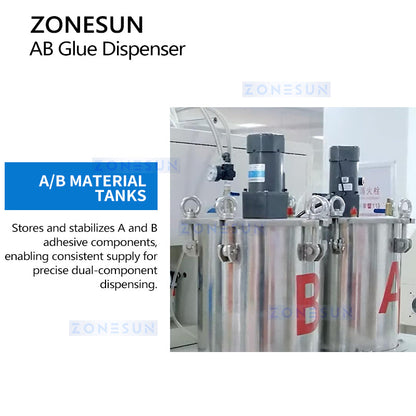

A/B MATERIAL TANKS

Stores and stabilizes A and B adhesive components, enabling consistent supply for precise dual-component dispensing.
