ZONESUN ZS-FAL180X10 Automatic Granule Packaging Line Weighing Filling Capping Labeling integrate Line

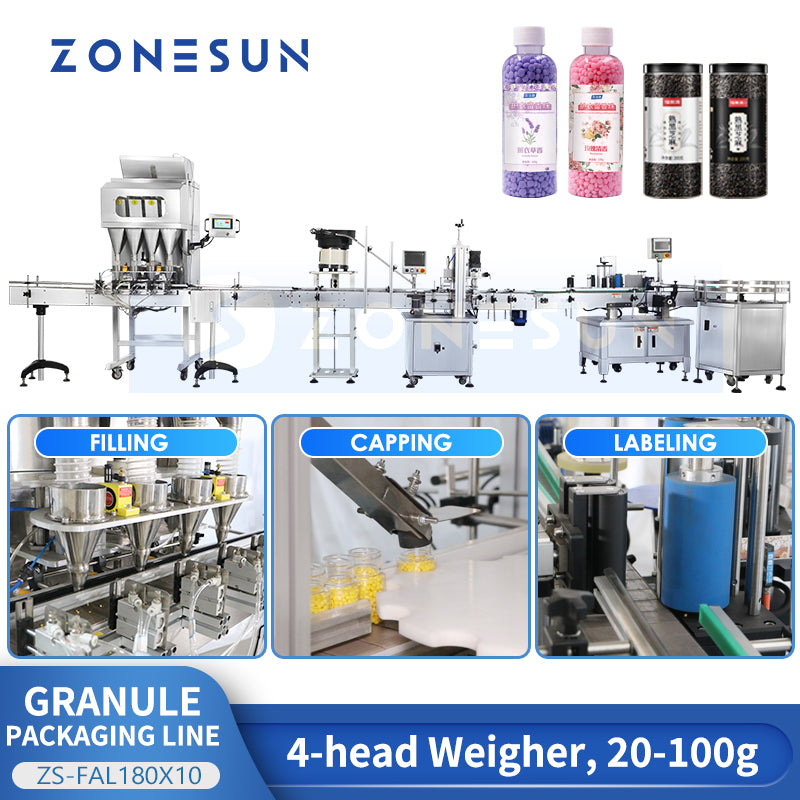

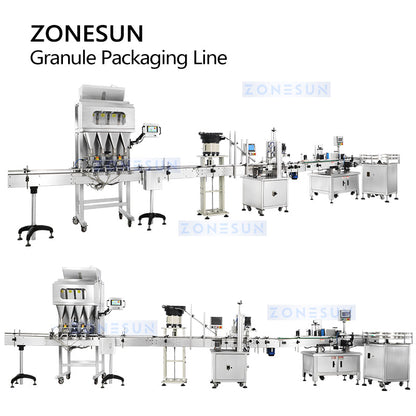

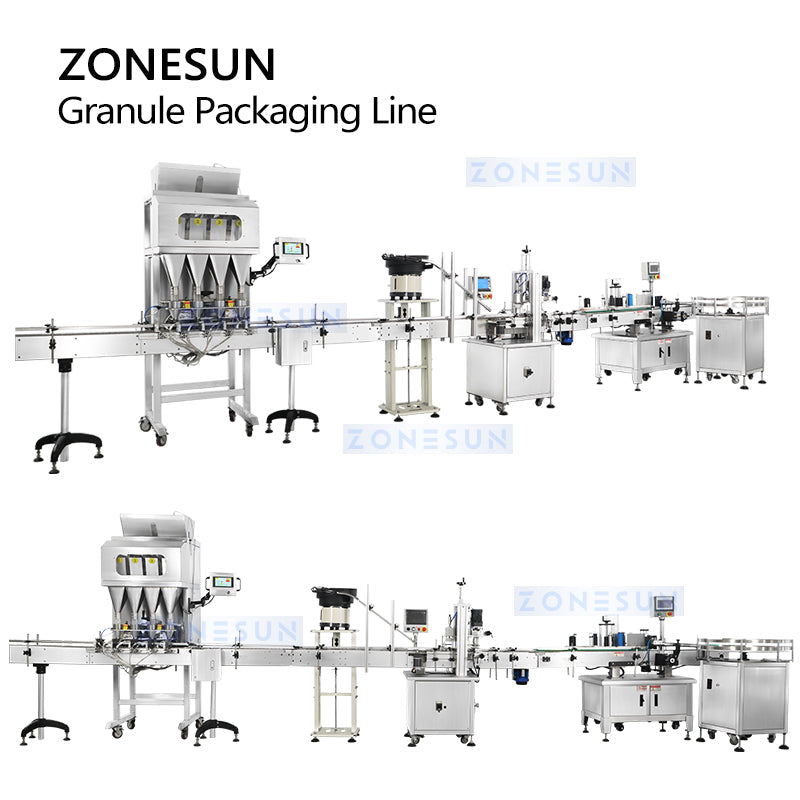

DESCRIPTION OF Granule Packaging Line

This is a granule packaging line with a weigh-to-fill machine, a capping machine, a labeling machine and an unscrambler. With PLC controls, it easily packs material from 20 to 100 grams. It is widely used in the food industry.

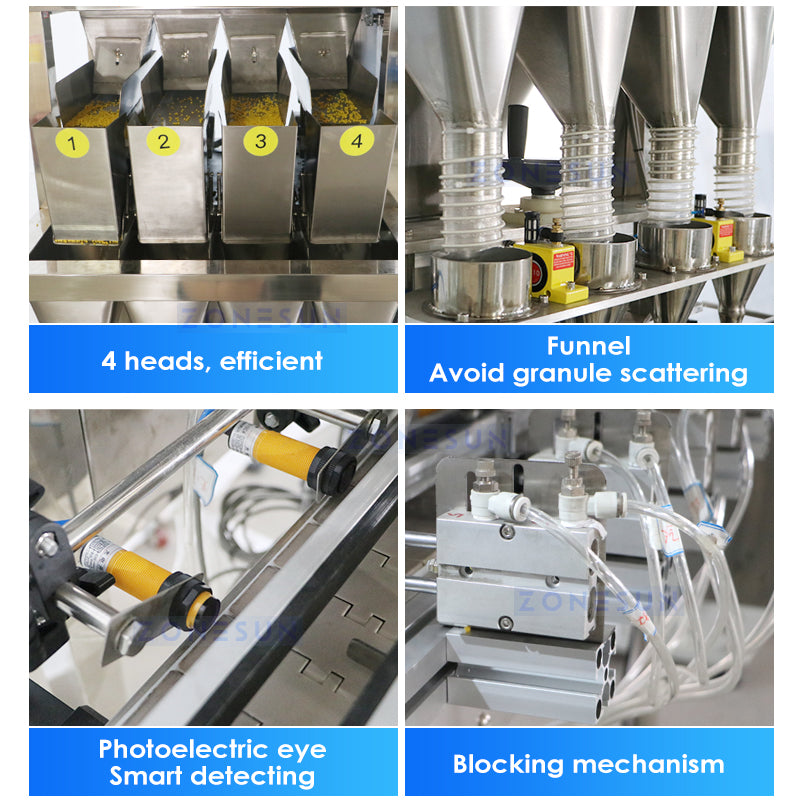

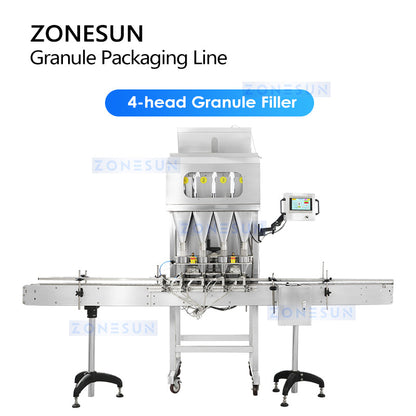

Filling Machine

• Machine Model：ZS-GW4

• Voltage：220V 50-60Hz

• Power：About 3kW

• Working Speed：About 20-30 bottles/min(Depending on the bottle size and material)

• Weighing Range：20-100g per bottle

• Air Pressure：0.4-0.6MPa

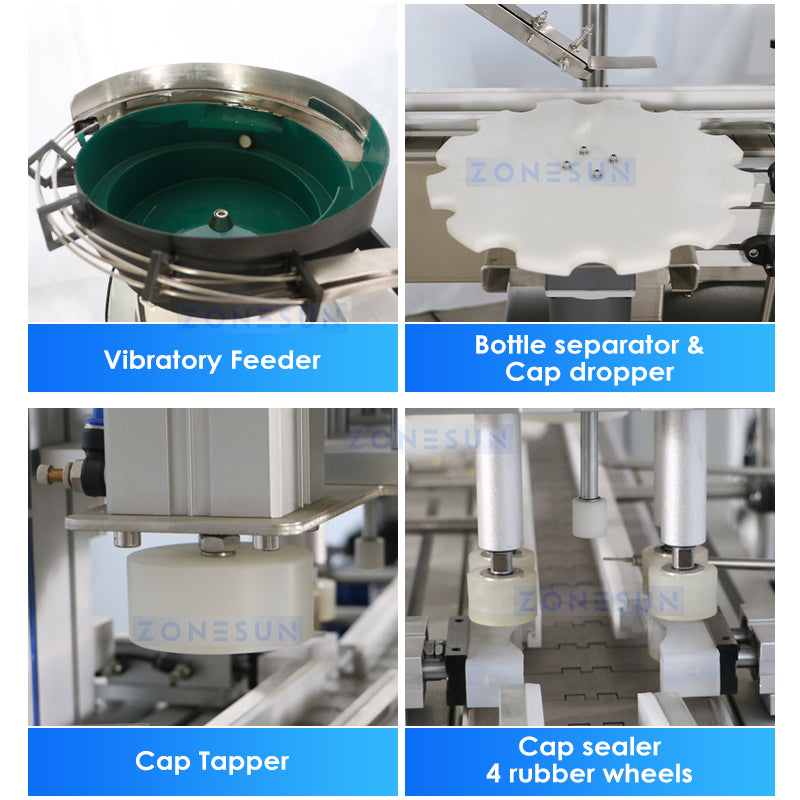

Capping Machine

• Machine model：ZS-XG16V

• Bottle height：30-300mm

• Cap Diameter：18-70mm

• Bottle Diameter：20-160mm

• Working speed：20-60 bottles/minute (Depending on bottle and cap size and shape)

• Working voltage：AC220V/110V 50-60HZ

• Working pressure：0.4-0.6MPa

• Machine size：About 1930*740*1600mm

• Machine weight：About 150kg

• Package size：About 2000*820*1760mm

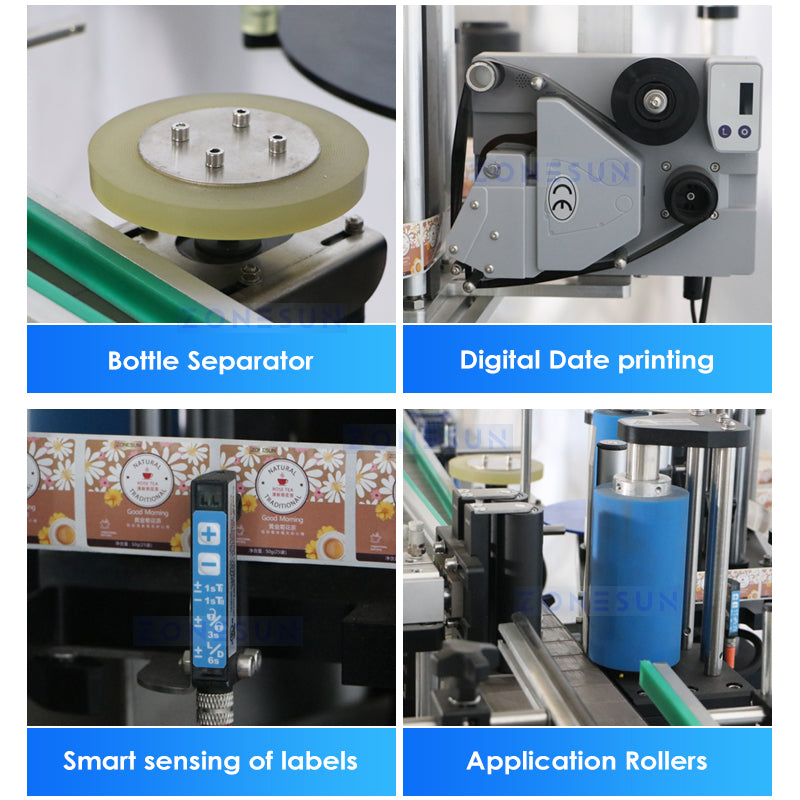

Labeling Machine

• Model：ZS-TB260R

• Power supply：AC220V 50Hz/60Hz 1000W

• Labeling capacity(bottles/min)：25-50 bottles/min(depends on bottle size)

• Labeling accuracy(mm)：±1.0mm

• Suitable Bottle Diameter：Φ12-100mm

• Label size(mm)：(L)20-300mm (H)15-150mm(Can be customized)

• Roll inside diameter(mm)：Φ76mm

• Roll outside diameter(mm)：Φ350mm

• Conveyor Size：112*2000mm(W)

• Machine size：About 2000*820*1380(mm)

• Machine weight：About 180kg

• Packing Size：About 2100*890*1520(mm)

• Package weight：About 250kg
