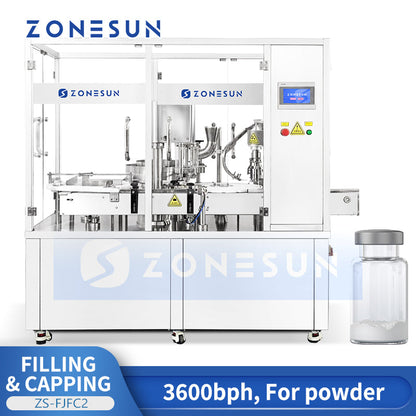

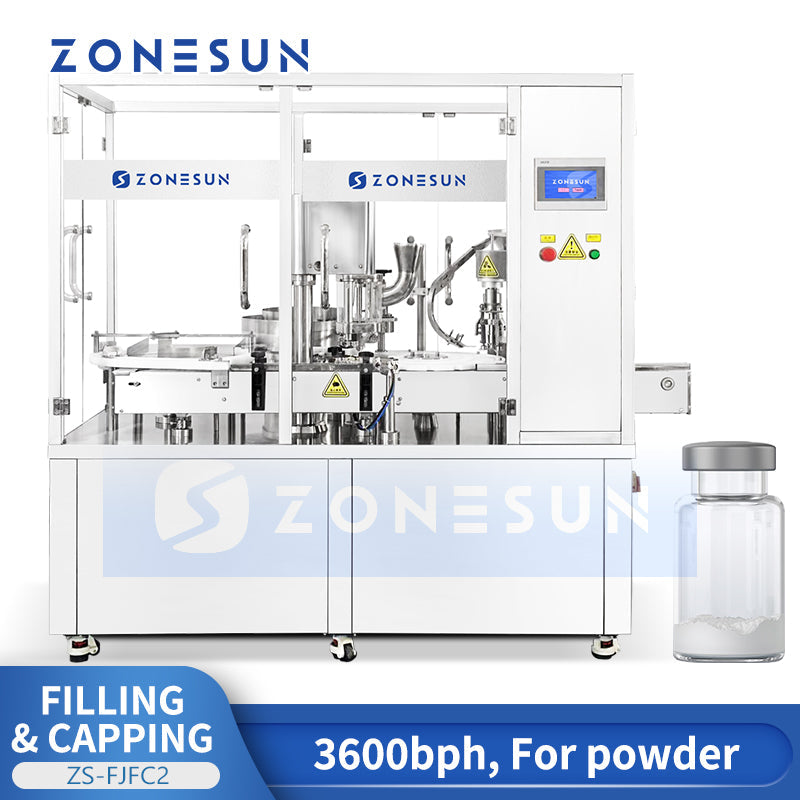

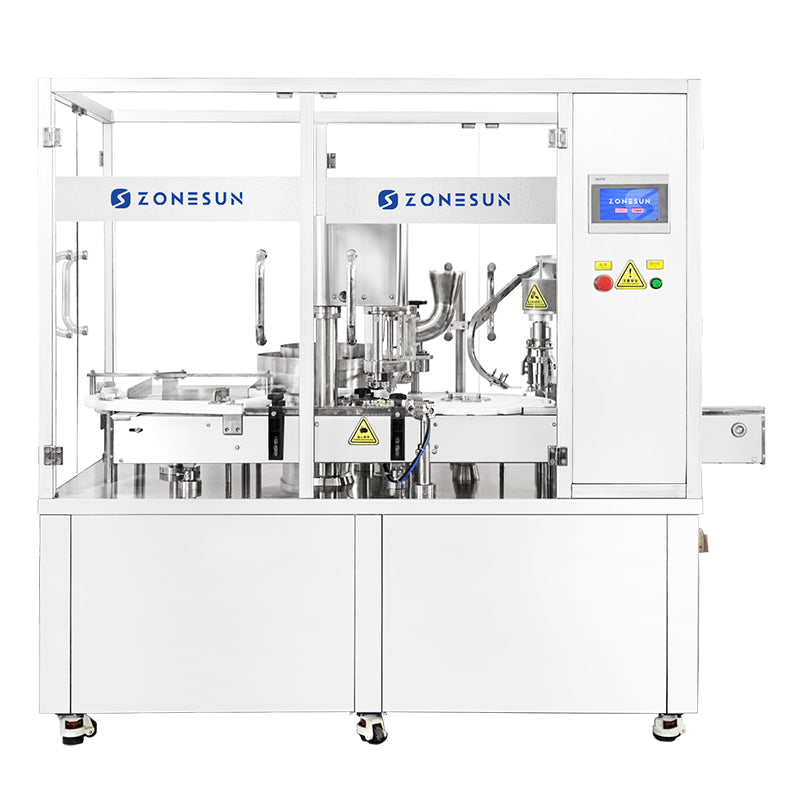

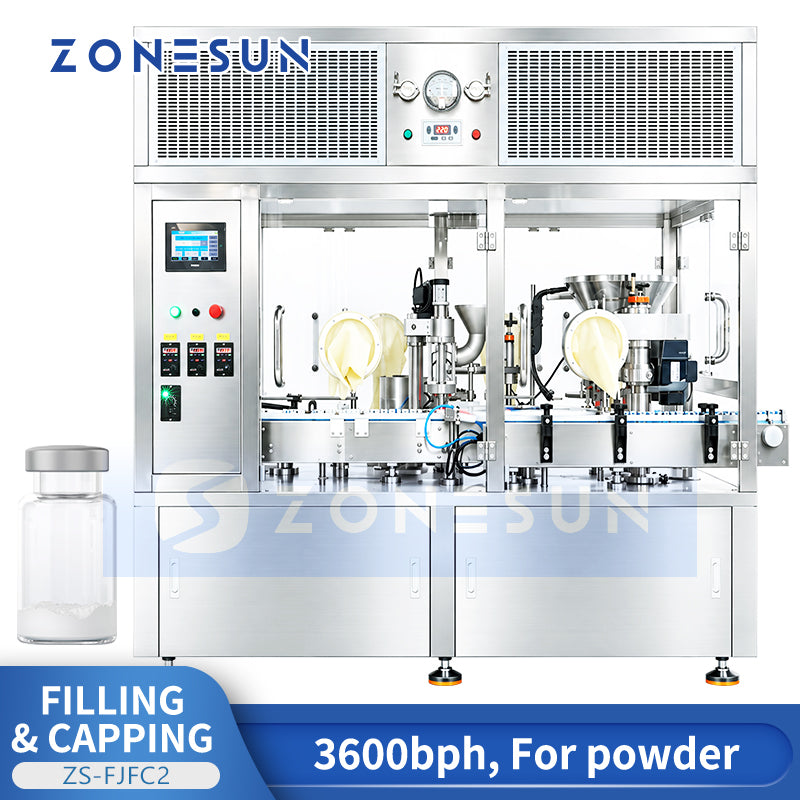

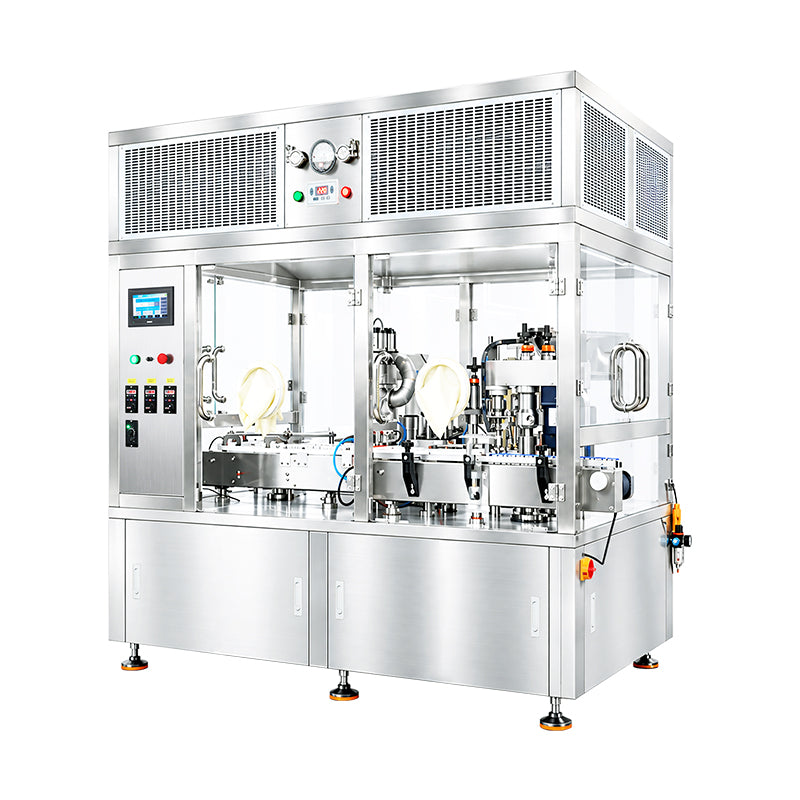

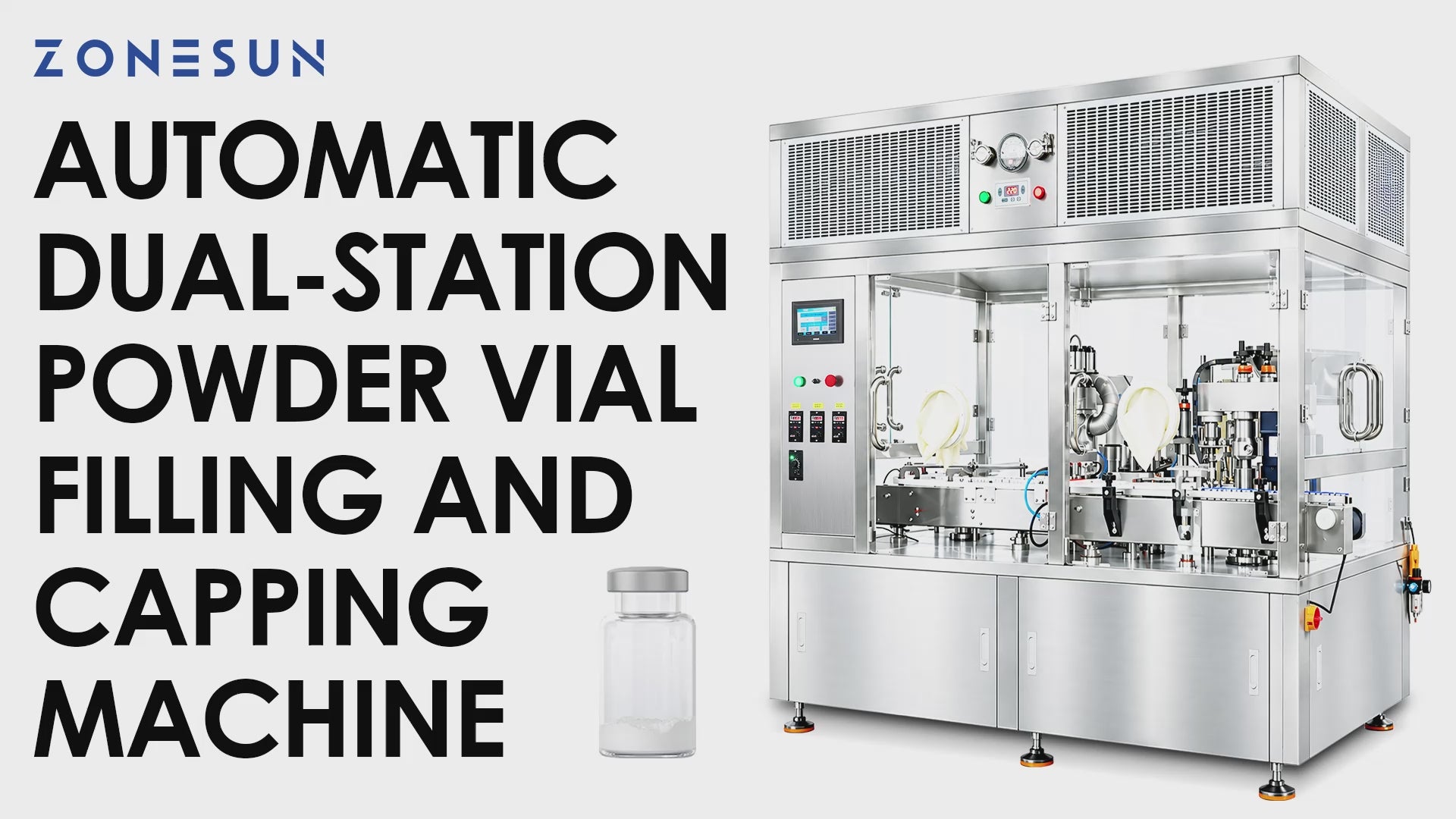

ZONESUN ZS-FJFC2 Automatic Powder Vial Filling and Stoppering Machine
The ZONESUN ZS-FJFC2 integrates automatic vial feeding, auger powder filling, rubber stopper insertion, aluminum cap feeding and dual-head crimping into one coordinated process.
Featuring servo-driven filling, touchscreen control and a laminar airflow hood, the machine supports controlled powder dosing and automated vial sealing. It can operate independently or integrate with compatible vial washing, drying and other packaging equipment.
Technical Specifications
| Model | ZS-FJFC2 |
|---|---|
| Power Supply | 110 V / 60Hz, 220V/50Hz/5A |
| Filling Range | 42–126 mg |
| Filling Accuracy | ±3% |
| Applicable Screw Diameter | 9 mm |
| Number of Screws | 2 |
| Production Speed | 30–60 bottles/min |
| Sealing Qualification Rate | ≥99.9% |
| Operation | Automatic |
| Drive System | Servo Motor Drive |
| Outer Vibrating Plate Material | SUS 304 Stainless Steel |
| Machine Weight | 500 kg |
Applications
-
Powder Vial Filling: Doses compatible powders into small vials.
-
Vial Stoppering & Crimping: Inserts rubber stoppers and secures aluminum caps.
-
Customized Powder Packaging: Suitable for compatible food, chemical and research applications, subject to material and process requirements.

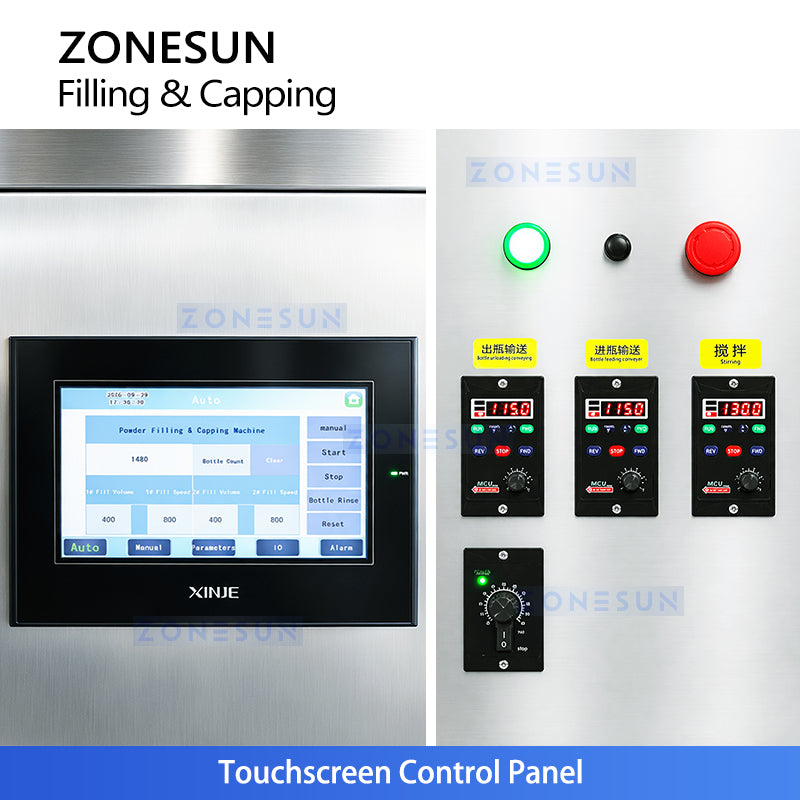

Touchscreen Control Panel
Adjust filling and capping parameters and monitor machine operation through the touchscreen interface.

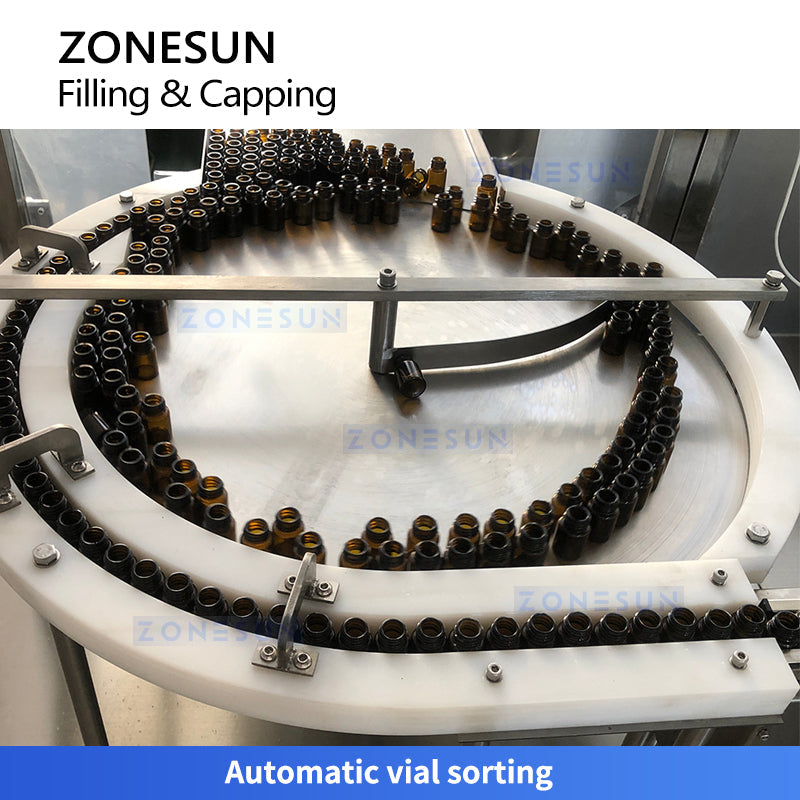

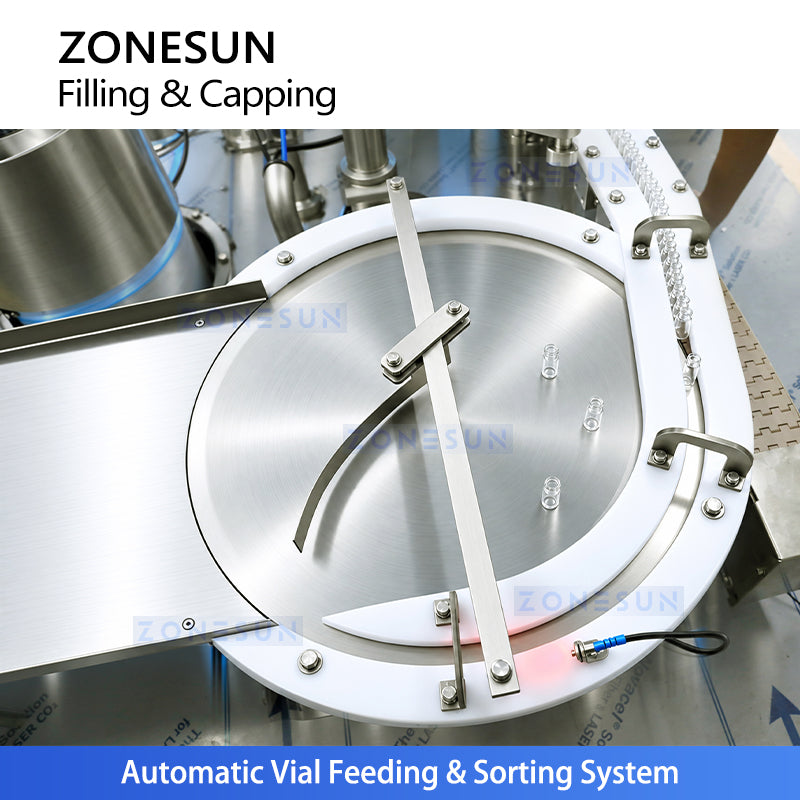

Automatic Vial Feeding & Sorting System
Automatically sorts and feeds vials into the filling and capping stations for continuous operation.

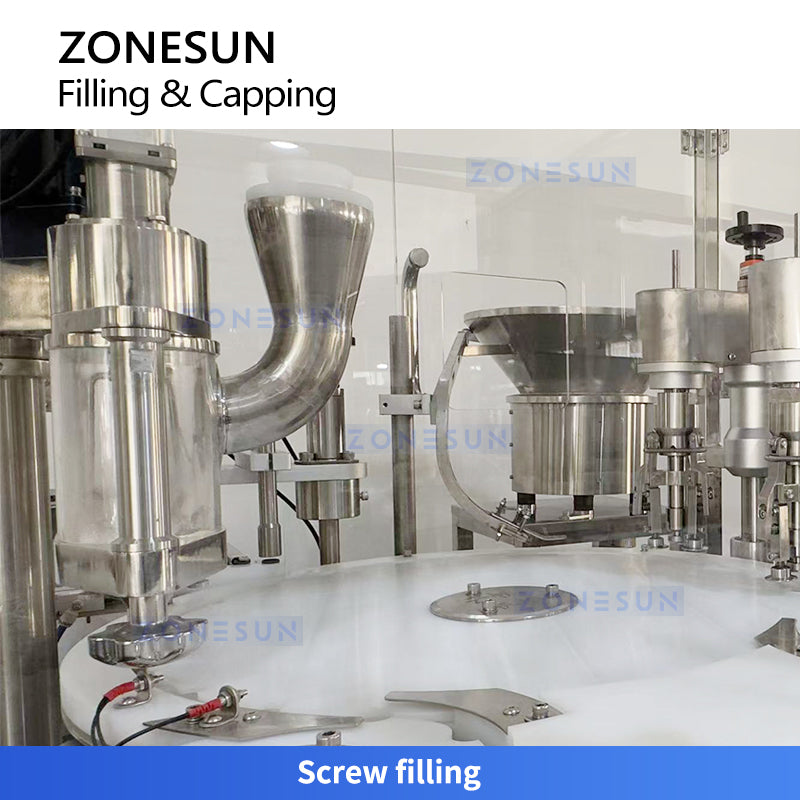

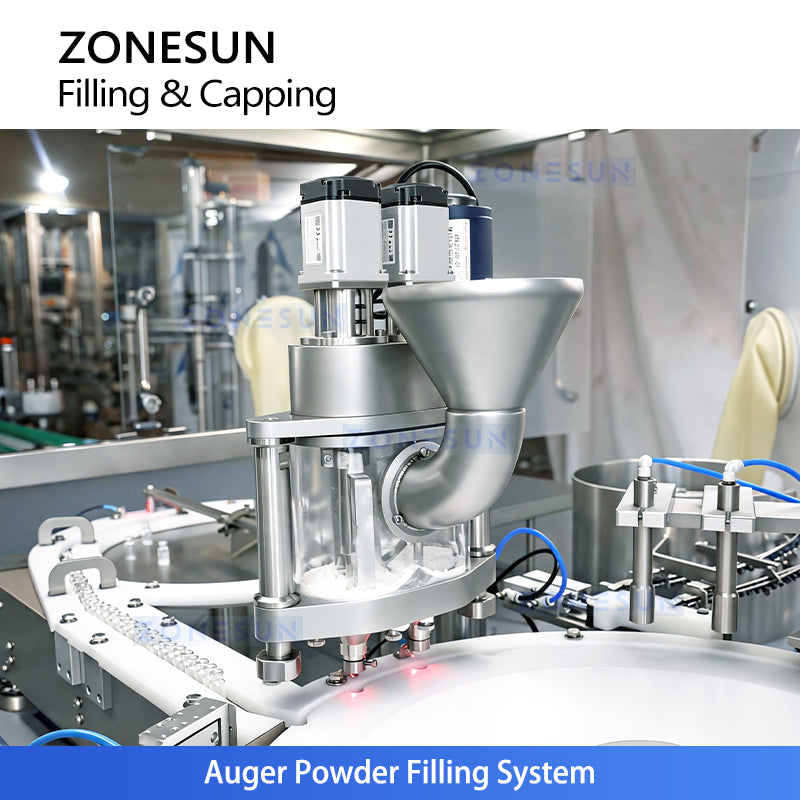

Auger Powder Filling System
Dispenses controlled powder doses into vials for consistent filling.
Inner Stopper Pressing System
Automatically inserts and presses rubber stoppers into filled vials before final capping.

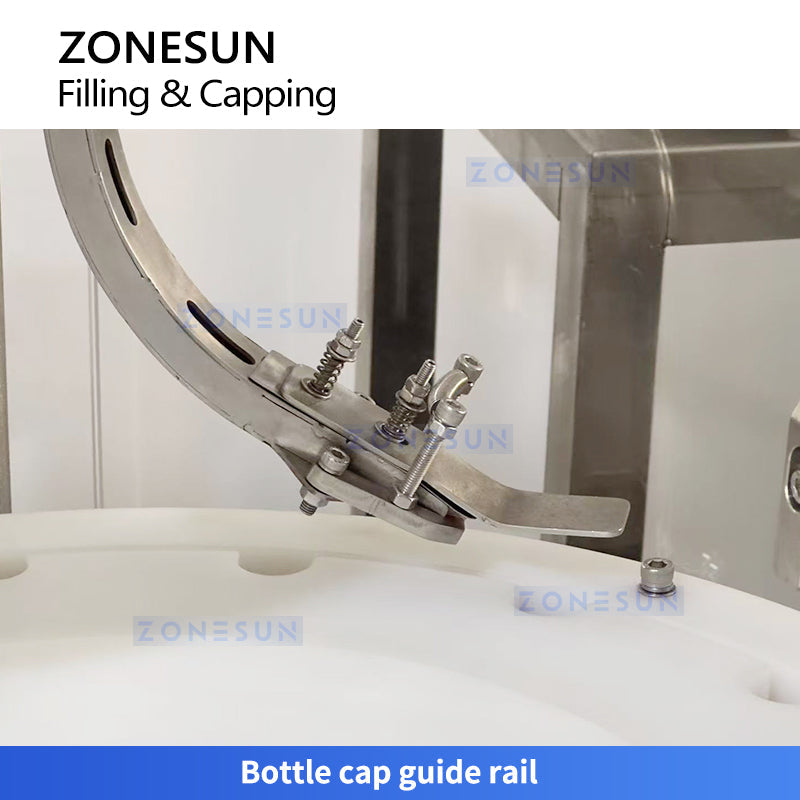

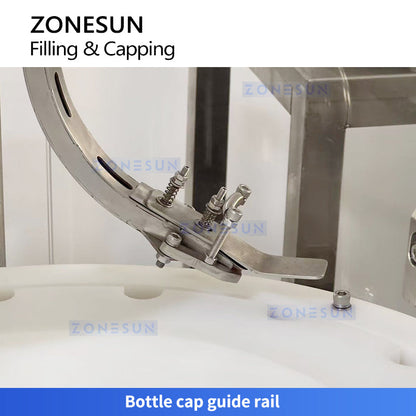

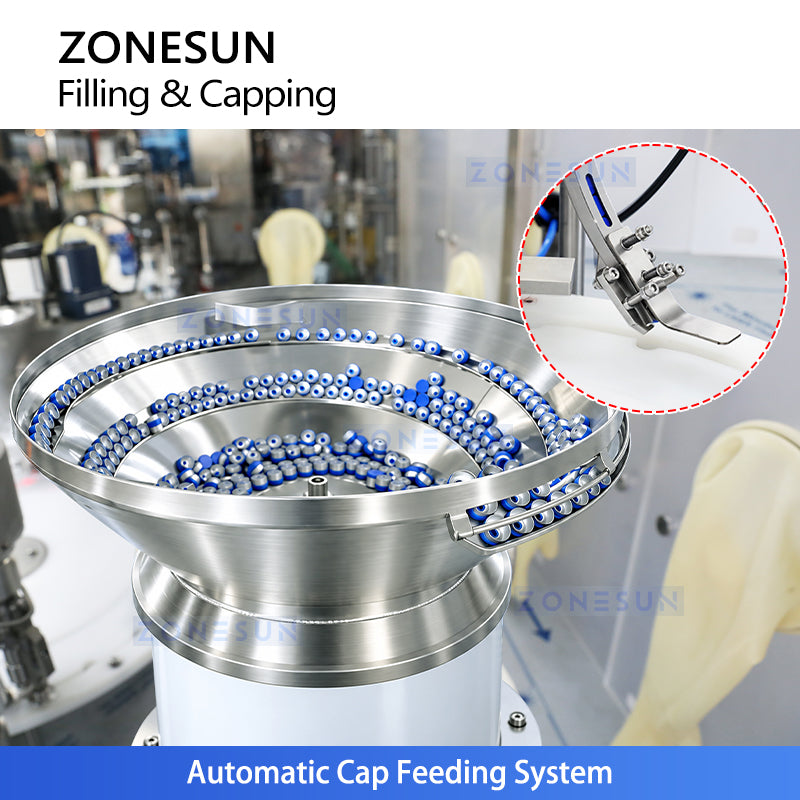

Automatic Cap Feeding System
Sorts, orients and feeds caps to the capping station automatically.

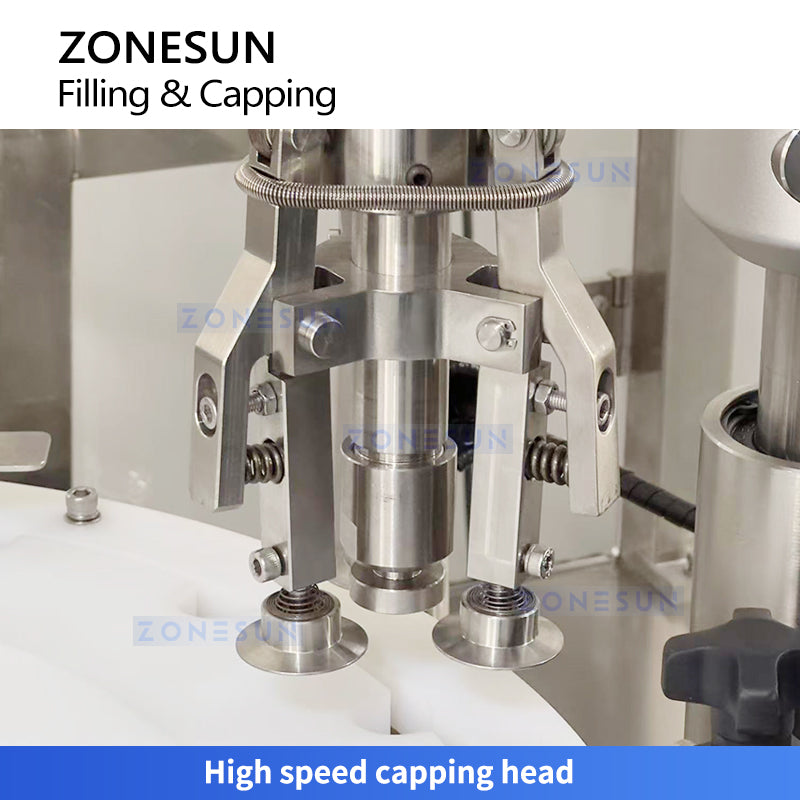

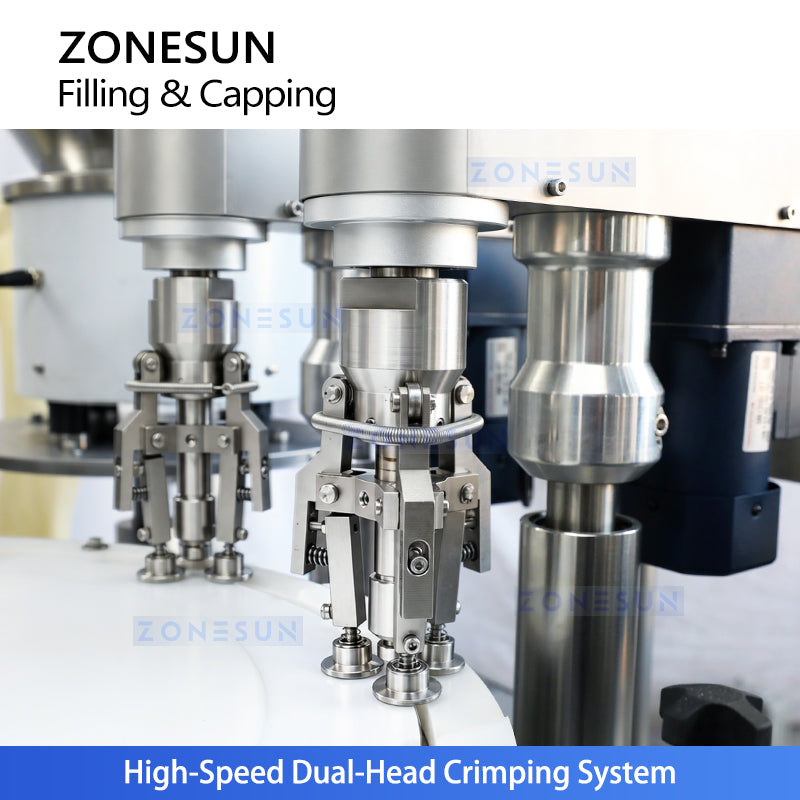

Dual-Head Crimping System
Uses two crimping heads to secure aluminum caps onto vials for consistent sealing.
Laminar Airflow Hood
Provides controlled airflow over the filling and capping area to help maintain a cleaner processing environment.
