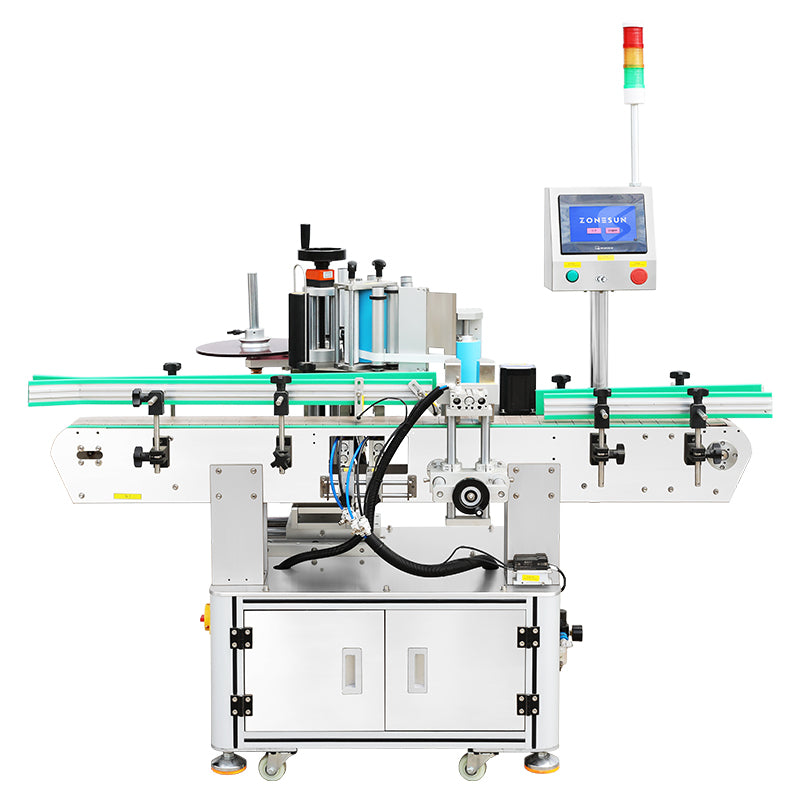

ZONESUN ZS-202F Perfume Tube Box Tape Wrapping and Sealing Machine

Overview

The ZONESUN ZS-202F is a dedicated automatic tape-sealing and labeling machine engineered specifically for perfume cylinder (tube) boxes. Operating at 23–28 pcs/min with ±1 mm labeling accuracy, it precisely wraps adhesive tape around the box-body joint to simultaneously seal and label in a single automated pass. The result is a flat, clean, and visually premium seal that enhances product presentation while eliminating manual taping inconsistencies. Compatible with transparent labels and a wide range of label sizes (length 20–250 mm, width 8–60 mm), the ZS-202F is built for cosmetic and fragrance packaging lines that demand both efficiency and luxury-grade finish quality.

Technical Parameters

• Model: ZS-202F
• Labeling Accuracy: ±1 mm

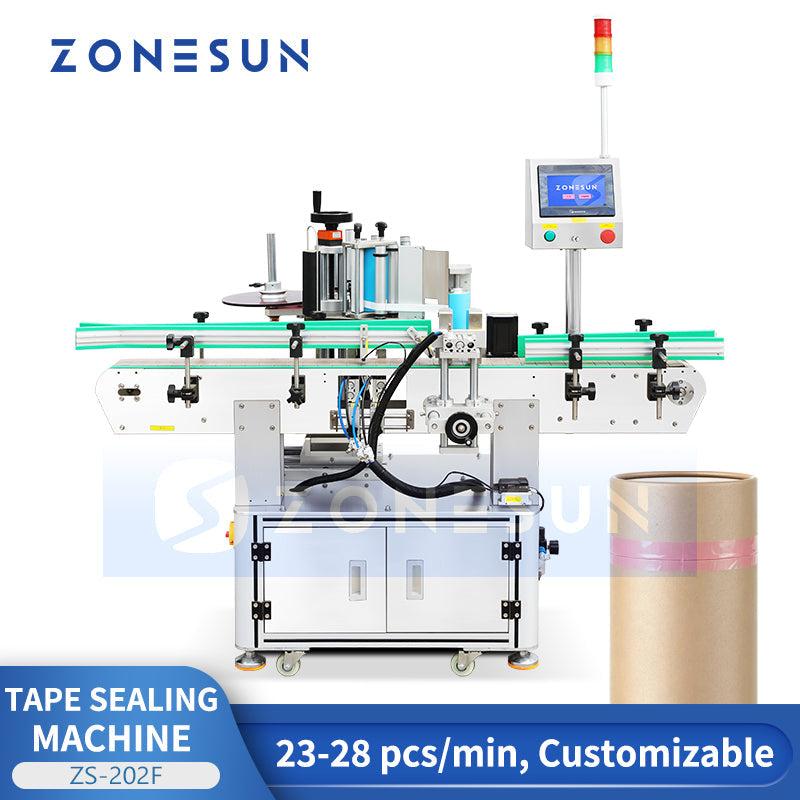

• Labeling Speed: 23–28 pcs/min (depends on product & label size)
• Applicable Product Size: Customizable
• Applicable Label Size: Length 20–250 mm; Width 8–60 mm (customizable; transparent labels supported)
• Machine Dimensions: Approx. 1800 × 800 × 1400 mm (L × W × H)
• Electrical Requirements: 230V / 50Hz
• Air Pressure: 0.6–0.8 MPa
• Machine Weight: Approx. 180 kg

Key Features

• Seal + Label in One Automated Pass: Tape is wrapped precisely around the cylinder box joint in a single continuous motion, combining tamper-evident sealing and label application without a separate labeling station — reducing line footprint and labor.

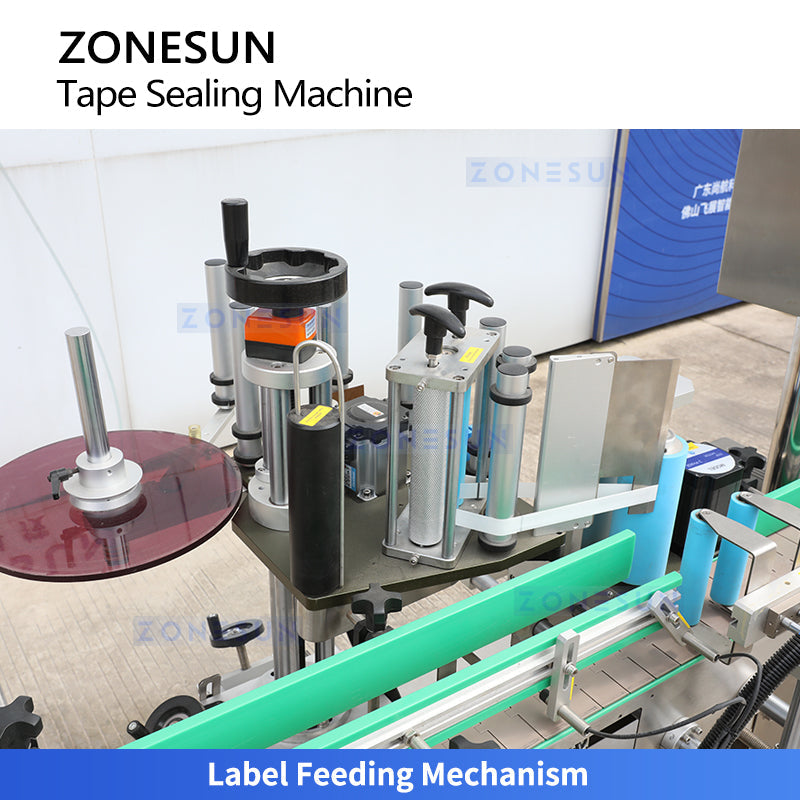

• ±1 mm Labeling Accuracy: Precision tape feed and box positioning mechanism ensures the tape lands consistently at the joint seam, producing a clean, wrinkle-free seal that meets luxury packaging visual standards.
• 23–28 pcs/min Stable Throughput: Automated continuous operation replaces manual taping, delivering consistent output speed regardless of operator fatigue or skill variation.
• Transparent Label Compatible: Supports transparent adhesive tape and labels, enabling a “no-label look” seal finish preferred by premium fragrance and cosmetic brands.
• Wide Label Size Range (20–250 mm × 8–60 mm): Accommodates a broad range of tape and label widths and lengths, with customizable settings to handle different cylinder box diameters and heights without major mechanical changes.

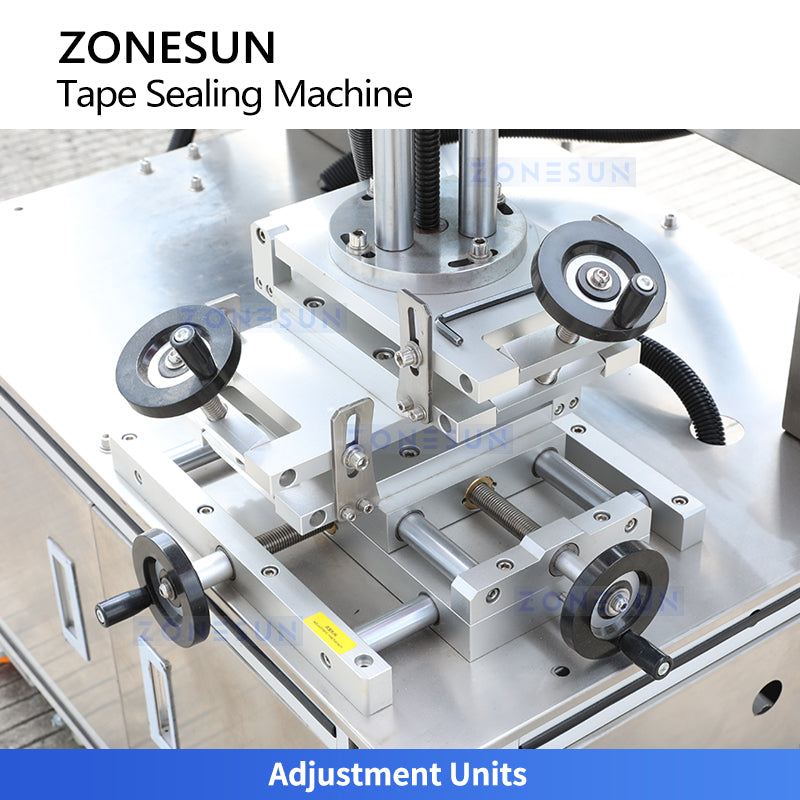

• Customizable Product Size Compatibility: Machine dimensions and guide rails are configurable to accommodate different cylinder box formats — from small travel-size perfume boxes to larger gift packaging.
• Compact Industrial Footprint: At 1800 × 800 × 1400 mm and 180 kg, the ZS-202F integrates easily into existing cosmetic packaging lines without requiring major floor space reallocation.

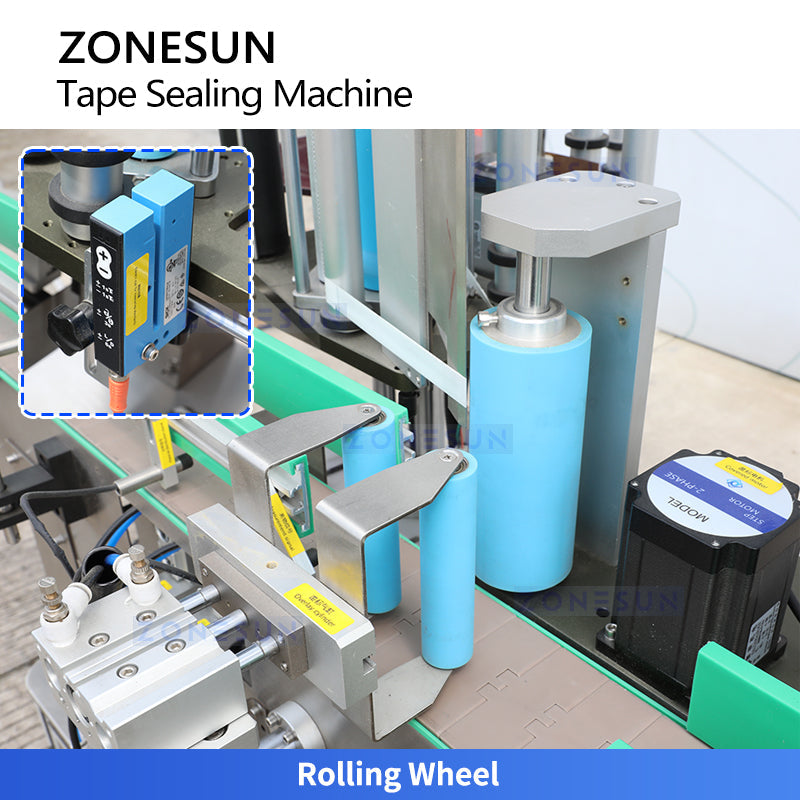

• Pneumatic-Assisted Operation (0.6–0.8 MPa): Pneumatic clamping and tape pressing ensure consistent tape adhesion force across all units, preventing edge lift or bubble formation on curved cylinder surfaces.

Applications

• Perfume & Fragrance Cylinder Boxes: Primary application — sealing the lid-to-body joint of round perfume gift boxes with decorative or transparent tape for retail and duty-free packaging.
• Luxury Cosmetic Tube Packaging: Tape sealing of cylindrical packaging for high-end skincare, foundation, and beauty product gift sets where presentation quality is critical.
• Essential Oil & Aromatherapy Gift Boxes: Sealing round gift boxes containing essential oil sets, diffuser accessories, or wellness product bundles for retail and e-commerce fulfillment.
• Candle & Home Fragrance Packaging: Cylinder box sealing for premium candle sets, reed diffusers, and home fragrance gift packaging requiring tamper-evident closure.
• Tea & Food Gift Cylinder Tins: Tape-sealing of round tin or cardboard cylinder packaging for premium tea, coffee, or confectionery gift products.
• Contract Packaging & Gift Box Assembly: Multi-SKU cylinder box sealing operations for contract packagers handling diverse fragrance, cosmetic, or gift product lines requiring consistent seal quality across batches.
