ZONESUN ZS-AFC19B Automatic Rotor Pump Paste Filling & Capping Machine | 20–200ml | 15 BPM | Cream Gel Sauce

Description

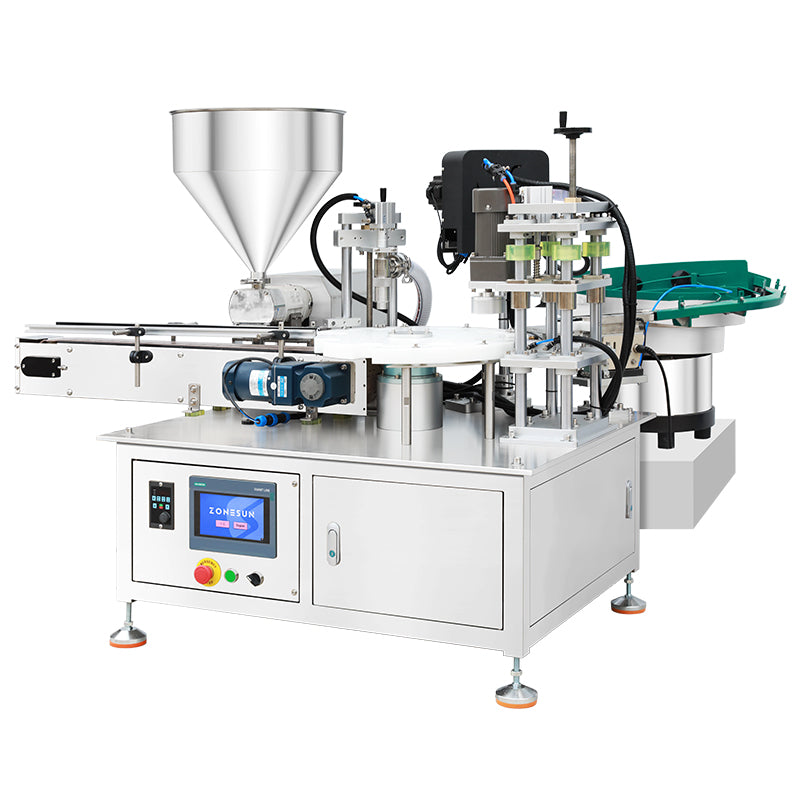

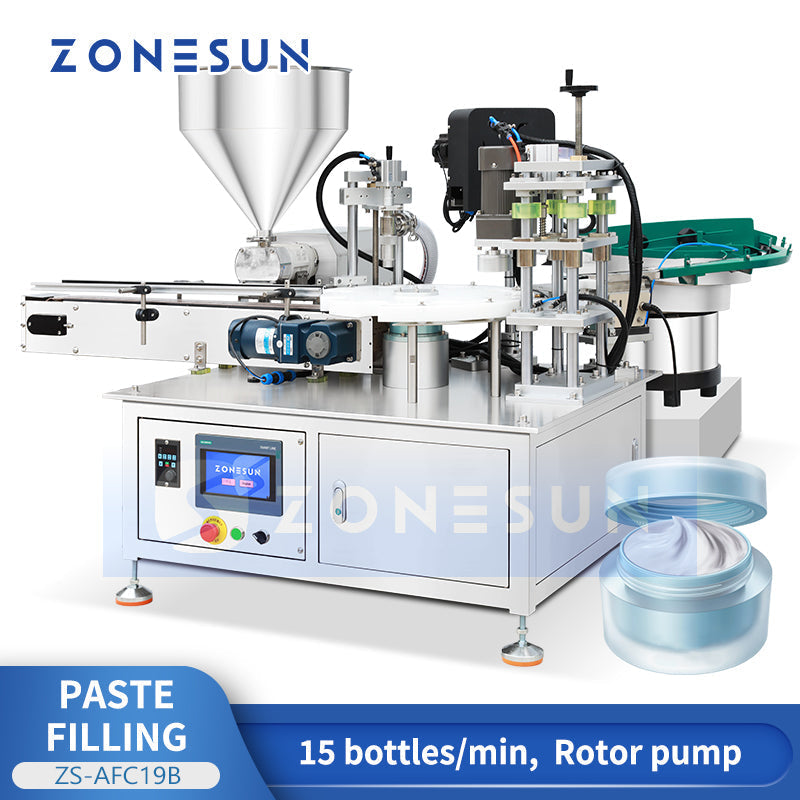

The ZONESUN ZS-AFC19B is a fully automatic rotor pump filling and capping machine designed for paste and semi-liquid products. Operating at approximately 15 bottles per minute, it integrates filling, cap placement, and capping into a compact all-in-one system.

Equipped with a high-precision rotor pump, it ensures smooth, accurate, and stable dispensing of viscous materials. With a user-friendly control panel, customizable bottle and cap compatibility, and durable construction, this machine provides efficient, reliable, and long-term performance for small to medium-scale production lines — ideal for creams, gels, sauces, and other viscous products in cosmetic, food, and daily chemical industries.

Technical Specifications

• Model: ZS-AFC19B
• Voltage: 110V / 220V, 50–60Hz
• Power: 1,700W
• Filling Pump: Rotor Pump
• Working Capacity: ~15 bottles/min
• Filling Range: 20–200ml
• Bottle Body Diameter: 25–60mm
• Bottle Height: 30–90mm
• Bottle Mouth Diameter: 10–35mm
• Bottle Cap Size: Customizable
• Main Machine Size (L×W×H): Approx. 1,200 × 900 × 1,070mm
• Vibratory Bowl Size (L×W×H): Approx. 700 × 600 × 1,000mm
• Filling Unit Size (L×W×H): Approx. 810 × 470 × 560mm
• Gross Weight (Main + Bowl): Approx. 271kg
• Gross Weight (Filling Unit): Approx. 50kg

Control Panel

Provides centralized control for filling and capping operations, enabling quick parameter adjustment, real-time monitoring, and safe start/stop management.

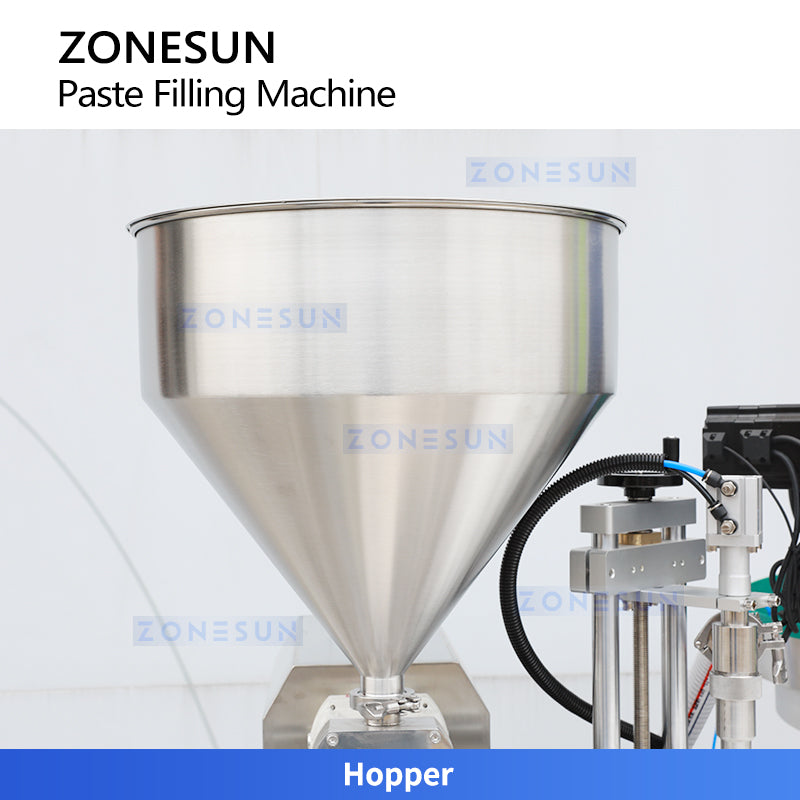

Hopper

Stores and feeds liquid or semi-liquid materials steadily into the rotor pump, ensuring continuous, smooth, and uninterrupted filling.

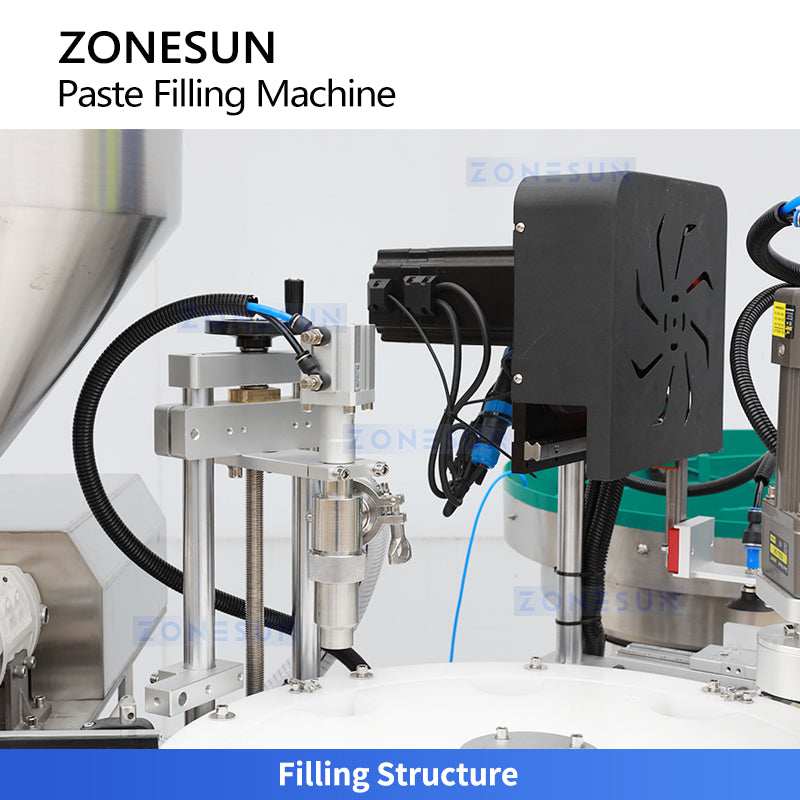

Filling Structure

Feeds material from the hopper to the rotor pump and dispenses it into bottles with steady, precise flow control for smooth, consistent filling.

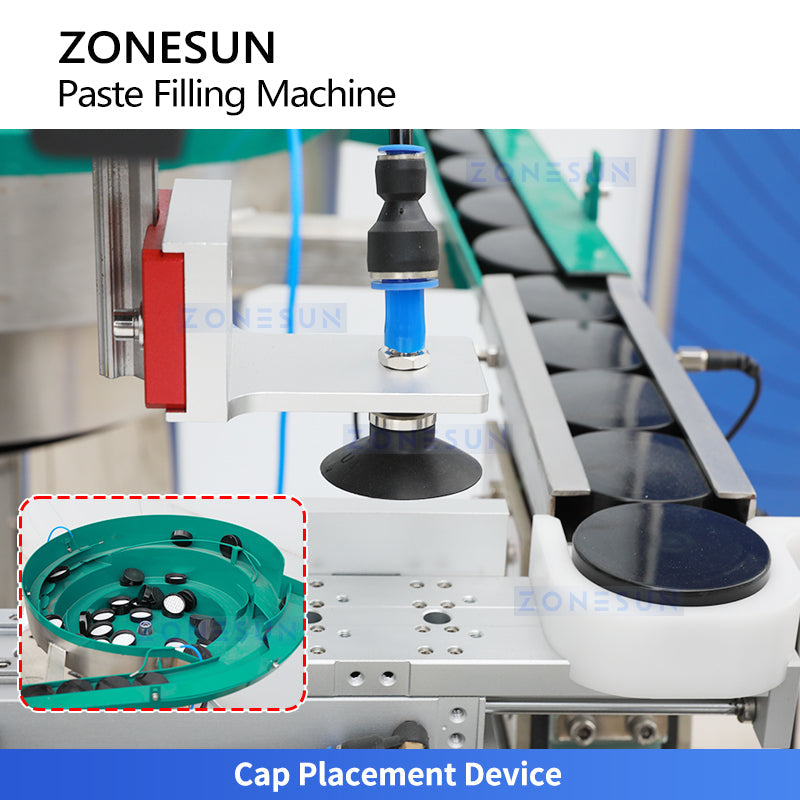

Cap Placement Device

The vibratory bowl sorts and feeds caps continuously, while the cap placement device picks and positions them accurately onto bottles for stable, aligned capping.

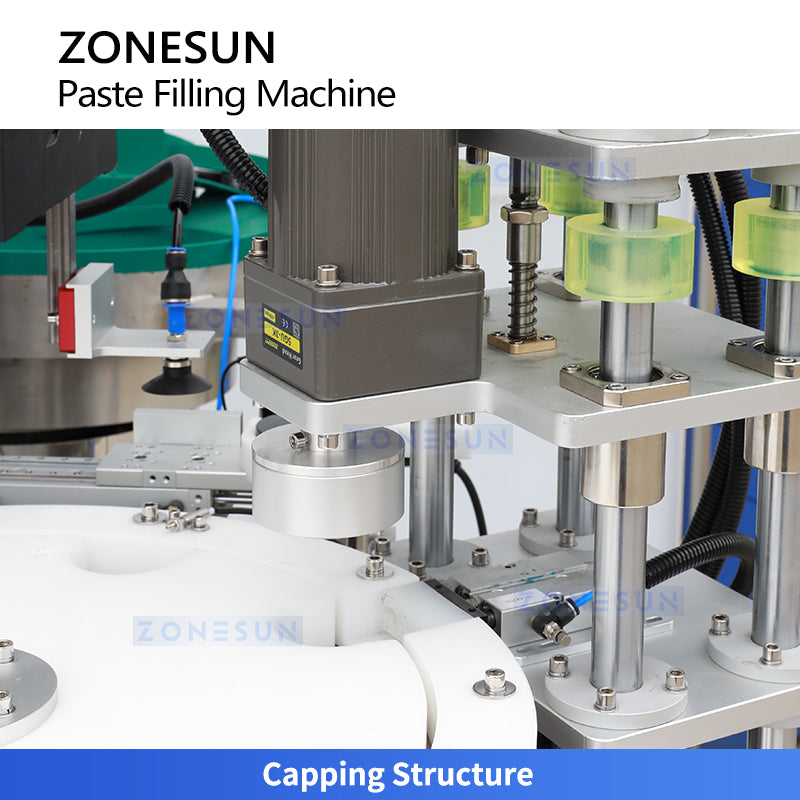

Capping Structure

Positions and tightens caps onto bottles with controlled, stable torque, ensuring secure, consistent sealing during continuous automated operation.

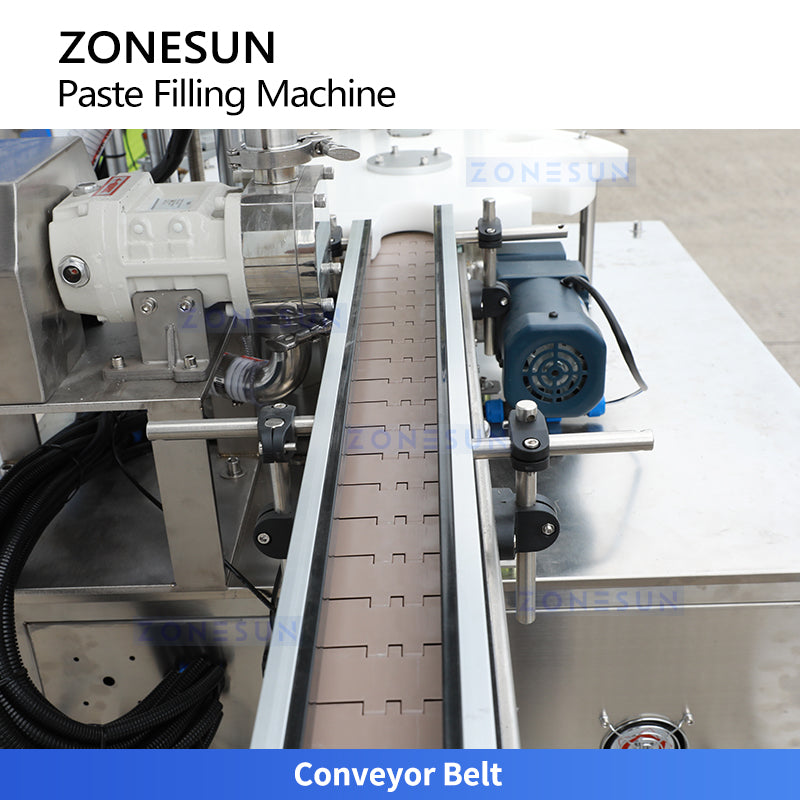

Conveyor Belt

Transfers bottles steadily to the star wheel for filling and capping, ensuring smooth movement and accurate positioning.

Why Choose the ZS-AFC19B?

• ✅ 3-in-1 Integrated System: Filling, cap placement, and capping in one compact machine
• ✅ High-Precision Rotor Pump: Smooth, accurate, and stable dispensing of viscous materials
• ✅ ~15 Bottles/min Output: Efficient throughput for small to medium production lines
• ✅ Wide Filling Range: 20–200ml, adaptable to various container sizes
• ✅ Customizable Cap & Bottle Compatibility: Supports diverse bottle and cap configurations
• ✅ Vibratory Bowl Cap Feeder: Automatic cap sorting and feeding for continuous operation
• ✅ User-Friendly Control Panel: Easy parameter adjustment and real-time monitoring
• ✅ Worldwide Voltage: 110V / 220V, 50–60Hz compatible

Ideal Applications

• 🧴 Cosmetics: Body cream, face cream, hand lotion, sunscreen, facial serum
• 💧 Gels: Hair gel, aloe vera gel, styling gel
• 🌶️ Sauces & Pastes: Chili sauce, peanut butter, tomato paste, mayonnaise
• 🧼 Daily Chemical: Shampoo, conditioner, shower gel, body wash
• 🍯 Food & Condiments: Honey, jam, salad dressing, ketchup
• 💊 Pharmaceutical: Topical gels, ointments, medical creams
