ZONESUN ZS-AFS02R Automatic Cup Filling & Sealing Machine | Piston Pump | 25–30 Cups/min | 20–200ml

$21,000.00 USD

セール売り切れ

配送料はチェックアウト時に計算されます。

Volage 220V

Pre-sale Support

Chinese Company： Guangdong Shanghang Technology Co., Ltd.

Headquarters Address: No.8,Lane1 East Dianbian Road,Nanyue,Shang An, Jinsha, Danzao Town, NanHai District , FoShan City , GuangDong Province , China.
Postcode: 528223

ZONESUNPRO.COM is the official website of the ZONESUN brand. To protect your rights, please verify the website address before placing an order to avoid visiting counterfeit or unauthorized websites.

Description

The ZONESUN ZS-AFS02R is an automatic cup filling and sealing machine designed for efficient packaging of liquid, semi-liquid, and viscous products. Operating at 25–30 cups per minute, it uses a piston pump filling system to ensure accurate dosing and stable performance across a wide range of materials.

With its integrated structure, the machine completes cup loading, filling, film placing, sealing, lid placing, and finished-product discharge in a continuous workflow. The system supports customizable cup sizes and filling ranges, making it suitable for diverse production requirements. It delivers consistent sealing quality for food, beverage, and dairy applications.

Technical Specifications

Model: ZS-AFS02R
Voltage: 220V, 50–60Hz, 4kW
Filling Pump: Piston Pump
Working Speed: Approx. 25–30 cups/min (varies by cup size & filling material)
Filling Range: 20–200ml (customizable)
Suitable Cup Size: Customizable
Air Pressure: 6 MPa
Machine Weight: Approx. 450kg
Workflow: Cup loading → filling → film placing → sealing → lid placing → finished product discharge

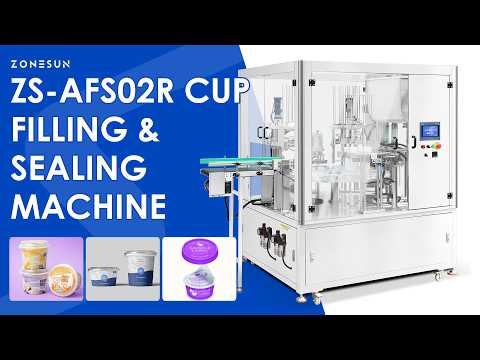

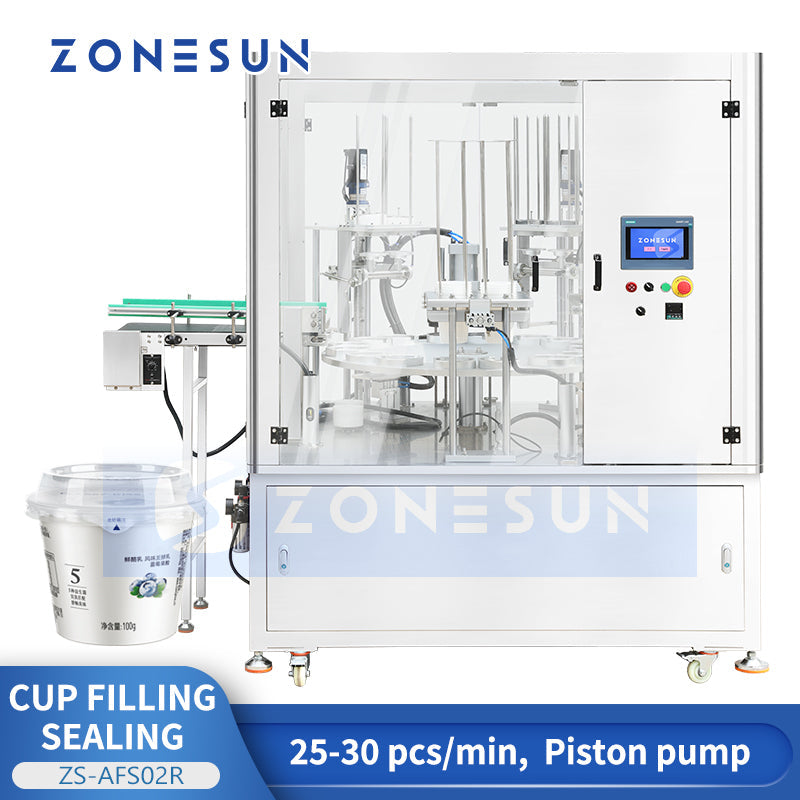

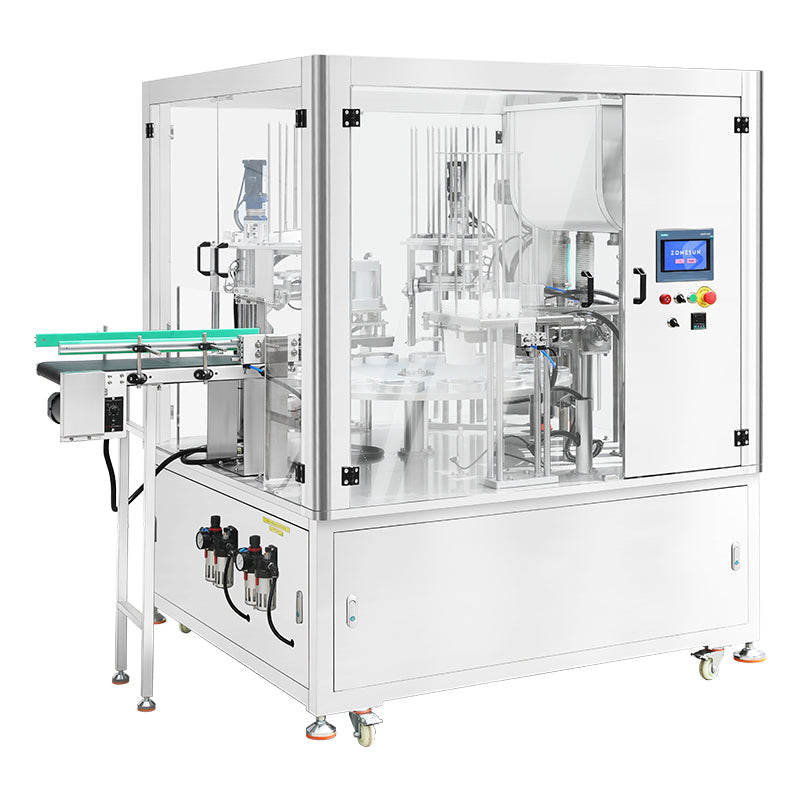

ZONESUN ZS-AFS02R Automatic Cup Filling and Sealing Machine Overview

ZONESUN ZS-AFS02R Piston Pump Cup Filling Machine

ZONESUN ZS-AFS02R Cup Loading Filling Sealing Workflow

ZONESUN ZS-AFS02R Yogurt Sauce Beverage Cup Packaging

ZONESUN ZS-AFS02R 20-200ml Customizable Filling Range

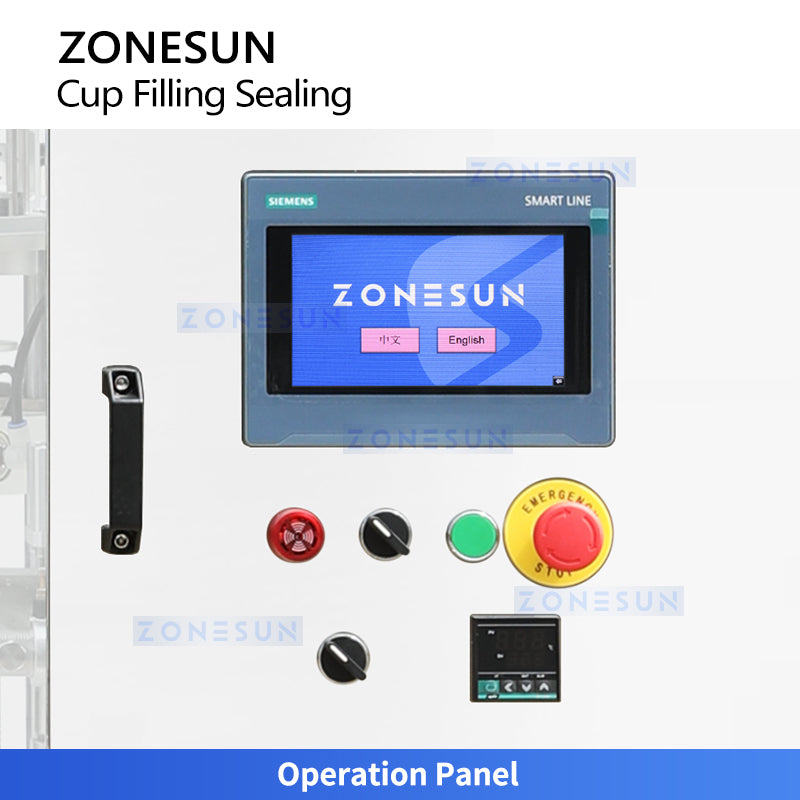

Operation Panel

Enables quick parameter adjustment via PLC control, including sealing time, with customizable panel language.

ZONESUN ZS-AFS02R Automatic Cup Unloading System

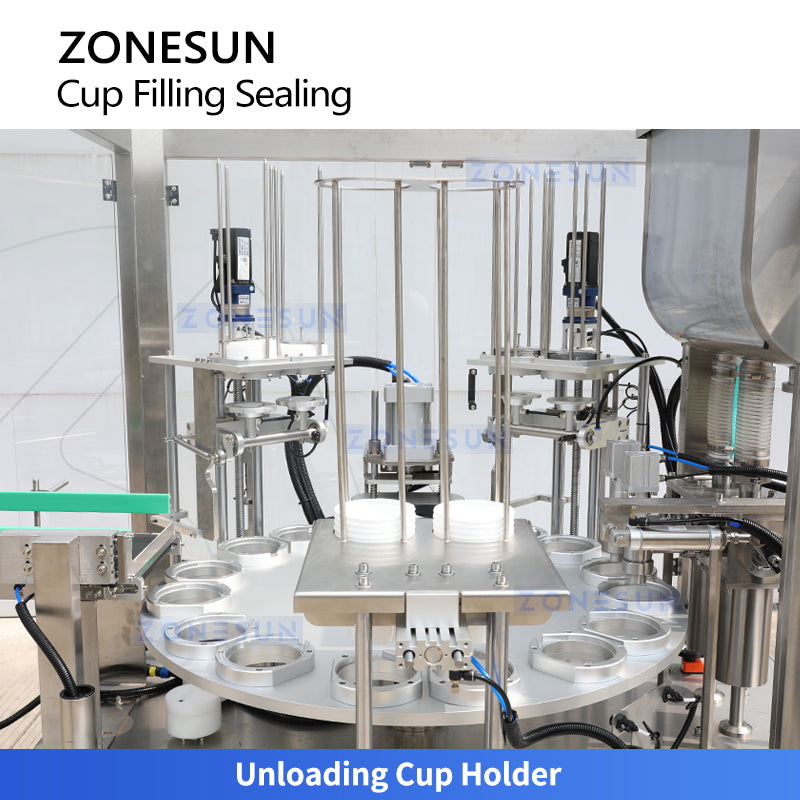

Unloading Cup Holder

Ensures automatic cup unloading with a customizable holder size to match different cup dimensions and packaging requirements.

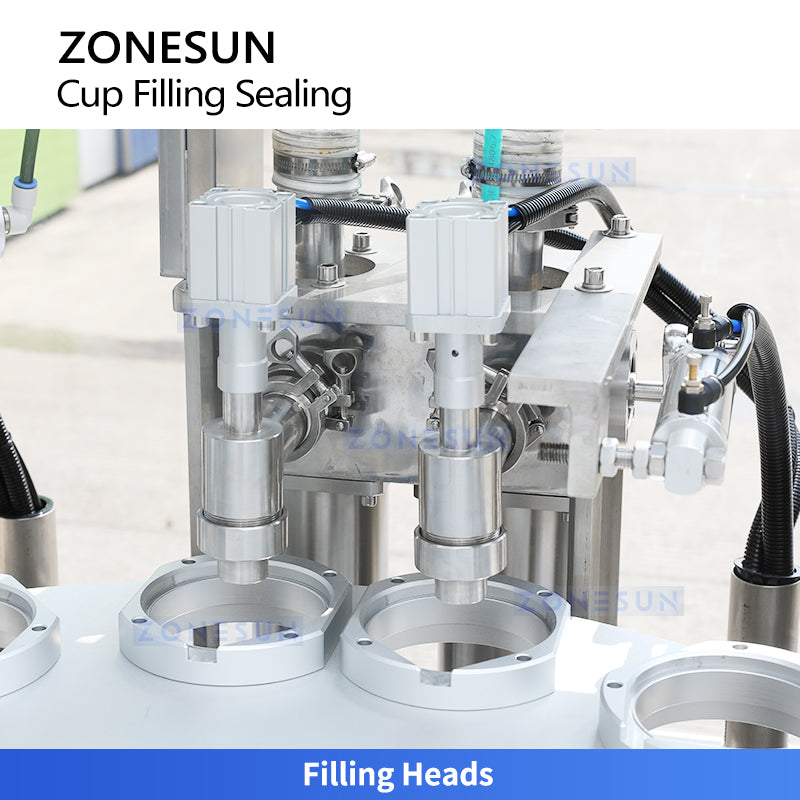

Filling Heads

Enables efficient piston pump filling of thicker liquids, with independently adjustable speed and time for each head and customizable filling ranges to meet production needs.

ZONESUN ZS-AFS02R Lid Film Sealing and Cup Lid Placing Unit

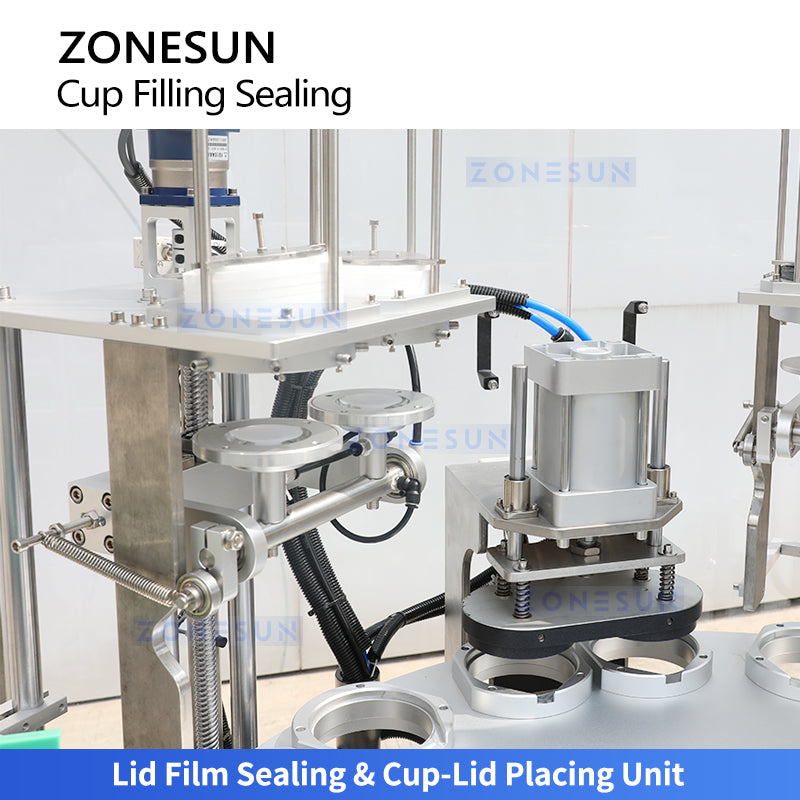

Lid Film Sealing & Cup-Lid Placing Unit

Automatically applies sealing film onto the cup mouth and uses a dedicated mechanism to place plastic cup lids securely, ensuring stable and reliable sealing performance.

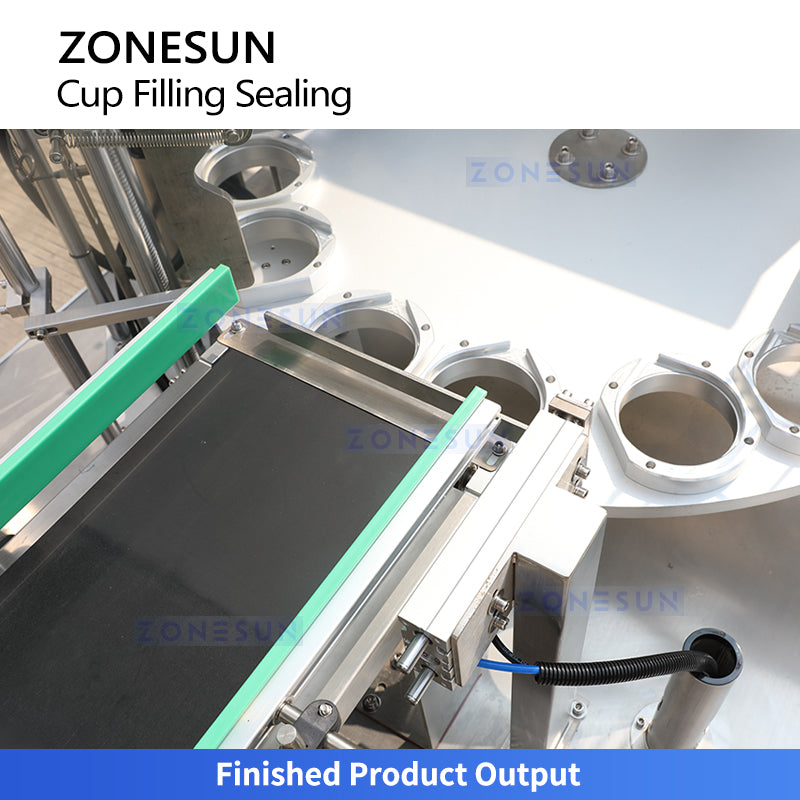

Finished Product Output

Automatically transfers completed cups to the designated finished-product area, ensuring smooth discharge and efficient product collection.

ZONESUN ZS-AFS02R Cup Filling Sealing Machine Application

Why Choose the ZS-AFS02R?

✅ 6-Step Integrated Workflow: Cup loading → filling → film placing → sealing → lid placing → discharge in one continuous system
✅ 25–30 Cups/min: High-speed output for efficient food, beverage, and dairy production
✅ Piston Pump Filling: Accurate dosing for liquid, semi-liquid, and viscous materials
✅ Independently Adjustable Filling Heads: Speed and time adjustable per head for flexible production
✅ PLC Control Panel: Quick parameter adjustment with customizable panel language
✅ Dual Sealing: Film sealing + plastic lid placing for secure, professional cup closure
✅ Customizable Cup & Filling Range: 20–200ml filling range and cup size tailored to your product
✅ Automatic Discharge: Smooth finished-product output for uninterrupted production flow
