Description

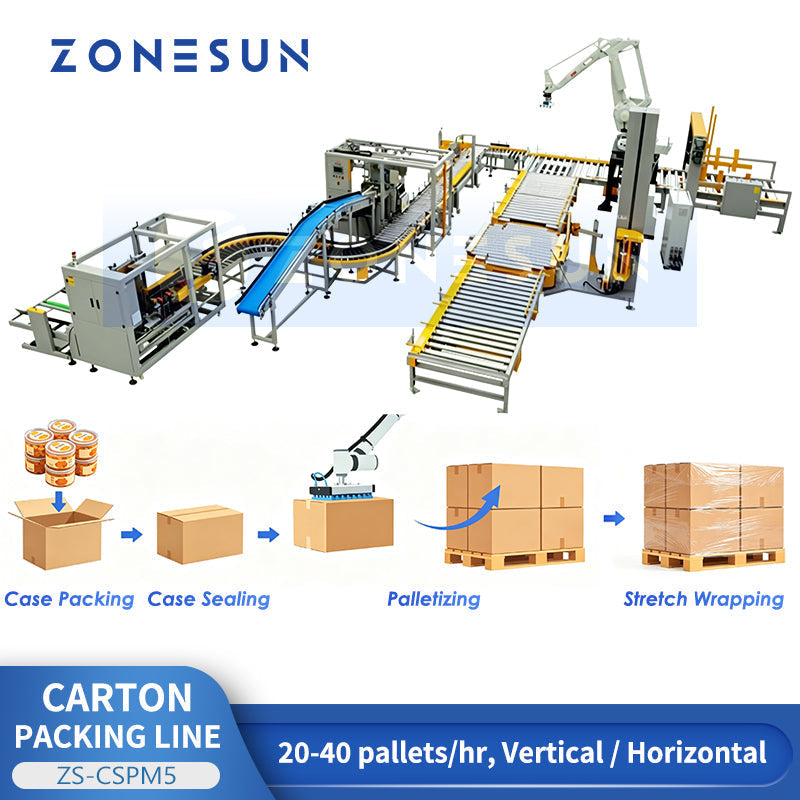

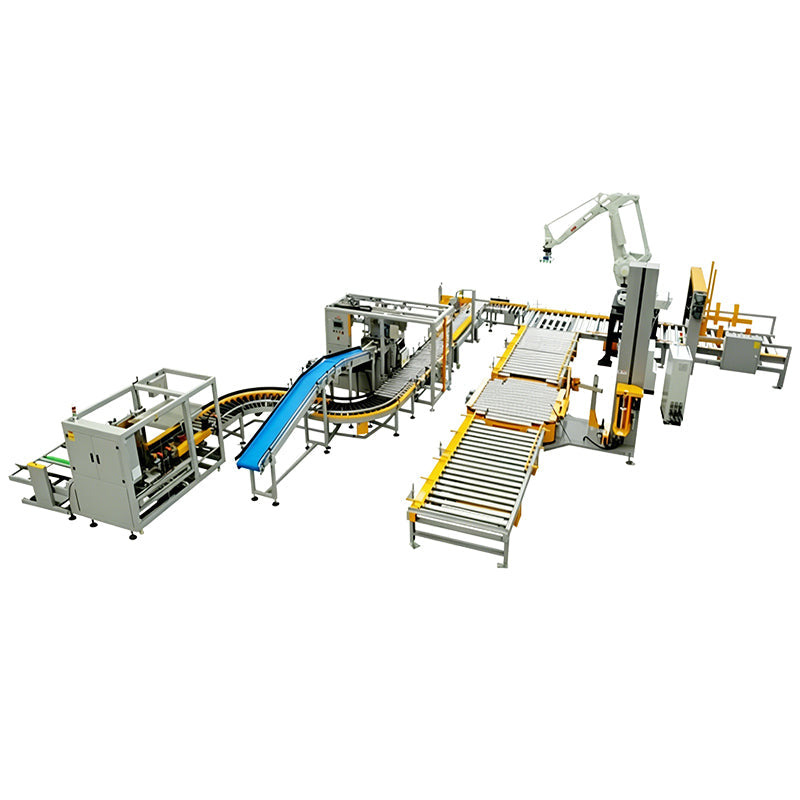

The ZONESUN ZS-CSPM5 is a fully automatic 5-in-1 end-of-line carton packaging and palletizing system that integrates case erecting, product grouping, case sealing, robotic palletizing, and stretch wrapping into one continuous line. Running at up to 20 cartons/min, it delivers stable, efficient, and standardized packaging for food, beverage, pharmaceutical, and daily chemical industries.
With a grabbing-type filling method, dual sealing options (hotmelt glue or tape), and PLC + HMI control for easy operation and quick format changeover, the ZS-CSPM5 eliminates manual intervention across the entire end-of-line process.
Technical Specifications
- Model: ZS-CSPM5
- Voltage: Three-phase, 110V / 220V / 380V, 50–60Hz
- Total Power: 10 kW
- Filling Method: Grabbing type
- Packaging Speed: ≤ 20 cartons/min
- Carton Size (L×W×H): 300–600 × 220–500 × 200–400mm
- Sealing Material: Hotmelt glue / Tape
- Gripper Quantity / Load Capacity: 3 sets or 6 sets / 200 kg
- Air Pressure: 0.5–0.7 MPa
- Machine Dimensions (L×W×H): 4,500 × 1,800 × 2,000mm
- Machine Weight: Approx. 500 kg

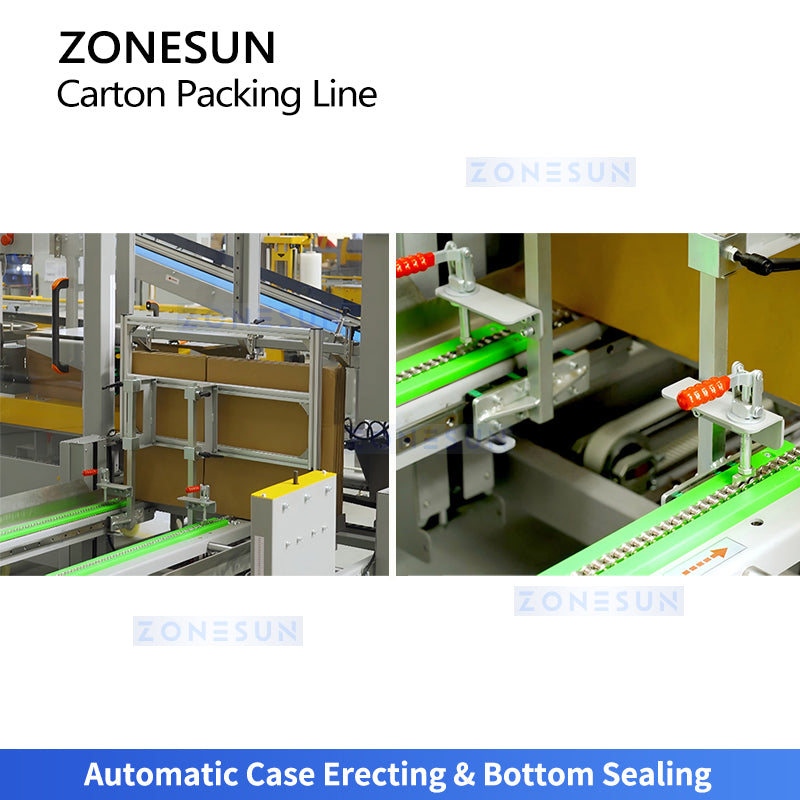

Automatic Case Erecting & Bottom Sealing
Automatically suctions and erects flat cartons, folds the bottom flaps, and seals them with tape, delivering consistently formed empty cases ready for product loading.

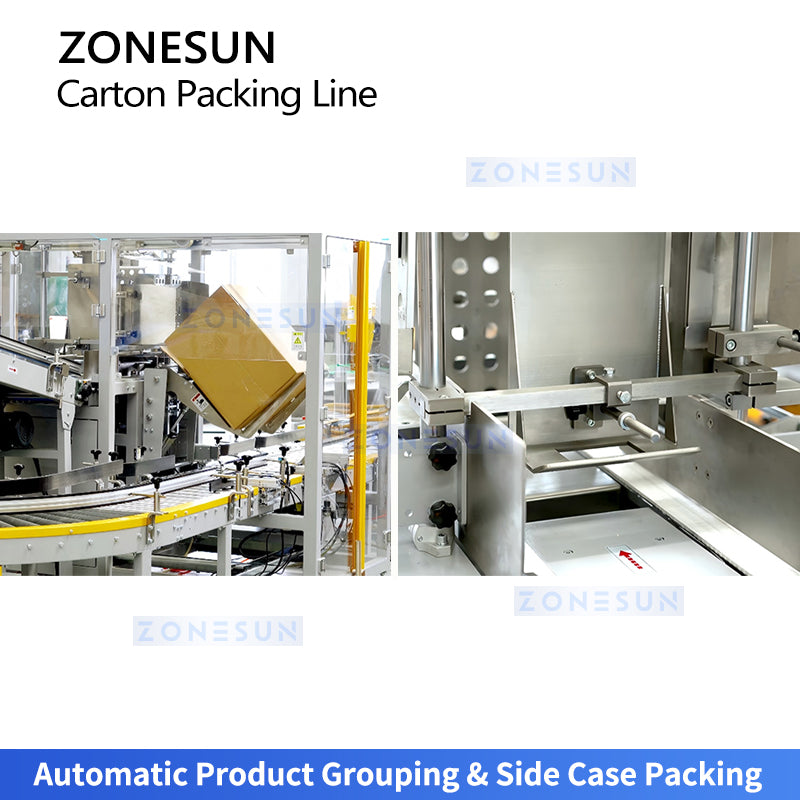

Automatic Product Grouping & Side Case Packing
Automatically arranges, counts, and groups products, then side-pushes the full set smoothly into the carton for efficient packing of regularly shaped bottles, boxes, or bags.

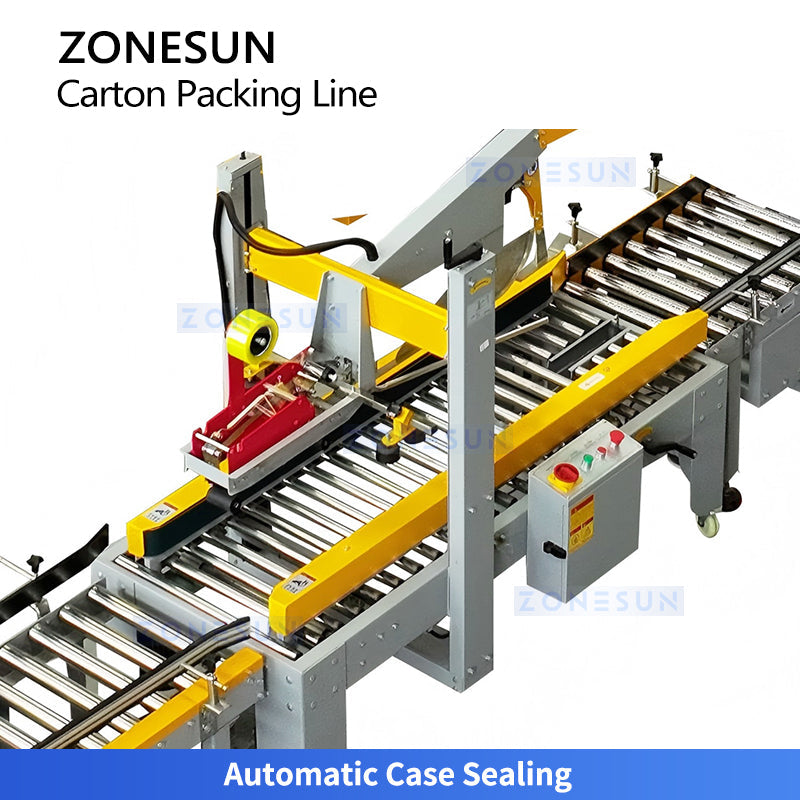

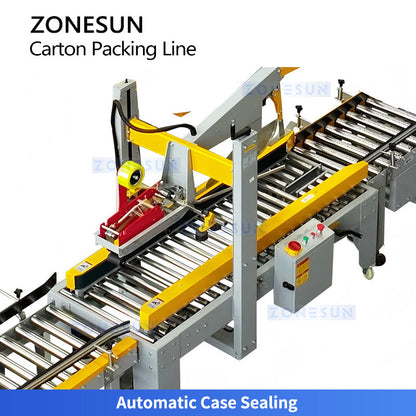

Automatic Case Sealing
Automatically folds the top flaps and seals filled cartons with tape in I-style or H-style patterns, ensuring a firm, secure closure for safer protection during handling and transit.

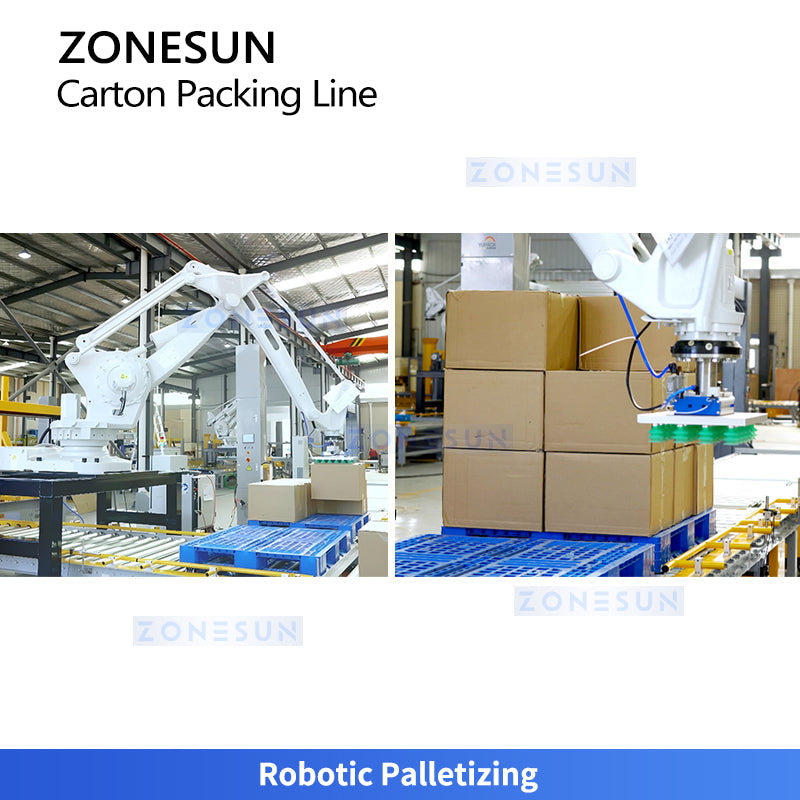

Robotic Palletizing
Stacks finished cartons onto pallets with vacuum suctions or grippers following preset patterns, ensuring accurate placement and maximizing space efficiency.

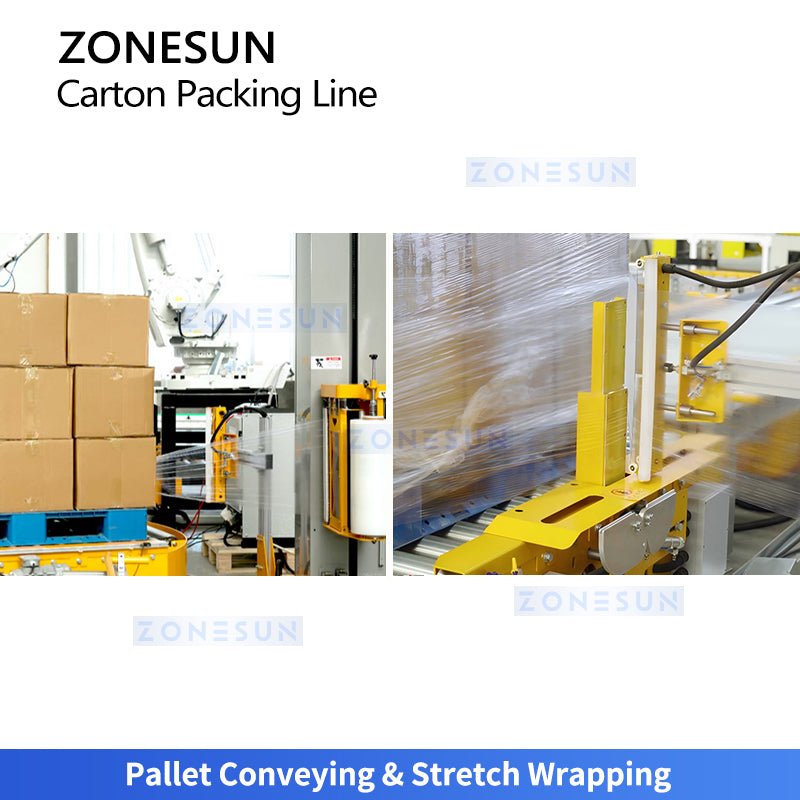

Pallet Conveying & Stretch Wrapping
Automates pallet flow and reinforcement by conveying empty and full pallets and applying multi-layer stretch film for moisture, dust, and collapse protection.
Why Choose the ZS-CSPM5?
- ✅ 5-in-1 Fully Automatic Line: Case erecting → product grouping → case sealing → robotic palletizing → stretch wrapping — no manual intervention
- ✅ High Speed: Up to 20 cartons/min for efficient large-scale end-of-line production
- ✅ Grabbing-Type Packing: Precise, damage-free product placement into cartons
- ✅ Dual Sealing Options: Hotmelt glue or tape for secure, reliable carton closure
- ✅ Wide Carton Compatibility: 300–600mm (L) × 220–500mm (W) × 200–400mm (H)
- ✅ Robotic Palletizing: Vacuum suction or gripper palletizing with preset stacking patterns
- ✅ Stretch Wrapping: Multi-layer film protection against moisture, dust, and pallet collapse
- ✅ PLC + HMI Control: Intuitive touchscreen for easy operation and quick format changeover
Ideal Applications
- 🍺 Food & Beverage: Bottled drinks, canned goods, snack bags, condiments
- 💊 Pharmaceutical & Healthcare: Medicine boxes, supplement bottles, medical devices
- 🧼 Daily Chemical & Personal Care: Detergents, shampoo, cosmetics, household cleaners
- 📦 Logistics & Warehousing: Consistent pallet formation for safe storage and transport
- 🛍️ E-commerce Fulfillment: High-volume automated packing to meet dispatch deadlines
