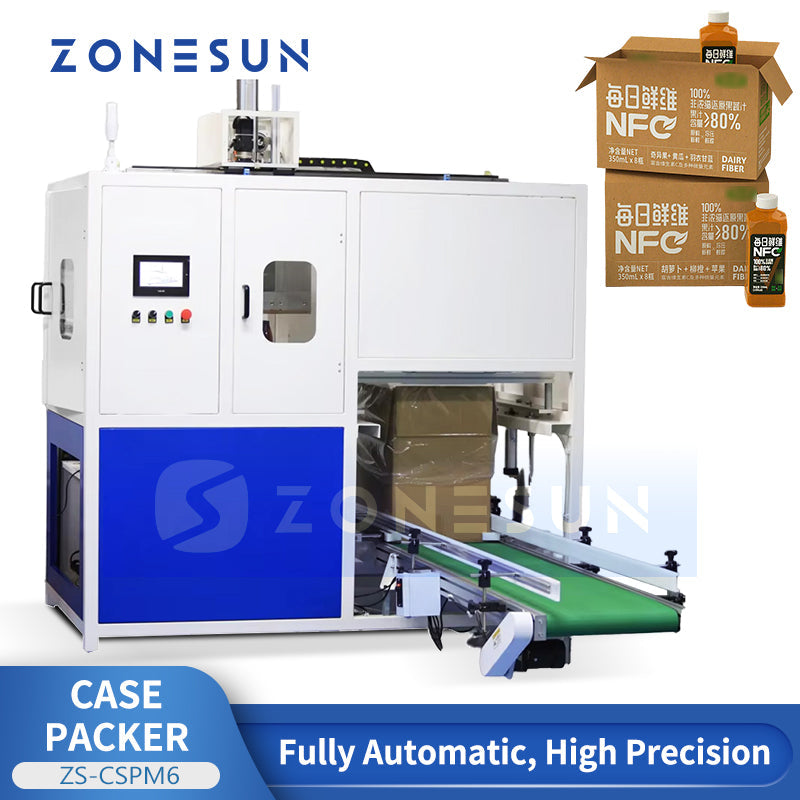

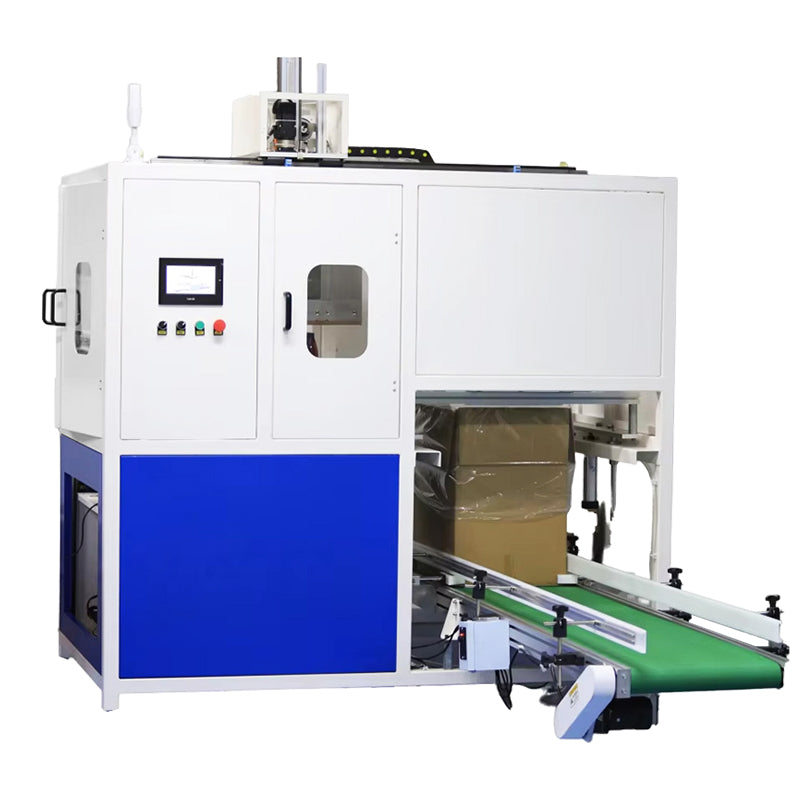

ZONESUN ZS-CSPM6 Automatic Bottle Case Packing Machine | High-Speed Servo Top Load | 6–20 Cases/min

Description

The ZONESUN ZS-CSPM6 is a fully automatic high-speed servo top-load bottle case packing machine designed for efficient end-of-line automation. It delivers a handling capacity of 3,000–4,500 bottles per hour and a packing speed of 6–20 cases per minute, integrating bottle sorting, servo gripping, case erecting, loading, and outfeed conveying into a single continuous production line.

Equipped with servo-driven grippers, modular quick-change tooling, and an intelligent PLC control system, the machine ensures high stability, precise operation, and fast product changeover with minimal downtime. Compatible with a wide range of bottle shapes and carton specifications, it is widely used in beverage, food, daily chemical, and pharmaceutical industries.

Technical Specifications

• Model: ZS-CSPM6
• Voltage: AC 220V / 380V, 50Hz (Industrial Three-Phase)
• Case Packing Speed: Approx. 6–20 cases/min (depends on gripper quantity & bottle arrangement)
• Bottle Handling Capacity: Approx. 3,000–4,500 bottles/hr
• Suitable Bottle Types: Diameter 50–125mm; Height 100–350mm; round, square, flat & irregular bottles
• Max Case Size (L×W×H): 500 × 500 × 350mm (customizable)
• Total Power: 2.0–15.0 kW (depends on servo quantity & sealing function)
• Working Air Pressure: 0.5–0.8 MPa
• Air Consumption: 200–600 NL/min (depends on vacuum suctions and cylinder frequency)
• Machine Weight: Approx. 1,000–2,500 kg

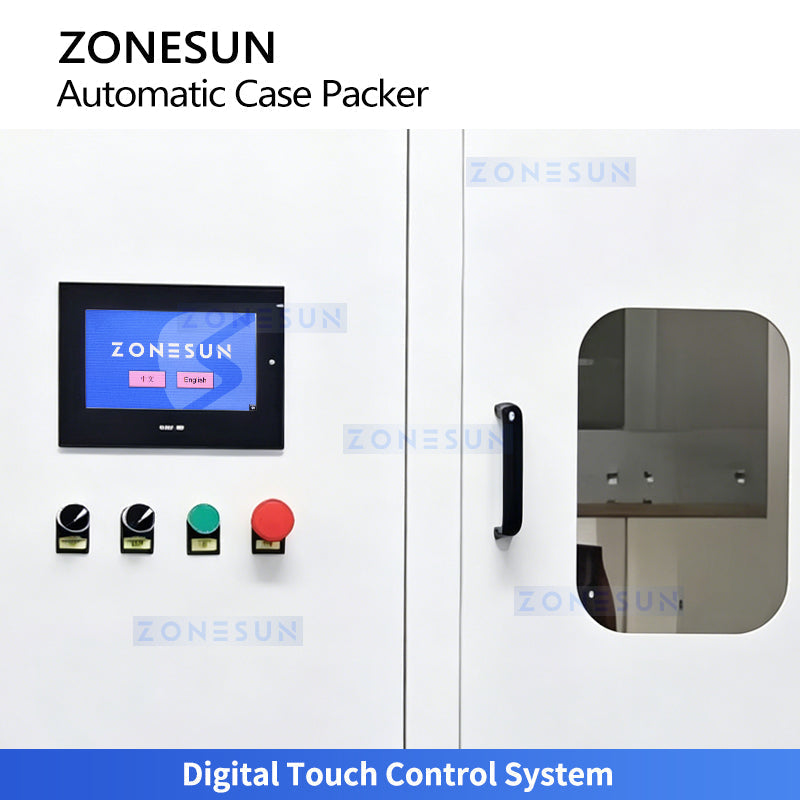

Digital Touch Control System

Provides an intuitive HMI touchscreen with PLC control for one-touch product changeovers, plus real-time fault diagnostics and audiovisual alarms to ensure stable operation.

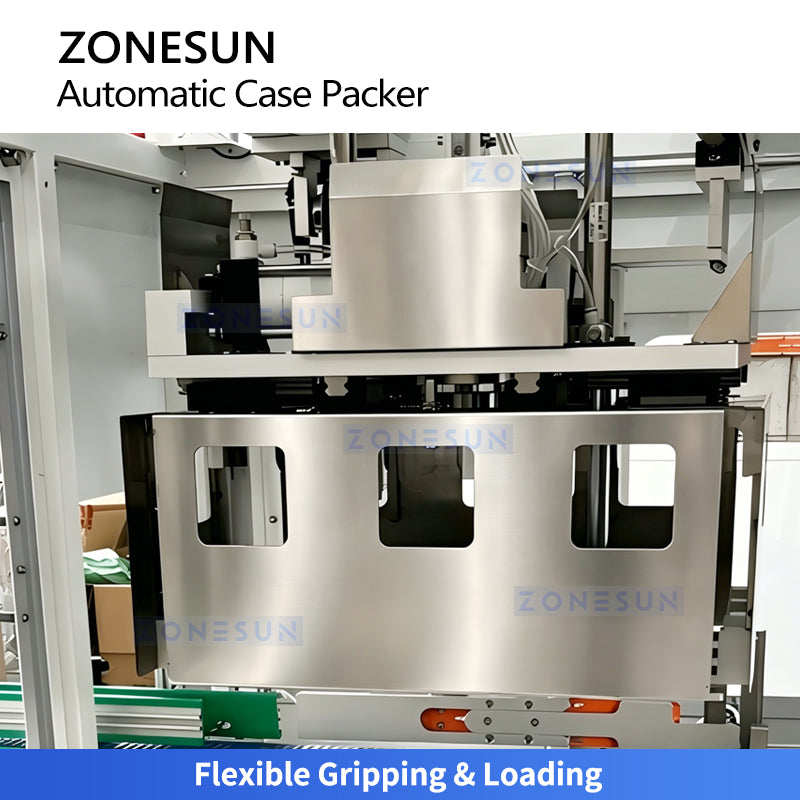

Flexible Gripping & Loading

Uses servo-driven suction cups or clamps that adjust gripping force to each bottle shape, ensuring scratch-free, damage-free handling during high-speed loading.

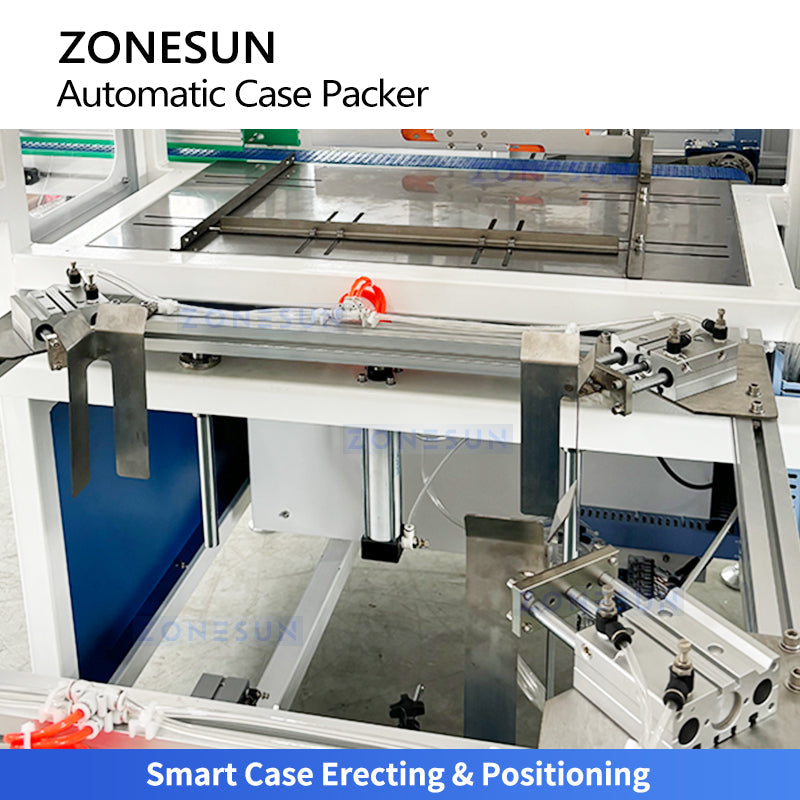

Smart Case Erecting & Positioning

Automatically suctions, erects, and bottom-folds cartons, then positions them precisely at the loading station to ensure each bottle group drops accurately into the case center.

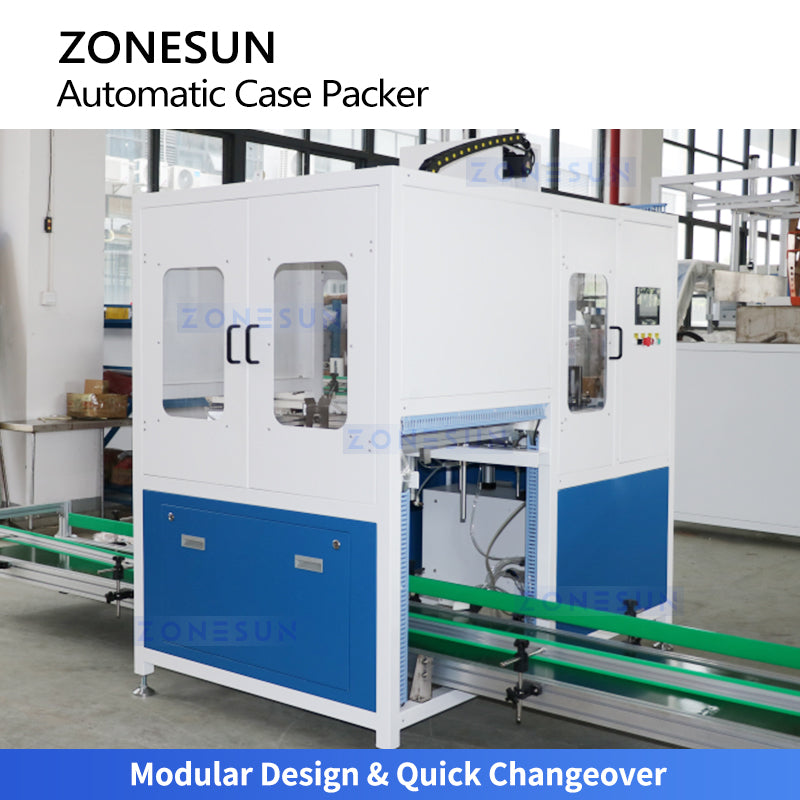

Modular Design & Quick Changeover

Features modular quick-change grippers and guide rails, enabling fast changeovers between different bottle sizes or carton specs without complex tools.

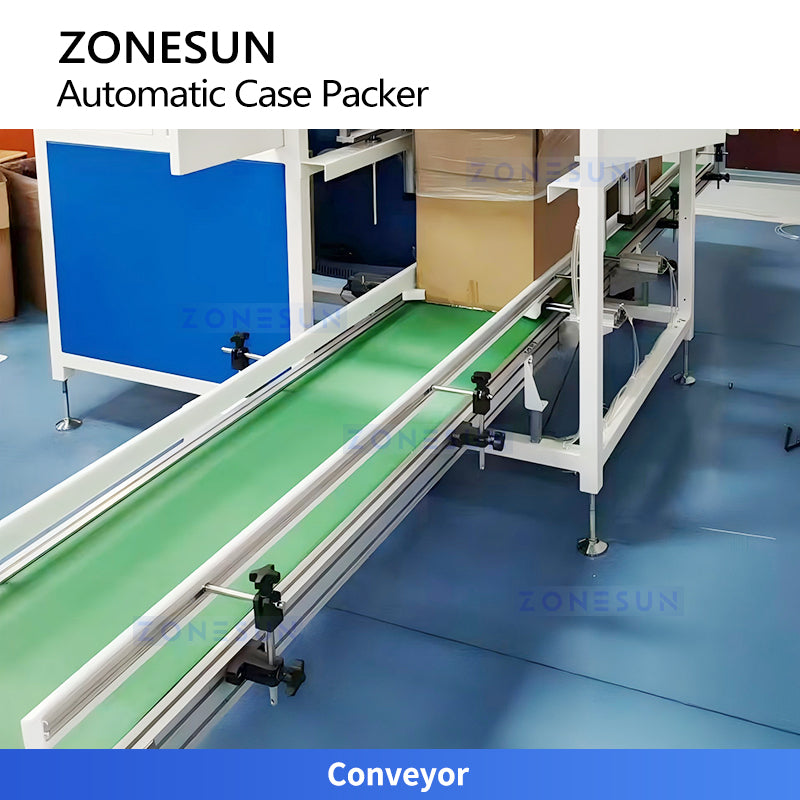

Conveyor

Transfers fully packed cartons smoothly out of the loading station, ensuring stable discharge and seamless handoff to sealing, palletizing, or downstream processes.

Why Choose the ZS-CSPM6?

• ✅ High Throughput: 6–20 cases/min and 3,000–4,500 bottles/hr for large-scale end-of-line production
• ✅ Servo-Driven Grippers: Adjustable gripping force for scratch-free, damage-free bottle handling
• ✅ Intelligent PLC + HMI: One-touch changeover, real-time fault diagnostics, and audiovisual alarms
• ✅ Modular Quick-Change Tooling: Fast changeover between bottle sizes and carton specs with no complex tools
• ✅ Wide Bottle Compatibility: Φ50–125mm diameter, 100–350mm height; round, square, flat & irregular shapes
• ✅ Smart Case Erecting: Automatic carton suction, erecting, and bottom-folding for precise loading
• ✅ Fully Integrated Line: Bottle sorting → gripping → case erecting → loading → outfeed conveying in one system
• ✅ Industrial Three-Phase Power: 220V / 380V, 50Hz for global industrial compatibility

Ideal Applications

• 🍺 Beverage: Water, juice, carbonated drinks, dairy, energy drinks
• 🍯 Food: Sauce, condiments, edible oil, honey, jam
• 🧼 Daily Chemical: Shampoo, body wash, detergent, disinfectant
• 💊 Pharmaceutical: Oral liquid, syrup, medical solution bottles
• 🏭 Industrial: Chemical bottles, lubricant containers, industrial liquid packaging

About ZONESUN

ZONESUN is a leading manufacturer of packaging machinery serving global industries. Every machine is built to strict quality standards, backed by professional technical support and after-sales service. Order with confidence — we’re here to support your production success.
