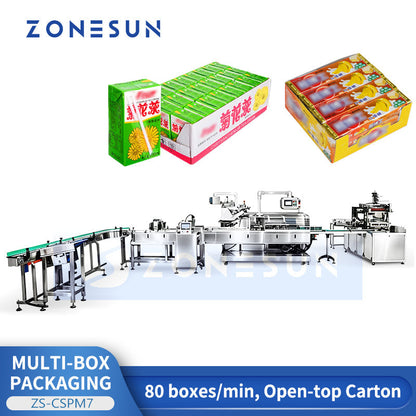

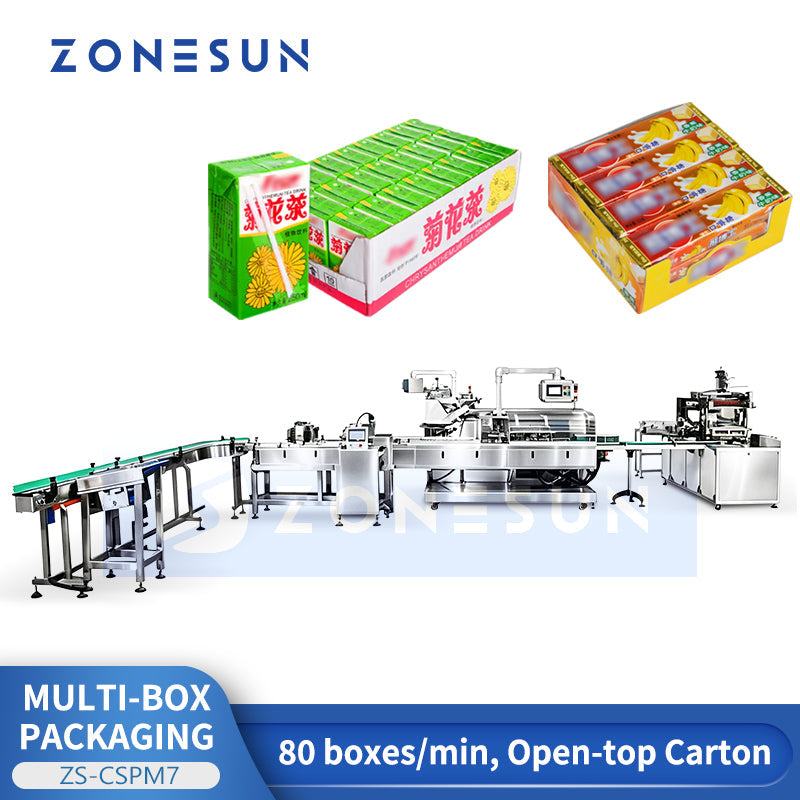

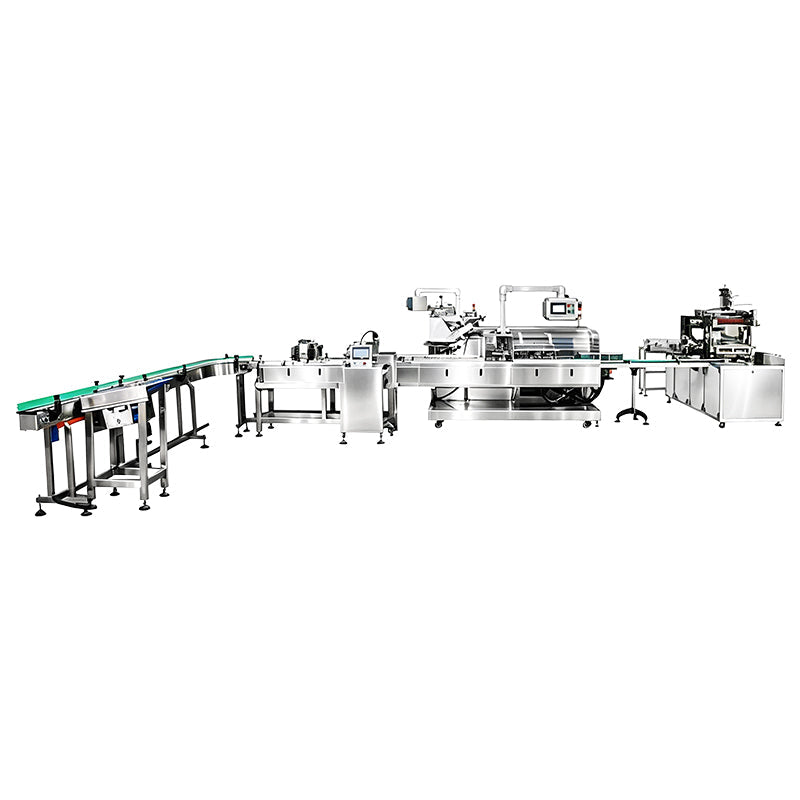

ZONESUN ZS-CSPM7 Automatic Multi-Box Stacking & Carton Packing Machine For Open-Top Tray

Description

The ZONESUN ZS-CSPM7 is an automatic multi-box stacking and carton packing machine designed for high-speed horizontal grouping and open-top tray packaging. With a maximum output of up to 80 boxes per minute, it integrates customizable conveying, automatic sorting and aligning, multi-layer stacking, carton opening and loading, tray forming, and discharge into a single compact system.

Widely used in food, daily chemical, and pharmaceutical industries for products such as bouillon cubes, small cartons, soap bars, and other boxed items that require precise counting, grouping, and open-top tray packaging.

Technical Specifications

• Model: ZS-CSPM7
• Voltage: 380V, 50Hz, Three-Phase
• Total Power: 1.5 kW
• Packing Speed: Max. 80 boxes/min
• Carton Thickness: 250–450 g/m² (subject to carton size confirmation)
• Max Carton Dimension (L×W×H): 260 × 190 × 60–70mm (customizable)
• Working Pressure: ≥ 0.6 MPa
• Air Consumption: 160–200 ml/min
• Machine Dimensions (L×W×H): 5,000 × 1,200 × 1,800mm
• Net Weight: 3,000 kg

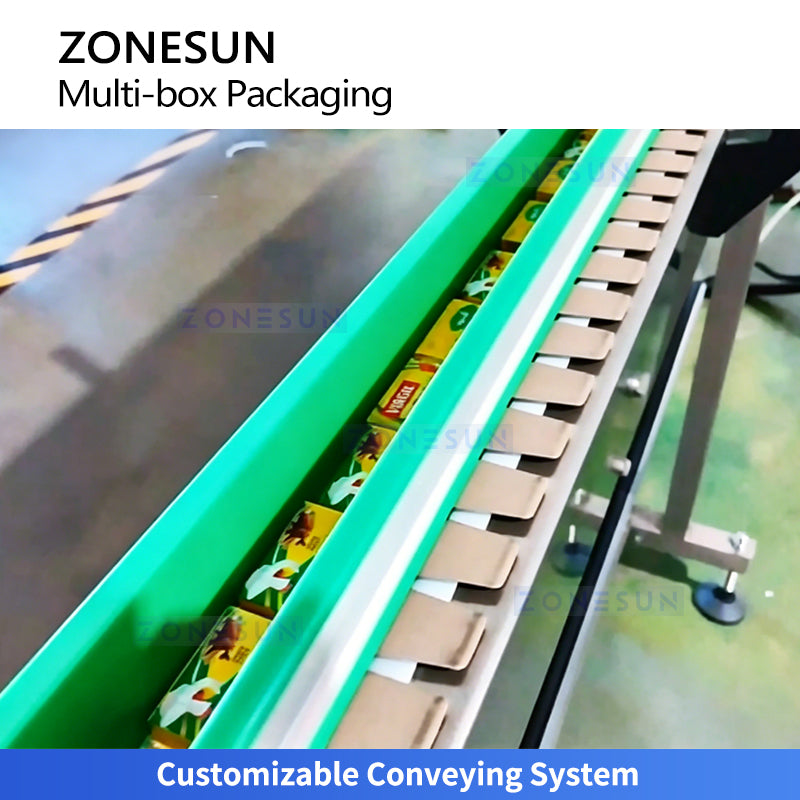

Customizable Conveying System

Provides a customizable conveyor layout tailored to product sizes and workshop space, ensuring smooth, precise material transfer before entering the stacking zone.

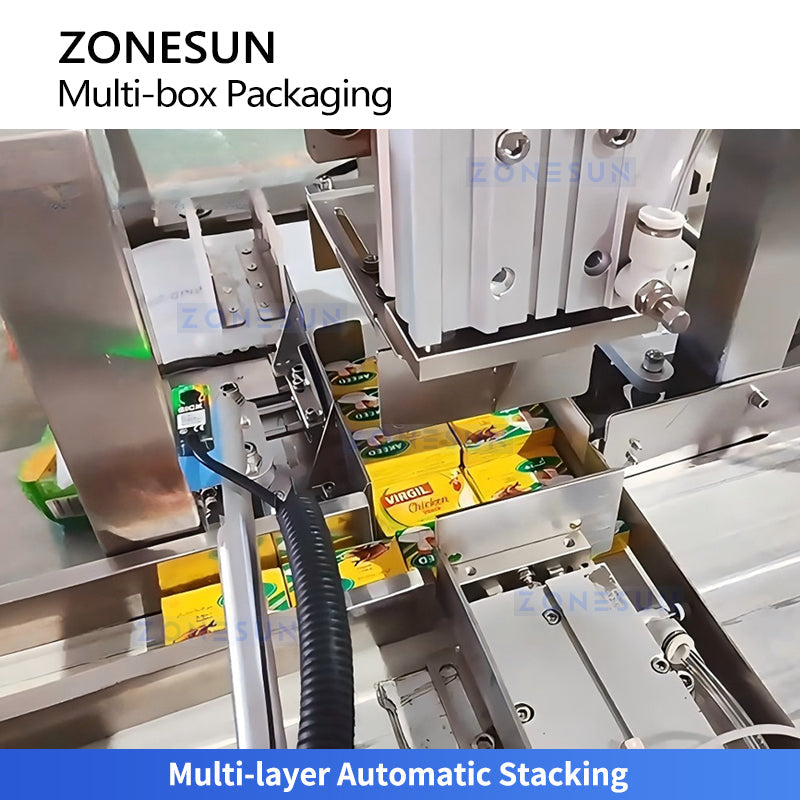

Multi-Layer Automatic Stacking

Stacks products horizontally using precision gripping or lifting mechanisms, enabling accurate multi-row, multi-column counting and grouping before final packing.

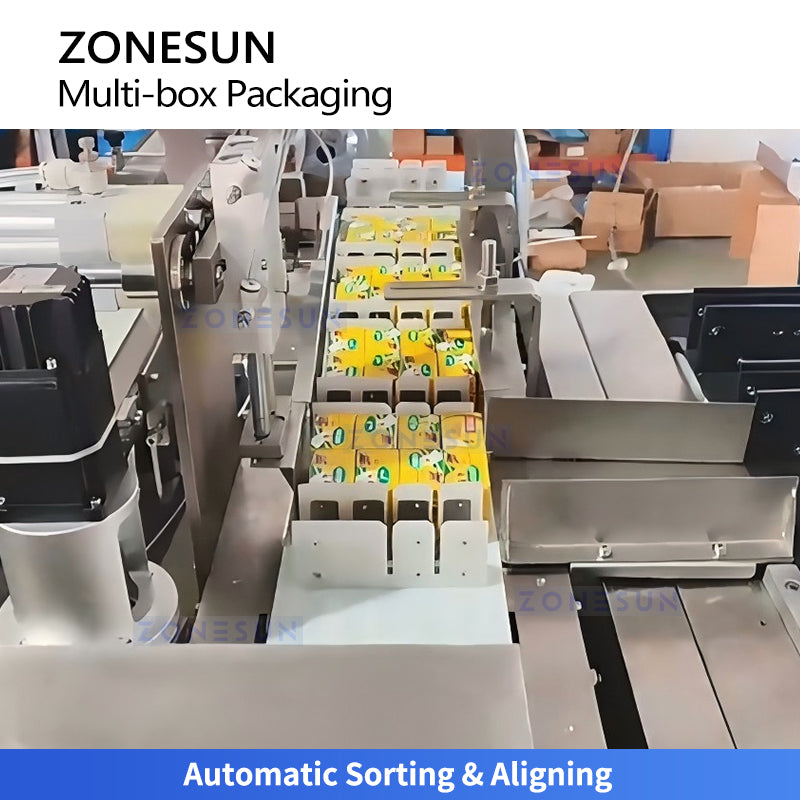

Automatic Sorting & Aligning

Automatically disperses and organizes individual small cartons, arranging them with preset spacing and orientation for orderly, consistent feeding into the stacking process.

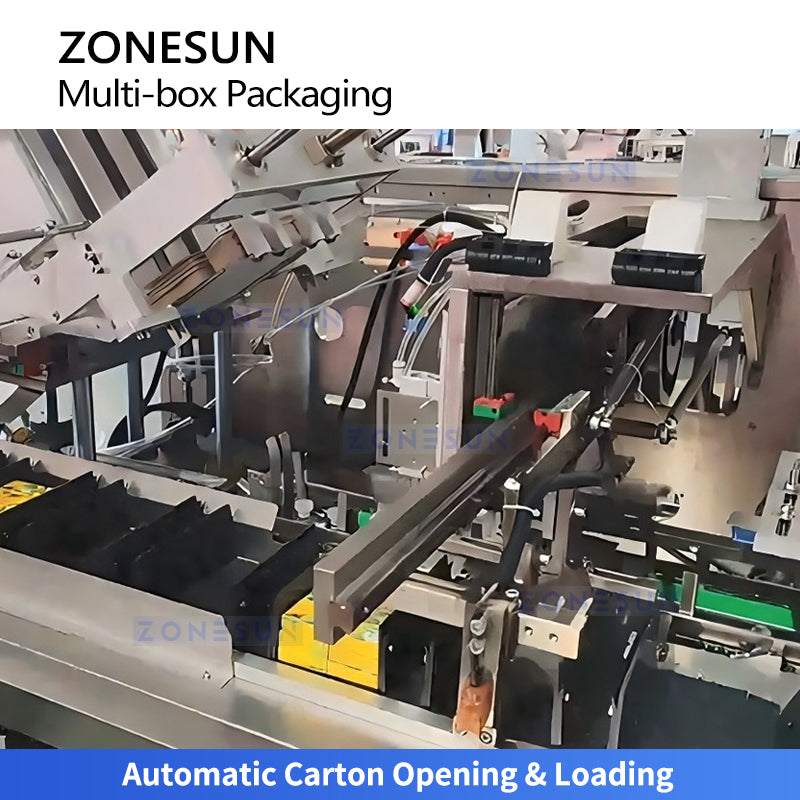

Automatic Carton Opening & Loading

Robotic arms automatically suction and open the outer master cartons, then smoothly push the stacked products into the box, ensuring a seamless loading process.

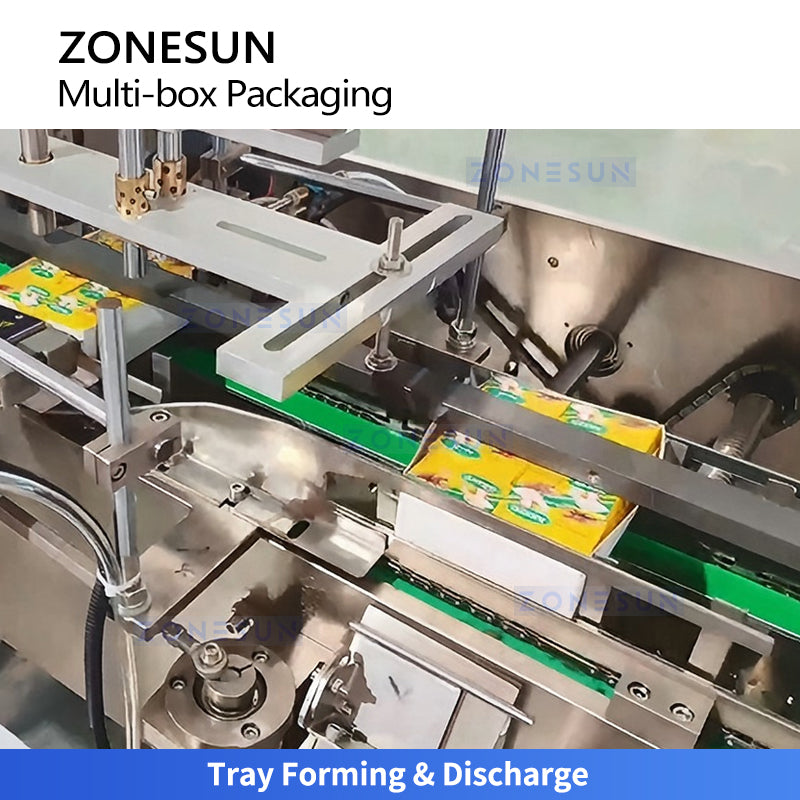

Tray Forming & Discharge

Automatically forms open-top tray boxes with folded edges and discharges the filled trays directly to downstream labeling or palletizing processes.

Why Choose the ZS-CSPM7?

• ✅ High Speed: Up to 80 boxes/min for large-scale, high-throughput production
• ✅ 6-in-1 Integrated System: Conveying → sorting → stacking → carton opening → loading → tray discharge in one line
• ✅ Multi-Layer Stacking: Precise multi-row, multi-column counting and grouping for consistent packing
• ✅ Automatic Carton Opening: Robotic arm suction for seamless master carton opening and product loading
• ✅ Open-Top Tray Forming: Automatic tray forming with folded edges for downstream palletizing
• ✅ Customizable Conveyor: Tailored layout for different product sizes and workshop configurations
• ✅ Compact & Efficient: 1.5 kW total power for energy-efficient high-speed operation
• ✅ Fully Customizable: Carton dimensions and configurations adaptable to your product specifications

Ideal Applications

• Food: Bouillon cubes, biscuits, chocolate bars, instant noodle packets, small food cartons
• Daily Chemical: Soap bars, detergent sachets, personal care product boxes
• Pharmaceutical: Medicine boxes, blister pack cartons, health supplement packaging
• Industrial: Small component boxes, hardware packaging, consumer goods cartons
